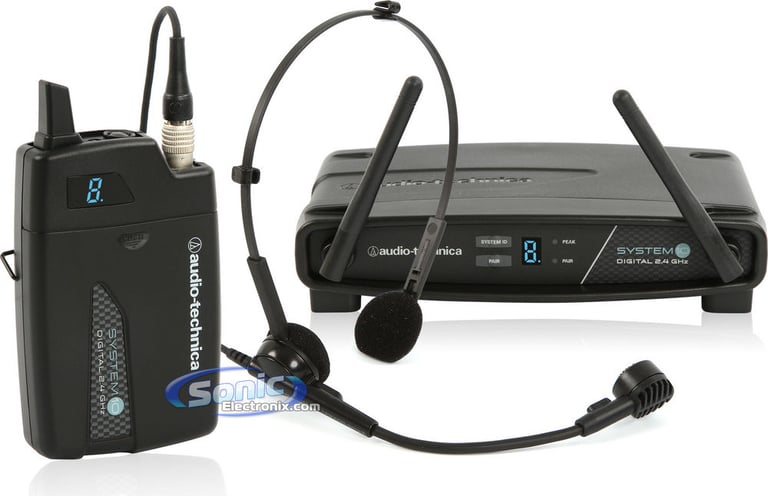

Audio Technica ATW-1101/H

General Features:

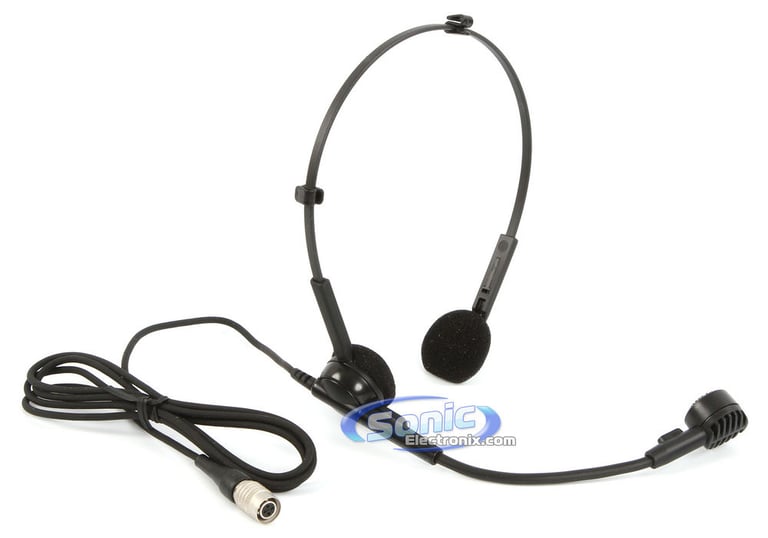

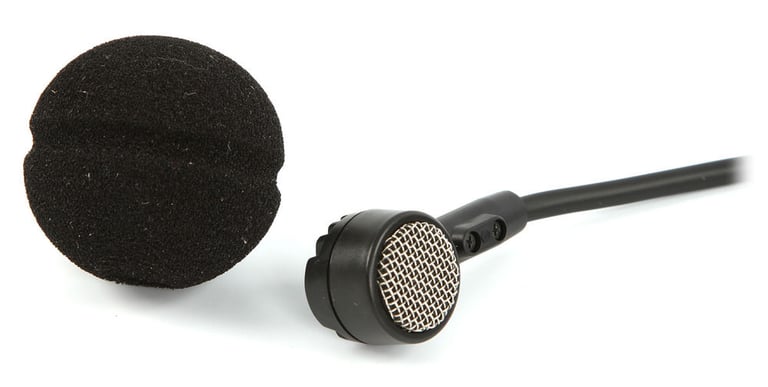

• Professional Wireless Headworn Microphone System
• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• 2.4 GHz range – completely free from TV interference
• Three levels of diversity assurance: frequency, time, & space
• Automatic frequency selection for seamless, interference-free operation
• Extremely easy operation with instantaneous channel selection, sync, and set-up
• State-of-the-art digital receiver for reliable performance
• Balanced XLR and unbalanced 1/4” output jacks with level control

System Specifications:

• Operating Frequencies 2.4 GHz ISM band
• Dynamic Range >109 dB (A-weighted), typical
• Total Harmonic Distortion <0.05% typical
• Operating Range 30 m (100') typical Open range environment with no interfering signals
• Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
• Frequency Response 20 Hz to 20 kHz

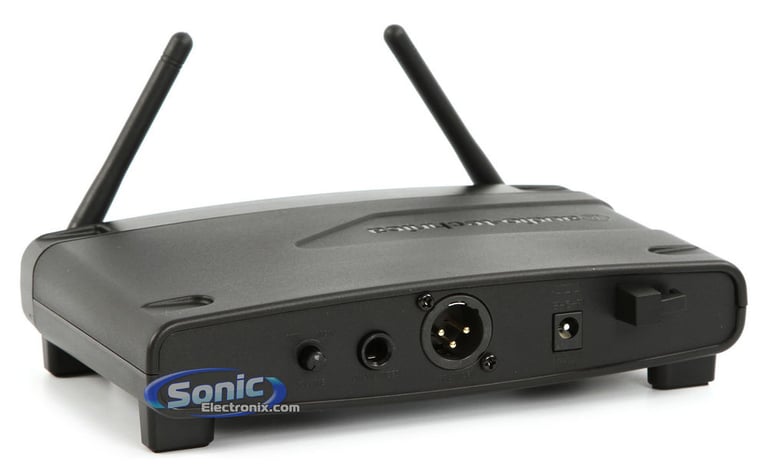

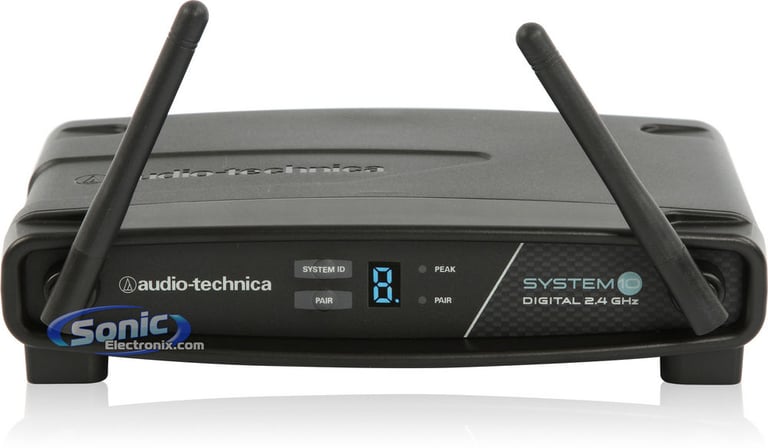

Receiver Specifications:

• Receiving System Diversity (frequency/time/space)
• Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV

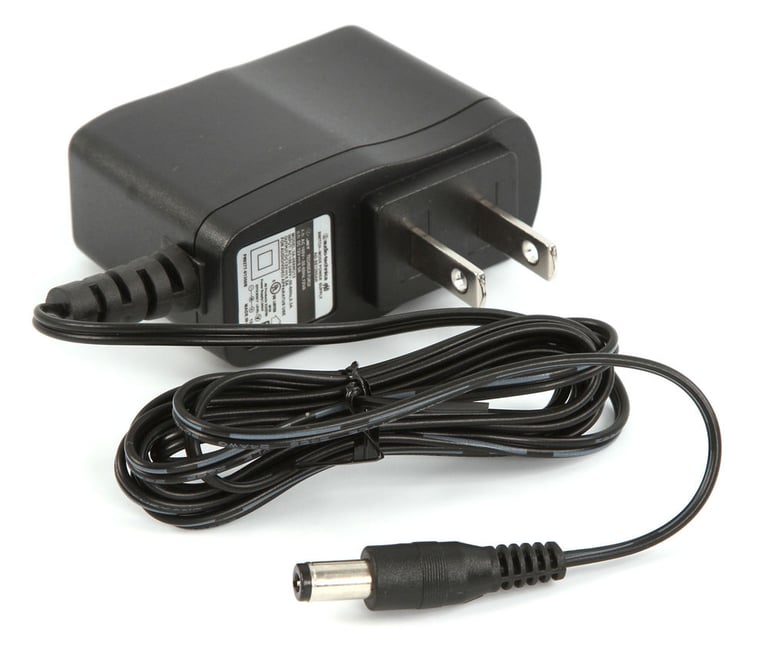

• Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Dimensions 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
• Net Weight 290 grams (10.2 oz)
• Accessory Included Power supply

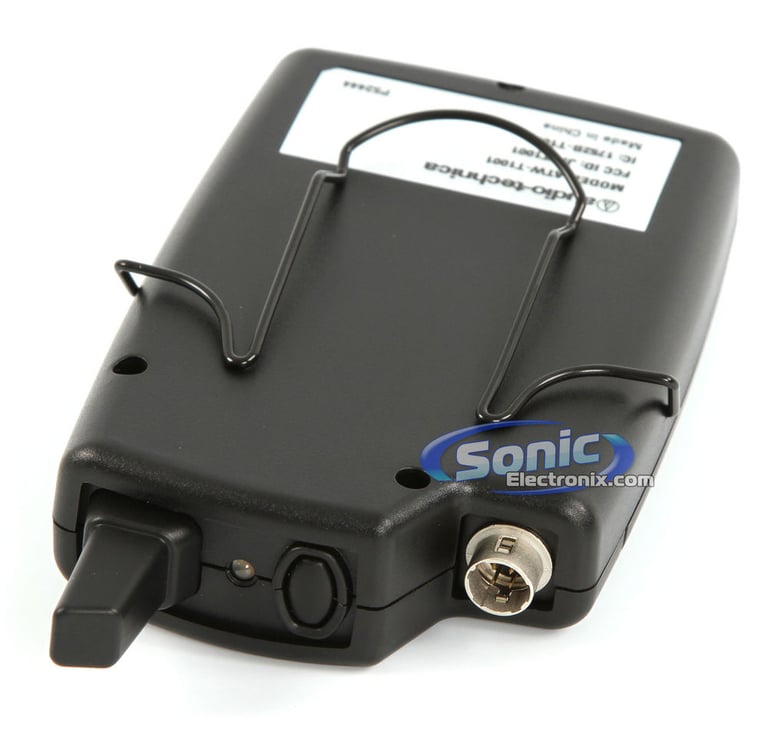

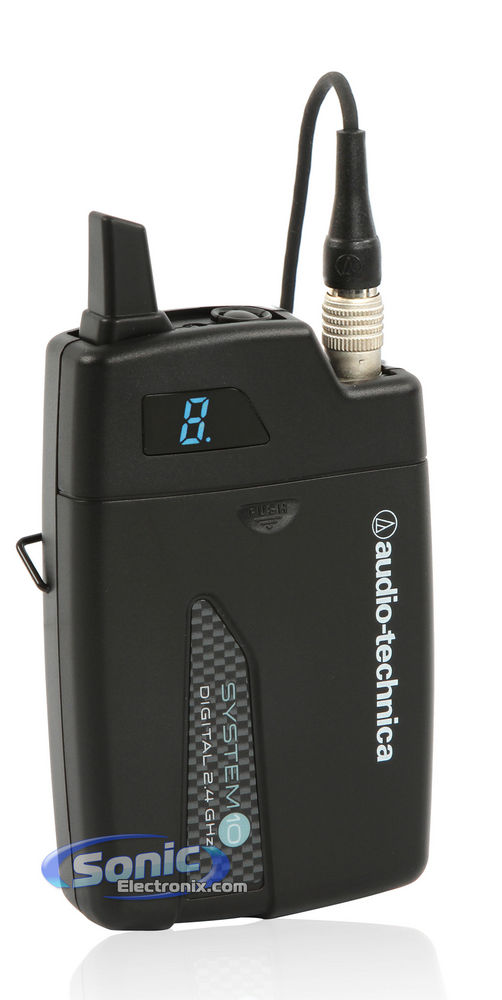

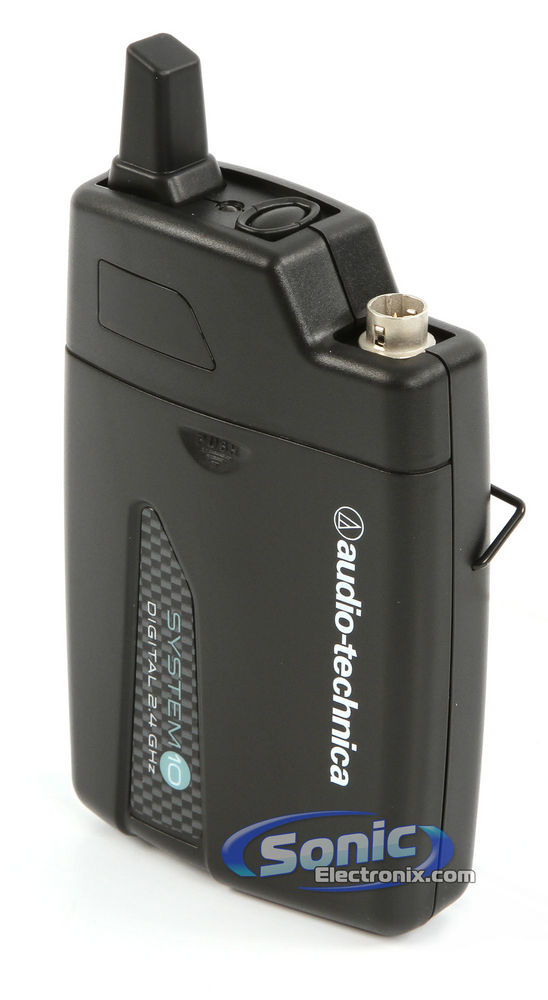

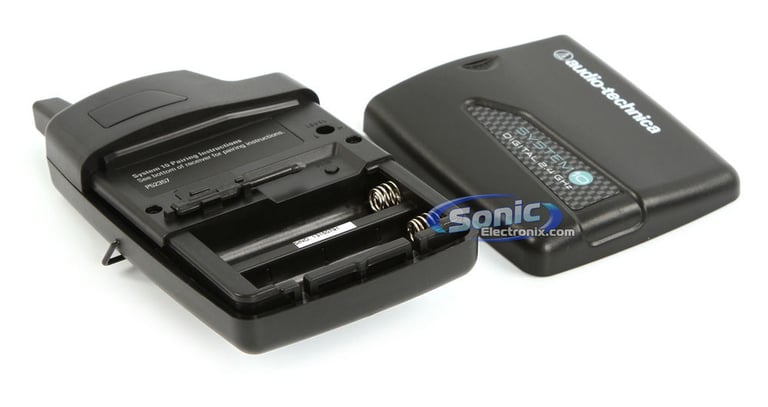

Body Pack Transmitter Specifications:

• RF Power Output 10 mW
• Spurious Emissions Following federal and national regulations
• Input Connections Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
• Batteries Two 1.5V AA (not included)
• Battery Life >7 hours (alkaline) Depending on battery type and use pattern
• Dimensions 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
• Net Weight 100 grams (3.5 oz) without batteries
• Also found as:System 10 Wireless, atw1101g
• Authorized Internet Dealer
• 2-year Manufacturer's Warranty
