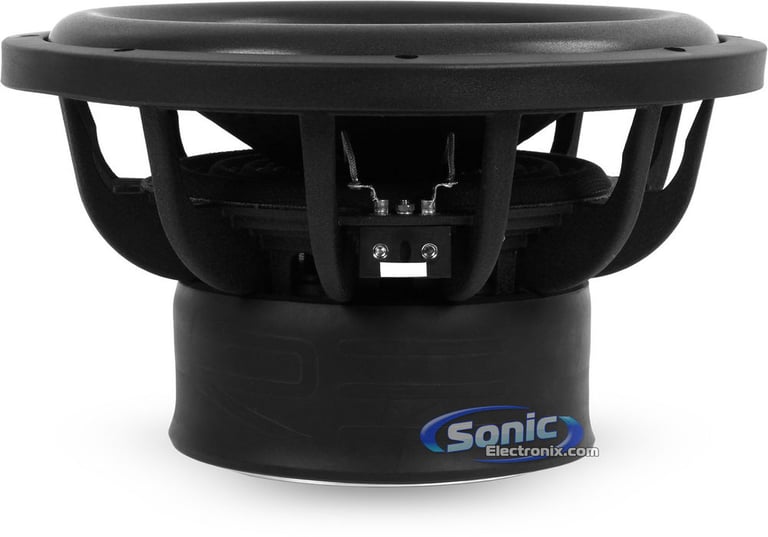

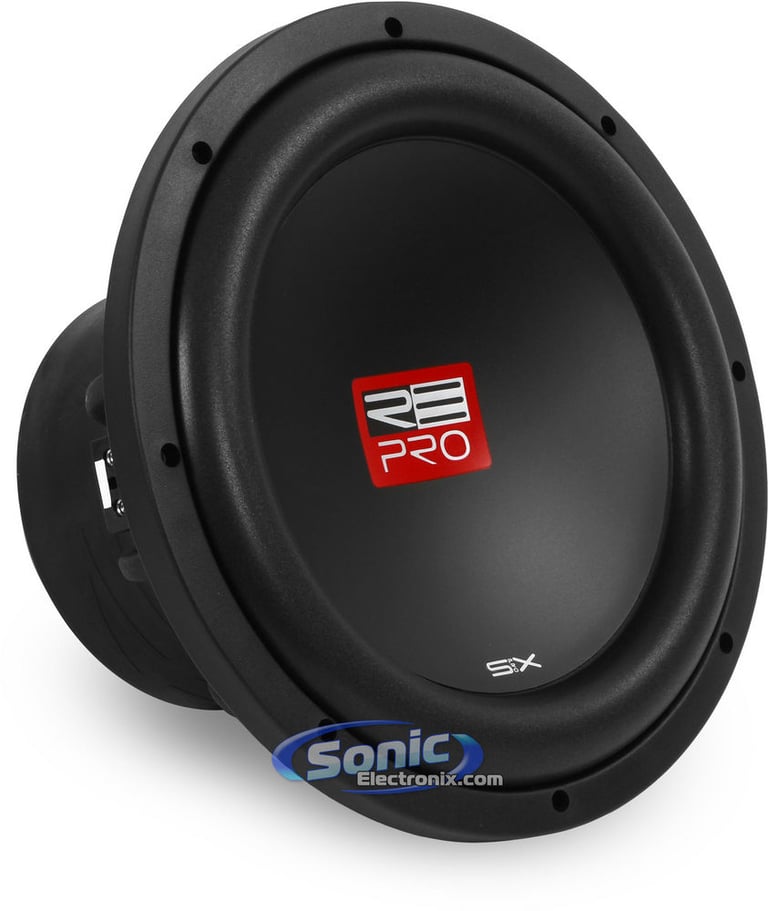

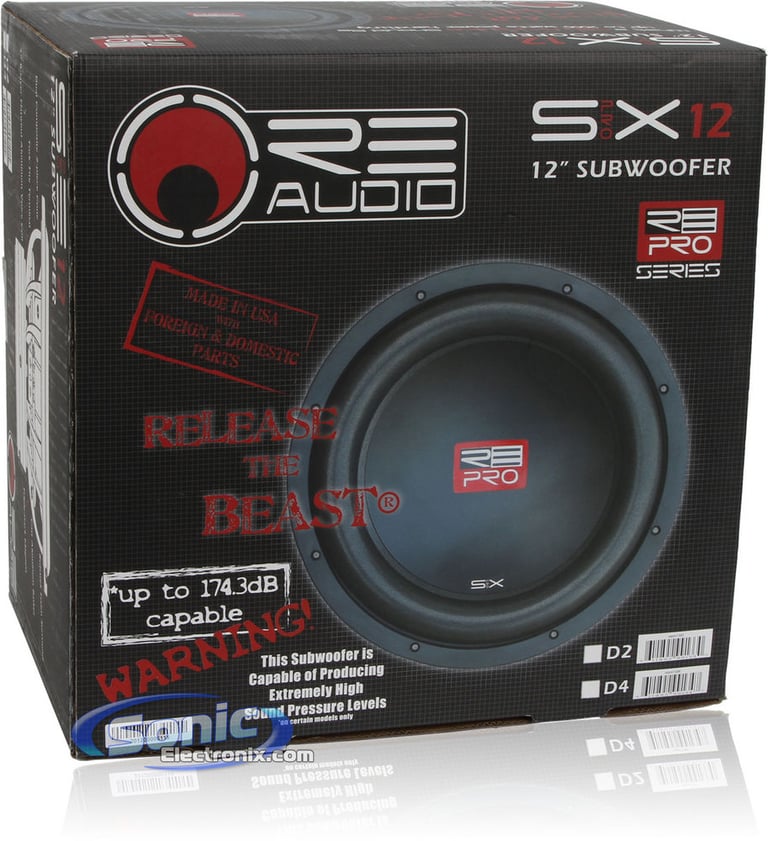

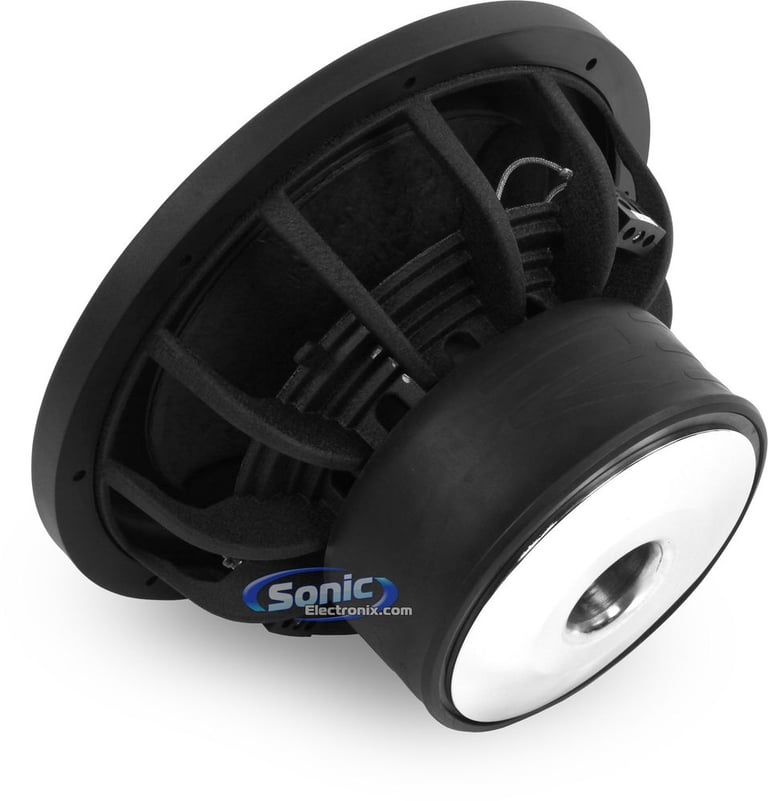

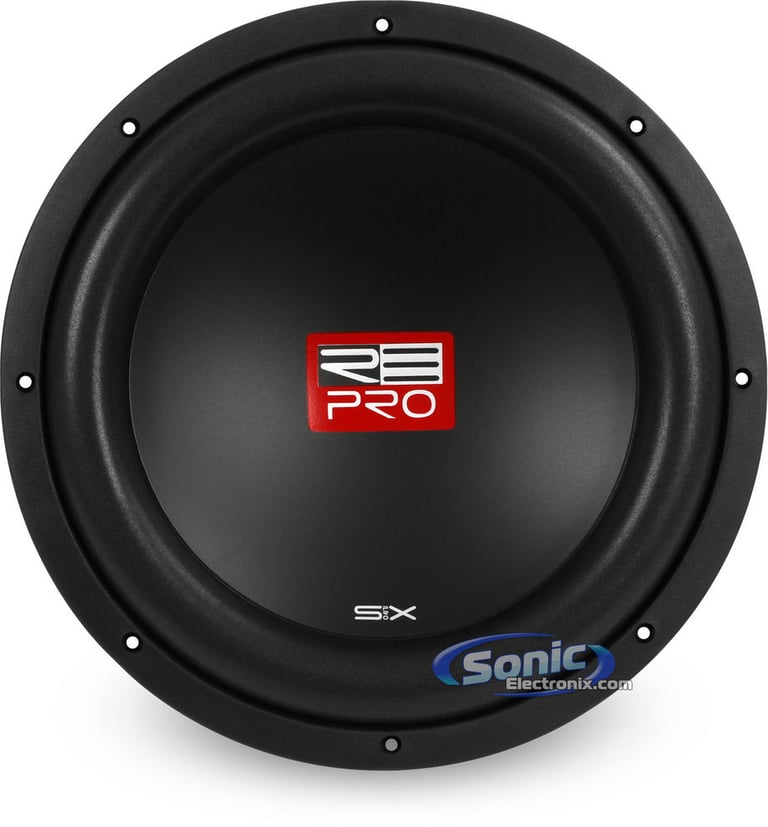

RE Audio SX PRO 12D2 R/B

12" Dual 2 Ohm SX Pro Car Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 1000W
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Wrap-Around Rubber Gasket
• Progressive Spiders
• Cast Aluminum Basket

Learn more about the LS-sxpro12d2-RB

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 1000W
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Wrap-Around Rubber Gasket
• Progressive Spiders
• Cast Aluminum Basket

Description


RE Audio brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

General Features:

  • 12" Dual 2 Ohm SX Pro Series Subwoofer
  • Power Handling:
    • RMS: 1000 watts
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • Progressive spiders
  • Wrap-around rubber gasket
  • Cast aluminum basket
  • Tork-tite terminals
  • 3" 8-Layer aluminum voice coil
  • Triple-stack magnets
  • Resonance Frequency (Fs): 30.6 Hz
  • Top-mount depth: 6-3/4"
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SX PRO 12D2 R/B Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SX PRO 12D2 R/B Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SX PRO 12D2 R/B Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SX PRO 12D2 R/B Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
SX Pro Series
Subwoofer Size
12"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Sensitivity
88.1 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Minimum Ported Box Volume
1.5 cubic feet
Optimum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
11.2"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
30.6 Hz
Equivalent Compliance (Vas)
72.9 liters
Total Speaker Q Value (Qts)
0.3
Electrical Q Value (Qes)
0.32
Electrical Resistance of Voice Coil (Re)
1.9 ohm
Mechanical Q Value (Qms)
4.4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SX PRO 12D2-RB

Weight:

25.50lbs

Internal SKU:

LS-sxpro12d2-RB

Internal Product ID:

78332

Product and How-to Videos
