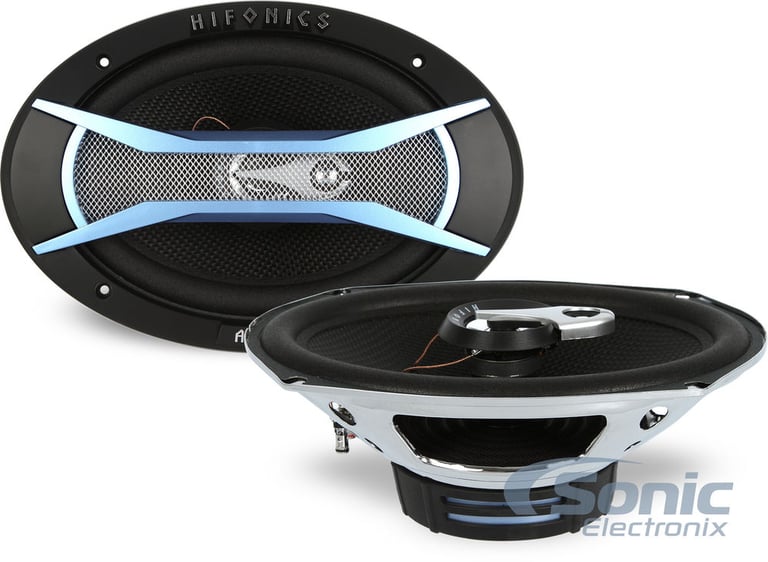

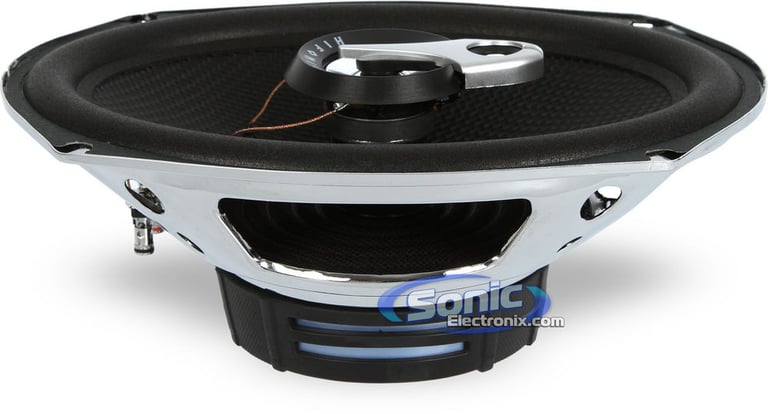

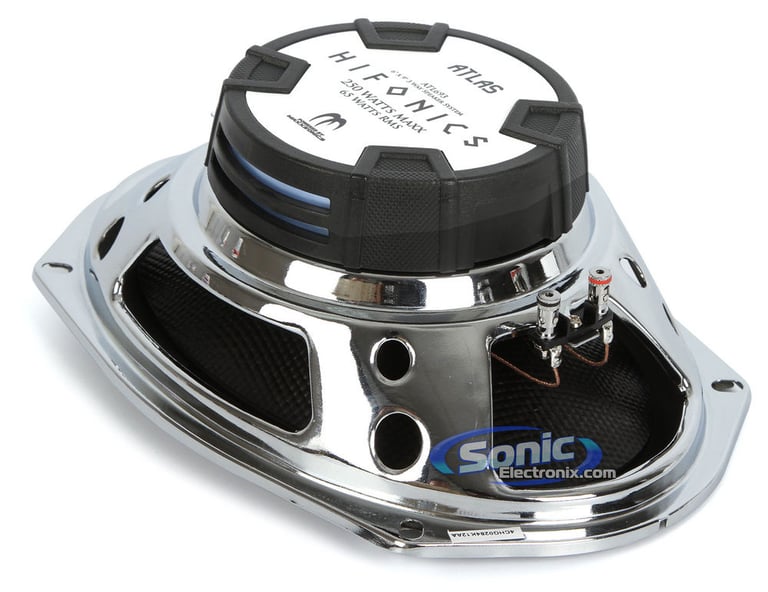

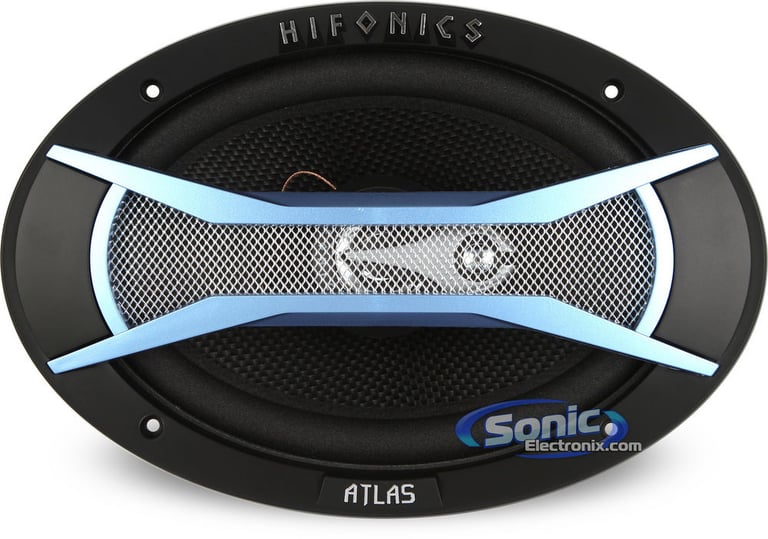

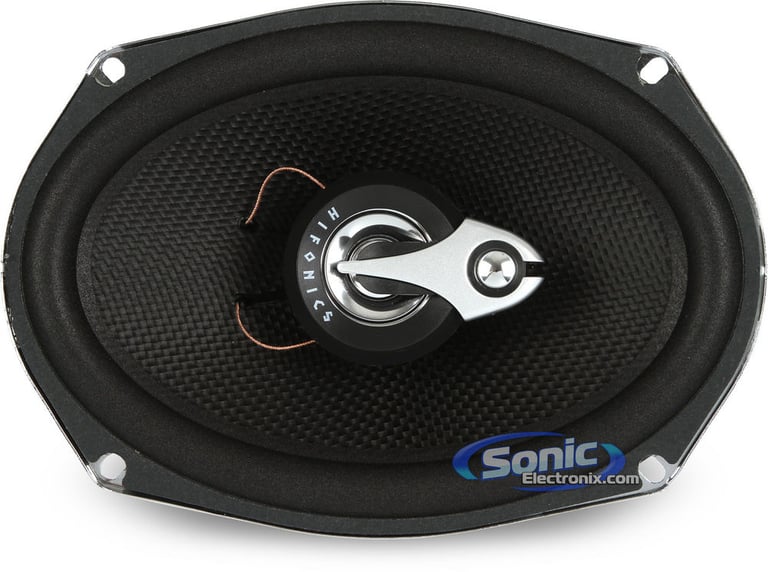

Hifonics ATL693

130W 6x9" 3-Way Atlas Series Coaxial Speakers w/ Silk Tweeters

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• Peak Power: 500W
• RMS Power: 130W
• 3/4" Silk Soft Dome Tweeter
• Mounting Depth: 2-9/16" • Injection Molded Polypropylene (IMPP) Carbon Fiber Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 89dB

Learn more about the atl693

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• Peak Power: 500W
• RMS Power: 130W
• 3/4" Silk Soft Dome Tweeter
• Mounting Depth: 2-9/16" • Injection Molded Polypropylene (IMPP) Carbon Fiber Woofer Cone
• 4 Ohm Impedance
• Sensitivity: 89dB

Description


Hifonics brand icon

Authorized dealer

General Features:

  • 6" x 9" Atlas Series 3-Way Car Speakers
  • Power Handling:
    • Peak: 500 watts per pair / 250 watts each
    • RMS: 130 watts per pair / 65 watts each
  • Injection Molded Polypropylene (IMPP) Carbon Fiber patterned cone material
  • UV Resistant Foam speaker surround

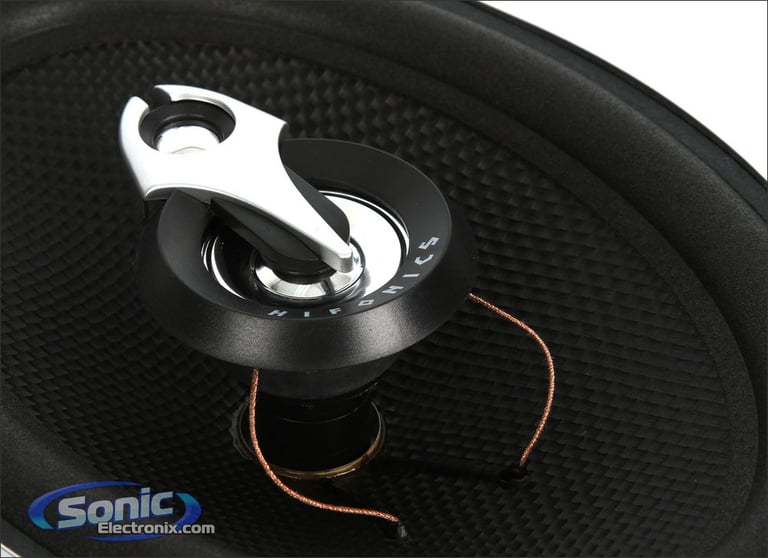

  • 3/4" Silk Dome tweeter design
  • High-temperature voice coil with Aluminum former
  • Ultra Rigid Stamped Steel Basket with Chrome plating
  • PVC magnet boot cover for protection
  • Push and Insert spring loaded speaker terminals for maximum hold
  • Mounting hardware and speaker grilles included
  • 4 ohm impedance
  • Frequency response: 46-20,000 Hz
  • Top-mount depth: 2-9/16"
  • Sensitivity: 89dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair


Best selling similar products

46CSC6934 small

Kicker CSC693 (46CSC6934)

• 450 watts Peak Each, 150 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(40)

$111.96

List price $159.99

SXE-6926S small

Alpine SXE-6926S

• 280 watts Peak Each, 90 watts RMS Each
• Mylar Dome tweeters
• Natural Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(13)

$56.99

List price $71.99

REF697F small

Infinity REF697F (INFSPKRF697FUS)

• 300 watts Peak Each, 100 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 94 dB

(5)

$139.95

List price $169.95

Specifications & Details


Speaker Specifications
Series
Atlas Series
Priced Per
Pair
Speaker Size
6" x 9"
Design
3-way Coaxial
Tweeter Design
Dome
Tweeter Size
3/4"
Tweeter Composition
Silk
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Foam
Peak Power Handling
250 watts
RMS Power Handling
65 watts
Sensitivity
89 dB
Frequency Response
46 - 20000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3-1/8"
Bottom-Mount Depth
3-2/8"
Cutout Dimensions
6" x 8-3/4"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATL693

Weight:

8.00lbs

Internal SKU:

atl693

Internal Product ID:

68150

Product and How-to Videos


Customer Ratings & Reviews


Hifonics ATL693 thumbnail image

5 star
50%
4 star
25%
3 star
25%
2 star
0%
1 star
0%



Durability
4.8
Value
4.5
Features
4.8
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

awesome

clear mid and highs when powered by a cea compliant amplifier, i would recommend these for people wanting to upgrade from factory

By D-BOY on May 11, 2014

30 found this helpful


Nice!

Huge improvement over my stock 240sx speakers. Have them in 6x9 boxes and they sound great. For the price they can't be beat.

By John on August 10, 2014

26 found this helpful


I'm loving my Hifonics 6X9's

I would recommend these for any vehicle! I replaced the factory speakers (4) in my 2013 300 and before they were all installed I noticed a big difference. These speakers sound really nice and for the price I don't think they can be beat. They fit right into the factory opening, no modifications needed and they really sing.

By derrick on April 16, 2014

27 found this helpful


Eh they are okay

I bought these to replace my Rockford Primes because i thought they were blown but that wasn't the case. They are okay for stock replacements and are a good match for the Hifonics BRX160.2 and without any 3.5 inch coaxial speakers in the front... these sound a bit muddy.

By Jeff on May 23, 2015 Checkmark Icon Verified purchase

7 found this helpful
