Hifonics ATL5.25C

5-1/4" 2-Way Atlas Series Component Car Speaker System

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• Peak Power: 170W
• RMS Power: 45W
• 2-Way Component System
• 4 ohm Impedance
• Injection Molded Polypropylene Cone
• UV Resistant Foam Surround
• 3/4" Silk Dome Tweeter

Learn more about the atl525c

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• Peak Power: 170W
• RMS Power: 45W
• 2-Way Component System
• 4 ohm Impedance
• Injection Molded Polypropylene Cone
• UV Resistant Foam Surround
• 3/4" Silk Dome Tweeter

Description


Hifonics brand icon

Authorized dealer

General Features:

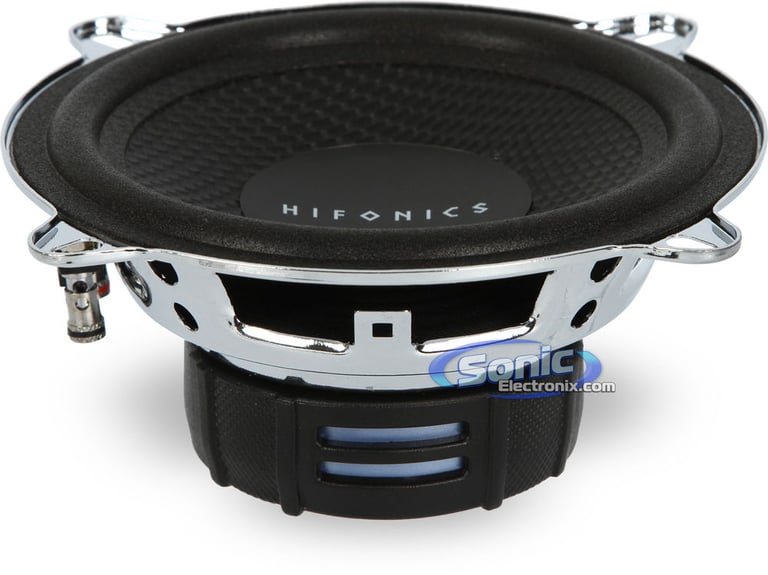

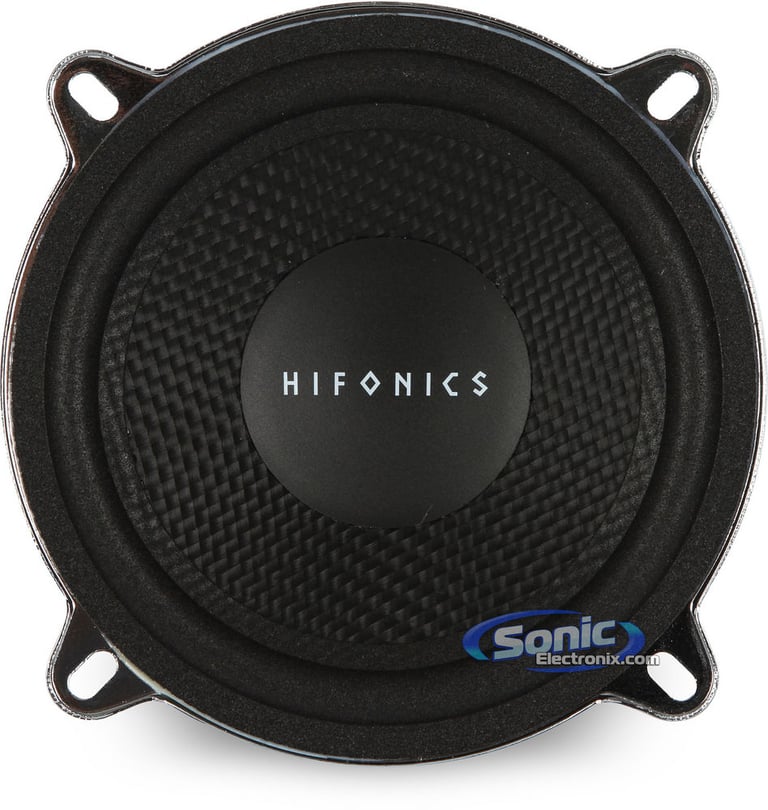

  • 5-1/4" Atlas Series 2-Way Component System
  • Power Handling:
    • Peak: 340 watts per set / 170 watts each side
    • RMS: 90 watts per set / 45 watts each side
  • Injection Molded Polypropylene (IMPP) Carbon Fiber patterned cone material
  • UV Resistant Foam speaker surround

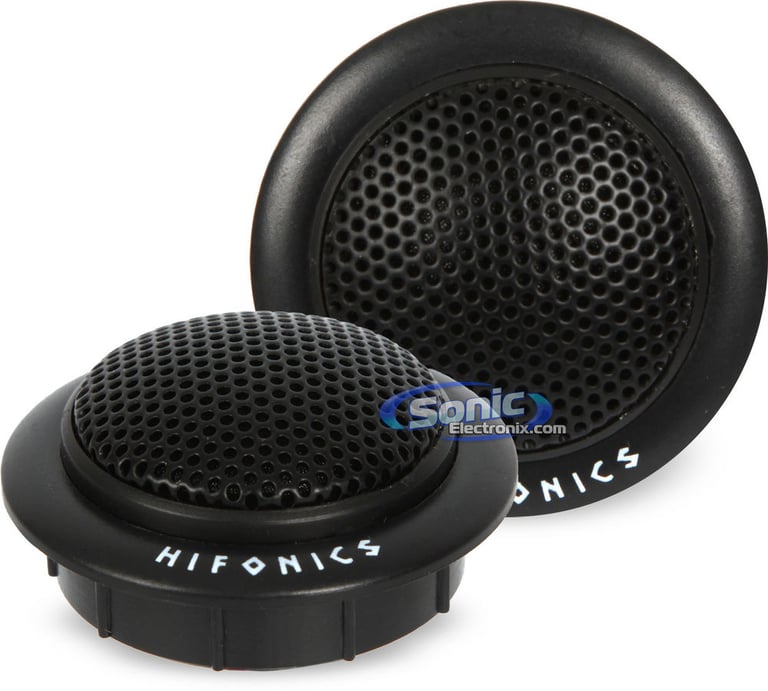

  • 3/4" Silk Dome tweeter design
  • High-temperature voice coil with Aluminum former

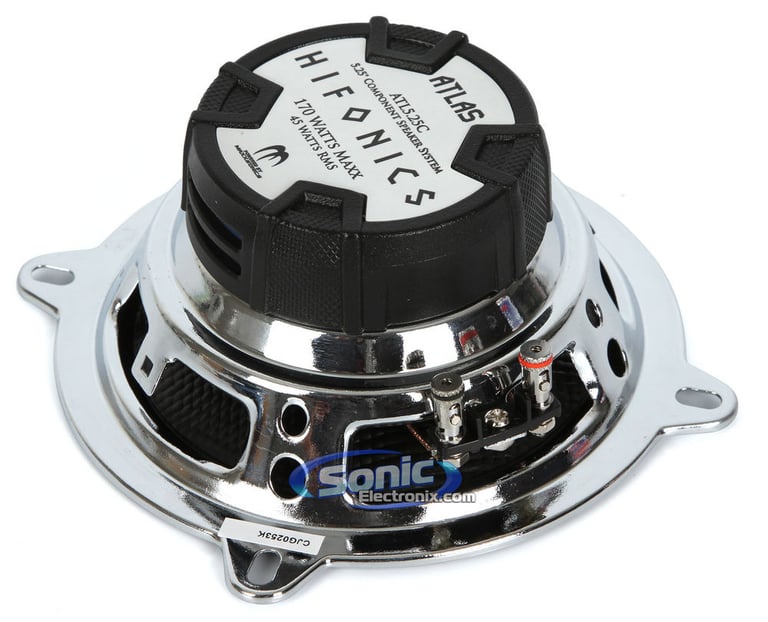

  • Ultra Rigid Stamped Steel Basket with Chrome plating
  • PVC magnet boot cover for protection

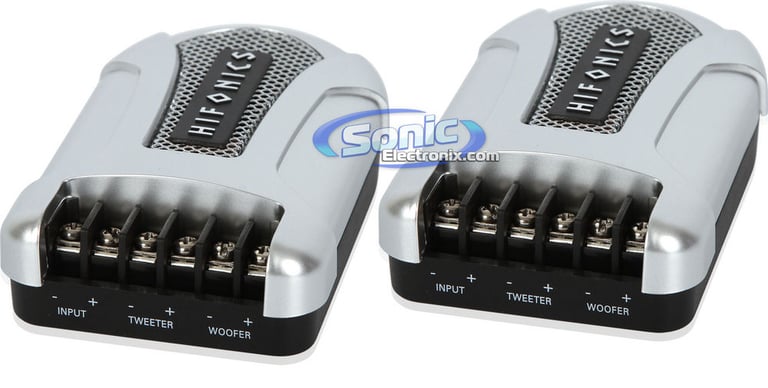

  • Separate 12dB/octave passive crossover filter
  • Push and Insert spring loaded speaker terminals for maximum hold

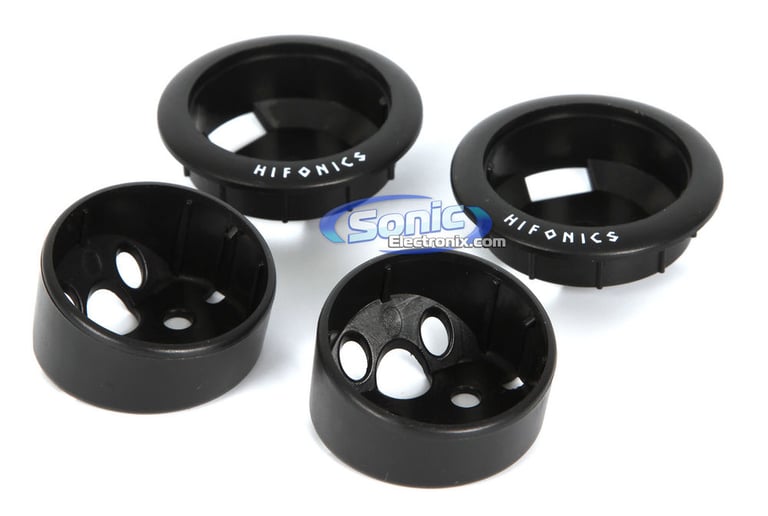

  • Tweeter is Flush and Surface mountable with included adapters

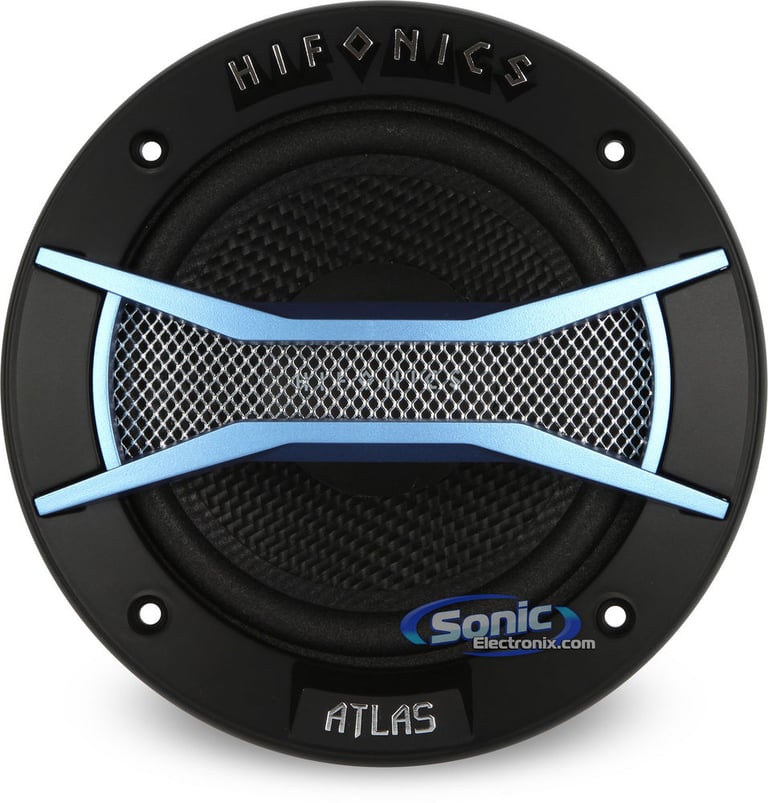

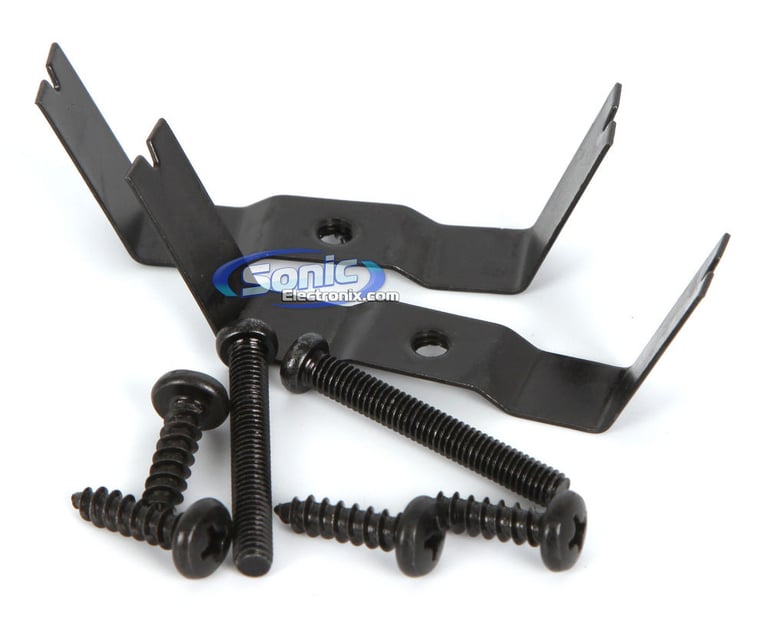

  • Mounting hardware and speaker grilles included
  • 4 ohm impedance
  • Frequency response: 70-20,000 Hz
  • Top-mount depth: 2-1/4"
  • Sensitivity: 78dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

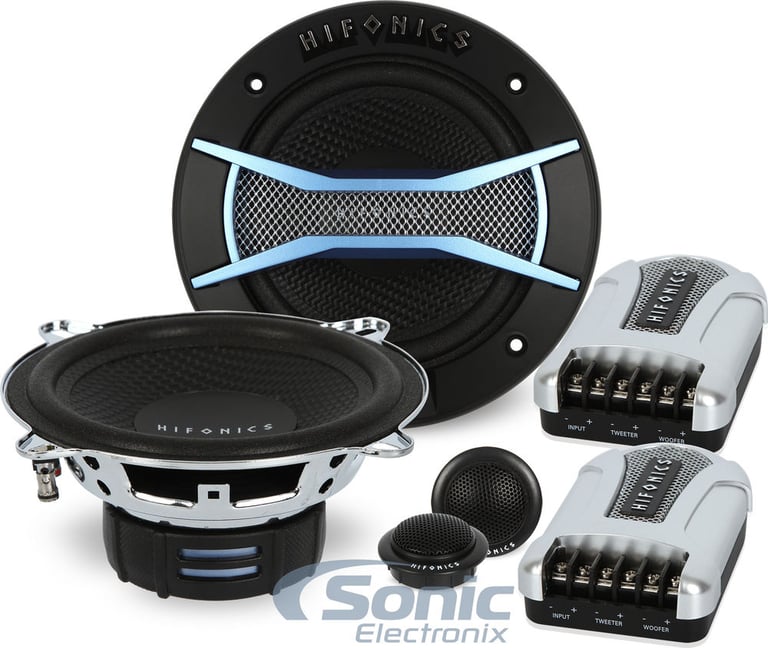

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

R152-S small

Rockford Fosgate Prime R152-S

• 80 watts Peak Each, 40 watts RMS Each
• 1" Mylar Balanced Dome tweeters
• Mica Injected Polypropylene - MIPP cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

(26)

$79.99

List price $79.99

TERMINATOR52 small

MTX Audio TERMINATOR52

• 70 watts Peak Each, 35 watts RMS Each
• 1" Mylar Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 83.6 dB

(5)

$39.99

List price $129.95

PR503CF small

Infinity Primus 503CF (PR503CF)

• 150 watts Peak Each, 50 watts RMS Each
• 3/4" Silk Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 91 dB

(1)

$119.95

List price $149.95

XED525C small

Cerwin-Vega XED525C

• 250 watts Peak Each, 30 watts RMS Each
• 1/2" Metal Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(8)

$59.99

List price $71.99

Kappa 503CF small

Infinity Kappa 503CF (INFSPKKA503CFAM)

• 240 watts Peak Each, 80 watts RMS Each
• 3/4" Silk Edge Driven Dome uni-pivot and angled tweeters
• Glass Fiber cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(1)

$279.99

List price $449.95

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(4)

$200.00

List price $209.99

51KSS504 small

Kicker KSS5 (51KSS504)

• 200 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(2)

$249.99

List price $279.99

Specifications & Details


Speaker Specifications
Series
Atlas Series
Priced Per
Pair
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
3/4"
Tweeter Composition
Silk
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Foam
Peak Power Handling
170 watts
RMS Power Handling
45 watts
Sensitivity
87 dB
Frequency Response
70 - 20000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-1/4"
Bottom-Mount Depth
2-3/8"
Cutout Dimensions
4-1/2" x 4-1/2"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ATL5.25C

Weight:

6.00lbs

Internal SKU:

atl525c

Internal Product ID:

68151

Product and How-to Videos


Customer Ratings & Reviews


Hifonics ATL5.25C thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.3
Value
4.5
Features
4.3
Design
4
Usability
4.8

Customer Reviews

Sort by:

Loading...

Good factory replacement

I installed these running straight off my deck only wanting to seat the speakers to get them broken in before adding them to my amp. Decent sound for the price you pay. Don't expect screaming highs and thumping lows these aren't meant for full quality sound. Still a decent speaker though and for what they are a good step up from factory.

Experience. Db drag competition 5 years. MECP trained.

By BP on March 29, 2014

22 found this helpful


Good speaker for the Money.

I have used larger Hifonics products in the past such as amps, Woofers, crossovers and 6.5 Mids. I thought I would try these little guys to richen the sound of my F350 Sound System. I was impressed with the build quality and the sound. They are not $500 hi end speakers but the do fill their niche. The tweeters
are not to over powering.
Yes I would buy them again.

By Moedog on February 6, 2015

16 found this helpful


door speakers

this product was more than I thought I was going to be the sound and quality coming out pretty darn well

By Jason on July 16, 2014

15 found this helpful


Hifonics ATL5.25

I bought these for my sedan and I'm quite impressed with them. I'm just running them off my alpine head unit to break them in and then I'll hook them up to an amp. I didn't like how they're more expensive than the 6 1/2 ones and how simple the crossover is, i opened it up and it's really simple looking and the outside of the crossover is almost as big as your hand so finding a placement is kinda hard.

By Jose on December 18, 2013

13 found this helpful
