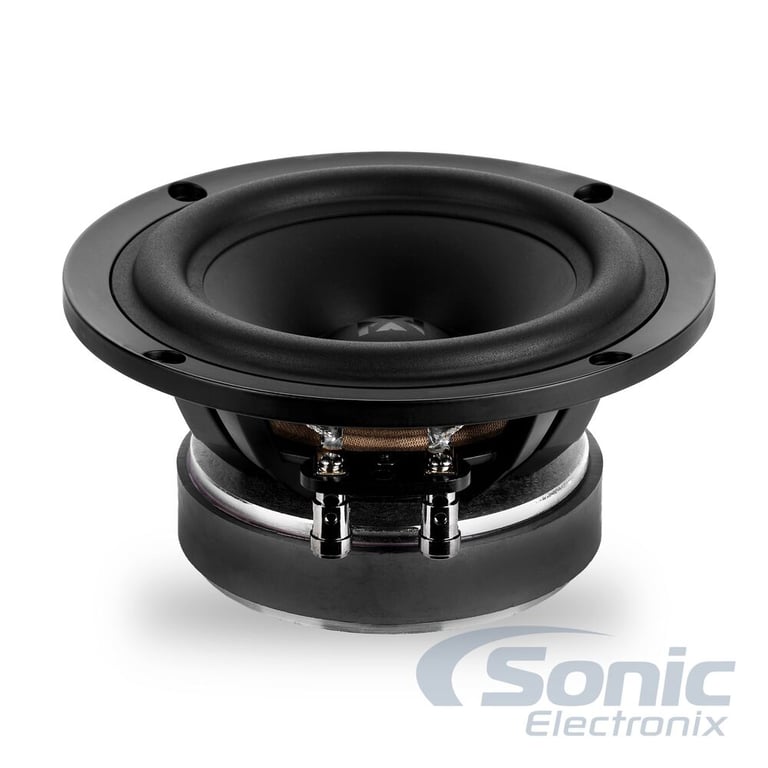

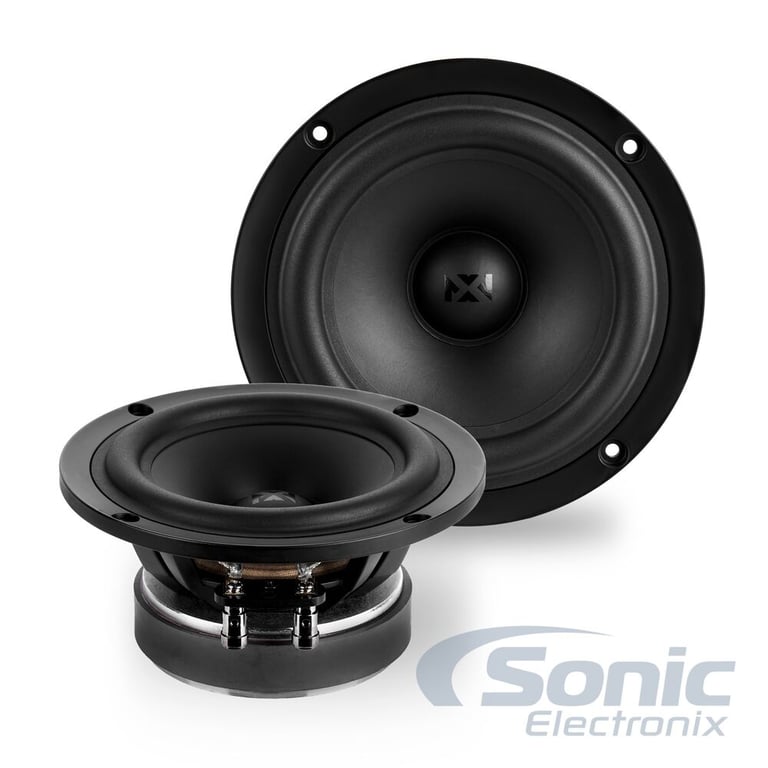

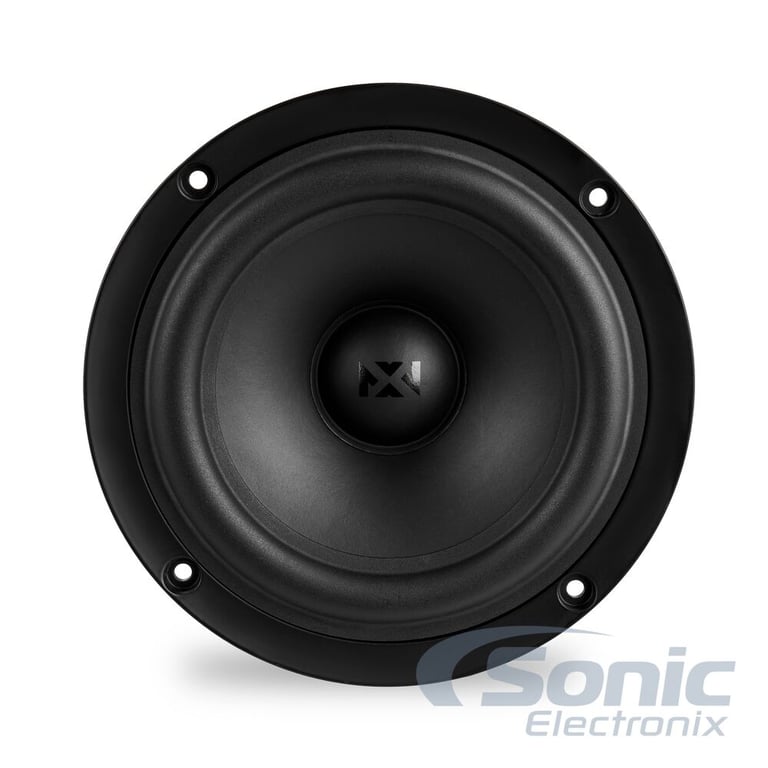

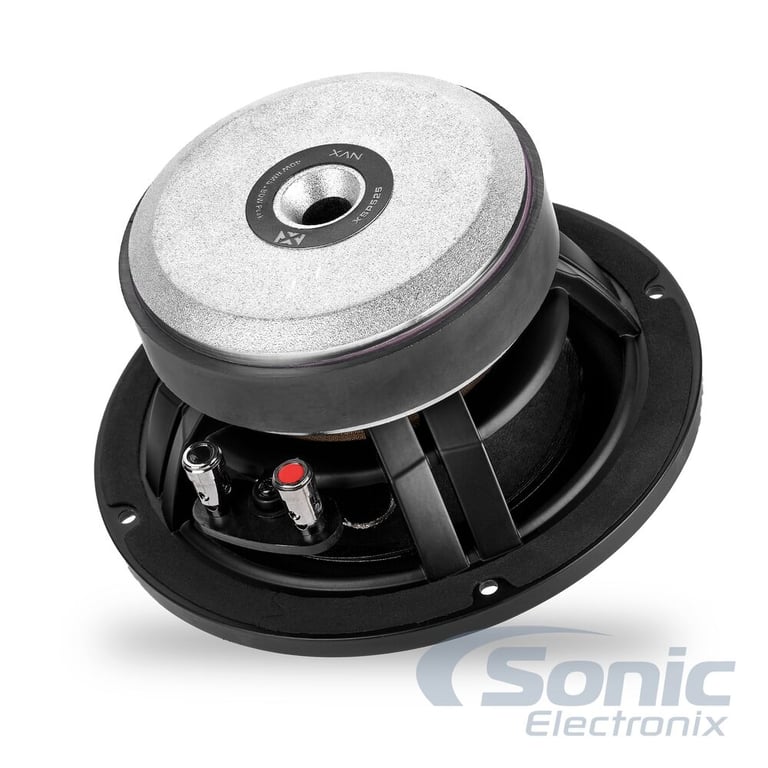

NVX XSP525

5-1/4" X-Series Component Mid-Bass Drivers

NVX
Shop all NVX
Product videos
highlight-star-icon

• Peak Power: 80W
• RMS Power: 40W
• 4 ohm Impedance
• Finely Milled Pulp and Egyptian Papyrus Fiber Cone
• Low Damping Rubber Surround
• Copper Shorting Sleeve Reduces Inductive Distortion

Learn more about the xsp525

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• Peak Power: 80W
• RMS Power: 40W
• 4 ohm Impedance
• Finely Milled Pulp and Egyptian Papyrus Fiber Cone
• Low Damping Rubber Surround
• Copper Shorting Sleeve Reduces Inductive Distortion

Description


NVX brand icon

Authorized dealer



The Woofer

In order to achieve the crisp and honest sound that sets the X-Series apart from the competition, the NVX engineers set out to build a midwoofer with precise linear movement and minimal mechanical damping. As a result of the extensive research and development process, this midwoofer features materials, technologies, and sound quality unique within the industry:

  • Milled Egyptian Papyrus Pulp Cone
    • Ultra-lightweight & stiff material for spectacular accuracy
    • Rich, natural tonal quality

  • Low-Damping Rubber Surround
    • Improves responsiveness
    • Optimized for use with high-quality amplifiers

  • Copper Shorting Sleeve
    • Improves power delivery to the voice coil
    • Reduces inductive distortion
    • Improves linear movement of cone
    • Improves high-end extension
    • Effectively dissipates heat

  • Copper Shorting Sleeve
    • Reduces compression of the motor structure
    • Improves cone control
    • Reduces back wave interference
    • Reduces basket resonations

General Features:

  • 5-1/4" X-Series Mid-Bass Car Drivers
  • Power Handling:
    • Peak: 160 watts per pair / 80 watts each
    • RMS: 80 watts per pair / 40 watts each
  • Finely Milled Pulp and Egyptian Papyrus Fiber cone material is stiff yet lightweight
  • Low Damping Rubber speaker surround maintains linear movement better than any other material
  • Copper Shorting Sleeve placed in the air gap between the pole piece and the voice coil former reduces inductance
  • Shorting Sleeve improves power delivery to the voice coil, decreases inductive distortion and improves cone linearity
  • Low Turbulence Cast Aluminum Basket improves airflow to reduce compression of the motor structure
  • Relatively soft spider to reduce unwanted mechanical stiffness
  • Speaker housing designed to improve cone control and reduce back-wave interference
  • 3-dimensional cast design dramatically increases the strength and rigidity of the basket
  • Designed to perform optimally in a real car environment
  • 4 ohm impedance
  • Frequency response: 75-4,000 Hz
  • Top-mount depth: 2-3/4"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair


Best selling similar products

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

AP-W81AC small

Deaf Bonce Apocalypse AP-W81AC

• 600 watts Peak Each, 300 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

$189.90

List price $189.90

AP-M61SE small

Deaf Bonce Apocalypse AP-M61SE

• 260 watts Peak Each, 130 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101.5 dB

(8)

$109.90

List price $109.90

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$144.99

List price $169.99

P3V2-25 small

Rockford Fosgate Punch P3 P3V2-25

• 150 watts Peak Each, 75 watts RMS Each
• 20-40% Mica reinforced Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 82 dB

$224.99

List price $299.99

6XL650N-4 small

DS18 6XL650N-4 (Sold Individually)

• 650 watts Peak, 325 watts RMS
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 98.5 dB

$203.95

List price $244.99

AP-M67AN small

Deaf Bonce Apocalypse AP-M67AN

• 600 watts Peak Each, 300 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102 dB

(2)

$449.90

List price $449.90

6XL650NB-4 small

DS18 6XL650NB-4 (Sold Individually)

• 650 watts Peak Each, 325 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97 dB

$203.95

List price $203.95

10XL1000MB-4 small

DS18 10XL1000MB-4 (Sold Individually)

• 1000 watts Peak, 500 watts RMS
• Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99.5 dB

$203.95

List price $244.99

Specifications & Details


Speaker Specifications
Series
X Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
5-1/4"
Design
Mid-range
Woofer Composition
Milled Pulp and Egyptian Papyrus
Woofer Surround
Rubber
Peak Power Handling
80 watts
RMS Power Handling
40 watts
Sensitivity
90 dB
Frequency Response
75 - 4000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-3/4"
Cutout Dimensions
4-7/8" x 4-7/8"
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black

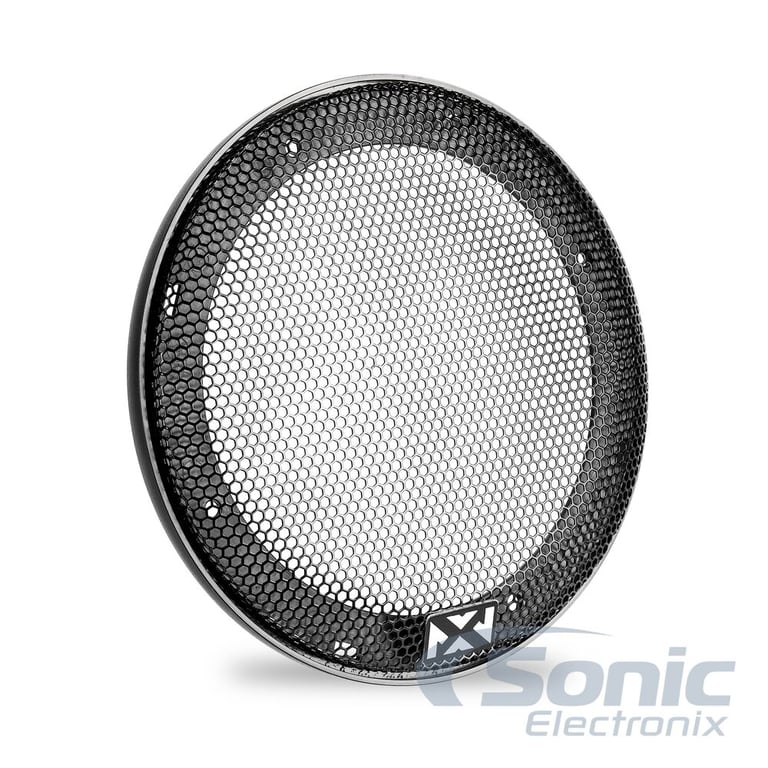

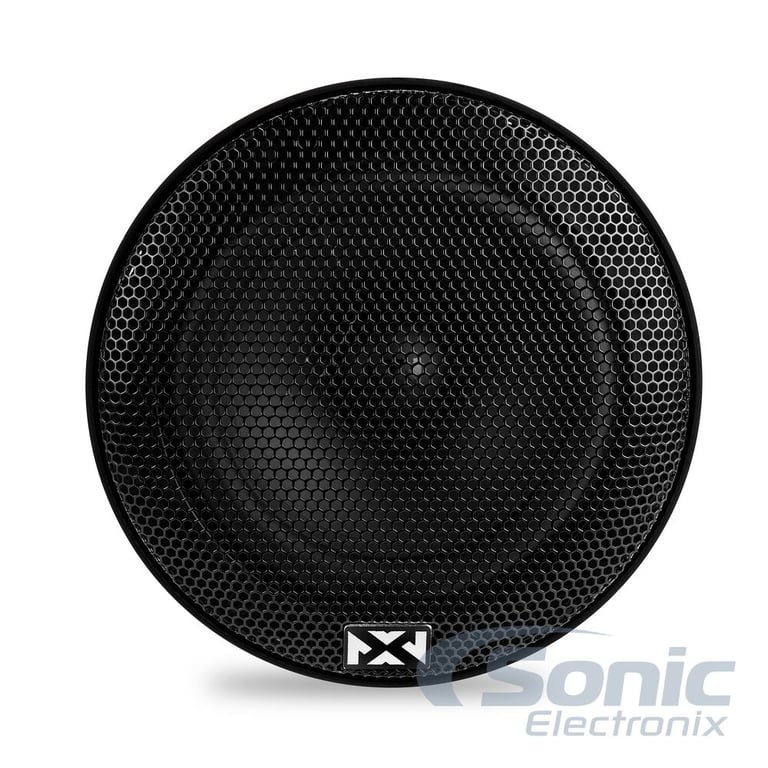

Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XSP525

Weight:

10.00lbs

Internal SKU:

xsp525

Internal Product ID:

68823

Product and How-to Videos


  • NVX X-Series Car Speakers (XSP) | True Audiophile Quality for Music Lovers
  • 40 Mercury NVX Build
  • NVX X-Series Premium Component Car Speakers
  • Zach Kerr of the Colts Shows His Buick at Slamology 2015

Customer Ratings & Reviews


NVX XSP525 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
5
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

AWESOME!!!!!!!

I took a chance on the speakers based on being satisfied with the NVX micro amp. They did not disappoint! This speaker sounds amazing!

By Shawn on April 29, 2016 Checkmark Icon Verified purchase

1 found this helpful


Excellent for the price

These drivers are a great value for $99. I'm using them for rear fill in my Silverado and due to them being midbass drivers, front imaging from the tweeters is not thrown off. The push terminals made the installation process a little easier. These are not your typical 5.25 speakers and will require sound deadening and possibly a spacer due to the beefy magnet, they almost look like small subwoofers. I'm running these on the 5th and 6th channel of a JL XD 600/6 crossed over at 100 hz and they sound excellent.

By Jacob on December 24, 2017 Checkmark Icon Verified purchase


ok speakers

really just some beefed up sb speakers. i had a problem withthe surround coming unglued but sonic made right like always. no hardware

By bob on February 28, 2016 Checkmark Icon Verified purchase


Great product at a great price

Very good product for the money and I highly recommend them to anyone who has a entry level to mid level system they want to upgrade there current system.

By Anonymous on June 27, 2019
