NVX XSP5ACT

5-1/4"2-Way X-Series Active Component Car Speaker System

NVX
Shop all NVX
Product videos
highlight-star-icon

• Peak Power: 210W
• RMS Power: 105W
• 4 ohm Impedance
• Finely Milled Pulp and Egyptian Papyrus Fiber Cone
• Low Damping Rubber Surround
• 29mm Silk Dome Tweeter

Learn more about the xsp5act

We apologize

This item has been discontinued


Loading...
AOEM-FRD24 main

PAC AOEM-FRD24

Amplifier Integration Interface for select 2003-2014 vehicles from Ford, Lincoln, Mercury with Amplified THX and Sony Sound Systems

26
-55.82%

$56.99

List price $129.00

DMX129BT main

Kenwood DMX129BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

2
-26.30%

$199.00

List price $270.00

Product Highlights


• Peak Power: 210W
• RMS Power: 105W
• 4 ohm Impedance
• Finely Milled Pulp and Egyptian Papyrus Fiber Cone
• Low Damping Rubber Surround
• 29mm Silk Dome Tweeter

Description


NVX brand icon

Authorized dealer



General Features:

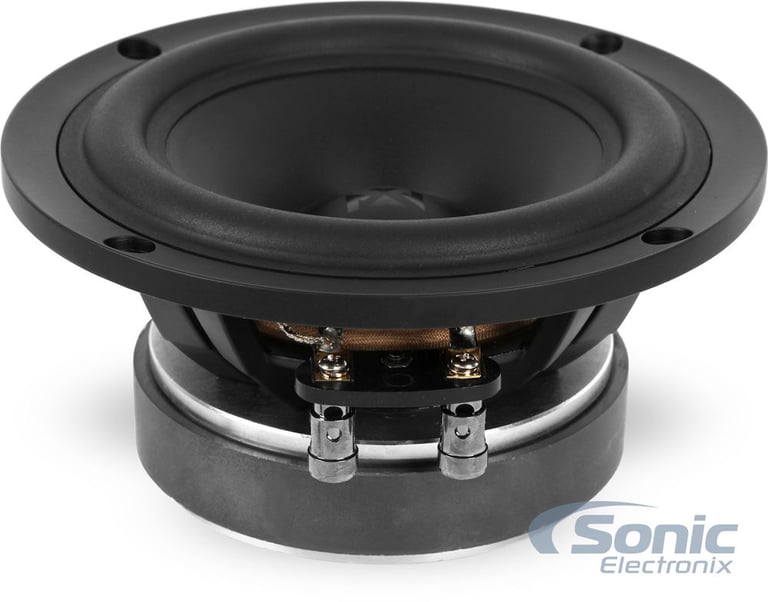

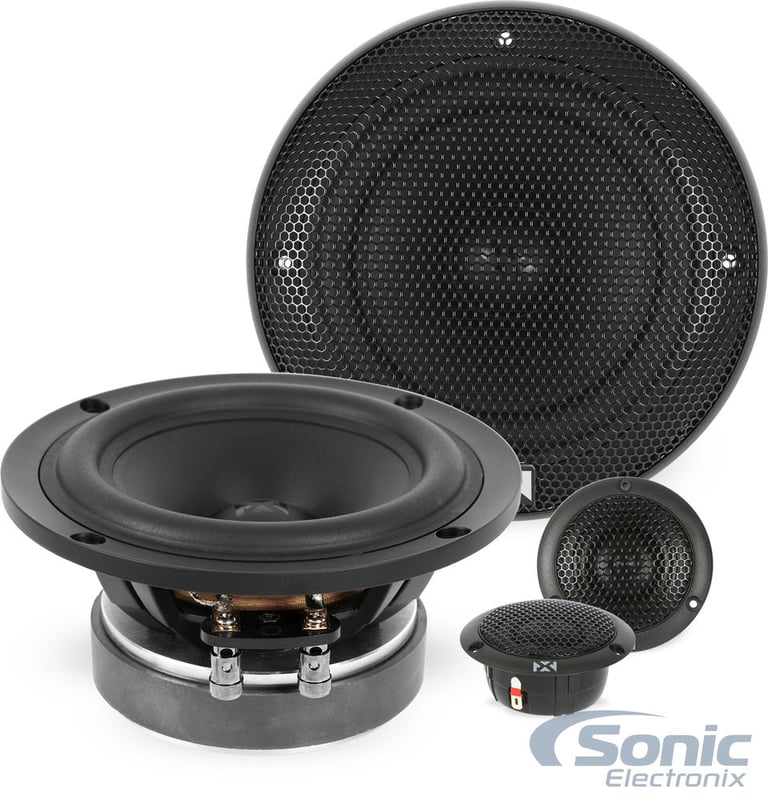

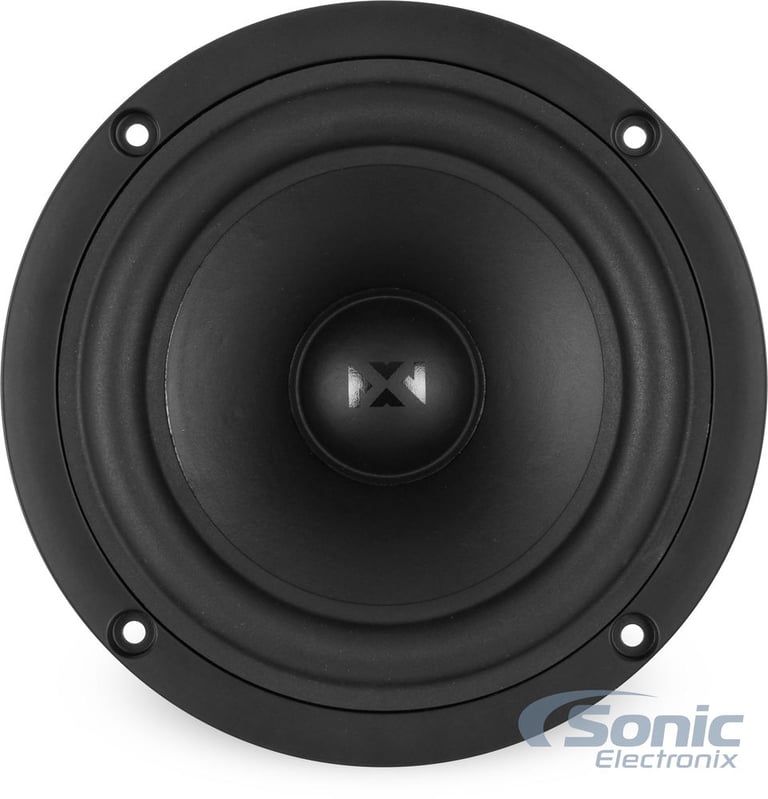

  • 5-1/4" X-Series Active Component System
  • Power Handling:
    • Peak: 420 watts per pair / 210 watts each
    • RMS: 210 watts per pair / 105 watts each

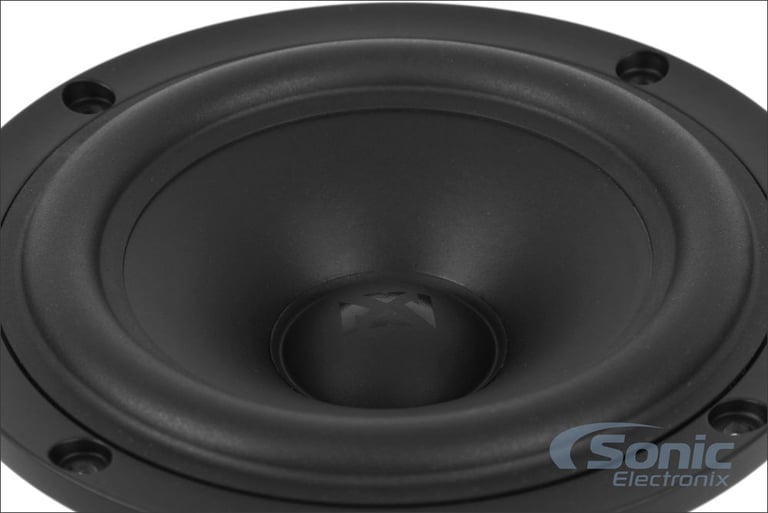

  • Finely Milled Pulp and Egyptian Papyrus Fiber cone material is stiff yet lightweight

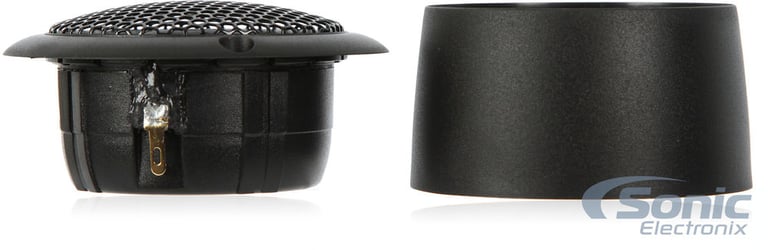

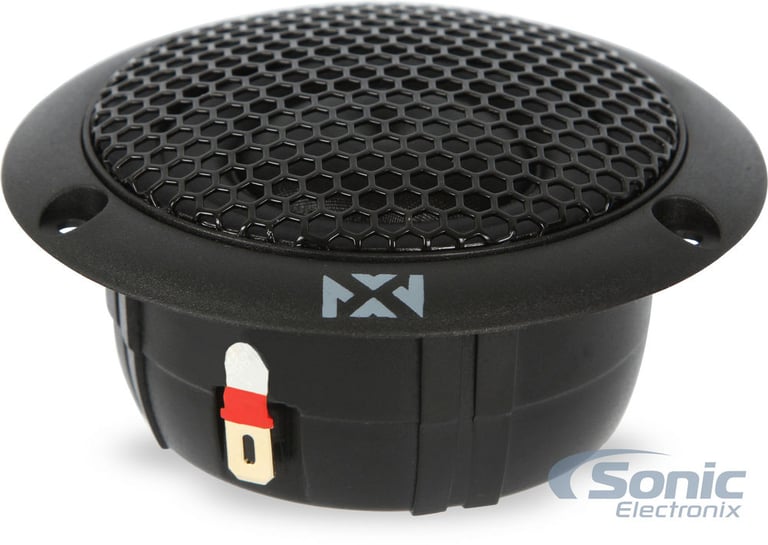

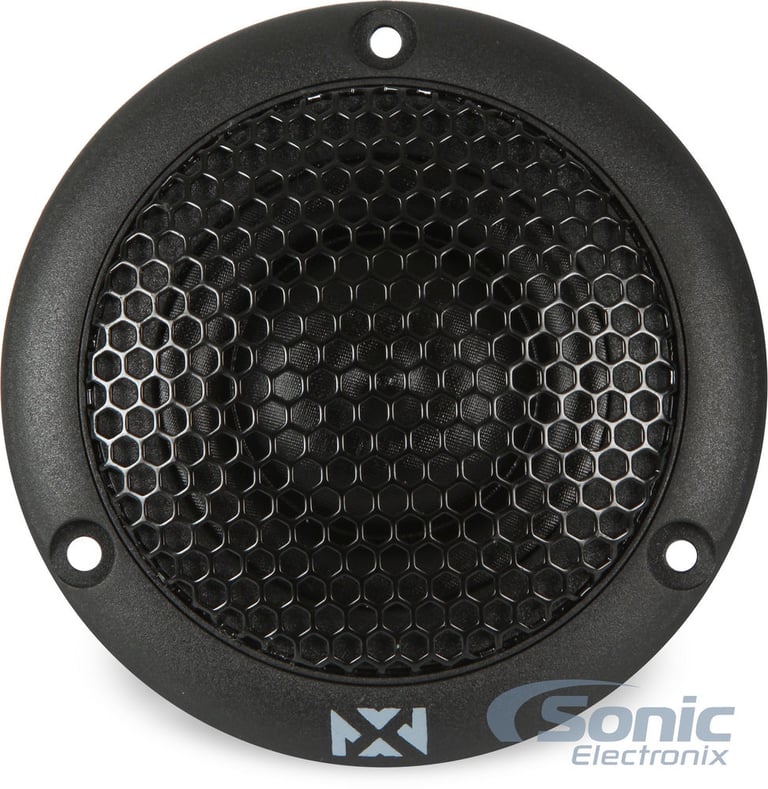

  • 29mm Silk Dome tweeter construction offers crisply detailed highs with warm characteristic
  • Dimpled tweeter dome improves the dispersion pattern for improved response
  • Low Damping Rubber speaker surround maintains linear movement better than any other material

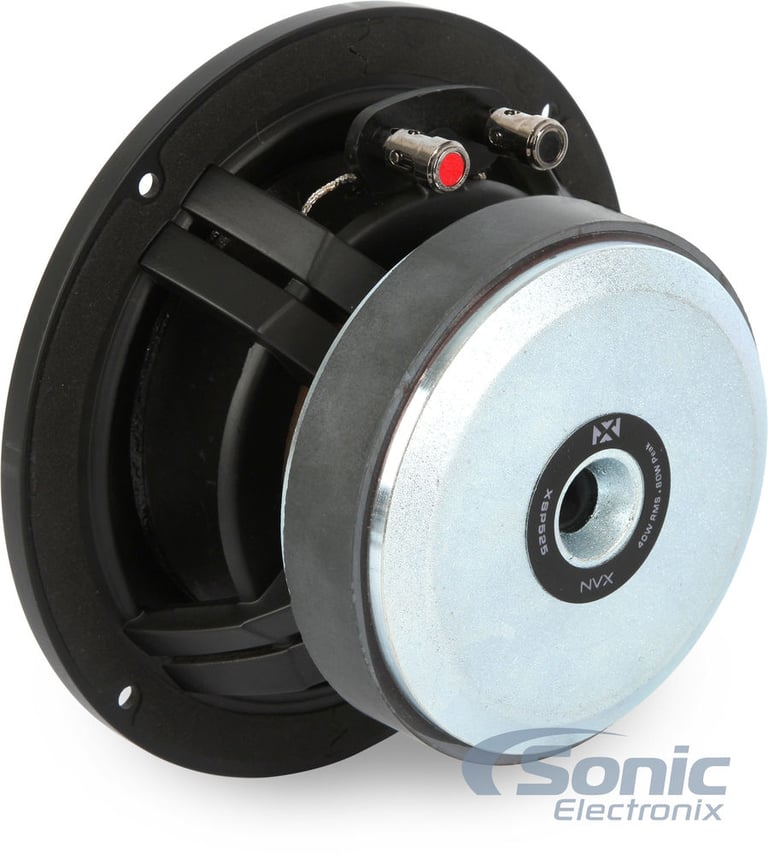

  • Copper Shorting Sleeve placed in the air gap between the pole piece and the voice coil former reduces inductance
  • Shorting Sleeve improves power delivery to the voice coil, decreases inductive distortion and improves cone linearity
  • Improved clarity and fidelity at higher notes reduced strain on the surround
  • Ring Radiator design prevents the surround from decoupling at higher frequencies

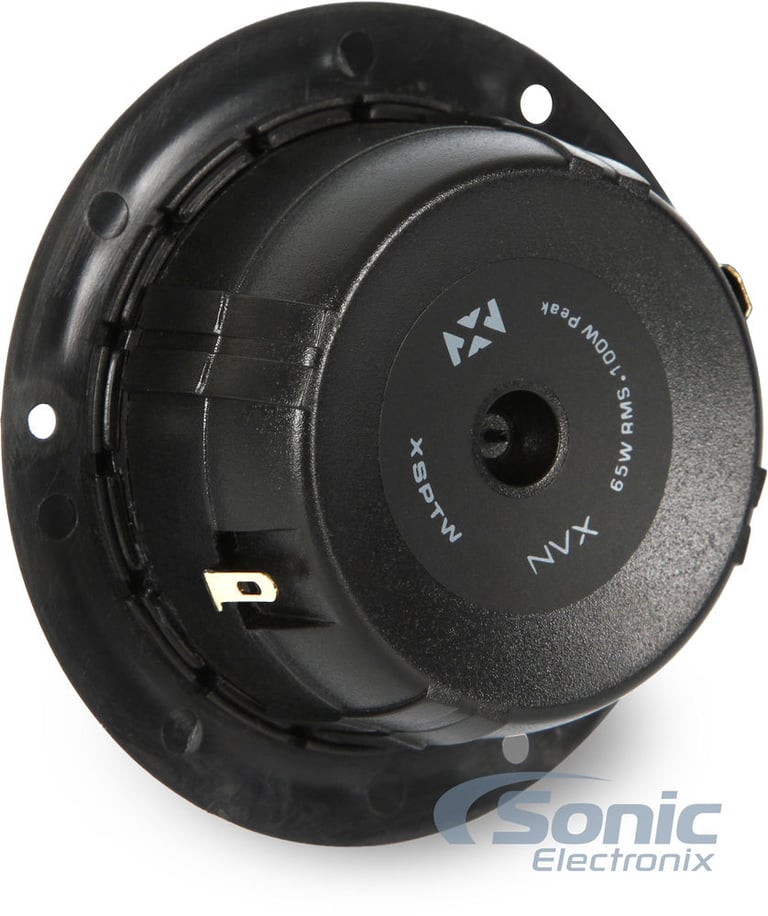

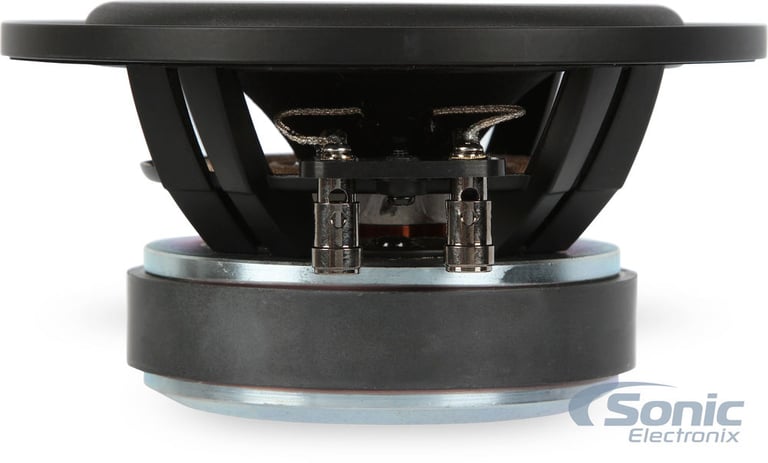

  • Low Turbulence Cast Aluminum Basket improves airflow to reduce compression of the motor structure
  • Relatively soft spider to reduce unwanted mechanical stiffness

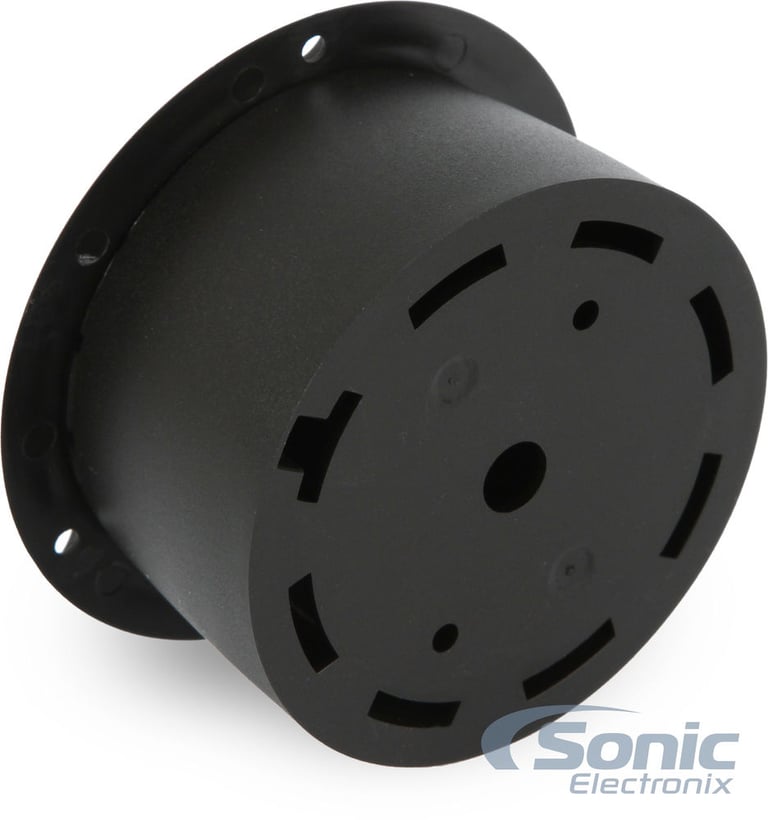

  • Speaker housing designed to improve cone control and reduce back-wave interference

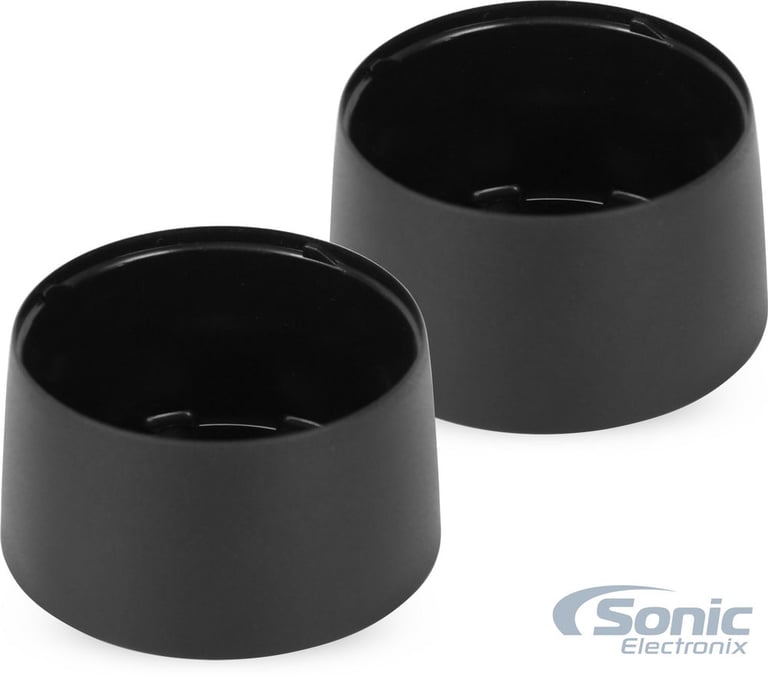

  • Robust Tweeter Chamber helps lower the resonant frequency, greatly improving imaging
  • 3-dimensional cast design dramatically increases the strength and rigidity of the basket
  • Designed to perform optimally in a real car environment
  • 4 ohm impedance
  • Frequency response: 75-22,000 Hz
  • Top-mount depth: 2-3/4"
  • Sensitivity: 90dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per System: 2 midwoofers and 2 tweeters.
Note: This component system is intended to be ran active and does not include a passive crossover network.


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00


Best selling similar products

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

DAX8000S_MRR_S8FO2_S small

Kenwood DAX8000S Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• 4 Camera Inputs Function

(38)

$1348.96

List price $1923.96

KWZ800AW_MRR_S8FO2_S small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(38)

$1348.96

List price $1722.96

KITFOR1_RR2_ILXW770_CAM2 small

Alpine ILX-W770M Factory Radio Upgrade Kit for 10-14 vehicles Ford, Mercury

  • Alpine ILX-W770M 6.75-Inch Touchscreen Digital Multimedia Receiver
  • Wireless Apple CarPlay and Android Auto with Bluetooth Connectivity
  • iDatalink Maestro KIT-FOR1 Double DIN Dash Kit and Harness
  • RR2 Universal Stereo Replacement Interface Module
  • Belva License Plate Mounted Waterproof Backup Camera with Night Vision

(62)

$765.68

List price $1199.97

KITFOR1_MRR_ILXW670_CAM2 small

Alpine iLX-W670-M Factory Radio Upgrade Kit for 10-14 vehicles Ford, Mercury

  • Alpine iLX-W670-M 6.75" Double DIN Touchscreen Digital Multimedia Receiver
  • Wired Apple CarPlay and Android Auto with Bluetooth and SiriusXM Ready
  • iDatalink Maestro RR Universal Stereo Replacement Interface Module
  • KIT-FOR1 Double DIN Stereo Dash Kit and Harness
  • Belva BLPCAM2 License Plate Mounted Waterproof Rearview Backup Camera with Night Vision

(95)

$626.37

List price $1009.97

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

Specifications & Details


Speaker Specifications
Series
X Series
Priced Per
Pair
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Dome
Tweeter Size
1-1/8"
Tweeter Composition
Silk
Woofer Composition
Milled Pulp and Egyptian Papyrus
Woofer Surround
Rubber
Peak Power Handling
80 watts
RMS Power Handling
40 watts
Sensitivity
90 dB
Frequency Response
75 - 22000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-3/4"
Cutout Dimensions
4-7/8" x 4-7/8"
General specifications

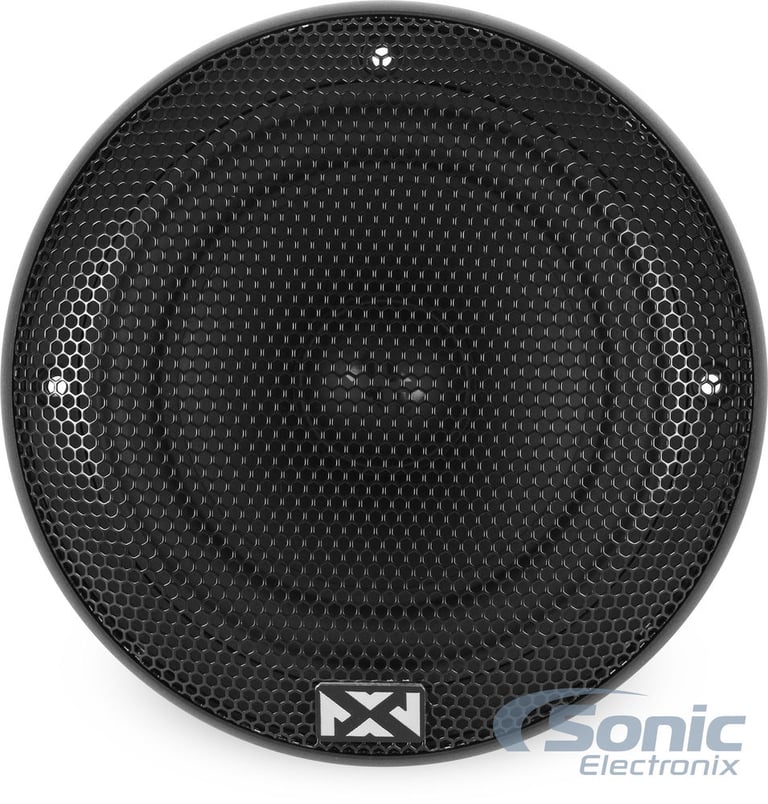

Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XSP5ACT

Weight:

12.00lbs

Internal SKU:

xsp5act

Internal Product ID:

68906

Product and How-to Videos


  • NVX X-Series Car Speakers (XSP) | True Audiophile Quality for Music Lovers
  • NVX X-Series Premium Component Car Speakers
  • 40 Mercury NVX Build
  • Zach Kerr of the Colts Shows His Buick at Slamology 2015

Customer Ratings & Reviews


NVX XSP5ACT thumbnail image

5 star
86%
4 star
10%
3 star
5%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.7
Design
4.6
Usability
4.3

Customer Reviews

Sort by:

Loading...

Excellent low-reaching tweeters

The following review is for XSPTW, which is a part of the bundle you are viewing.

Keep in mind this tweeter isn't accommodating to just any installation. It's a rather large tweeter. That said, it's an excellent tweeter. Tremendous value. Belts it out solidly and cleanly in a 2-way, and can crossover low enough to work with mids in a front 2-way with ease. Been extremely pleased with them. Clean, smooth and after some playing time they seem to be even better. I have them on-axis in custom pods in an 8th gen Civic sedan. I have the levels pulled back on the DSP as they can easily overpower being on-axis. I'm crossing these anywhere between 2k-2.5k , currently around 2300hz. I imagine from the specs they could reach lower but work well as I have them. Like all NVX gear I've worked with thus far, these are outstanding.

By Babs on February 9, 2015

40 found this helpful


Great Tweeters!

The following review is for XSPTW, which is a part of the bundle you are viewing.

These tweeters are awesome, they are very loud and clean! At fist they might sound bright, but once you tune your system they really sound great!

P.S, these tweeters are big to work with!

By Michael on March 18, 2014

34 found this helpful


Excellent

The following review is for XSPTW, which is a part of the bundle you are viewing.

Huge upgrade to the Polk Audio Tweeters these replaced. Very natural and smooth sound. Little hard to install unless making a custom setup.

By Dave on March 16, 2014

30 found this helpful


Can't beat them for the price...

The following review is for XSPTW, which is a part of the bundle you are viewing.

These tweets lived up to all the hype. I really don't have a thing bad to say about them as far as their sound quality. Although, they did take a couple weeks to develop the all around smoothness they have now. The first day I did consider them just a tad harsh, but that was just the pre-break in time period. Other than that, just the size of these gargantuan tweets. Hard to find a suitable location for a stealth install. am about to purchase the 6.5" door speakers and make this house a happy home!

By Kevin on November 3, 2014

30 found this helpful


Great Tweeters!

The following review is for XSPTW, which is a part of the bundle you are viewing.

I was planning on getting some tweets that list for $580. Then someone convinced me to try these. I replaced my Rockford Fosgate T5 tweeters with these, and the improvement is awesome!

Details galore, not to bright and a very natural sound, They seem well built, and look great.The best tweeters that I've owned. They pair up great with the RF T5's woofers which is the best woofer i've owned.

Cons,
They are BIG, and i had to get creative to install them.
Also they don't seem to lock into their pod/cup to easily.

By Roland on October 16, 2013

25 found this helpful


The cat's MEOW..

The following review is for XSPTW, which is a part of the bundle you are viewing.

As some may already know these tweeters are based on the highly praised SB Acoustics driver and no SQ was lost in the translation..
The first thing you will notice about these tweeters is the weight, they're heavy and the second thing you will notice is the sound, they're incredible and totally transformed my sound stage, these tweeters will pull clear down to 800Hz but you'll enjoy crossing them at 1500Hz, this will raise the sound stage and put the bass on your dashboard, where it belongs..
Trust me you want these tweeters, stop waiting and buy them..

By george on July 4, 2015 Checkmark Icon Verified purchase

22 found this helpful


awsome tweeters great price

The following review is for XSPTW, which is a part of the bundle you are viewing.

these simply sound sweet. no long review you want tweeters you can play loud all day without tired ears or a headache for this price point buy these and a good amp and set up properly and (enjoy)

By Jonathan on September 16, 2014

24 found this helpful


NVX Tweeters AMAZING !!

The following review is for XSPTW, which is a part of the bundle you are viewing.

I installed a set of these in the rear of my car and I was just blown away by volume , clarity , and the overall enhancement of my audio listening pleasure . They play loud and do not have ANY distortion . I have all NVX speakers in my set up except I have a Pioneer 12 inch sub . I do believe they are very under rated on their power handling because my amp pushes 150 watts RMS per channel and the speakers ratings are only 50-65 watts RMS and I get high quality distortion free sound at high volume . The NVX tweeters have 800 - 22000HZ output rating so they also pick up quite a bit of your midrange frequencies ( that is why I purchased these ) The vocals are SO much more clear along with lead guitar and drum instruments . You can spend $500.00 on a set of tweeters and will not get ANY more quality sound then these NVX XSPTW models . If I could only fit another sub in my little Fiat 500 , I would be a strong contender in a audio competition because of these tweeters !! I strongly recommend this product matched up with a set of NVX XNET2 crossovers . That's only my opinion , I could be right !! Thank you again Sonic for your superior product and service .

By Freddy Krueger on May 2, 2015

21 found this helpful


SOUND QUALITY

NVX has been surprising me from day one starting with their amplifiers, of which I purchased the JAD 1200.1 and the JAD800.4
I was in the market for some Midrange Drivers and Tweeters to go in my future system, which is an all active 3-way plus sub.
Well I decided to give NVX's SQ Flagship speakers a try, and to my amazement, have found the best sounding tweeters I have heard yet, and some very accurate and smooth Mids.
At the moment, the system consists of these tweeters, these mids, another brand's 8" Midbass drivers, and my old Infinity Perfect 10'' Subs.
I still need channels of amplification for these tweeters (40-80watts range) and for a center channel (Which is NVX's V series 4'' Coaxial)
To solve that, I will be buying the JAD 900.5.
Next will be the NVX X Series 10'' Subwoofers, for a FULL NVX SQ SYSTEM!! (Minus my JVC AVX77 headunit and SoundStream Synthesis Processor).
NVX, YOU KICK BUTT!!
PS, I am Danish, these are Danish designed, VIKING POWER!!!!

By HAMMER on December 19, 2013

24 found this helpful


Well...

The following review is for XSPTW, which is a part of the bundle you are viewing.

Sound great honestly, design is horrible, the pods/baffle they come with are horrible, tweets dont even stay in the pods with no cablees attached, you cant get tweets in the pod with cables on, the tweeters should come with wiring if not just pre attached cables already, they trim rings are bad as well, but they sound great. PAIN TO MOUNT THO.... DESIGN IS TRASH

By damachocheese on October 5, 2015

14 found this helpful




CS-V517 small

JVC CS-V517

5-1/4" Dual Cone DRVN Series Car Speakers

(4)

$20.99

List price $44.95

07DS680.2 small

Kicker DS680.2

07DS680.2 - 6" x 8" DS-Series 2-way Component Speakers System (also mounts in most 5" x 7" holes)

(23)

$109.95

List price $169.95

Tube MP Project Series small

ART Tube MP Project Series

Single Channel Tube Microphone Preamp XLR and 1/4" Ins and Outs

$48.00

List price $89.00

DJ 2 Go small

Numark DJ 2 Go

Complete USB DJ Portable DJ Controller with Built-In Mouseless Navigation

(4)

$59.00

List price $79.00

PDWM4300 small

Pyle PDWM4300

Professional VHF Four Microphone Wireless System

$139.99

List price $267.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2010 Mercury Milan

1975 Ford Elite

2021 BMW M3

2012 Toyota Yaris

1965 Buick Riviera

2002 Lexus LS430

1988 Dodge Colt DL

2007 Chevrolet Equinox

2012 BMW X5

2005 Bentley Continental

Vehicle
Store
Delete

2001 Harley Davidson FXSTB Night Train

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
