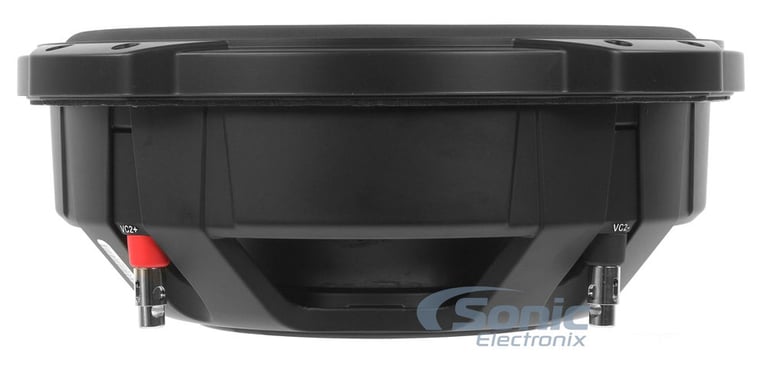

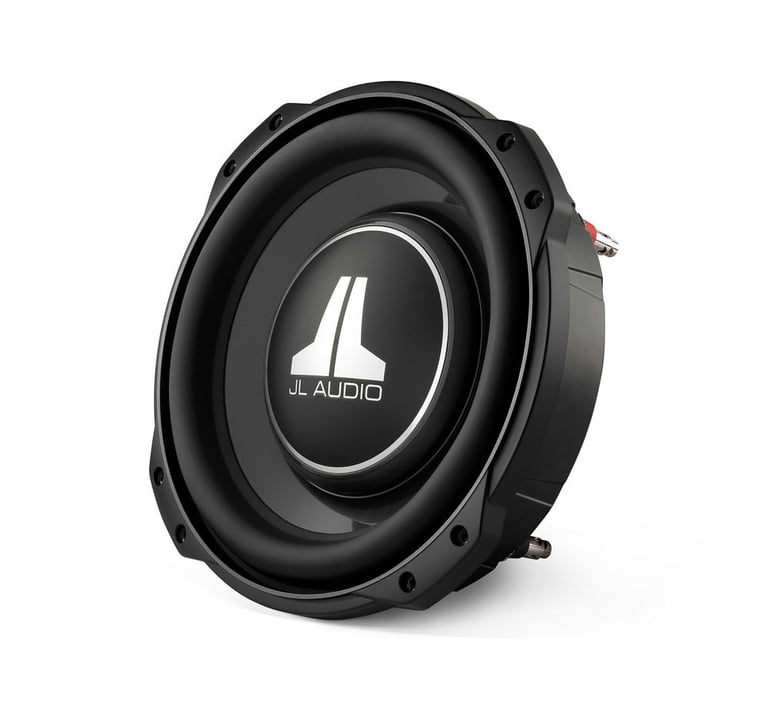

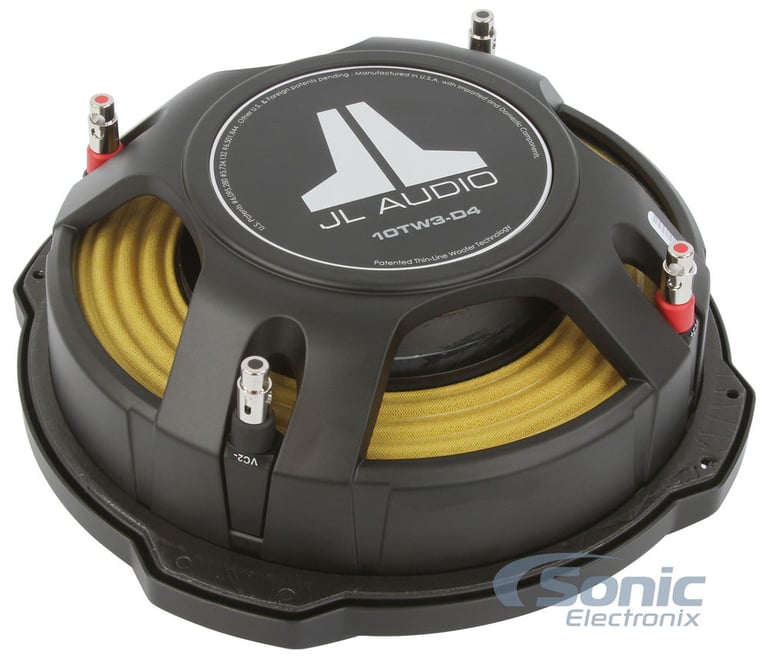

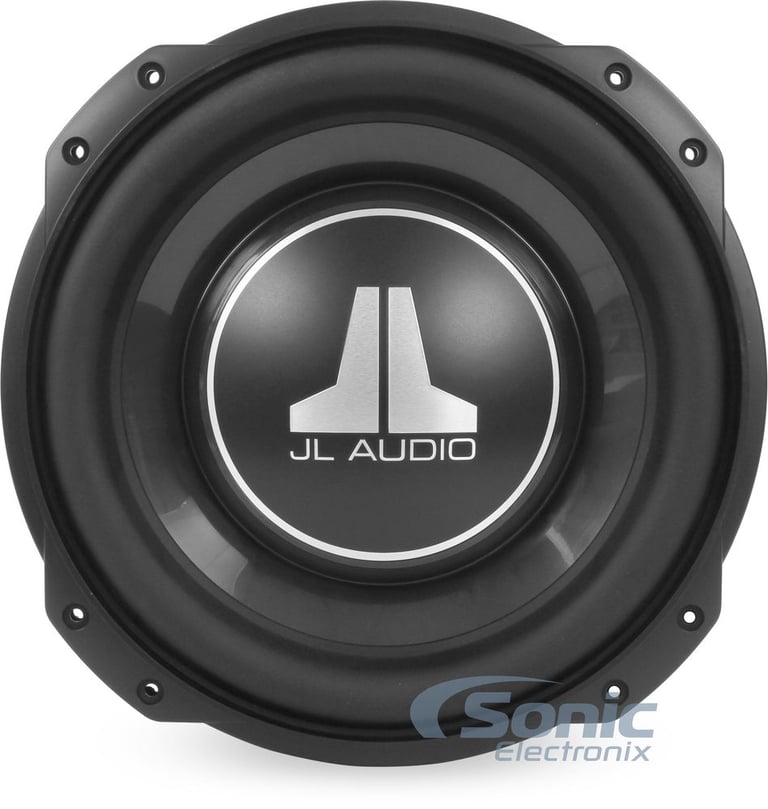

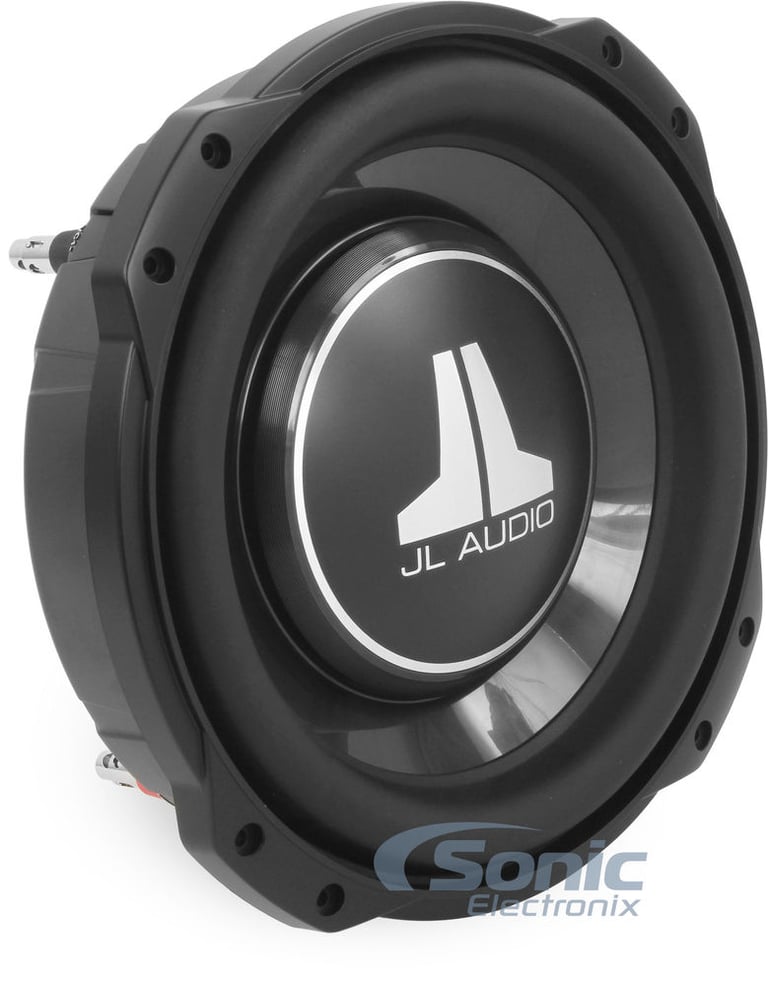

JL Audio Thin-Line 10TW3-D4- Like New

400W 10" TW3 (Thin-Line) Series Dual 4-ohm Shallow Mount Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• Mounting depth: 3.250 "
• Precision-built in USA at JL Audio’s Miramar, Florida factory
• Injection molded, mica-filled polypropylene cone
• Rubber Surround
• Cast Alloy Basket
• DMA-optimized motor design
• Very small sealed enclosure volume requirements

Learn more about the ls-10tw3d4-obc7

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Like New:
A Open Box, Like New product is an apparently untouched product in perfect condition that includes all accessories and packaging. Original protective wrapping may be missing, but the original packaging is intact and pristine. There are absolutely no signs of wear on the item or installation. Instructions are included. Warranty details are included in the item description or comments. Item is suitable for presenting as a gift and savings should be abundant!

Product Features:









  • 10" TW3 (Thin-Line) Series Shallow Mount Subwoofer
  • Power Handling:
    • RMS: 400 watts
  • Recommended Power Range: 200 - 400 watts
  • Impedance: Dual 4-Ohm
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • No pole vent: permits mounting close to rear wall of enclosure.
  • Very small sealed enclosure volume requirements
  • Very long linear excursion capability
  • DMA-optimized motor designs
  • Patented concentric tube architecture
  • Patented floating cone attach method technology
  • Cast alloy frame
  • Aluminum-alloy dust cap and rear cap with JL Audio logo
  • Precision-built in USA at JL Audios Miramar, Florida factory
  • "Tab-Ear" frame design to fit driver in tight spaces
  • Black Steel-Mesh Grille Insert Available: JL Audio SGR-10TW3

  •
  • Mounting depth: 3.25 "
  • Cutout dimensions: 9.625 "
  • Free Air Resonance (Fs): 32.30 Hz
  • Sensitivity: 82.10 dB
  • Xmax: 15.2 mm
  • Equivalent Compliance (Vas): 19.82 L
  • Frequency response: ~24 ~ 200 Hz
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Check out the JL Audio 10TW3-D4 Owner's Manual


This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio Thin-Line 10TW3-D4- Like New Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio Thin-Line 10TW3-D4- Like New Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio Thin-Line 10TW3-D4- Like New Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 JL Audio Thin-Line 10TW3-D4- Like New Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
TW3 Shallow Mount Series
Subwoofer Size
10"
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 250 Hz
Sensitivity
82.10 dB
Xmax (millimeters)
15.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polymer/Mica Composite
Woofer Surround
Butyl Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.50 cubic feet
Optimum Ported Box Volume
0.60 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/4"
Cutout Diameter
9-5/8"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.30 Hz
Equivalent Compliance (Vas)
19.82 liters
Total Speaker Q Value (Qts)
0.62
Electrical Q Value (Qes)
0.656
Mechanical Q Value (Qms)
11.35
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10TW3-D4-3

Weight:

11.00lbs

Internal SKU:

ls-10tw3d4-obc7

Internal Product ID:

177179
