Name: JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)
Brand: JL Audio
SKU: LS-12tw3d4-OB
Price: 439.99 USD
Availability: Discontinued
Rating: 4.9500 (20 reviews)

Shop all JL Audio

by JL Audio

About
FAQ
Wiring Guide
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

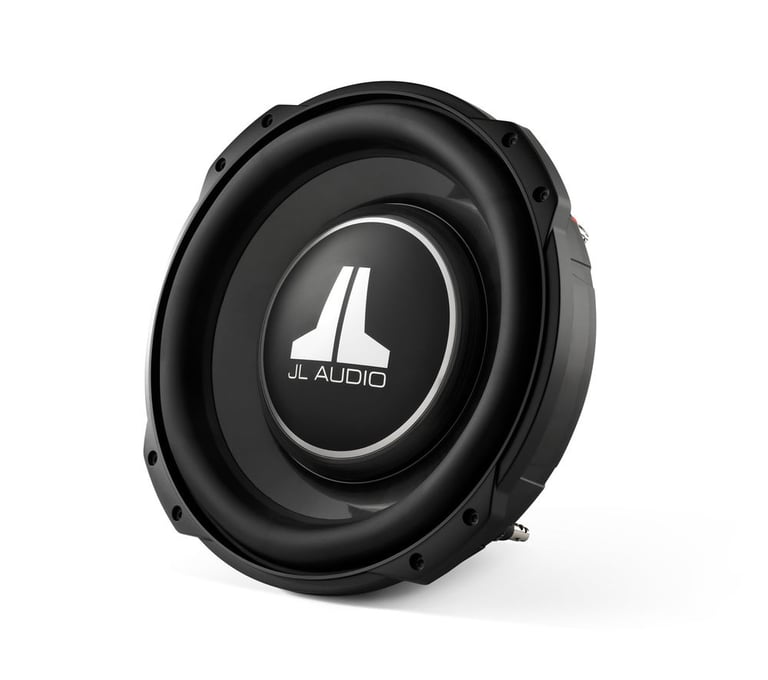

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 1 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

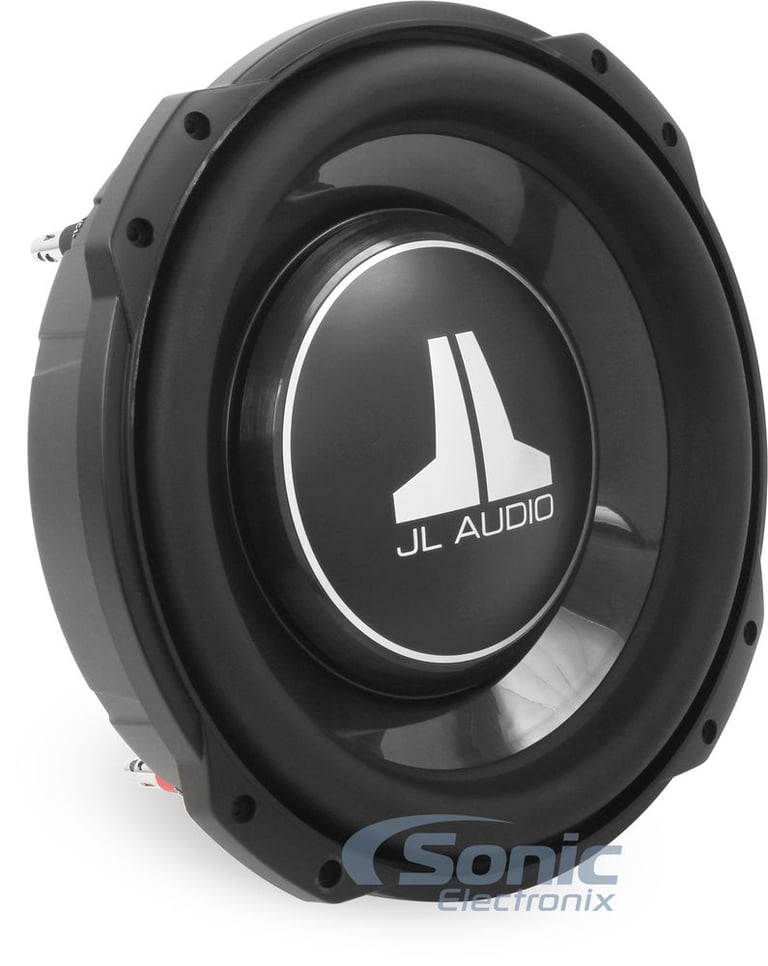

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 2 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

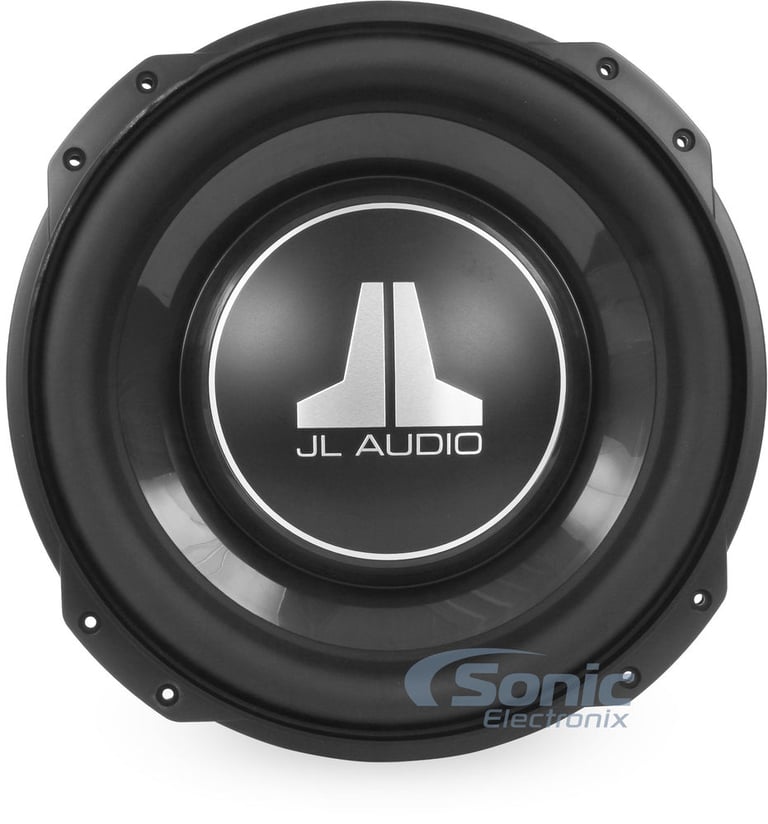

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 3 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

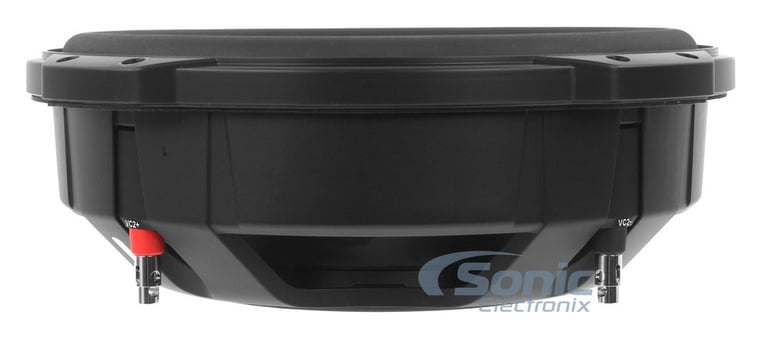

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 4 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

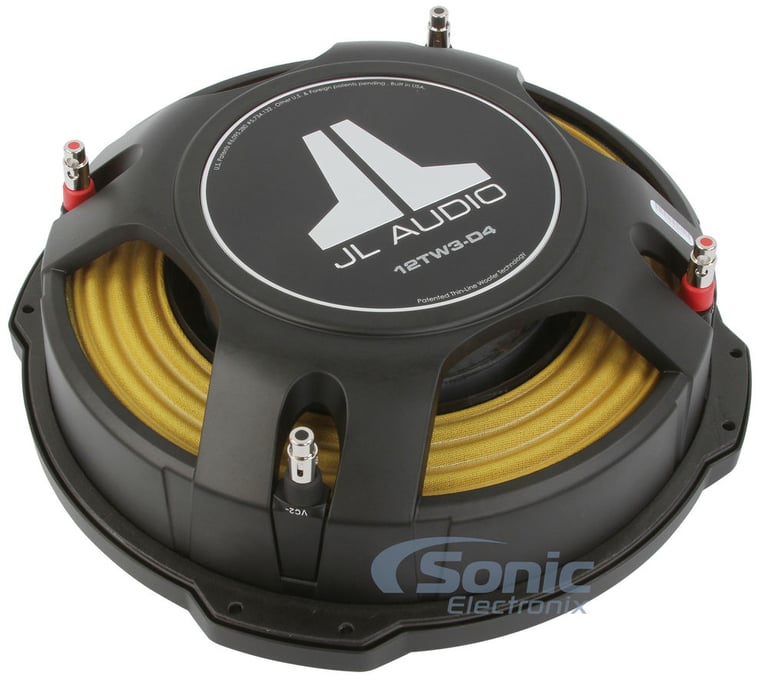

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 5 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 6 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

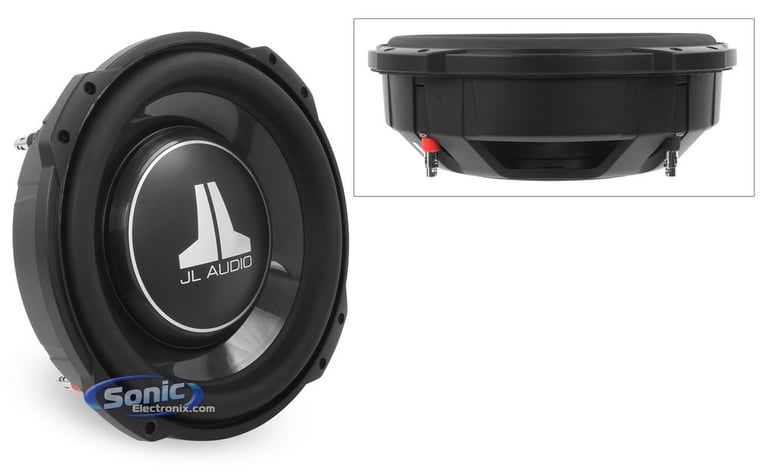

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 7 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 8 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

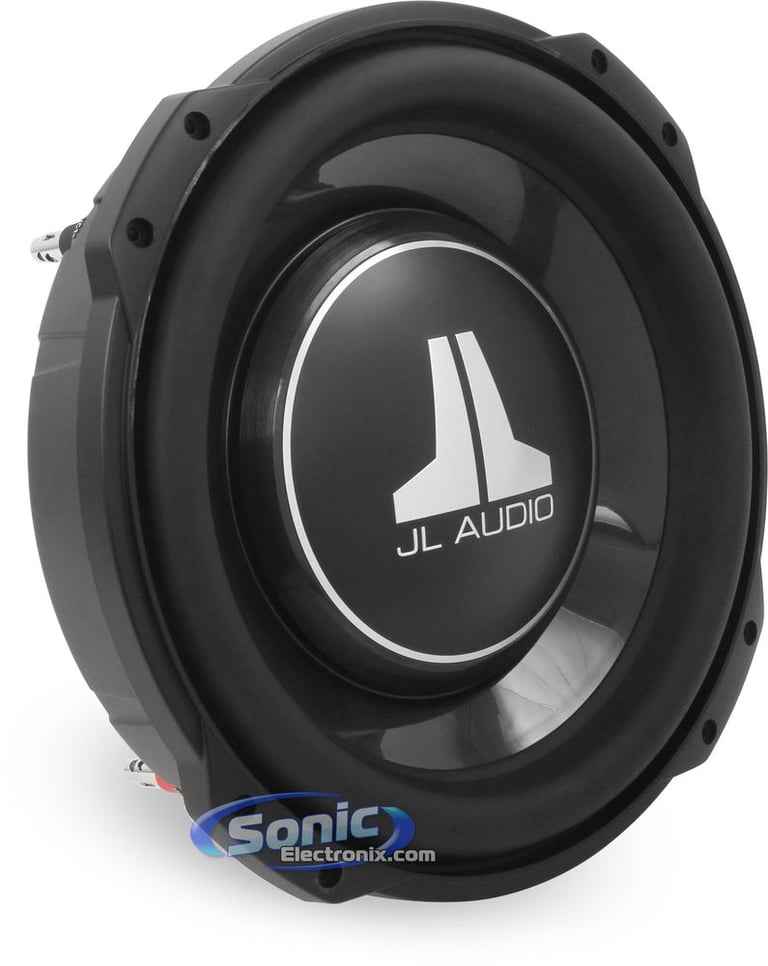

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 9 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

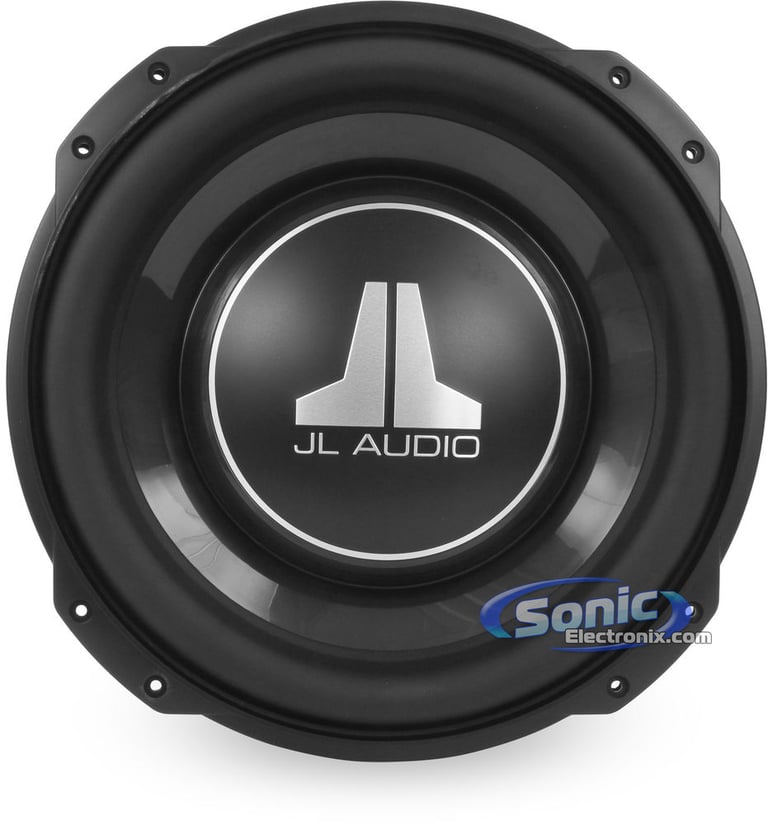

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 10 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

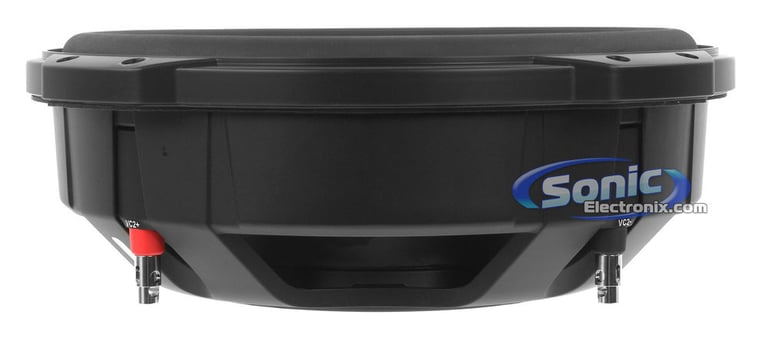

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 11 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

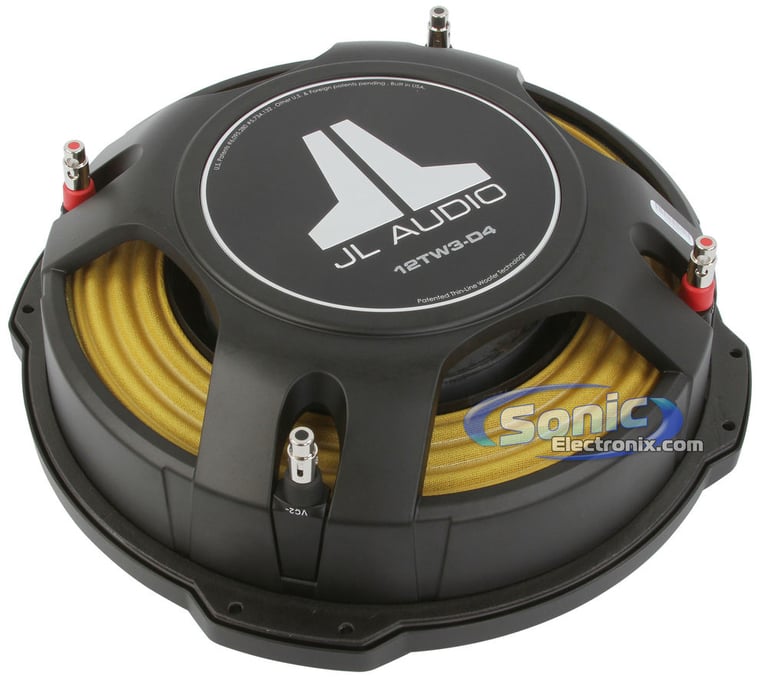

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Image 12 — JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)

JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+)-video

Product videos

Product highlights

• Mounting depth: 3.50"
• Precision-built in USA at JL Audio’s Miramar, Florida factory
• Injection molded, mica-filled polypropylene cone
• Rubber Surround
• Cast Alloy Basket
• DMA-optimized motor design
• Very small sealed enclosure volume requirements

Learn more about the LS-12tw3d4-OB

Product Highlights

Description

Authorized dealer

Item Condition - New, Damaged Packaging:

The product is brand new with only the packaging not being in perfect condition. This occurs sometimes because our warehouse teared the box or it was slightly damaged during shipment to our warehouse.

Product Features:

12" TW3 (Thin-Line) Series Shallow Mount Subwoofer
Power Handling:

RMS: 400 watts

Recommended Power Range: 200 - 400 watts
Impedance: Dual 4-Ohm
Injection molded, mica-filled polypropylene cone
Rubber surround
No pole vent: permits mounting close to rear wall of enclosure.
Very small sealed enclosure volume requirements
Very long linear excursion capability
DMA-optimized motor designs
Patented “concentric tube” architecture
Patented “floating cone attach method” technology
Cast alloy frame
Aluminum-alloy dust cap and rear cap with JL Audio logo
Precision-built in USA at JL Audio’s Miramar, Florida factory
"Tab-Ear" frame design to fit driver in tight spaces
Black Steel-Mesh Grille Insert Available: JL Audio SGR-12TW3

Mounting depth: 3.50 "
Cutout dimensions: 11.625 "
Free Air Resonance (Fs): 26.46 Hz
Sensitivity: 84.11 dB
Xmax: 15.2 mm
Equivalent Compliance (Vas): 48.73 L
Frequency response: ~22 ~ 200 Hz
Matching Amplifiers:

JL Audio XD300/1v2

Authorized Internet Dealer
1-year Manufacturer's Warranty

Check out the JL Audio 12TW3-D4 Owner's Manual

Frequently Asked Questions (FAQ)

What is the best wiring to use for a single-sub setup?

This is a Dual 4-Ohm sub. To maximize your amp's output, wire it in parallel (connect both positives together and both negatives together). This creates a 2-Ohm load, which is the "sweet spot" for most mono amplifiers.

My 12" sub box is exactly 3.5" deep. Will this fit?

The 12TW3-D4 has a 3.5" mounting depth. For a DIY install, you need to add at least 1/4" of breathing room behind the magnet or use a spacer ring to ensure the back of the sub doesn't rattle against the wood.

The subwoofer makes a "chuffing" sound at high volume. Is it blown?

Usually, this is an air leak. Because the TW3 moves so much air, the mounting "ears" must be perfectly sealed. Use 1/2" wide closed-cell foam gasket tape around the mounting flange to ensure a 100% airtight seal against the box.

I’m building a custom box; do I need to worry about a "pole vent" on the back?

No. The TW3 design has no pole vent on the rear of the motor. This allows you to mount the sub almost flush against the back wall of your enclosure, which is a massive advantage for under-seat truck installs.

Why are the mounting holes in such a strange pattern?

JL uses a tab-ear mounting system to fit a 12" cone into a frame that fits in tight spaces. Use the included template to pre-drill your holes.

Can I use this in a ported/vented box, or is it "Sealed Only"?

While it excels in tiny sealed boxes (0.80 cu. ft.), it can work in a ported box (0.95 cu. ft.). However, for DIYers, sealed is recommended to protect the shallow suspension from "unloading" (over-extending) at very low frequencies.

What gauge speaker wire should I use for the 400W RMS power?

Use 12-gauge or 14-gauge Oxygen-Free Copper (OFC) wire. The spring-loaded terminals on the TW3 are designed specifically for these sizes. Using 8-gauge wire is too thick and may snap the terminal housing if the wire is pulled tight.

Subwoofer Wiring Guide

Wiring Guide to Wire 1 JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 12TW3-D4 - New (Damaged Packaging, Product A+) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details

Subwoofer Specifications

Series

TW3 Shallow Mount Series

Subwoofer Size

12"

RMS Power Handling

400 watts

Voice Coil(s)

Dual

Impedance (Per Voice Coil)

4 ohm

Frequency Response

22 - 200 Hz

Sensitivity

84.11 dB

Xmax (millimeters)

15.2 mm

Subwoofer Design

Round / Circle

Main Cone Color

Black

Woofer Composition

Mica Injected Polypropylene - MIPP

Woofer Surround

Rubber

Magnet Structure

Single Stacked

Subwoofer Grille

Optional (Accessory required and sold separately)

JL Audio SGR-12TW3

Re-Cone Kit Available

Recommended Enclosure Specifications

Recommended Enclosure Type

Ported / Vented
Sealed

Optimum Sealed Box Volume

0.80 cubic feet

Optimum Ported Box Volume

0.95 cubic feet

Top-Mount Depth (Mounting Depth)

3.50"

Cutout Diameter

11.625"

Shallow Mount Installation

Yes

T/S Parameters (Electromechanical)

Free-Air Resonance (Fs)

26.46 Hz

Equivalent Compliance (Vas)

48.73 liters

Total Speaker Q Value (Qts)

0.531

Electrical Q Value (Qes)

0.558

Electrical Resistance of Voice Coil (Re)

9.280 ohm

Mechanical Q Value (Qms)

10.766

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
