JL Audio 10W1v3-2 (Like New (Open Box))

300W RMS 10" W1v3 Series Single 2-ohm Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon


• RMS Power: 300 watts
• Impedance: Single 2 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 4.6"
• Sensitivity: 83.9 dB

Learn more about the ls-10w1v32-u9

We apologize

This item has been discontinued

Product Highlights



• RMS Power: 300 watts
• Impedance: Single 2 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 4.6"
• Sensitivity: 83.9 dB

Description


JL Audio brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

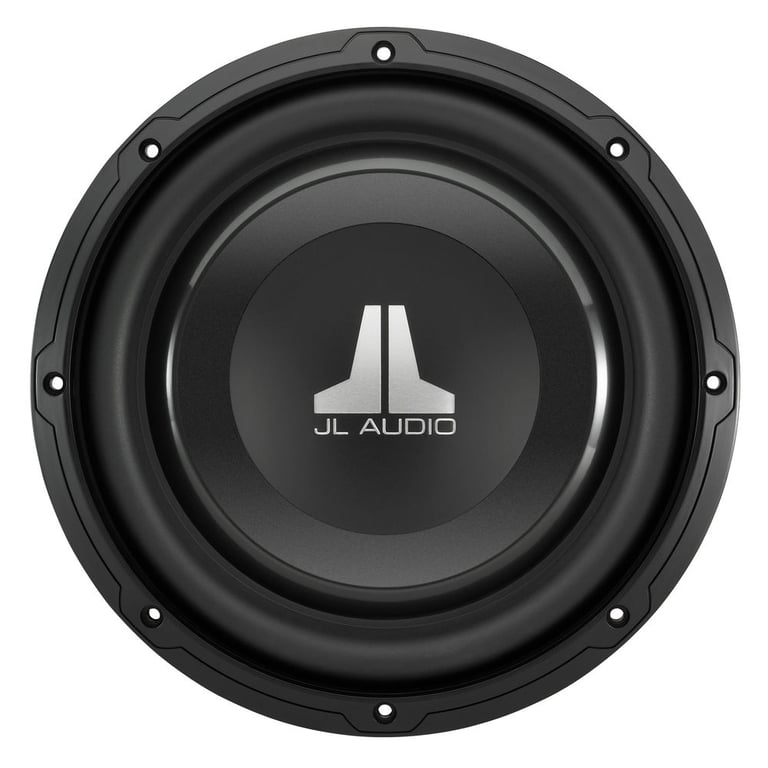

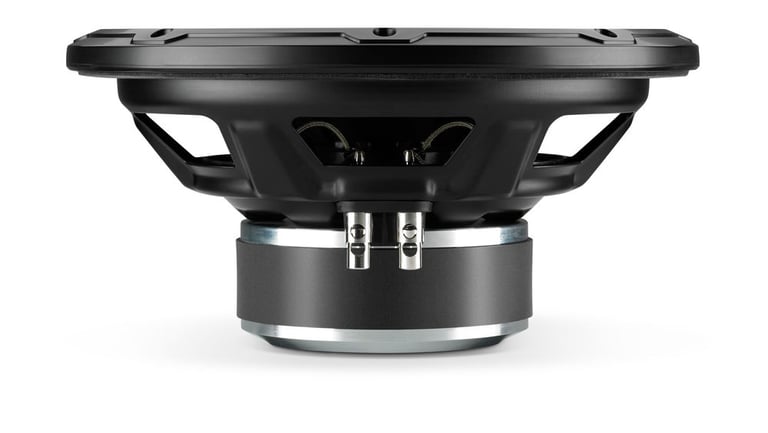

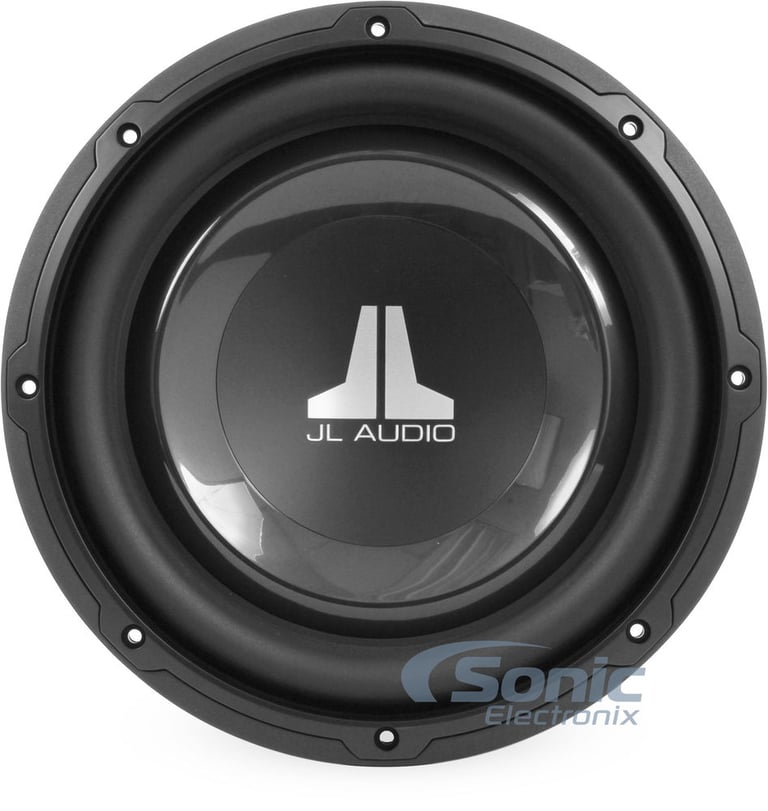

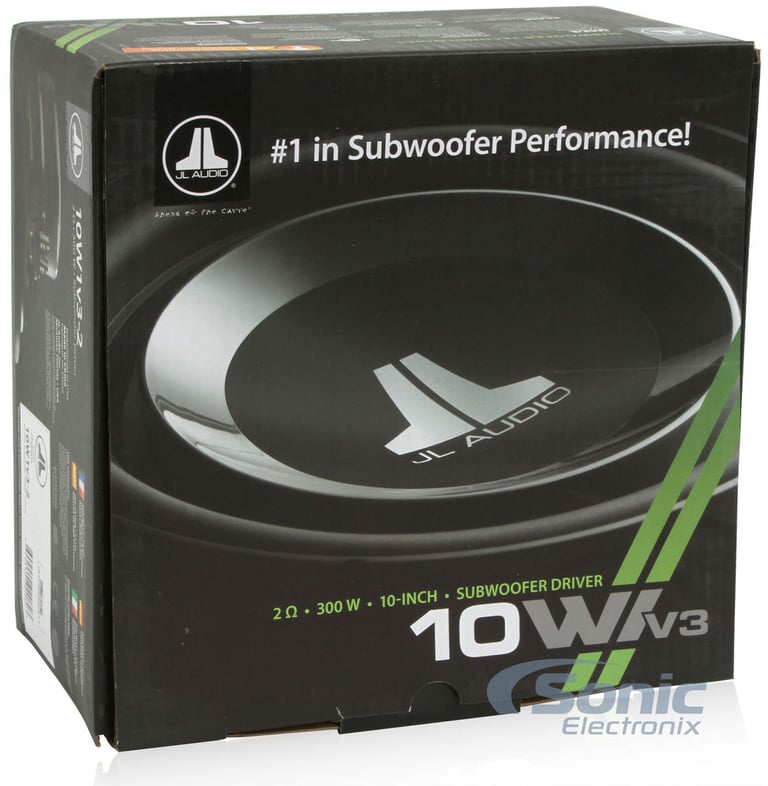

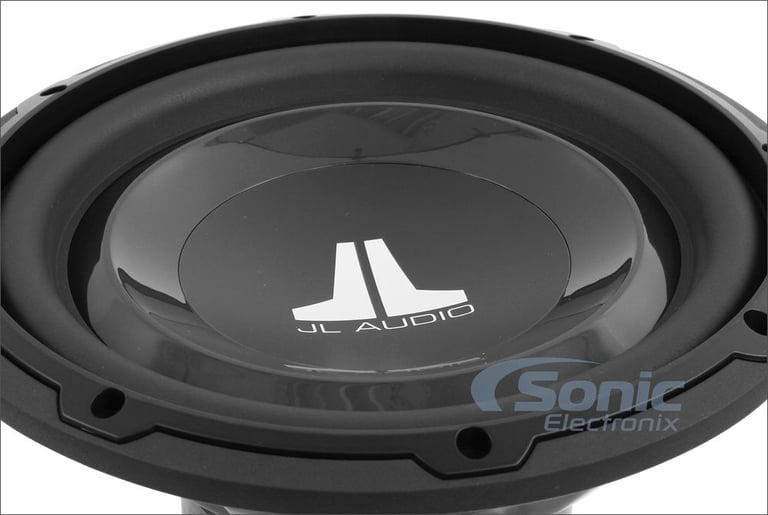

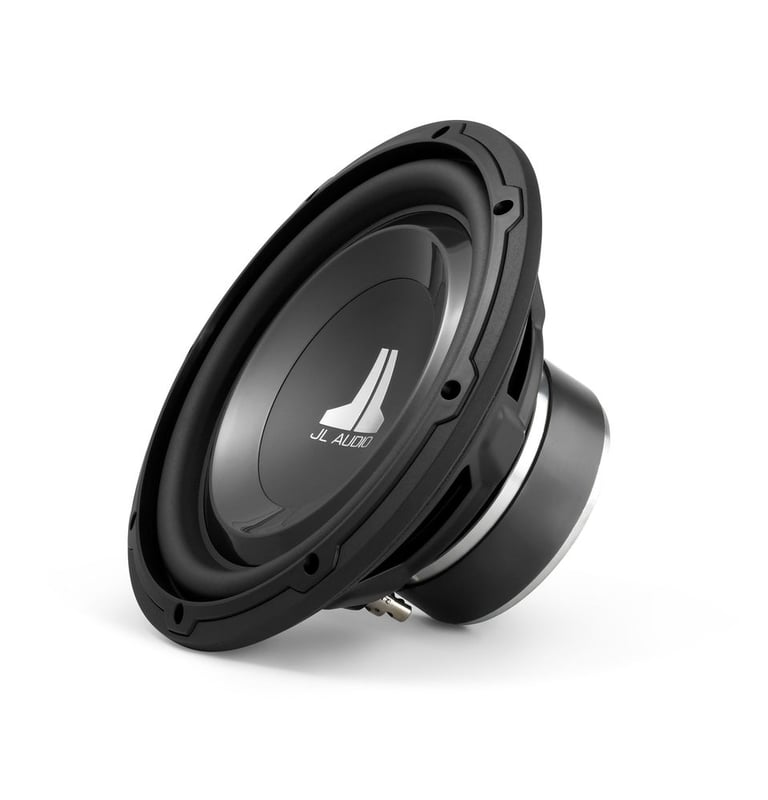

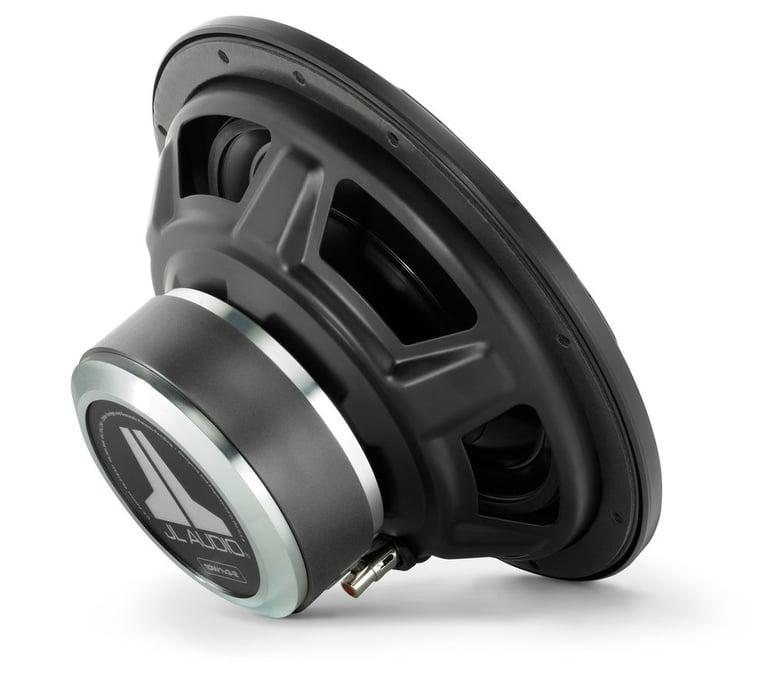

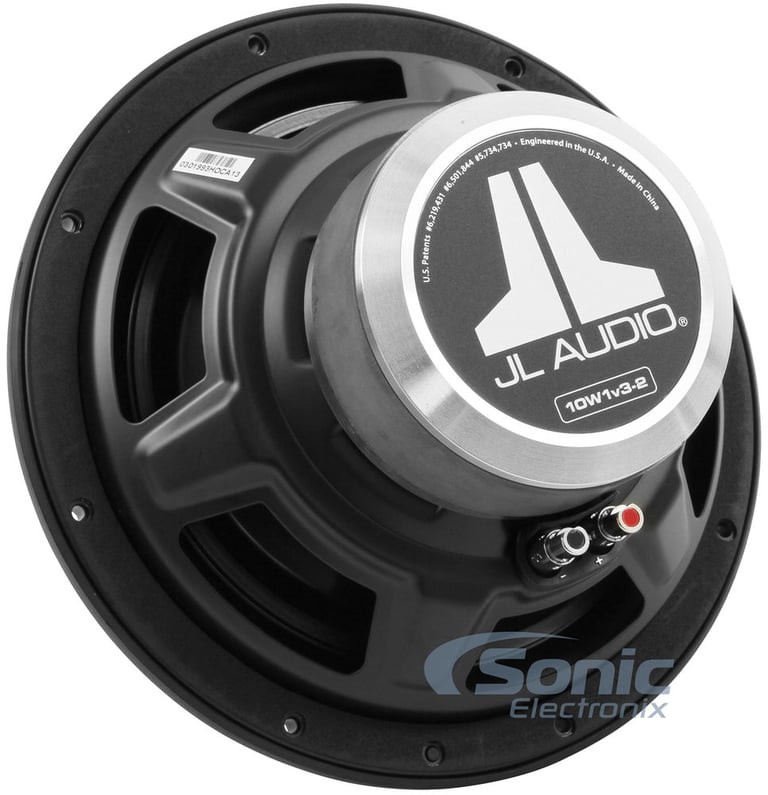

JL Audio 10W1v3-2

The 10W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (4.6 in. / 117 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 10-inch driver will not.

Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality.

The 10W1v3-2 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.55 cu. ft. (15.57 l) sealed enclosure.


Product Details:

  • 10" Single 2 ohm W1 v3 Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • Mica Injected Polypropylene - MIPP Cone
  • Rubber Surround
  • DMA Optimized Motor
  • Elevated Frame Cooling design
  • Patented FCAM technology
  • Vented Reinforcement Collar (VRC) composite structure
  • 11 mm Xmax
  • Resonance Frequency (Fs): 25.23 Hz
  • Sensitivity: 83.9 dB
  • Recommended sealed box volume: 0.55 cubic feet
  • Recommended ported box volume: 0.90 cubic feet
  • Top-mount depth: 4.6"
  • Cutout diameter: 9.0625"
  • Authorized Internet Dealer
  • Does not includes subwoofer grille
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconJL Audio 10W1V32 owner’s manual

Product history:

JL Audio 10W1v3-2-4 thumbnail
(newest, current model)
JL Audio 10W1v2-8 thumbnail
(previous model, replaced by JL Audio 10W1v3-2 (Like New (Open Box)))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 10W1v3-2 (Like New (Open Box)) Subwoofer

Mono Amp

Wiring Guide to Wire 2 JL Audio 10W1v3-2 (Like New (Open Box)) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 10W1v3-2 (Like New (Open Box)) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 10W1v3-2 (Like New (Open Box)) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
W1 v3 Series
Subwoofer Size
10"
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Sensitivity
83.9 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.55 cubic feet
Optimum Ported Box Volume
0.90 cubic feet
Top-Mount Depth (Mounting Depth)
4.6"
Cutout Diameter
9.0625"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25.23 Hz
Equivalent Compliance (Vas)
44.15 liters
Total Speaker Q Value (Qts)
0.436
Electrical Q Value (Qes)
0.463
Electrical Resistance of Voice Coil (Re)
2.233 ohm
Mechanical Q Value (Qms)
7.246
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Mounting screws (4)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10W1v3-2-4

Weight:

11.47lbs

Internal SKU:

ls-10w1v32-u9

Internal Product ID:

227534
