See all parts that fit your 1993 Grand Cherokee

Sony XS-GS80L Open Box Complete

900W 8" GS Series Single 4 Ohm Subwoofer Driver with Gold Plated Terminals, High Energy Ferrite Magnet and 3-year warranty!

Sony
Shop all Sony
highlight-star-icon

• Open Box Complete
• Free 3-Year Warranty
• 900W Peak
• 280W RMS
• Single 4 ohm Voice Coil
• Mica-Reinforced Cellular Glass Fiber Cone
• Butyl Rubber Surround
• Honeycomb Design
• 10 AWG Spring Loaded Push Terminals
• Sensitivity: 84 dB

Learn more about the ls-xsgs80l-obc8

We apologize

This item has been discontinued

Description


Sony brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Sony Store



Sony XS-GS80L
GS Series Subwoofer Driver

The new Sony GS series of subwoofers are the perfect way to get outstanding bottom end into your audio system. Whether you are expanding into a full-blown aftermarket setup, or are just looking to integrate better overall performance into your OEM setup, the GS Series has you covered. These drivers have been purposed-engineered to deliver outstanding sound quality and exponentially better overall performance over anything else in its price bracket.

The XS-GS80L, specifically, is an 8" Single Voice Coil subwoofer driver intended to deliver tight, controlled bass. What it lacks in surface area it makes up in overall sound quality. It is able to accomplish this by maximizing the overall build quality, delivering an above-modest 280 Watts RMS with an excursion peaking at 7.1mm. In addition, the XS-GS80L has a very respectable Frequency Response range of 28 - 500 Hz, making it very easy to blend (crossover) into your Full-Range stage.


Premium Sound Requires A Premium Build


Premium Sound Requires A Premium Build

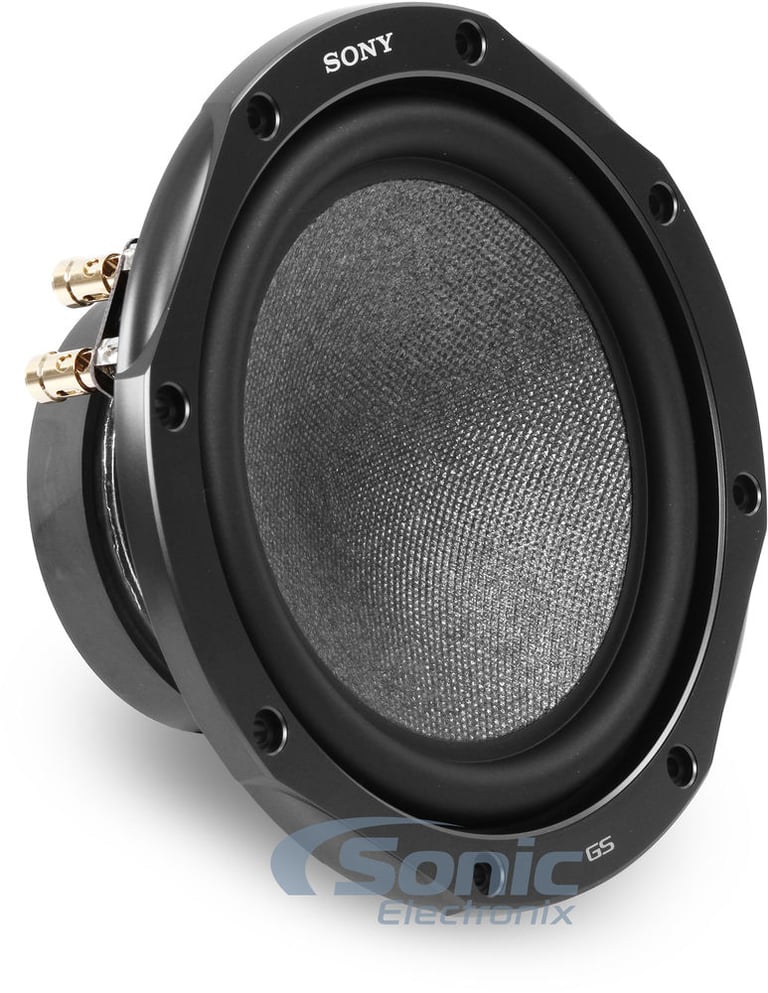

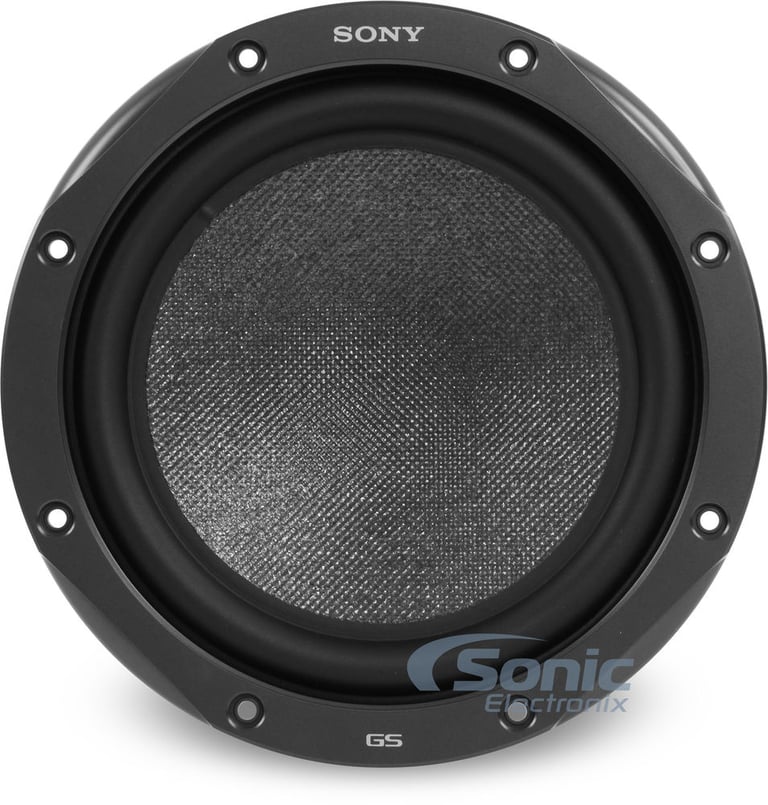

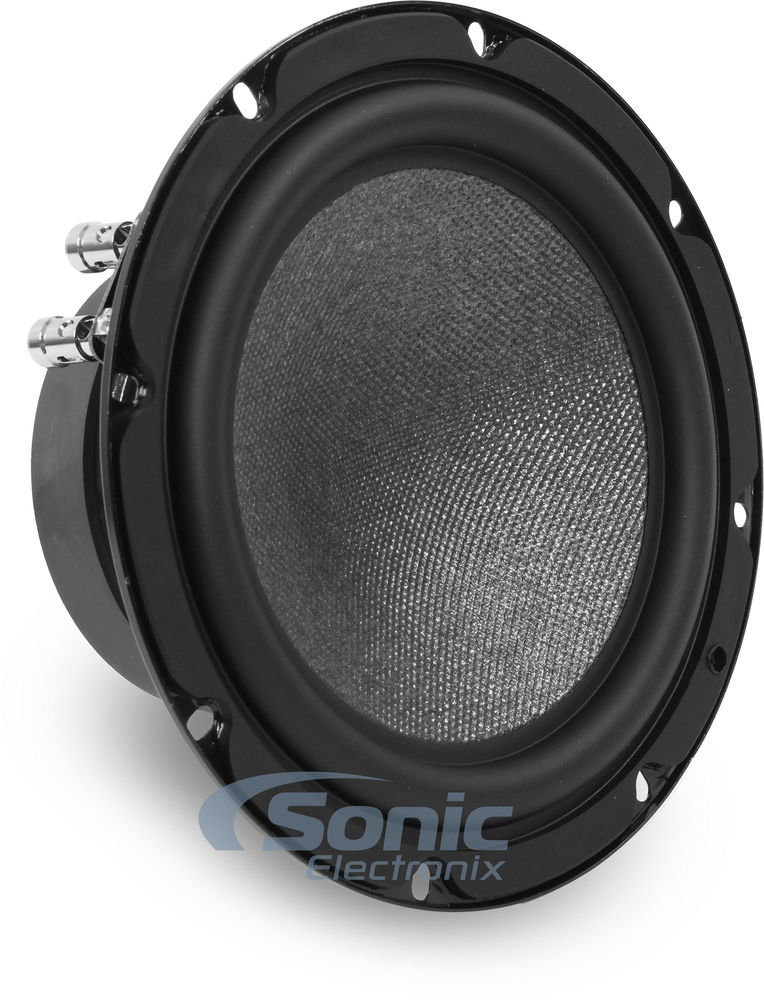

The XS-GS80L single voice coil subwoofer driver cone is constructed using a Mica Reinforced Cellullar Honeycomb design for reduced weight and increase rigidity, delivering deep bass response. A subwoofer's cone wants to naturally bend and warp due to the force exerted by the motor of the driver. If allowed the sound produced is Not accurate and of poor quality. The XS-GS80L is engineered to counter act this, thereby delivering superb response.


Motor Design for Outstanding Output

Motor Design for Outstanding Output

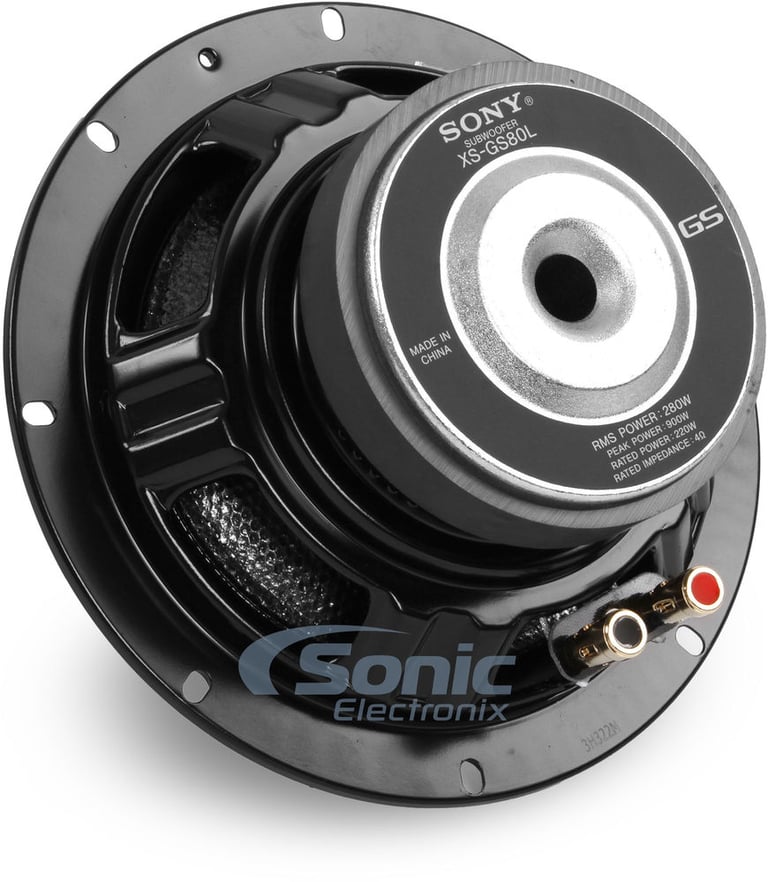

The XS-GS80L woofer uses a powerful, high energy Ferrite magnet to control cone travel and deliver outstanding power handling. The XS-GS80L subwoofer is rated for 280 Watts (CEA 2031 rated), 220 Watts RMS and can handle peak power of 900 Watts. This above-modest figure makes the XS-GS80L perfect for a system starving for low end bass output. 280 Watts RMS will not shake a vehicle, but it will bring life to a bland audio system.



Maximize Power Delivery

Maximize Power Delivery


The XS-GS80L's 5-way gold plated spring-loaded binding post provide secure wire connections for high power handling. These terminals are capable of accepting a 10-gauge speaker wire to maximize power (Read: Wattage) delivery and performance. By accepting a larger wire than most traditional 8" drivers, the XS-GS80L is able to deliver more power than a traditional 8" driver. Moreover, the gaps in the stamped steel frame allow the driver to breath, greatly reducing the risk of burning out the subwoofer motor.





  • A part that is fully functional but shows no sign of use outside of installation.





General Features:

  • 8" Single 4 Ohm GS Series Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 220 watts
    • RMS (CEA-2031 Approved): 280 watts
  • Recommended Power Range: 175 - 330 watts
  • CEA-2031 Complaint
  • Mica Reinforced Cellular Glass Fiber Honeycomb Cone Design
  • Butyl rubber surround
  • 10 AWG Gold plated spring loaded push terminals
  • High energy Ferrite magnet
  • Xmax: 7.1 mm
  • Frequency Response: 28 - 500 Hz
  • Sensitivity: 84 +/- 2dB (1W, 1m)
  • Resonance Frequency (Fs): 48 Hz
  • Top-mount depth: 3-7/8"
  • Mounting dimension: 7 1/8"
  • Recommend ported enclosure: 0.41 ft³
  • Recommend sealed enclosure: 0.32 ft³
  • Authorized Internet Dealer
  • 90 Day Manufacturer's Warranty

TS Parameters

  • Rdc: 3.6 Ω
  • Fs: 48 Hz
  • Qts: 0.71
  • Qes: 0.77
  • Qms: 9.2
  • Vas: 10.7L
  • Mms: 67.7g
  • Lvc: 1.87mH
  • Xmax: 7.1mm
  • Bl: 9.7Tm

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Priced Individually



Check out the Sony XS-GS80L Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Sony XS-GS80L Open Box Complete Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Sony XS-GS80L Open Box Complete Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Sony XS-GS80L Open Box Complete Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Sony XS-GS80L Open Box Complete Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
GS Series
Subwoofer Size
8"
Peak Power Handling
900 watts
RMS Power Handling
280 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
28 - 500 Hz
Sensitivity
84 dB
Xmax (millimeters)
7.1 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Mica Reinforced Cellular Glass-Fiber
Woofer Surround
Butyl Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.32 cubic feet
Optimum Ported Box Volume
0.41 cubic feet
Top-Mount Depth (Mounting Depth)
3-7/8"
Cutout Diameter
7-1/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
48 Hz
Equivalent Compliance (Vas)
10.7 liters
Total Speaker Q Value (Qts)
0.71
Electrical Q Value (Qes)
9.2
Mechanical Q Value (Qms)
9.2
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XS-GS80L Open Box Complete-2

Weight:

6.60lbs

Internal SKU:

ls-xsgs80l-obc8

Internal Product ID:

132751
