JL Audio 10W3v3-2 (Like New (Open Box))

500W RMS 10" W3v3 Series Single 2-ohm Car Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 5.93"
• Sensitivity: 85.37 dB

Learn more about the ls-10w3v32-u9

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 5.93"
• Sensitivity: 85.37 dB

Description


JL Audio brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

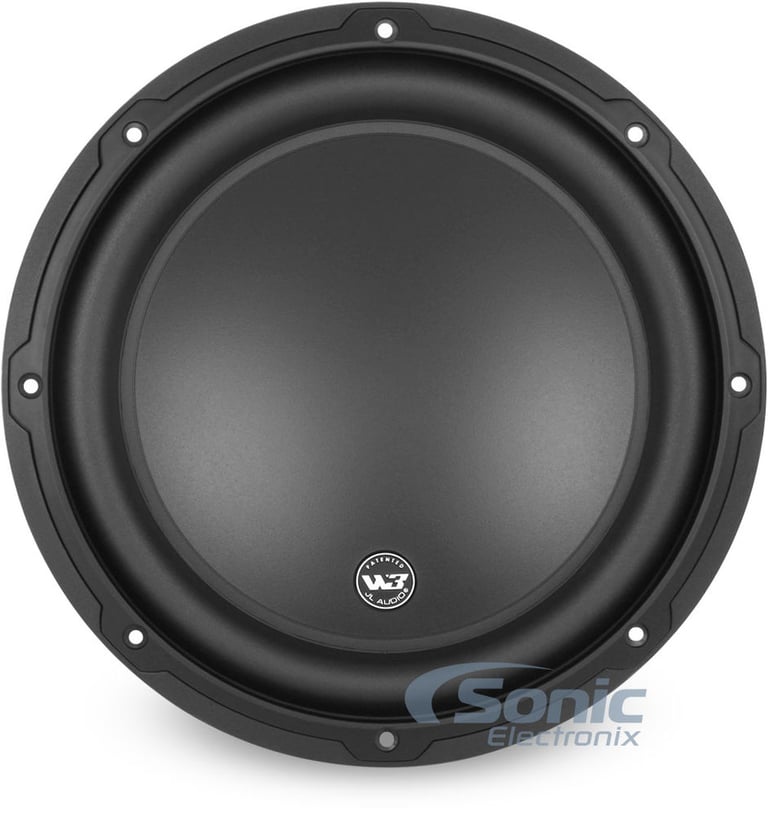

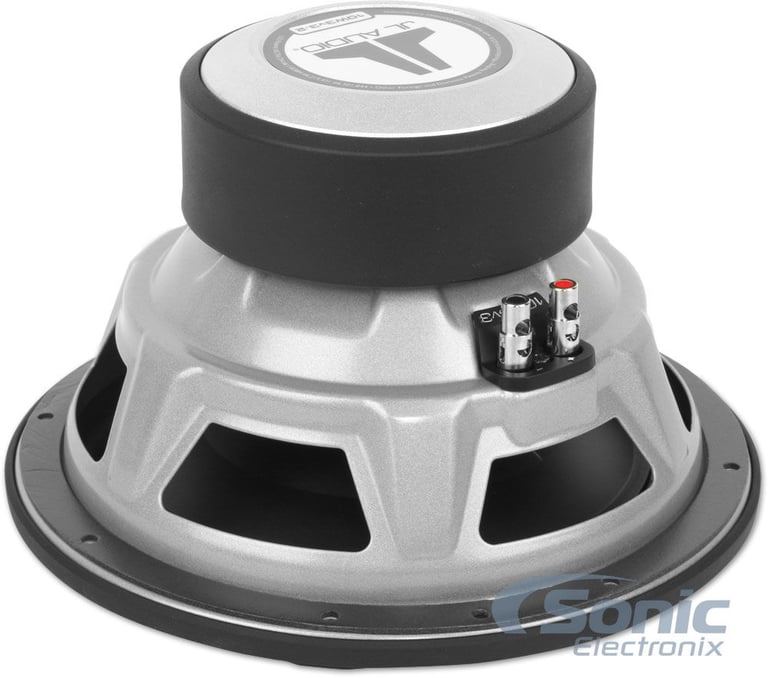

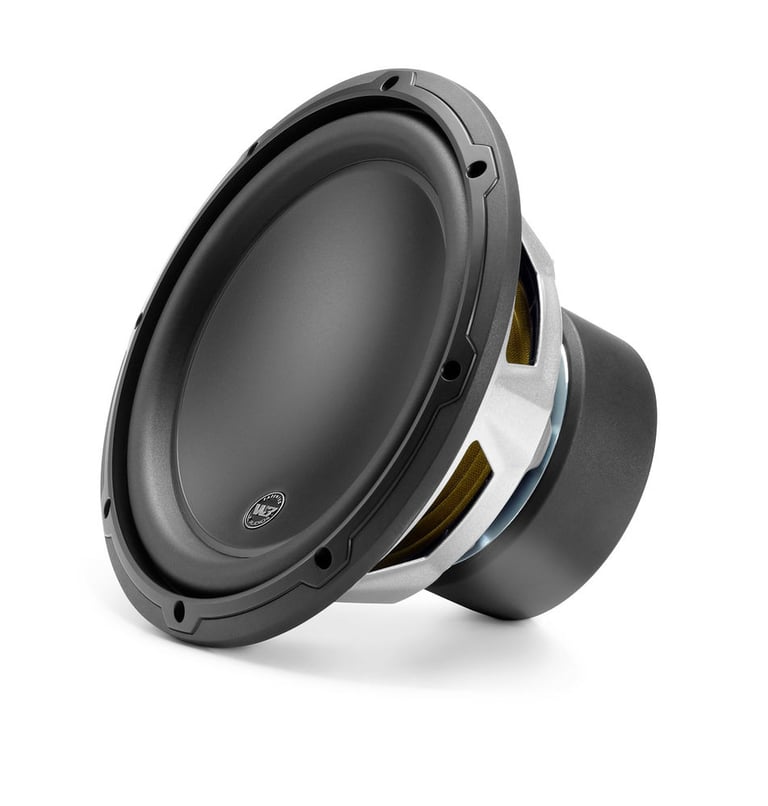

JL Audio 10W3v3-2

This acclaimed Subwoofer strikes an outstanding balance in power handling, enclosure requirements and excursion to deliver excellent results in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 10W3v3 to enhance linearity and reliability. The 10W3v3-2 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 0.625 cu. ft. (17.7L) sealed enclosure, or a 1.25 cu. ft. (35.4L) ported enclosure.


Product Details:

  • 10" Single 2 ohm W3 v3 Series Subwoofer
  • Power Handling:
    • RMS: 500 watts
  • Mineral-Filled Polypropylene Cone
  • Nitrile Butadiene Rubber NBR Surround
  • Stamped steel basket
  • Customization trim ring
  • Floating-cone attach method
  • Highly linear, DMA-Optimized motor system
  • Insert molded suspension, coil and terminal sub-assembly
  • Vented reinforcement collar (VRC)
  • Elevated frame cooling design
  • Nickel plated brass spring terminals
  • Engineered lead-wire design and attachments
  • 14 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 32.97 Hz
  • Sensitivity: 85.37 dB
  • Recommended sealed box volume: 0.625 cubic feet
  • Recommended ported box volume: 1.25 cubic feet
  • Top-mount depth: 5.93"
  • Cutout diameter: 9.0625"
  • Authorized Internet Dealer
  • JL Audio SGRU-10 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

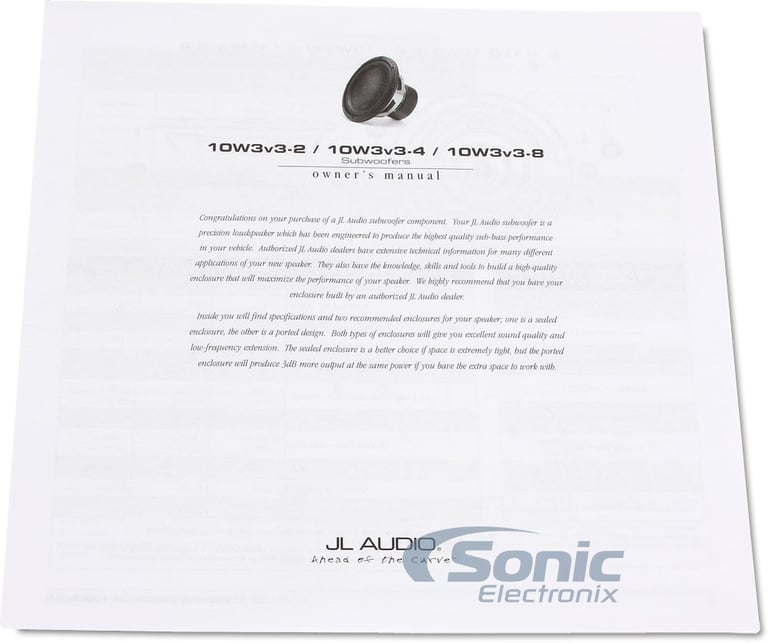

PDF IconJL Audio 10W3V32 owner’s manual

Product history:

JL Audio 10W3v3-2-3 thumbnail
(newest, current model)
JL Audio 10W3v2d2 thumbnail
(previous model, replaced by JL Audio 10W3v3-2 (Like New (Open Box)))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 10W3v3-2 (Like New (Open Box)) Subwoofer

Mono Amp

Wiring Guide to Wire 2 JL Audio 10W3v3-2 (Like New (Open Box)) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 10W3v3-2 (Like New (Open Box)) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 10W3v3-2 (Like New (Open Box)) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
W3 v3 Series
Subwoofer Size
10"
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Sensitivity
85.37 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Magnet Structure
Single Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.625 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5.93"
Cutout Diameter
9.0625"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.97 Hz
Equivalent Compliance (Vas)
32.17 liters
Total Speaker Q Value (Qts)
0.495
Electrical Q Value (Qes)
0.533
Electrical Resistance of Voice Coil (Re)
1.70 ohm
Mechanical Q Value (Qms)
7.027
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10W3v3-2-3

Weight:

14.70lbs

Internal SKU:

ls-10w3v32-u9

Internal Product ID:

215318

Product and How-to Videos


  • JL Audio W3 Car Subwoofer Review
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
