JL Audio 12W3V3-4 (Open Box, Complete)

500W RMS 12" W3v3 Series Single 4-Ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• Sensitivity: 87.15 dB
• Mounting depth: 6.65 "
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

Learn more about the ls-12w3v34-obc7

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Like New:
A Open Box, Like New product is an apparently untouched product in perfect condition that includes all accessories and packaging. Original protective wrapping may be missing, but the original packaging is intact and pristine. There are absolutely no signs of wear on the item or installation. Instructions are included. Warranty details are included in the item description or comments. Item is suitable for presenting as a gift and savings should be abundant!

Product Features:


  • 12" W3v3 Series Subwoofer Driver
  • Power Handling:
    • RMS: 500 watts
  • Recommended Power Range: 150 - 500 watts
  • Impedance: Single 4-Ohm
  • Injection-molded, mineral-filled polypropylene cone
  • Nitrile butadiene rubber surround
  • Stamped steel basket
  • Customization trim ring
  • Floating-cone attach method
  • Highly linear, DMA-Optimized motor system
  • Insert molded suspension, coil and terminal sub-assembly
  • Patented vented reinforcement collar (VRC)
  • Elevated frame cooling design
  • Nickel plated brass spring terminals
  • Engineered lead-wire design and attachments
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-12
  • Precision-built in USA at JL Audio Miramar, Florida factory
  • Mounting depth: 6.65 "
  • Cutout dimensions: 11.0625 "
  • Free Air Resonance (Fs): 26.72 Hz
  • Sensitivity: 87.15 dB
  • Xmax: 13.0 mm
  • Reference Efficiency (no): 0.3100%
  • Frequency response: ~22 ~ 200 Hz
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

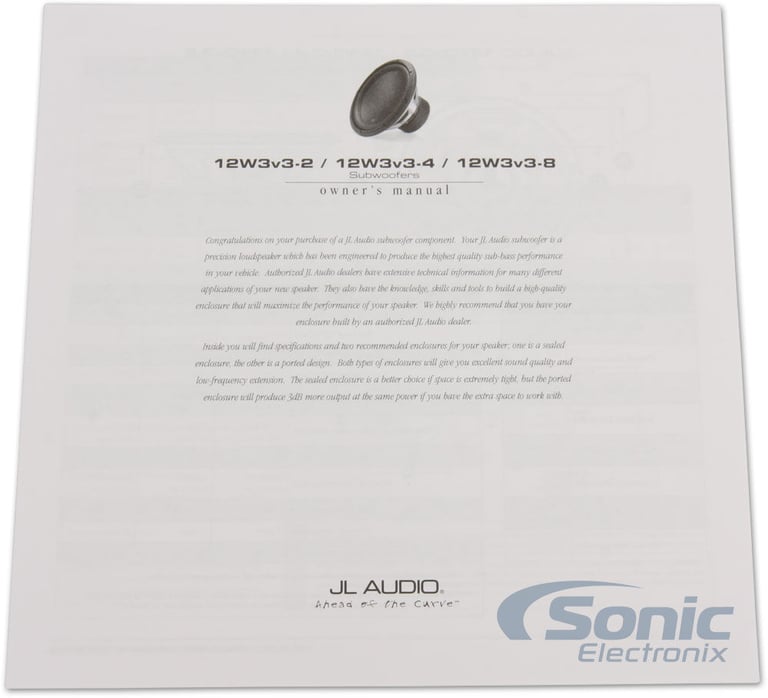

PDF Icon Check out the JL Audio 12W3v3 Owner's Manual

Product history:

JL Audio 12W3v3-4-3 thumbnail
(newest, current model)
JL Audio 12W3v2-D2 thumbnail
(previous model, replaced by JL Audio 12W3V3-4 (Open Box, Complete))

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 12W3V3-4 (Open Box, Complete) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 12W3V3-4 (Open Box, Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 12W3V3-4 (Open Box, Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 12W3V3-4 (Open Box, Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
W3 v3 Series
Subwoofer Size
12"
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
22 - 200 Hz
Sensitivity
87.15 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.125 cubic feet
Optimum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
6.65"
Cutout Diameter
11.0625"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26.72 Hz
Equivalent Compliance (Vas)
80.54 liters
Total Speaker Q Value (Qts)
0.444
Electrical Q Value (Qes)
0.472
Electrical Resistance of Voice Coil (Re)
3.563 ohm
Mechanical Q Value (Qms)
7.572
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

12W3v3-4-3

Weight:

18.00lbs

Internal SKU:

ls-12w3v34-obc7

Internal Product ID:

176859
