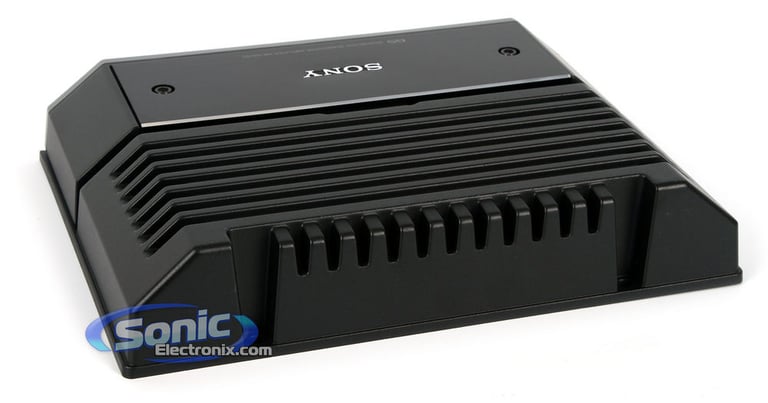

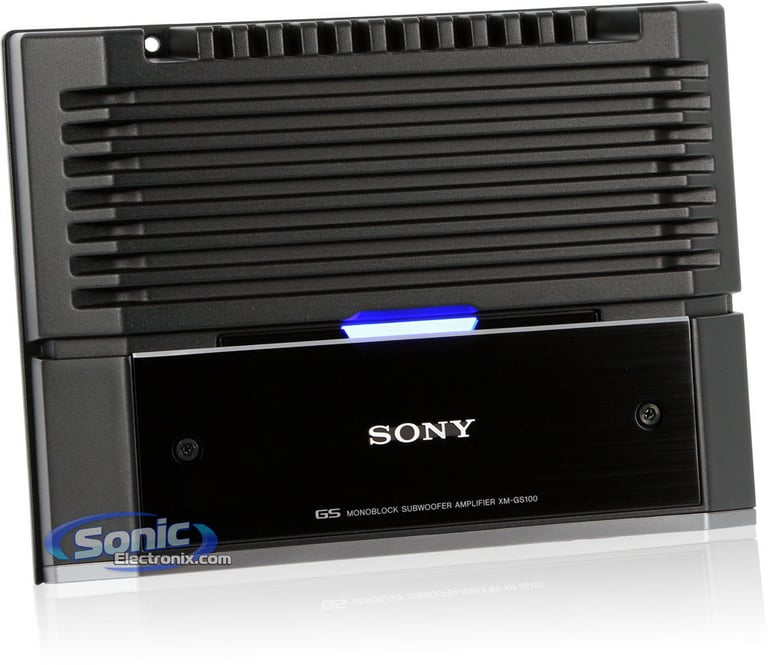

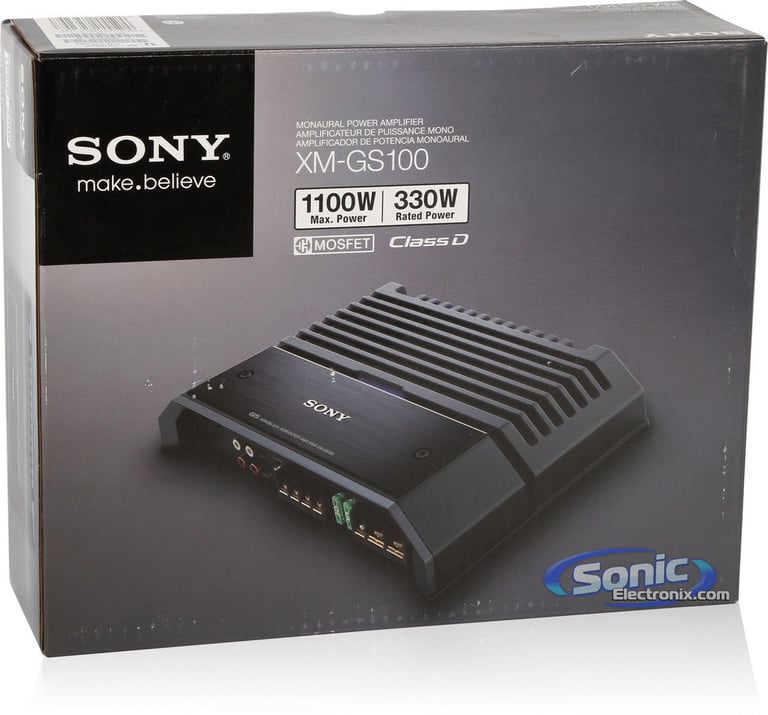

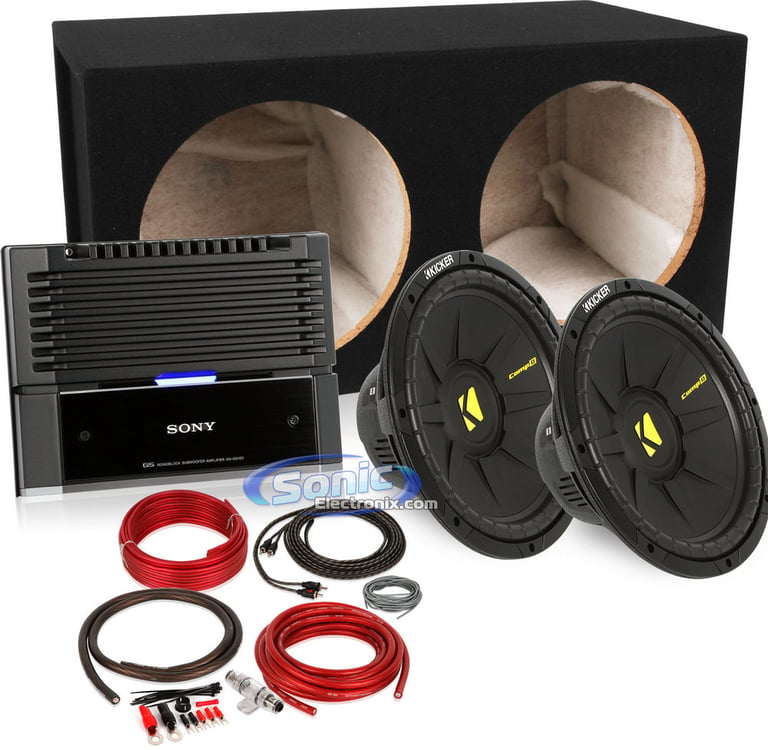

Sony XM-GS100
1100W Max Compact GS Series Monoblock Amplifier with High Level Inputs, Crossover Filters and a 3-year warranty!
Quantity: 1
 |
 |
General Features:
- GS Series Compact Class-D Monoblock Car Amplifier
- Max Power Rating:
- 4 ohm: 600 watts x 1 chan.
- 2 ohm: 1100 watts x 1 chan.
- RMS Power Rating @ 14.4V:
- 4 ohm: 330 watts x 1 chan.
- 2 ohm: 600 watts x 1 chan.
- CEA-2006 Compliant Amplifier
- Pulse Width Modulated MOSFET power supply

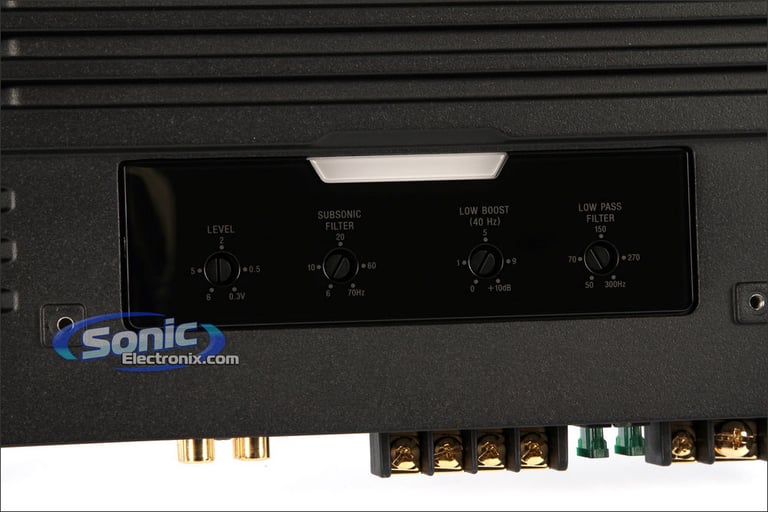

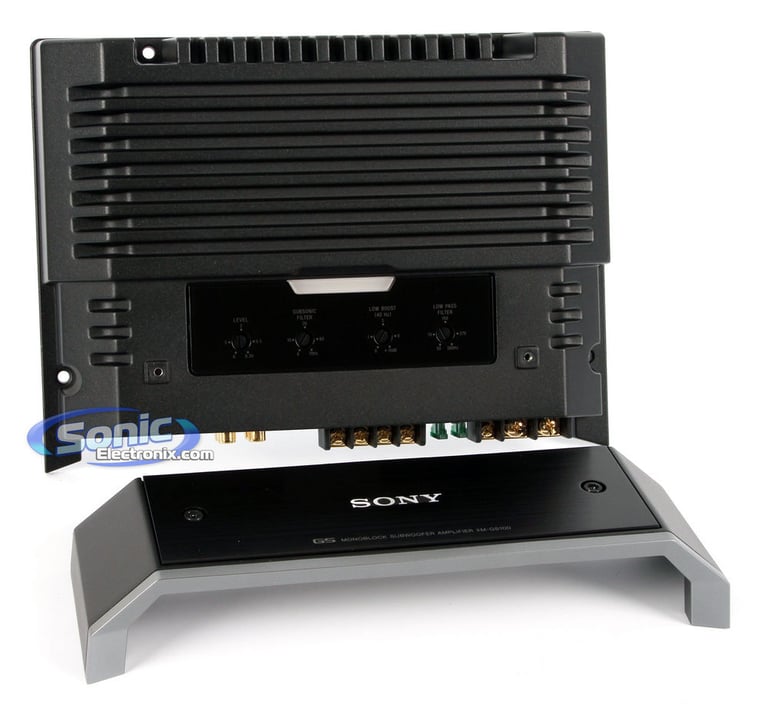

- Removable top panel conceals complete crossover & level controls
- Compact aluminum alloy chassis
- LED power (blue) and protect (red) indicators
- Dynamic Distortion Suppression
- Active Thermal Control regulates operating temperature
- Soft start turn-on

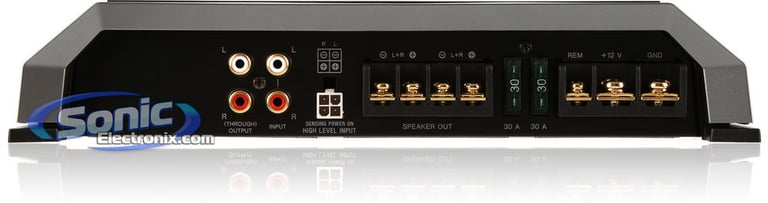

- Dual speaker terminals simplify the hookup of multiple speakers
- Speaker-level (high-level) inputs with Auto Turn-on for OEM Integration
- Preamp RCA outputs to daisy chain multiple amps
- Gold-plated RCA level inputs
- Gold-plated screw terminals
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Input sensitivity:
- Low level: 300mV - 6V
- High level: 6.5V - 16V
- Frequency Response: 10 - 300 Hz (+/-0 dB)
- Total Harmonic Distortion (THD): <0.1% (50 Hz)
- Signal to Noise Ration: 65 dBA
- Variable low-pass filter: 50 - 300 Hz, 12 dB/octave
- Subsonic filter: 6 - 7 Hz , 12 dB/octave
- Variable Low/Bass Boost: 0 to +10 dB bass boost at 40 Hz
- Fuse Rating: 30A x 2
- Dimensions: 10-3/4"W x 8"D x 2-1/8"H
- Authorized Internet Dealer
- 3 Year Manufacturer's Warranty

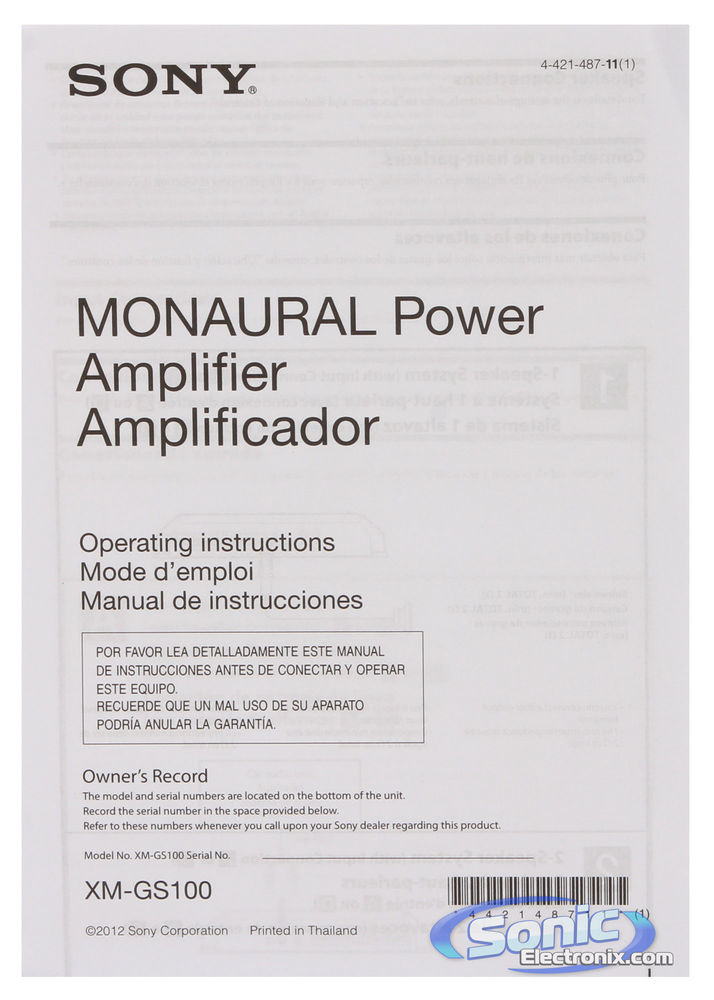

Check out the Sony XM-GS100 Owner's Manual

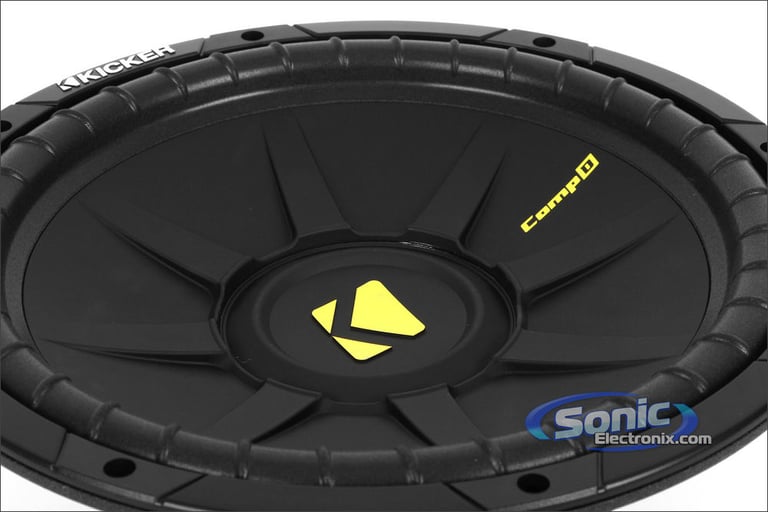

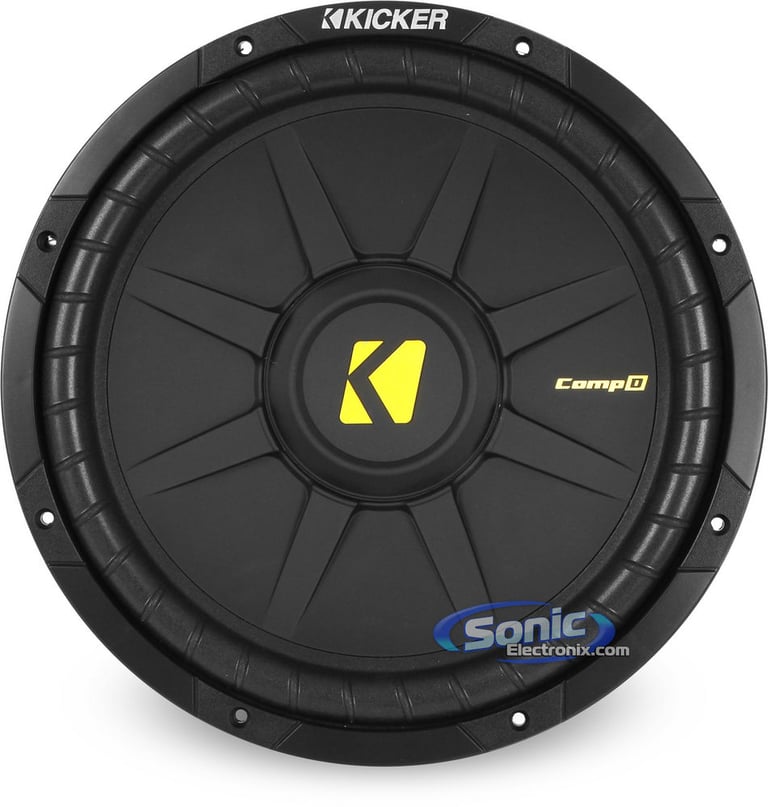

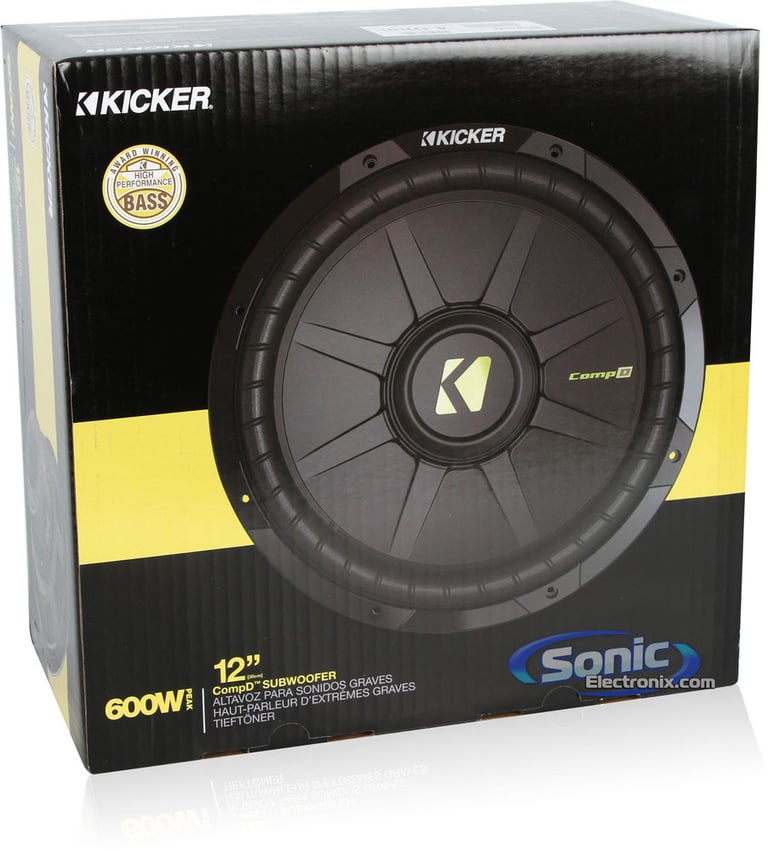

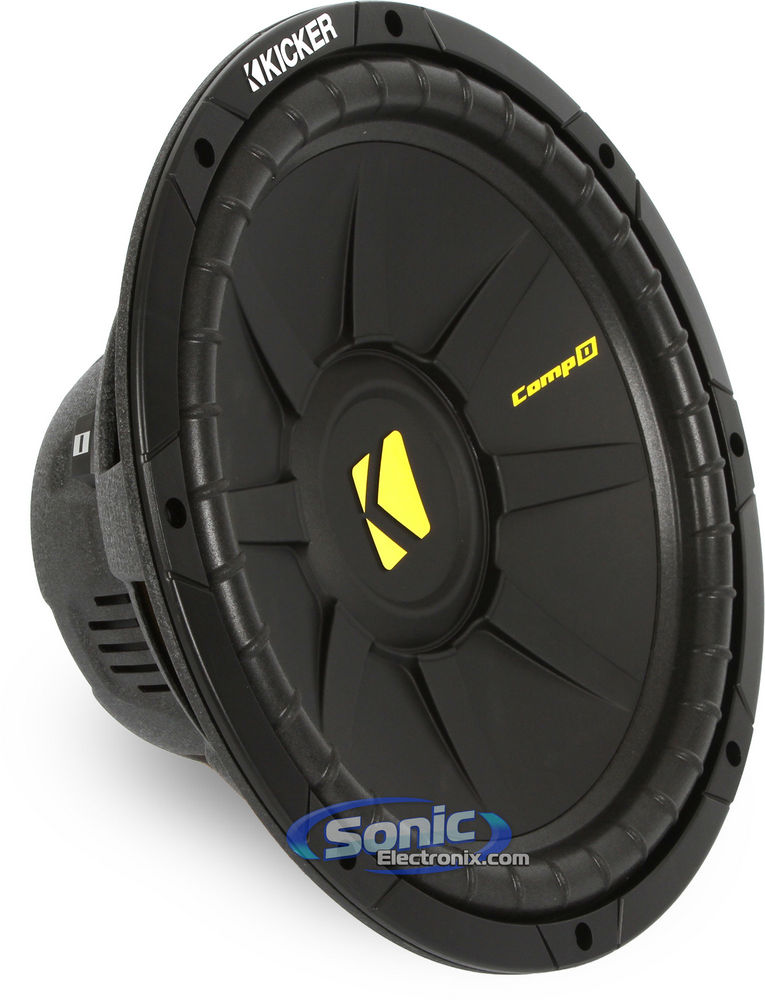

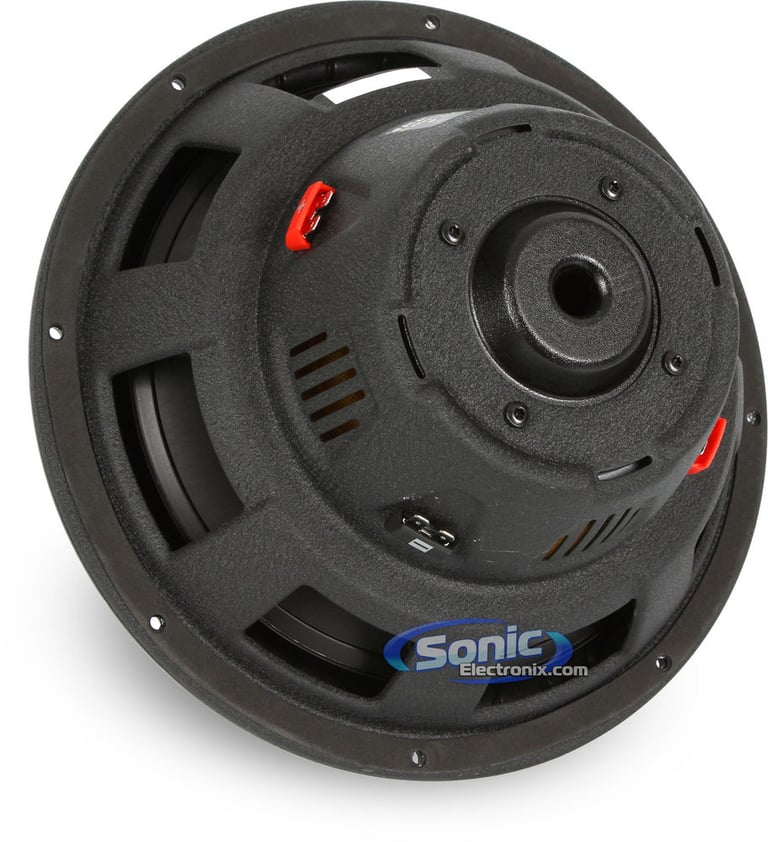

Kicker CompD122 (40CWD122)
600W Peak (300W RMS) 12" Comp-D Series Dual 2-Ohm Subwoofer
Quantity: 2
General Features:
- 12" Dual 2-Ohm CompD Series Subwoofer
- Power Handling:
- Peak: 600 watts
- RMS: 300 watts
- Recommended power range: 100 - 300 watts RMS
- Impedance: Dual 2 ohm
- Injection-Molded Polypropylene Cone
- Ribbed polyurethane surround
- Large-diameter spider
- High-strength Spiralead tinsel leads
- Frequency response: 27-500 Hz
- Resonance Frequency (Fs): 30 Hz
- Top-mount depth: 5-3/8"
- Sensitivity: 88.3dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

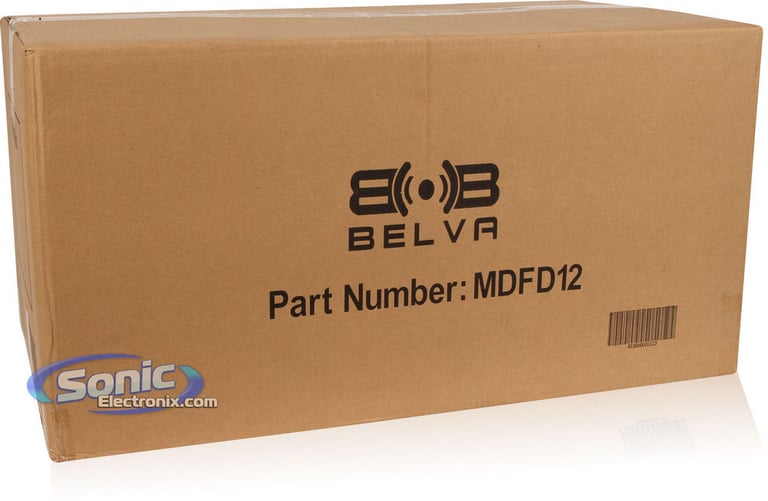

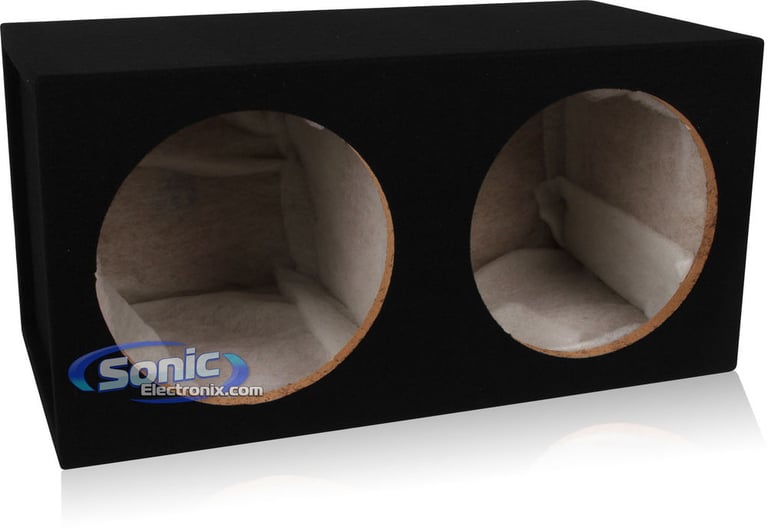

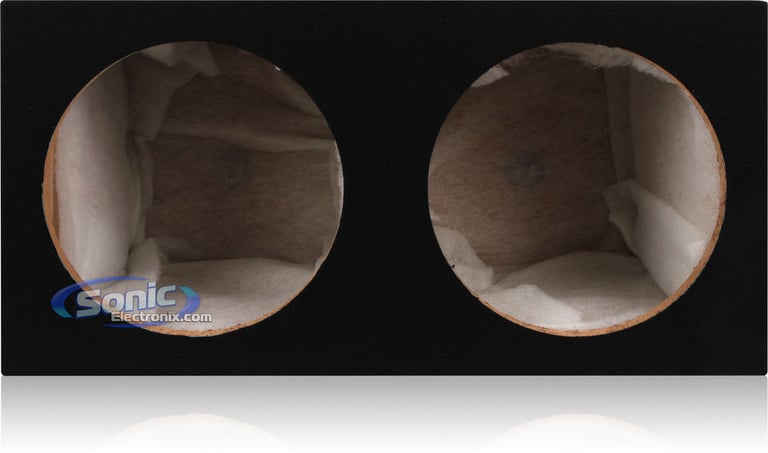

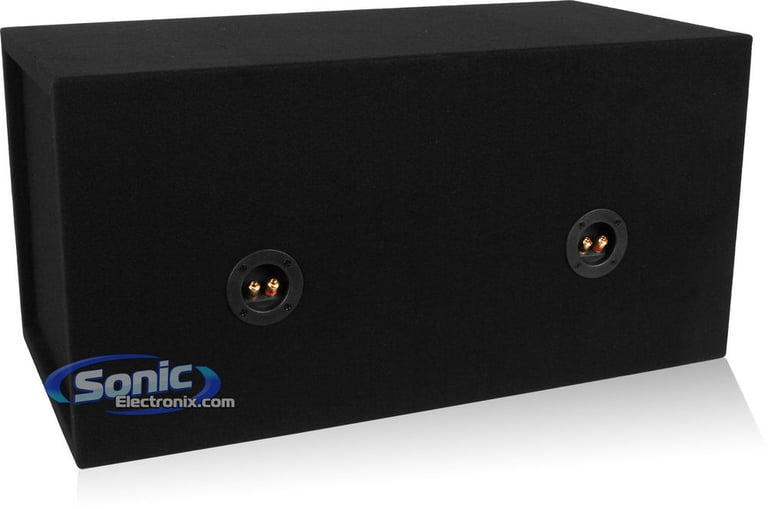

Dual 12" 3/4 MDF Sealed Subwoofer Enclosure (Belva MDFD12)
Dual 12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/Polyfil (2.46 cu ft Airspace - 12SQB)
Quantity: 1
General Features:
- Dual Sealed 12" Enclosure
- Internal box volume: 2.46 cubic ft. total air space - 1.23 cubic ft. per chamber.
- High Quality 3/4" MDF Construction
- Durable black carpeting
- Pre-lined with Poly-Fil
- Seams are fully caulked for better efficiency
- 2 Separate chambers allowing each subwoofer its own air space
- Gold post terminals for clean and easy wiring access
- Box Dimensions: 28-1/2"L x 14-1/4"D x 14-1/4"H
- 30 Day return policy

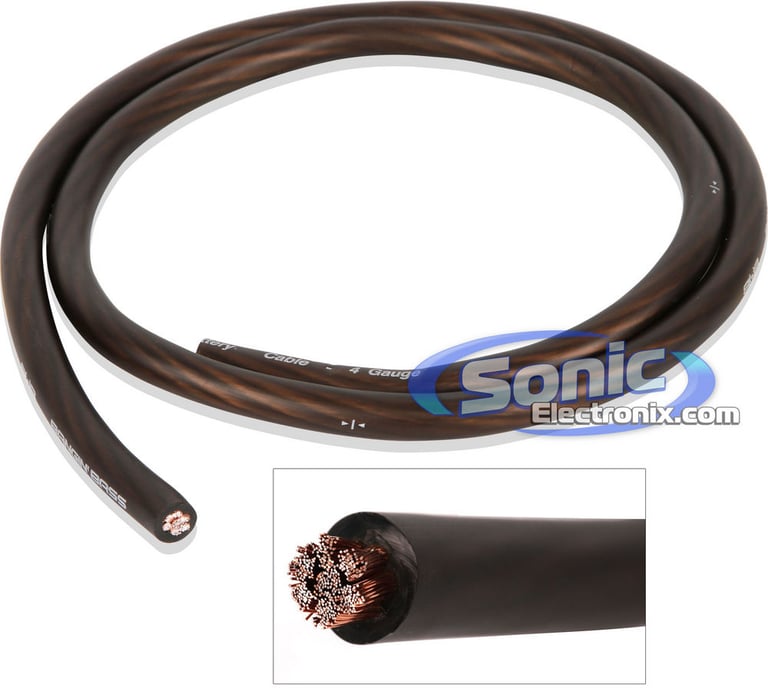

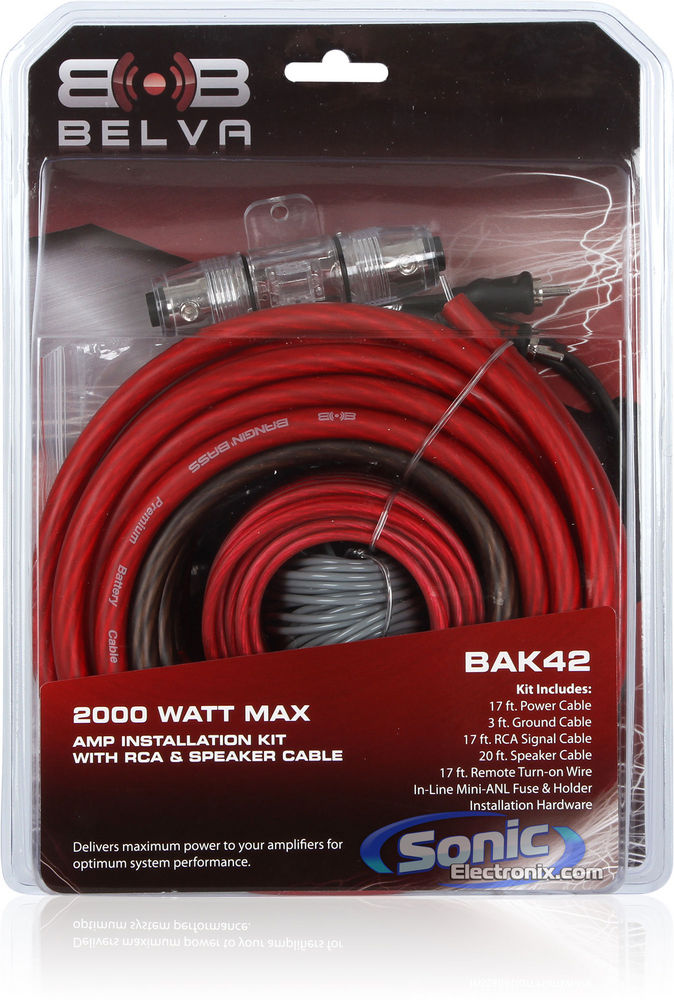

Belva BAK42
Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)
Quantity: 1
General Features:
- Complete 4 Gauge 2-Channel Amplifier Installation Kit
- Designed specifically for car audio systems up to 1000 watts RMS
- Premium Powerflex power and ground wire provides optimal power transfer
- Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
- Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
- Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
- In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:

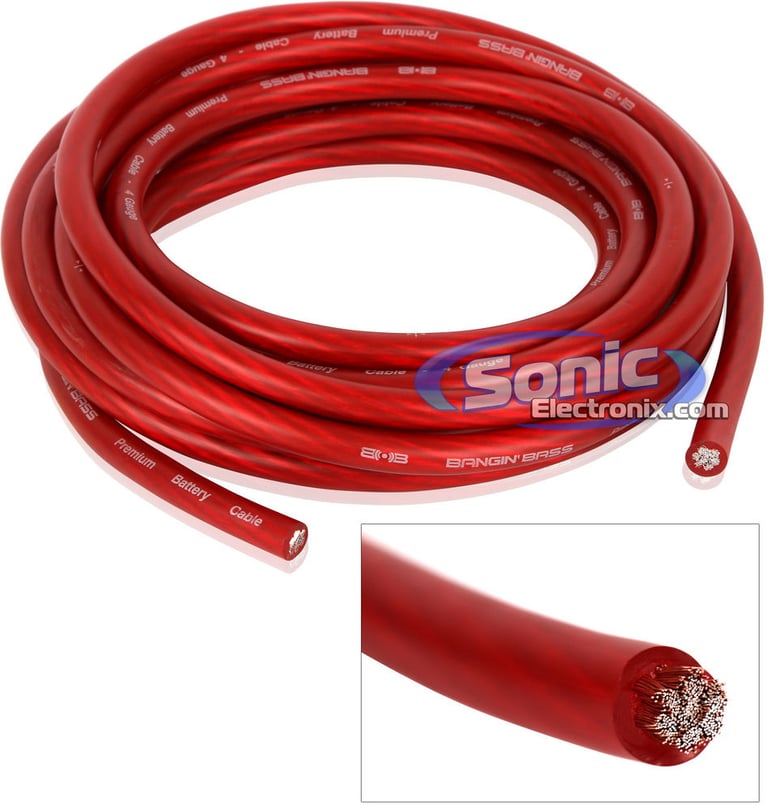

- 17 ft. (5.2 meters) Red 4 gauge power wire
- 3 ft. (.91 meters) Black 4 gauge ground wire
- 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

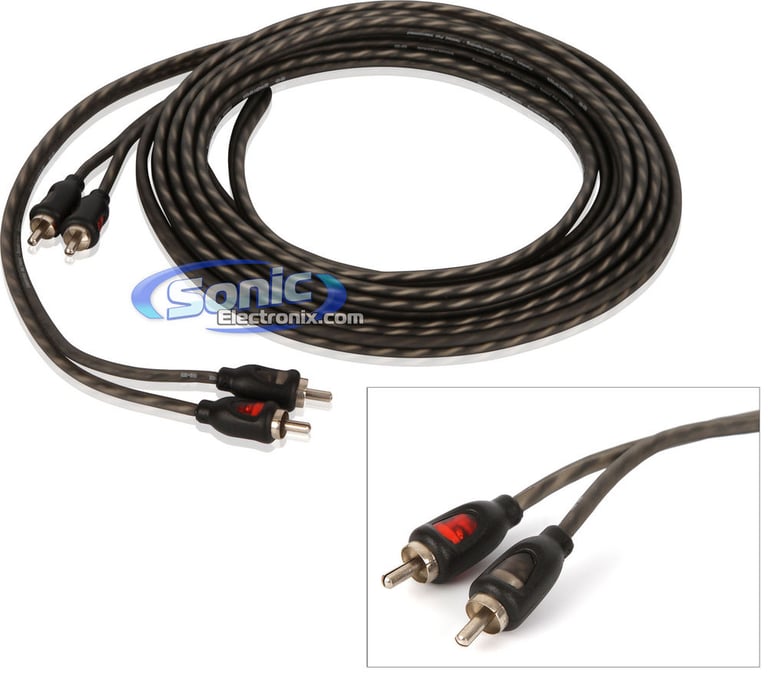

- 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
- 20 ft. (6.1 meters) 16 Gauge Speaker cable

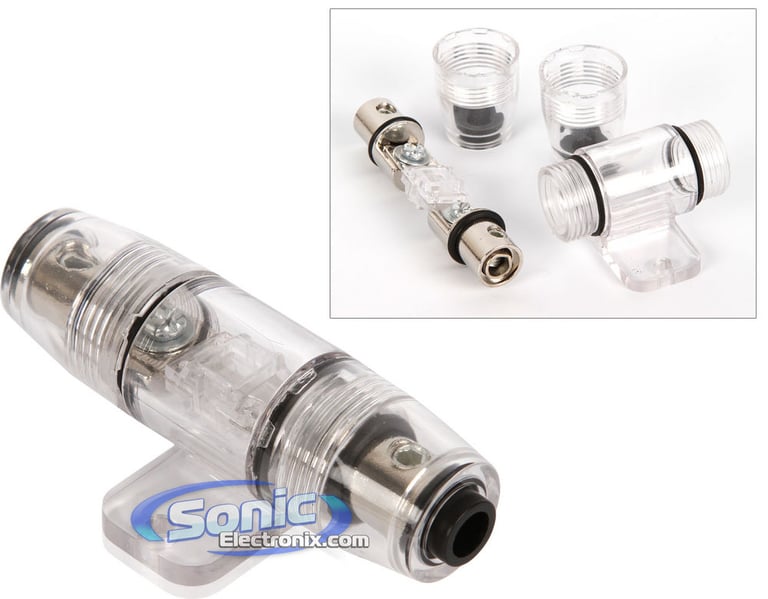

- One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
- One Black rubber firewall grommet
- One 4 Gauge red chrome plated ring terminals
- One 4 Gauge black chrome plated ring terminal
- Three 18 Gauge red Spade terminal
- Two 18 Gauge black Spade terminal
- One 18 Gauge red butt connector
- Ten 4" Black zip ties
