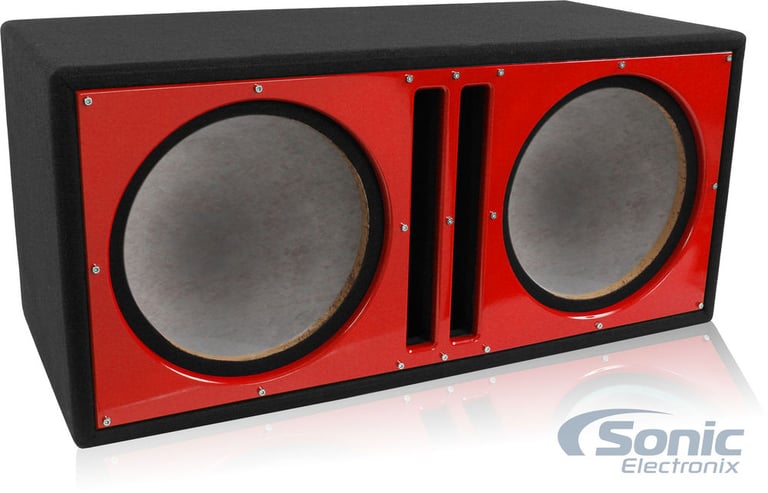

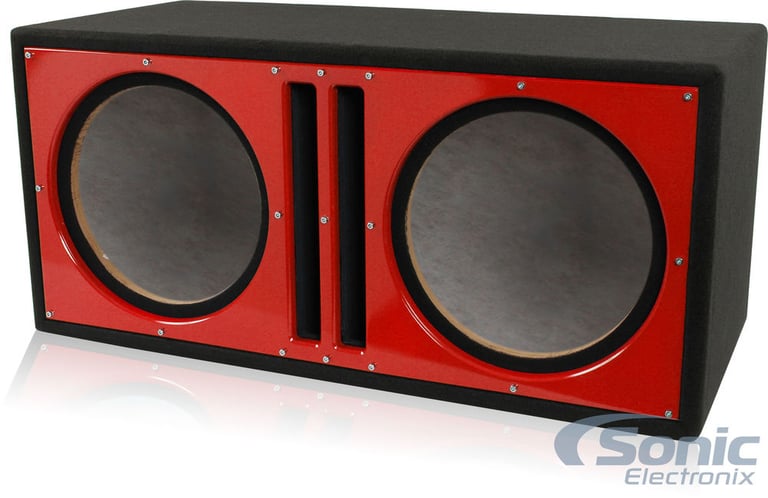

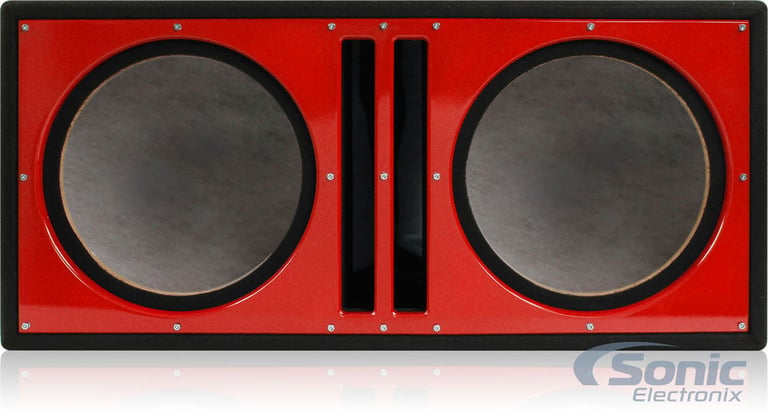

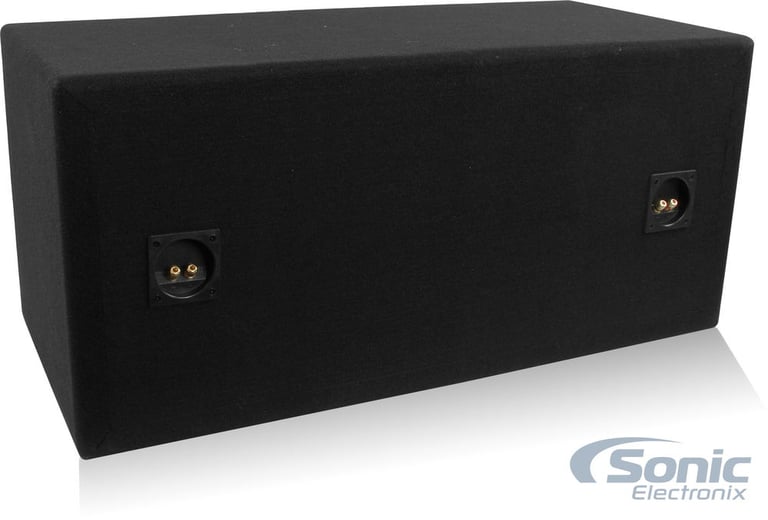

Belva BBX212RD (RED)

3.70 Total Cu Ft - Dual 12" 3/4" MDF Ported Subwoofer Box Enclosure with Custom Red Baffle

Belva
Shop all Belva
highlight-star-icon

• 12" Dual Ported Subwoofer Enclosure
• 3/4" Medium Density Fiberboard Construction
• High Gloss Red Panel
• Durable Black Carpet
• Pre-Lined with Poly-Fil

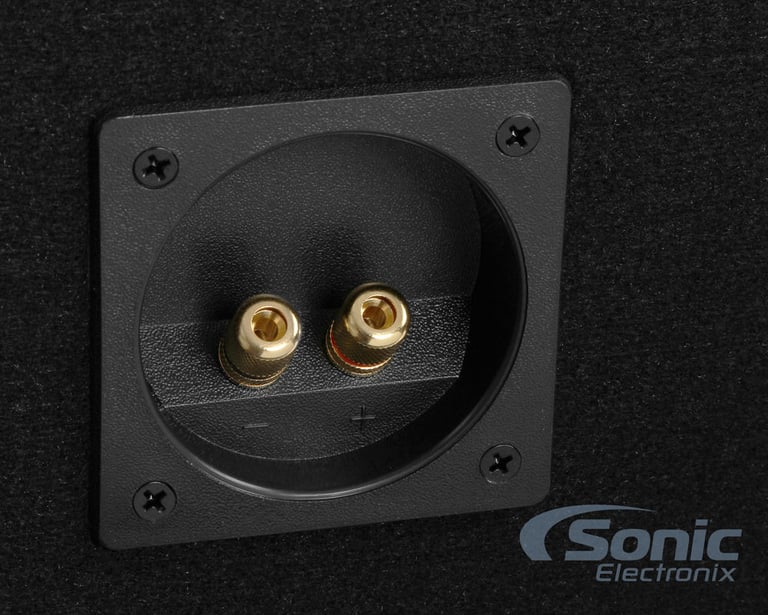

• Gold Speaker Terminals
• Total box volume: 3.7 cubic feet

Learn more about the bbx212rd

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Description


Belva brand icon

Authorized dealer



General Features:

  • 12" Dual Ported Subwoofer Enclosure
  • Red high gloss front face board
  • Covered in black carpet
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Subwoofer mounting depth: 14 1/2"
  • Subwoofer cutout diameter: 11 1/4"
  • Box volume: 1.85 cubic feet (per chamber)
  • Total box volume: 3.7 cubic feet
  • Dimensions: 16"D x 35"W x 16.25"H
  • Also available in Blue and Black
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Port Specifications:

  • Rectangular Slot Port
  • Number of ports: 2
  • Port volume: 0.18 cubic feet (per port)
  • Total port volume: 0.36 cubic feet
  • Estimated port tuned frequency (fb): 35 Hz
  • Port dimensions: 1.5"Width 12.5"Depth

Best selling similar products

1SV12B small

Single 12" Vented MDF Subwoofer Enclosure (Belva 1SV12B)

• Single 12" Vented MDF Enclosure
• Holds one 12" subwoofer
• 3/4 MDF (Medium Density Fiberboard) Construction
• Durable black carpeting
• Gold Terminals
• Internal Box Volume: 1.8 cubic ft.

(123)

$79.99

List price $95.99

Dual 12in P small

Tru Spec Dual 12in P (1460YX)

• 12" Dual Ported Subwoofer Enclosure
• 3/4" Medium Density Fiberboard (MDF) construction
• Total box volume: 3.50 cubic feet
• Compatible for Sundown SA 12V2 subwoofers (Sold separately)

(6)

$234.99

List price $299.99

Single 12” small

Tru Spec Single 12" (1447TS)

• 12" Single Ported Subwoofer Enclosure
• 3/4" Medium Density Fiberboard (MDF) construction
• Total box volume: 1.75 cubic feet
• Compatible for Sundown SA12V2 subwoofers (Sold separately)

(9)

$174.99

List price $289.99

Specifications & Details


Box/Enclosure specifications
Subwoofer Size
12"
Subwoofer Cutout Shape
Round / Circle
Box Type
Ported
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Cutout Diameter or Length
11.25"
Maximum Speaker Depth
14.5"
Total Box Volume
3.7 cubic feet
Box Volume (Each Chamber)
1.85 cubic feet
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Spring posts (banana clip ready)
Box Exterior Color
Red
Box Finish
Carpet
Tuning Frequency
35 Hz
Port Details
Number of Ports
2
Tuning Frequency
35 Hz
Port Diameter
12.5"
Port Length
1.5"
Warranty and Return Policy
Parts Warranty Duration
Not warranted
Labor Warranty Duration
Not warranted
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BBX212RD

Weight:

58.00lbs

Internal SKU:

bbx212rd

Internal Product ID:

72855

Customer Ratings & Reviews


Belva BBX212RD (RED) thumbnail image

5 star
33%
4 star
44%
3 star
11%
2 star
0%
1 star
11%



Durability
4
Value
4.5
Features
3.9
Design
4.7
Usability
4.2

Customer Reviews

Sort by:

Loading...

nice pre made box.

working well with my 2 older comp vr subs. i have the silver ones with red kicker logo and i was in a sealed box before this, but i like the sound much better in ported with hip hop and basshead music.

By Jodie on November 10, 2013

65 found this helpful


built well but, p3 speakers didn't fit in red front.

The box is a nice box fir the price. Disappointed that the rockford p3s I bought didn't fit inside the red decorative front but just used it without it.The speakers sound great in it though anyways.

By Brett on January 29, 2015

61 found this helpful


Only 1 downside.

I'm giving this box a 3 star rating solely to fact that the baffle around the box, didnt even allow me enough space to plop my sub down into it. I have 12 inch subs but the baffle doesnt give enough space for my speaker to sit all the way in.

By Andrew on June 4, 2014

61 found this helpful


We will see!

I ordered this and had the package less than a week later. I live in Germany so I was impressed! I almost always shop sonic, unless they are backordered :(. The box seems week built and looks nice. My type R bar,y fits. It's a very very snug fit. I guess that's good. The box looks good. I. Powering two typ R 12". Each one has its own alpine mrx m110 :D

By Andrew on March 5, 2015

55 found this helpful


Great sound

Very professional look and sound. I'm very pleased with the box

By erikspaz on July 27, 2014

58 found this helpful


These will break apart on 600w RMS subs!

Didnt have this box very long, and it started to come apart and rattle on two RE Audio 600w subs. Had to put over 20 additional screws into it to slow it from breaking apart faster. BOTH of the wire terminals melted with 14 ga speaker wire going to them. These are JUNK!

By Anon on November 6, 2013

58 found this helpful


Great sub box

I put two alpine subs with alot of power in this box and it handles it very well

By Pops123 on August 17, 2015

23 found this helpful


Belva box

I bought this box to put in my 2012 Chevy Suburban LT and I put two NVX VCW122 in it at 1Ohm the box looks and sounds amazing every time I open the back hatch people say how nice it looks I enjoy the double baffle so the subs lay nice and flush. I would recommend this to just about anyone looking for a smaller box with good sound.

By Anonymous on March 31, 2019 Checkmark Icon Verified purchase

15 found this helpful


Good

This product is good only problem was the face plate hole are to small an required to be sanded down. Other then that it is a good product.

By Lopez on November 8, 2015

11 found this helpful
