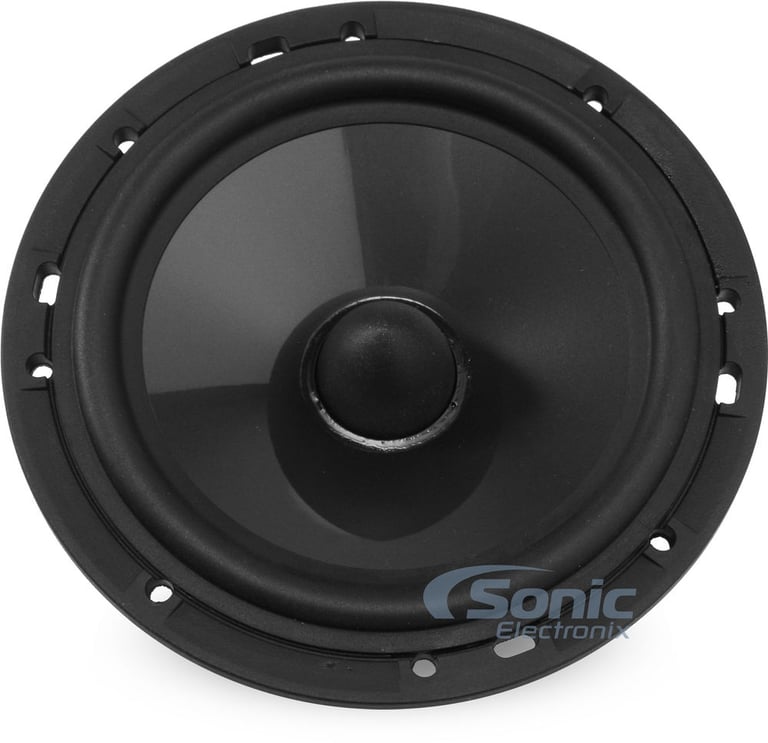

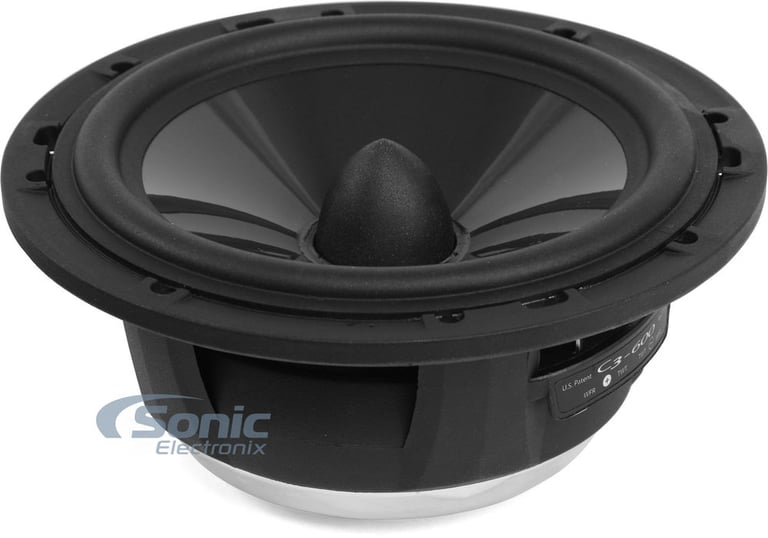

JL Audio C3-600CW

6.0" Replacment Evolution C3 Series Convertible Component/Coaxial Mid-Woofer - Priced Individually

JL Audio
Shop all JL Audio
highlight-star-icon

• 225 Watts Max
• 75 Watts RMS
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround

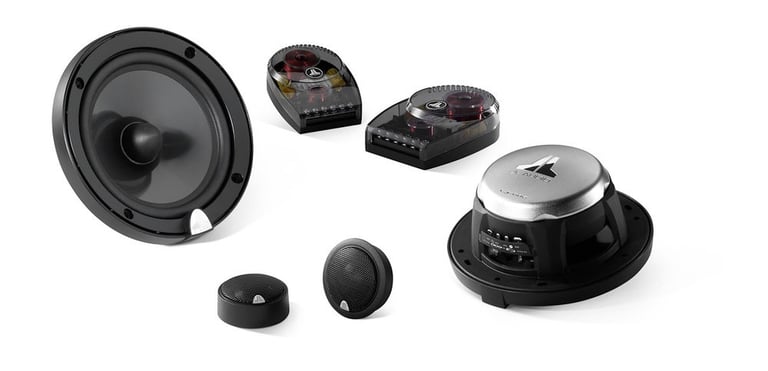

• Part of JL Audio C3-600 System
• Nominal Impedance: 4 ohm
• Top-mount depth: 2.49"

Learn more about the c3600cw

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AXABH-CH2 main

Axxess AXABH-CH2

Amplifier Bypass Harness for select 2007-2021 vehicles from Ram, Dodge, Jeep

2
-11.77%

$29.99

List price $33.99

HRN-RR-SA1 main

iDataLink Maestro HRN-RR-SA1 Wiring Harness

Install a New Car Stereo in select 2004-2020 vehicles from Nissan, Honda, Hyundai (Requires ADS-MRR or ADS-MRR2 Module)

2
-25.94%

$19.99

List price $26.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

49
-42.51%

$22.99

List price $39.99

Limited time!
REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

6
-34.13%

$111.95

List price $169.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

NSP69 main

NVX NSP69

900W Peak (300W RMS) 6x9" N-Series 2 Way Coaxial Car Speakers

53
-16.67%

$89.99

List price $107.99

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

129
-14.29%

$119.99

List price $139.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

47

Description


JL Audio brand icon

Authorized dealer

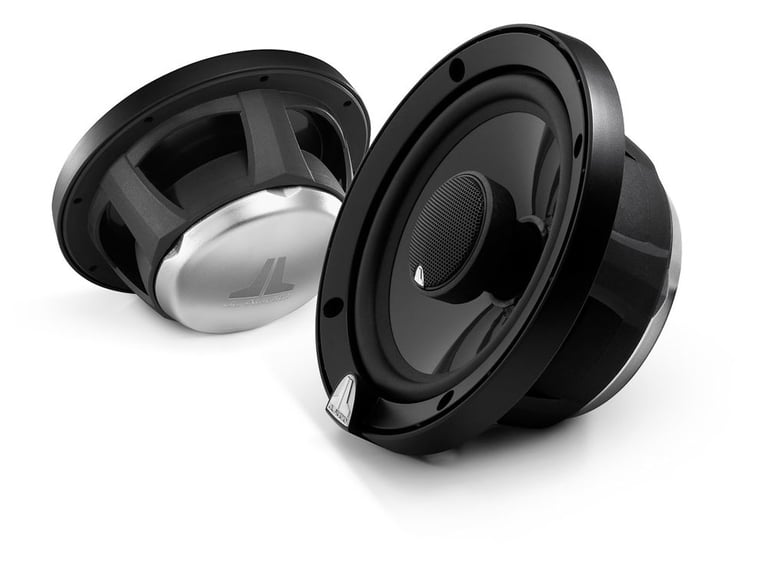

JL Audio Evolution C3 Series Convertible Component/Coaxial Woofer

The C3-600CW is a part of the Evolution C3 Convertible System. The same product can be deployed in either a Component or Coaxial configuration, delivering outstanding audio quality in each application. Long woofer excursion capability with DMA-optimized performance delivers superb mid-bass and clean mid-range output. The woofer houses a beefy 1.2-inch voice coil that generates a stunning mid-bass output without sacrificing mid-range fidelity. In addition, the woofer offers a mineral-filled polypropylene cone, a rubber surround, and an injection-molded polymer basket.



JL Audio Linearity and Control

JL Audio Linearity and Control

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, Evolution C3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate low end. Its main catalyst is the driver's robust 1.2-inch voice coil, that allows extreme linear excursion, phenomenal power handling and control, control, control.











General Features:

  • 6.0" Evolution C3 Series 2-way Convertible Car Woofer
  • Part of the JL Audio C3-600 System
  • Power Handling:
    • Peak: 225 watts
    • RMS: 75 watts
  • Recommended Power Range: 25 - 150 watts per channel
  • Mineral-Filled Polypropylene Cone
  • Butyl Rubber Surround
  • Injection-molded Polymer Basket
  • 1.20" Voice Coil on Kapton Former
  • Low-Profile, Symmetrical Roll Spider

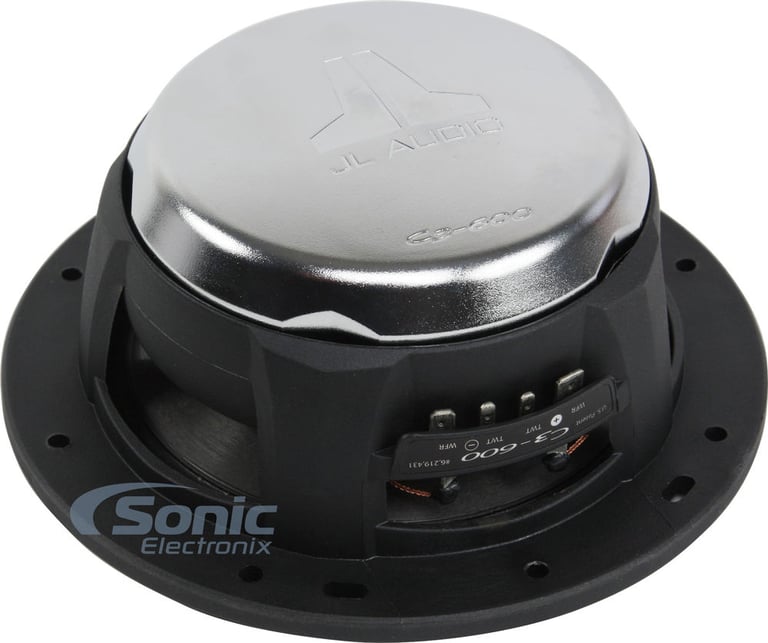

  • Ferrite Woofer Magnet
  • Elevated Frame Cooling

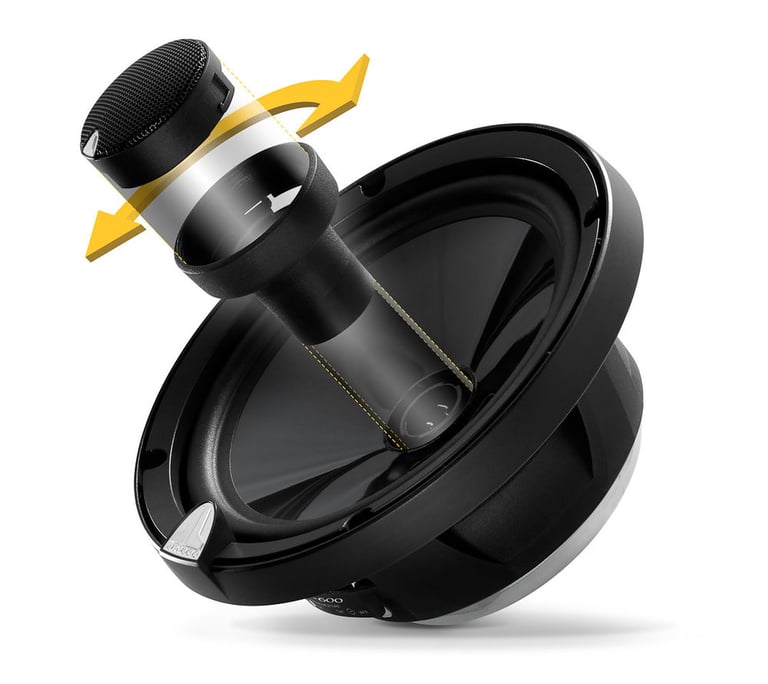

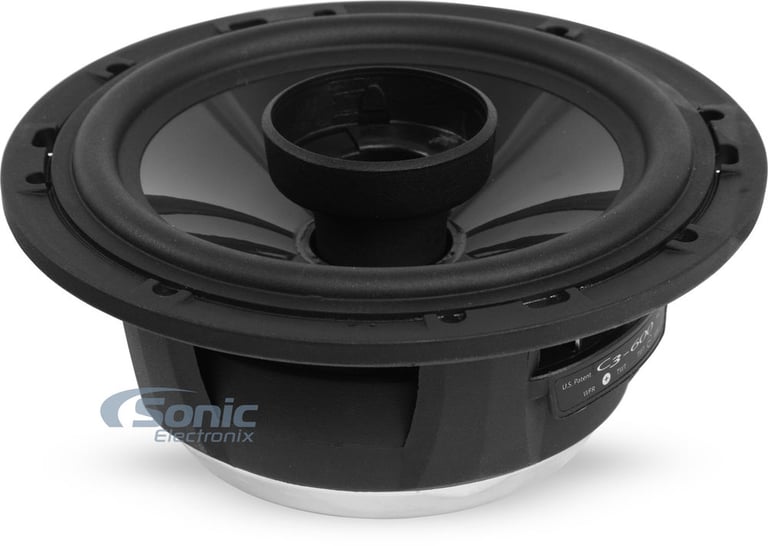

  • Convertible Drivers: Coaxial or Component
  • Dynamic Motor Analysis (DMA) Optimized Motor
  • 3-position Mid-range Presence Control

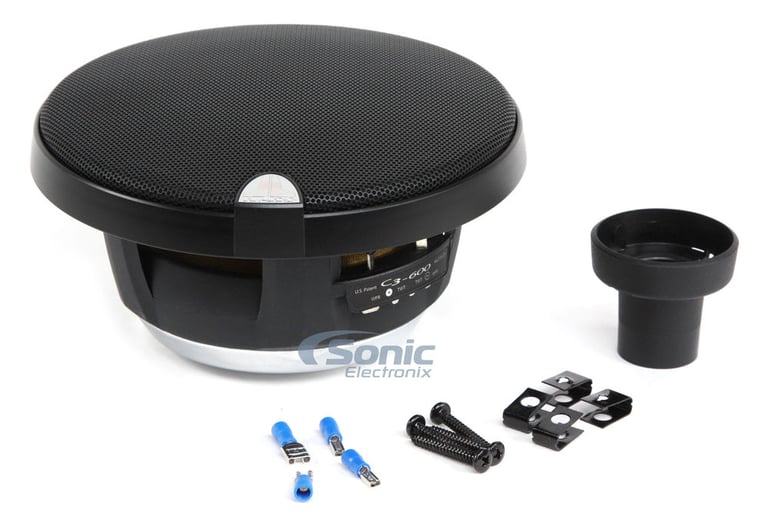

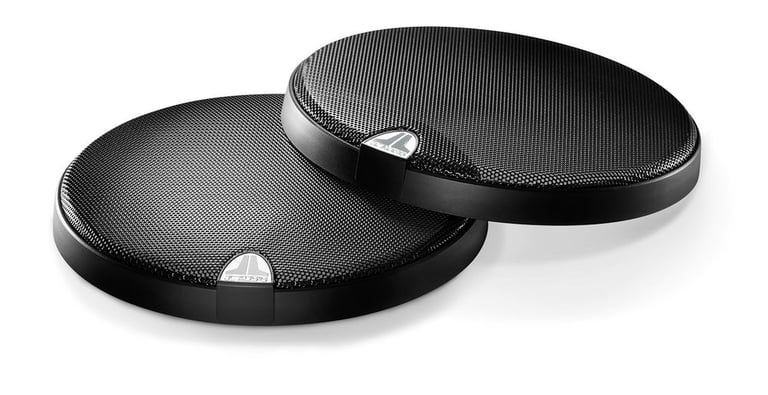

  • Black steel mesh grille with an electroformed JL Audio logo Included
  • Woofer Dimensions:
    • Top-mount depth: 2.49"
    • Cutout Dimensions: 5.00 "
  • Nominal Impedance: 4 ohm
  • Efficiency: 89.5 dB @ 1 watt / 1 meter
  • Frequency Response: 50 Hz - 25 KHz ± 3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Check out the JL Audio C3-600 Owner's Manual


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

15
-12.50%

$349.99

List price $399.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

22
-35.00%

$194.99

List price $300.00


Best selling similar products

TS-M651PRO small

Pioneer TS-M651PRO

• 500 watts Peak, 120 watts RMS
• Lightweight Rigid Pulp cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

$149.99

List price $150.00

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

Kappa 303S small

Infinity Kappa 303S (INFSPKKA303SAM)

• 165 watts Peak Each, 55 watts RMS Each
• Glass Fiber cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$199.95

List price $249.95

PPROV2-8 small

Rockford Fosgate Punch Pro V2 PPROV2-8

• 150 watts Peak Each, 75 watts RMS Each
• Curvilinear Pressed Pulp cone material
• Impedance: 4 ohm
• Sensitivity: 94.5 dB

$229.99

List price $229.99

PPROV2-69 small

Rockford Fosgate Punch Pro V2 PPROV2-69

• 150 watts Peak Each, 75 watts RMS Each
• Curvilinear Pressed Pulp cone material
• Impedance: 4 ohm
• Sensitivity: 93.5 dB

$269.99

List price $269.99

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$144.99

List price $169.99

CF-350mt small

JL Audio CF-350mt

• 3-1/2" CF Series Midtweeters
• 35 watts RMS Each
• 4 ohm Impedance

(4)

$179.99

List price $229.99

Specifications & Details


Speaker Specifications
Series
C3 Series
Priced Per
Each Speaker
Number of Speakers
1
Speaker Size
6"
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
225 watts
RMS Power Handling
75 watts
Sensitivity
89.5 dB
Frequency Response
50 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2.49"
Cutout Dimensions
5.00"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

C3-600CW

Weight:

4.00lbs

Internal SKU:

c3600cw

Internal Product ID:

74099

Customer Ratings & Reviews


JL Audio C3-600CW thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great speaker

C3-600 is a great speaker I purchased because I had to replace because of water damage . They sell good price

By 1canesfan1 on April 14, 2018
