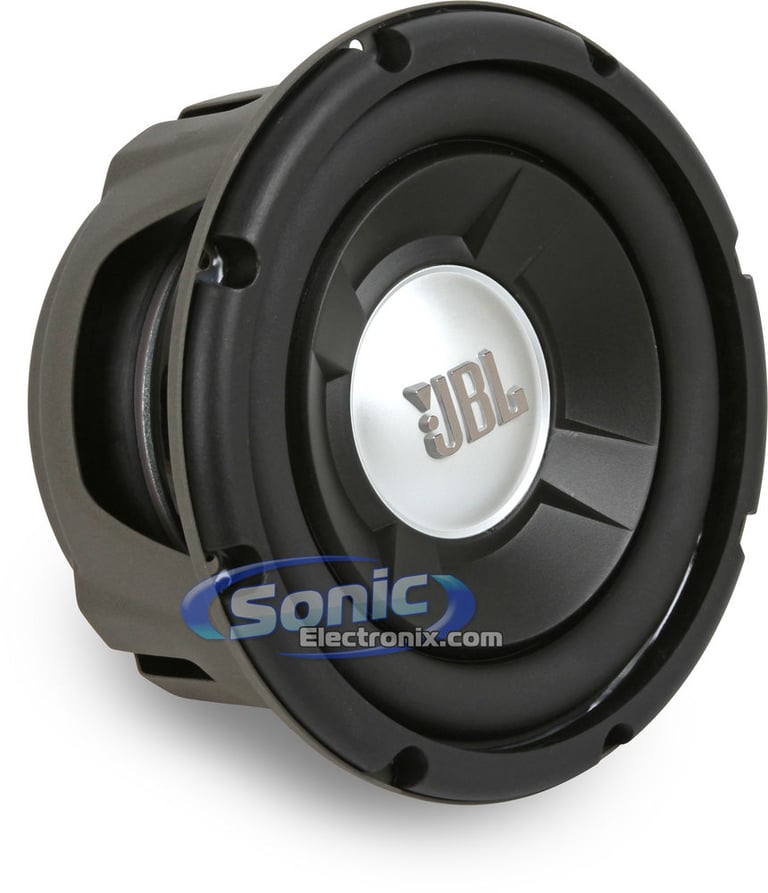

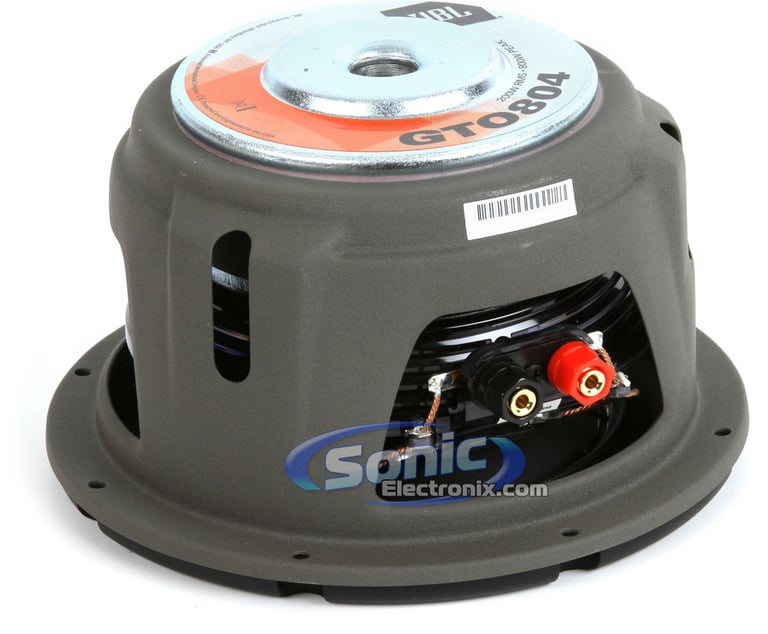

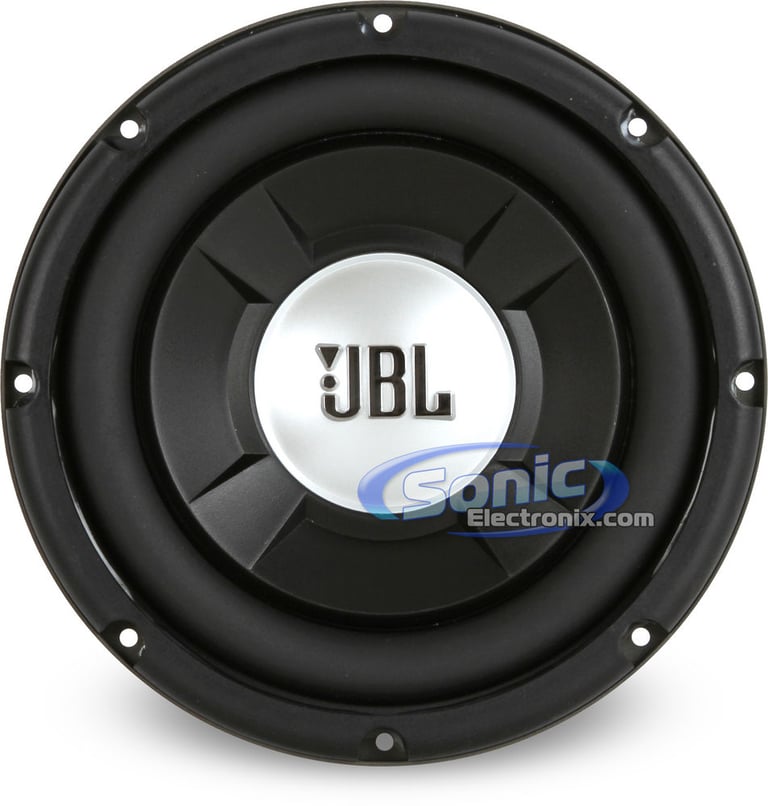

JBL GTO804

200W 8" GTO Series Single 4 ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• 800W Peak
• 200W RMS
• Single 4 Ohm Voice Coil
• Polypropylene Cone with Hi-roll rubber surround

Learn more about the gto804

We apologize

This item has been discontinued


Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

Limited time!
TS-G6820S main

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

4
-23.09%

$49.99

List price $65.00

Limited time!
R168X2 main

Rockford Fosgate Prime R168X2

220W Peak (110W RMS) 6x8" Prime Series 2 Way Coaxial 4-ohm Speakers

16
-11.11%

$79.99

List price $89.99

Limited time!
Kappa 683XF main

Infinity Kappa 683XF (INFSPKKA683XFAM)

600W Peak (200W RMS) 6x8" Kappa Series 2-Way Coaxial 3-ohm Car Speakers

3
-32.13%

$223.95

List price $329.95

Stadium 862F main

JBL Stadium 862F

600W Peak (200W RMS) 6x8" Stadium Series 2-way Coaxial 3-ohm Speakers

5
-16.67%

$249.95

List price $299.95

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Product Highlights


• 800W Peak
• 200W RMS
• Single 4 Ohm Voice Coil
• Polypropylene Cone with Hi-roll rubber surround

Description


JBL brand icon

Authorized dealer


Also Available as Open Box (Like New) for $64.95


Reduced-Depth, A Full Inch Shallower Than Most

A new, JBL-proprietary frame, unique inboard motor structure and new cone design create a woofer that is a full inch shallower than competing brands’ equivalent-sized models, expanding installation options. You can drive a compact car with sound that’s anything but compact.


Exceptional Venting For Increased Power Handling

Woofer motor structures heat up during use, causing distortion or power compression that reduces music’s dynamic range, robbing the sound of its realism. JBL uses vented motor structures and polepieces that get rid of more heat to deliver more serious bang.


Outstanding Audio Output, Low Distortion

With 200 watts RMS and 800 watts of peak power handling and a frequency response of 30Hz to 400Hz, the GTO804 changes the experience of listening to your favorite music in your car. And a progressive spider gives better control for lower distortion at excursion limits.


Outstanding Audio Output, Low Distortion

GTO804 changes the experience of listening to your favorite music in your car. And a progressive spider gives better control at excursion limits.




The Sound of quality

Harman Tour

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 8" Single 4 Ohm Grand Touring Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 200 watts
  • Impedance: Single 4 ohm
  • Polypropylene cone woofer
  • Hi-roll rubber surround
  • New proprietary frame and in-board motor structure
  • Vented polepieces
  • Frequency response: 30-400 Hz
  • Sensitivity: 91dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL GTO804 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL GTO804 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL GTO804 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL GTO804 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Series
GTO Series
Subwoofer Size
8"
Peak Power Handling
800 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
30 - 400 Hz
Sensitivity
91 dB
Xmax (millimeters)
11.50 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
4-5-16"
Cutout Diameter
7"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.60 Hz
Equivalent Compliance (Vas)
16.42 liters
Total Speaker Q Value (Qts)
0.42
Electrical Q Value (Qes)
0.450
Electrical Resistance of Voice Coil (Re)
3.49 ohm
Mechanical Q Value (Qms)
6.37
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GTO804

Weight:

10.00lbs

Internal SKU:

gto804

Internal Product ID:

7443

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


JBL GTO804 thumbnail image

5 star
86%
4 star
12%
3 star
0%
2 star
0%
1 star
2%



Durability
4.7
Value
4.9
Features
4.7
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

Great Subwoofer

I run 2 of these in a .6 cubic foot vented box, and all I can say is perfect. The highs are unbelievable for subwoofers, and the lows aren't too shabby either. Still shakes the car at 30hz frequencies in the vented box. I love these little things.

By Sean on February 29, 2012

42 found this helpful


awsome sub woofer!!!

For an eight inch subwoofer, this thing thumps...Great subwoofer at a great value...

By ken on April 1, 2014

40 found this helpful


Good woofer

Packs a punch for a 8 inch woofer. Like it alot especially for the price. Can't beat it

By Stasis on January 15, 2013

38 found this helpful


Decent little subs

For the price, they're excellent. I tossed two of these into a pair of ported boxes to put under the rear seats of my friends truck and they rock right along. They're not gonna be ear bleeding and bowel movingly loud, just nice and subtle with enough power to shake the hairs on your head if you want. I'd recommend sticking them in sealed boxes rather than ported ones but i'm more of a SQ guy, not SPL.

Can't really go wrong with them.

By That guy from the internet on October 1, 2012

37 found this helpful


Jbl gt804

Excellent value and good bump. Replaced stock driver in Bazooka with this. Much better.

By Gjc18 karat on November 18, 2013

35 found this helpful


great

they are cheep and under rated with great sensitivity for a hi power sub you cant go wrong i put one in mt work truck and its has all most the same out put ass the 2 10s i have in my car with 1/2 the power very happy with this sub

By dfg on December 12, 2012

36 found this helpful


Another great JBL product

I was very satisfied with this sub. I used it for a rear-deck replacement sub, so it was in an infinite baffle enclosure. After sound dampening the rear deck this sub performs beautifully. Because the resonance frequency of this sub is so low you almost have to use some kind of High Pass Filter around 30 or 28Hz, but because of this low resonance it produces low frequencies very easily. In my experience this sub will handle more power than it is rated to handle and has held up well to my use. It should perform very well (and probably better) in a box. Overall, to be only an 8 inch sub, it performs and sounds like a 12 inch or better. I am extremely satisfied.

By Varatos on June 22, 2011

34 found this helpful


Very pleased with the output of this beast!

I have always been into car audio but since getting married, I had to put all that stuff behind me until I realized how much I missed it. I have an Acura TSX with the stock premium sound system, but it was missing that thump that I was so used to. I decided on an 8" because I don't want to lose my trunk space. The JBL was the best bang for the buck. Out of the box, you can tell this was going to be awesome. It is heavy and worth its price in just the weight of the magnet. Still not sure why they call it a shallow mount subwoofer. I placed it in a small sealed enclosure (0.35 cubic feet) stuffed with polyfil and I paired it with the JBL GTO501EZ (amazing amplifier!!!!) into my stock system. This sounds great!!!!!. Though it took a bit of effort to tune in the amp (gain/bass boost) to my liking, I am very pleased. The only problem I have is that I can't keep the mesh subwoofer grill (bought separately) on it due to its excursion (hits the grill cover). I have owned almost all size of subs in my days and usually stuck with JL audio and Polk but this JBL combo is one of the best for the price. I had previously had a JL audio 8W3V3 in my old BMW X5 and this JBL sounds way better and louder but to be fair, it was a different system setup and an open trunk space as compared to the TSX. This JBL sub fills the car with huge bass when I need it without having to let the whole world I have it installed. Great buy and great service from Sonic!

By Moe on January 8, 2014

32 found this helpful


it bumps!

This is a fantastic sub! I have it hooked up to an old-generic-200watt amp and it definitely exceeded my expectations. It is well worth the money and in my opinion it kicks like a sub of larger size. The deep bass tones are very nice!

By kevin on March 16, 2013

33 found this helpful


Great sound

These subs sound amazing. Never doubted from the moment purchased that they wouldn't, being a JBL product. The sound is crystal clear and well worth the price. Highly recommend these and any JBL speakers for that matter!!

By Marty on October 22, 2012

30 found this helpful




R2S653_2 small

Alpine R2-S653 (2-Pairs, 4-Total)

1200W Peak (400W RMS) 6.5" R-Series PRO 3-Way Component Speakers with Magnesium Hard-Dome Tweeters (2-Pairs)

$1119.90

List price $1680.00

07-13-ACURA-MDX-S-INF small

Infinity Reference Series Factory Speaker Replacement Kit

Fits select 2007-2013 MDX

(92)

$259.88

List price $329.88

CW2500D small

Boss CW2500D

2500W Max Chaos Wired Series Class D Monoblock Power Amplifier

(4)

$129.99

List price $299.99

MRV-F545 small

Alpine MRV-F545

4-Channel High Power Amplifier

(3)

$344.99

List price $599.99

KTX-LK10 small

Alpine KTX-LK10

Front and Rear Linking Bracket for 10" Alpine PrismaLink Subwoofer Enclosures

$69.95

List price $80.00

W10S4 small

Alpine W10S4

750W Peak (250W RMS) 10" Bass Series Single 4-ohm Car Subwoofer

(12)

$109.95

List price $130.00

KS-U29 small

JVC KS-U29

iPod / iPhone Audio and Video USB Connection Cable for Select JVC Receivers

(3)

$34.99

List price $49.99

AFG-SBH small

Atrend AFG-SBH

Saddle Bag Replacement Speaker Lids for select 1999-2013 vehicles from Harley Davidson (Unfinished)

$199.99

List price $499.99

LC6i-Black small

AudioControl LC6i-Black

6-Channel 400W Line Output Converter (Black)

(6)

$129.95

List price $185.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Ford Edge

1994 Mitsubishi Eclipse

2007 Buick Rendezvous

2014 Ford C-Max

1996 Ford Explorer

2012 Ford Expedition

2012 Audi R8

2002 Ford E Series

1989 Dodge Shadow

2000 Dodge Caravan

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
