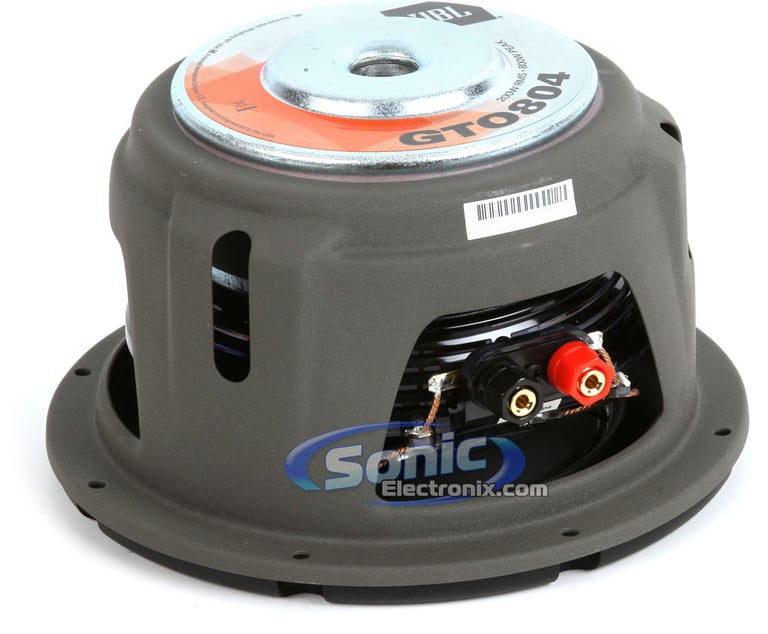

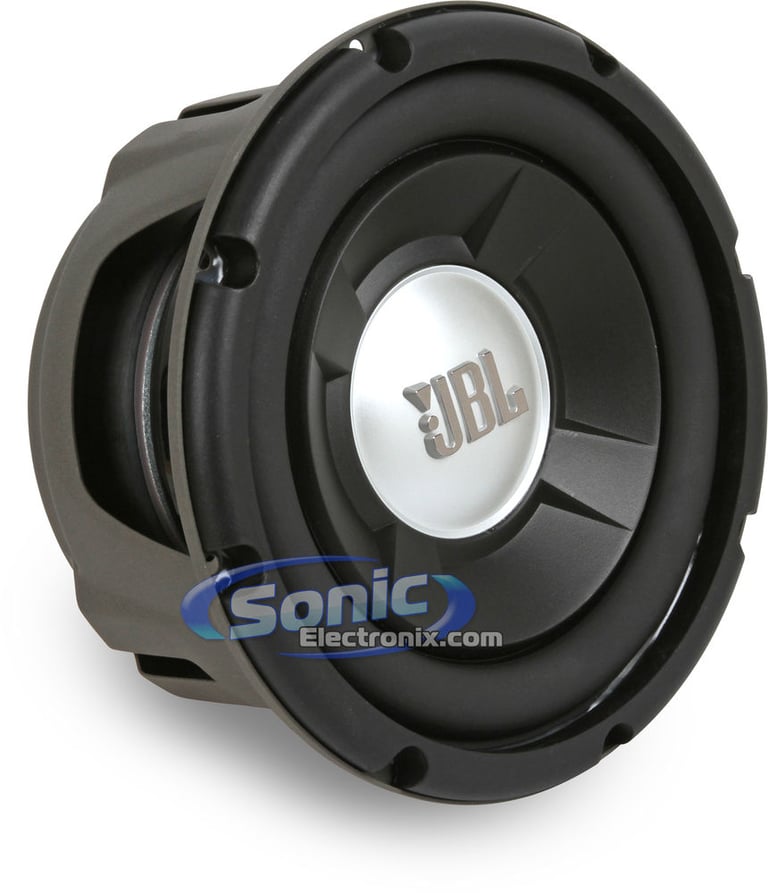

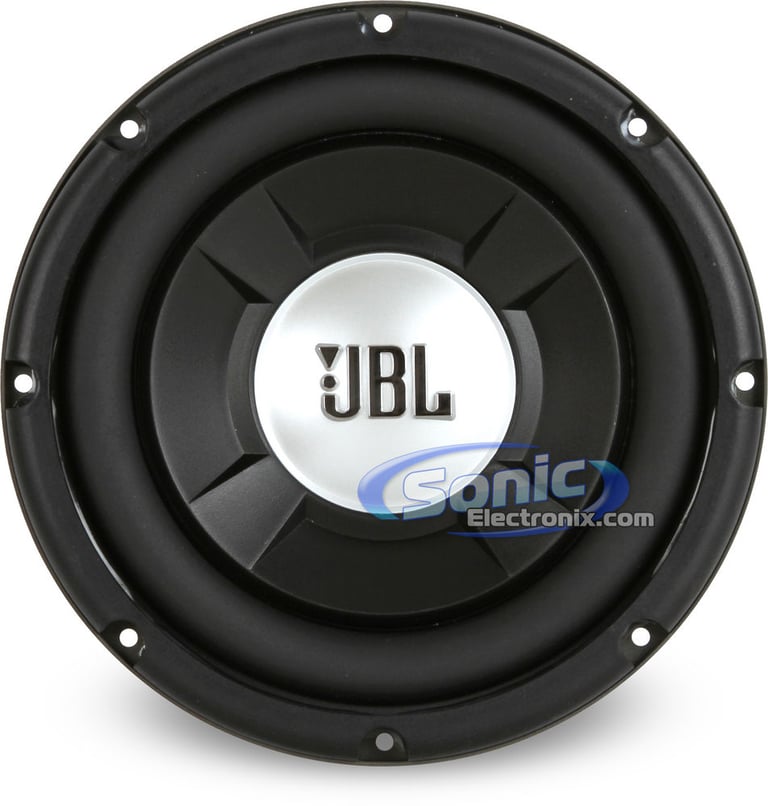

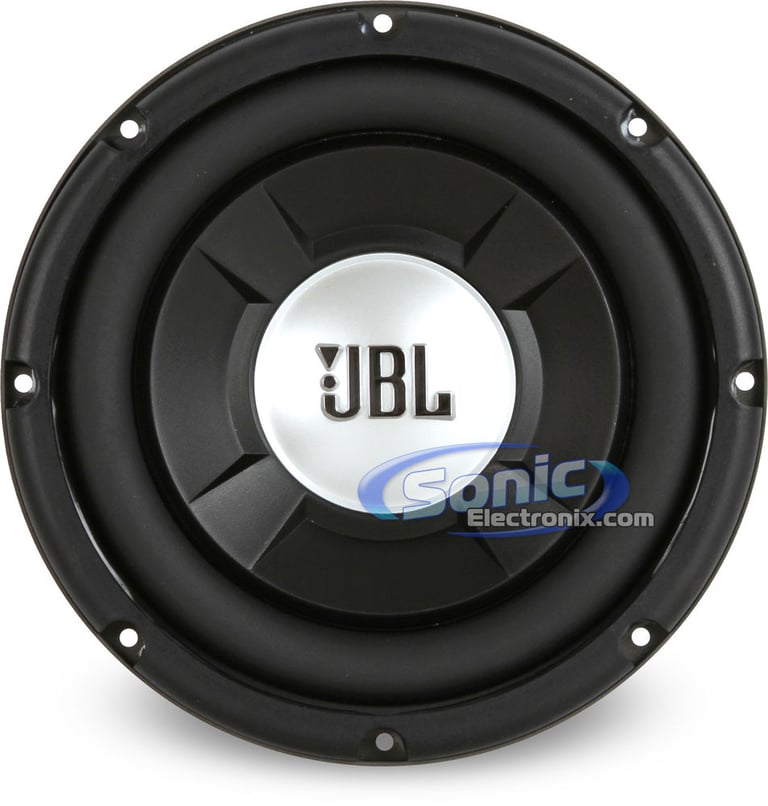

JBL GTO804 (Open Box)

200W 8" GTO Series Single 4 ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• 800W Peak
• 200W RMS
• Single 4 Ohm Voice Coil
• Polypropylene Cone with Hi-roll rubber surround

Learn more about the LS-gto804-OB

We apologize

This item has been discontinued

Product Highlights


• 800W Peak
• 200W RMS
• Single 4 Ohm Voice Coil
• Polypropylene Cone with Hi-roll rubber surround

Description


JBL brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Reduced-Depth, A Full Inch Shallower Than Most

A new, JBL-proprietary frame, unique inboard motor structure and new cone design create a woofer that is a full inch shallower than competing brands’ equivalent-sized models, expanding installation options. You can drive a compact car with sound that’s anything but compact.


Exceptional Venting For Increased Power Handling

Woofer motor structures heat up during use, causing distortion or power compression that reduces music’s dynamic range, robbing the sound of its realism. JBL uses vented motor structures and polepieces that get rid of more heat to deliver more serious bang.


Outstanding Audio Output, Low Distortion

With 200 watts RMS and 800 watts of peak power handling and a frequency response of 30Hz to 400Hz, the GTO804 changes the experience of listening to your favorite music in your car. And a progressive spider gives better control for lower distortion at excursion limits.


Outstanding Audio Output, Low Distortion

GTO804 changes the experience of listening to your favorite music in your car. And a progressive spider gives better control at excursion limits.


General Features:

  • 8" Single 4 Ohm Grand Touring Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 200 watts
  • Impedance: Single 4 ohm
  • Polypropylene cone woofer
  • Hi-roll rubber surround
  • New proprietary frame and in-board motor structure
  • Vented polepieces
  • Frequency response: 30-400 Hz
  • Sensitivity: 90 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL GTO804 (Open Box) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL GTO804 (Open Box) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL GTO804 (Open Box) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL GTO804 (Open Box) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
GTO Series
Subwoofer Size
8"
Peak Power Handling
800 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
30 - 400 Hz
Sensitivity
91 dB
Xmax (millimeters)
11.50 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Silver
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
4-3/8"
Cutout Diameter
7-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.60 Hz
Equivalent Compliance (Vas)
16.42 liters
Total Speaker Q Value (Qts)
0.42
Electrical Q Value (Qes)
0.450
Electrical Resistance of Voice Coil (Re)
3.49 ohm
Mechanical Q Value (Qms)
6.37
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

LS-GTO804-OB

Weight:

10.00lbs

Internal SKU:

LS-gto804-OB

Internal Product ID:

81256

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


JBL GTO804 (Open Box) thumbnail image

5 star
86%
4 star
12%
3 star
0%
2 star
0%
1 star
2%



Durability
4.7
Value
4.9
Features
4.7
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

Great Subwoofer

The following review is for GTO804, which is a part of the bundle you are viewing.

I run 2 of these in a .6 cubic foot vented box, and all I can say is perfect. The highs are unbelievable for subwoofers, and the lows aren't too shabby either. Still shakes the car at 30hz frequencies in the vented box. I love these little things.

By Sean on February 29, 2012

42 found this helpful


awsome sub woofer!!!

The following review is for GTO804, which is a part of the bundle you are viewing.

For an eight inch subwoofer, this thing thumps...Great subwoofer at a great value...

By ken on April 1, 2014

40 found this helpful


Good woofer

The following review is for GTO804, which is a part of the bundle you are viewing.

Packs a punch for a 8 inch woofer. Like it alot especially for the price. Can't beat it

By Stasis on January 15, 2013

38 found this helpful


Decent little subs

The following review is for GTO804, which is a part of the bundle you are viewing.

For the price, they're excellent. I tossed two of these into a pair of ported boxes to put under the rear seats of my friends truck and they rock right along. They're not gonna be ear bleeding and bowel movingly loud, just nice and subtle with enough power to shake the hairs on your head if you want. I'd recommend sticking them in sealed boxes rather than ported ones but i'm more of a SQ guy, not SPL.

Can't really go wrong with them.

By That guy from the internet on October 1, 2012

37 found this helpful


Jbl gt804

The following review is for GTO804, which is a part of the bundle you are viewing.

Excellent value and good bump. Replaced stock driver in Bazooka with this. Much better.

By Gjc18 karat on November 18, 2013

35 found this helpful


great

The following review is for GTO804, which is a part of the bundle you are viewing.

they are cheep and under rated with great sensitivity for a hi power sub you cant go wrong i put one in mt work truck and its has all most the same out put ass the 2 10s i have in my car with 1/2 the power very happy with this sub

By dfg on December 12, 2012

36 found this helpful


Another great JBL product

The following review is for GTO804, which is a part of the bundle you are viewing.

I was very satisfied with this sub. I used it for a rear-deck replacement sub, so it was in an infinite baffle enclosure. After sound dampening the rear deck this sub performs beautifully. Because the resonance frequency of this sub is so low you almost have to use some kind of High Pass Filter around 30 or 28Hz, but because of this low resonance it produces low frequencies very easily. In my experience this sub will handle more power than it is rated to handle and has held up well to my use. It should perform very well (and probably better) in a box. Overall, to be only an 8 inch sub, it performs and sounds like a 12 inch or better. I am extremely satisfied.

By Varatos on June 22, 2011

34 found this helpful


Very pleased with the output of this beast!

The following review is for GTO804, which is a part of the bundle you are viewing.

I have always been into car audio but since getting married, I had to put all that stuff behind me until I realized how much I missed it. I have an Acura TSX with the stock premium sound system, but it was missing that thump that I was so used to. I decided on an 8" because I don't want to lose my trunk space. The JBL was the best bang for the buck. Out of the box, you can tell this was going to be awesome. It is heavy and worth its price in just the weight of the magnet. Still not sure why they call it a shallow mount subwoofer. I placed it in a small sealed enclosure (0.35 cubic feet) stuffed with polyfil and I paired it with the JBL GTO501EZ (amazing amplifier!!!!) into my stock system. This sounds great!!!!!. Though it took a bit of effort to tune in the amp (gain/bass boost) to my liking, I am very pleased. The only problem I have is that I can't keep the mesh subwoofer grill (bought separately) on it due to its excursion (hits the grill cover). I have owned almost all size of subs in my days and usually stuck with JL audio and Polk but this JBL combo is one of the best for the price. I had previously had a JL audio 8W3V3 in my old BMW X5 and this JBL sounds way better and louder but to be fair, it was a different system setup and an open trunk space as compared to the TSX. This JBL sub fills the car with huge bass when I need it without having to let the whole world I have it installed. Great buy and great service from Sonic!

By Moe on January 8, 2014

32 found this helpful


it bumps!

The following review is for GTO804, which is a part of the bundle you are viewing.

This is a fantastic sub! I have it hooked up to an old-generic-200watt amp and it definitely exceeded my expectations. It is well worth the money and in my opinion it kicks like a sub of larger size. The deep bass tones are very nice!

By kevin on March 16, 2013

33 found this helpful


Great sound

The following review is for GTO804, which is a part of the bundle you are viewing.

These subs sound amazing. Never doubted from the moment purchased that they wouldn't, being a JBL product. The sound is crystal clear and well worth the price. Highly recommend these and any JBL speakers for that matter!!

By Marty on October 22, 2012
