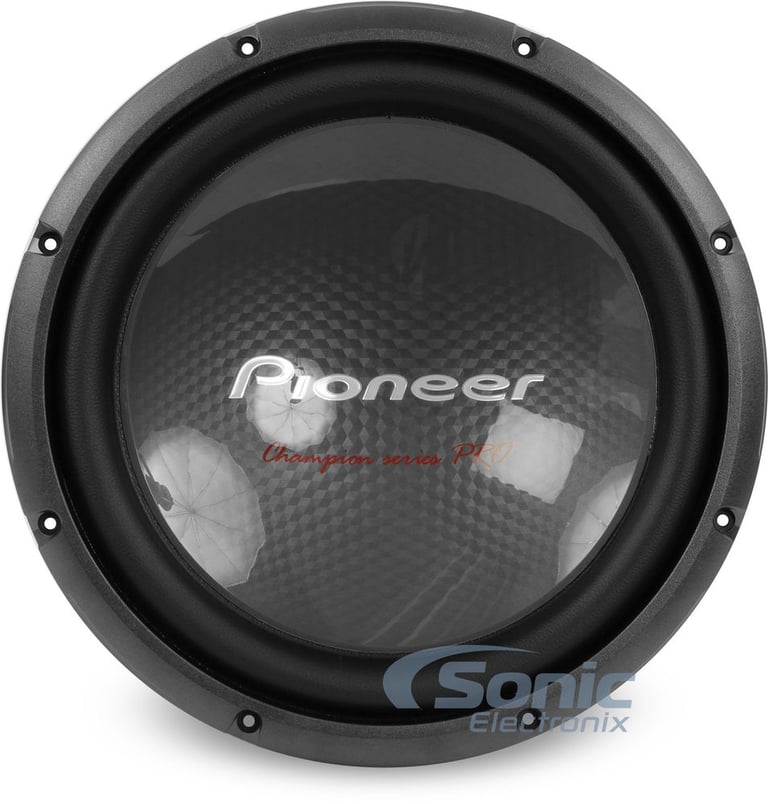

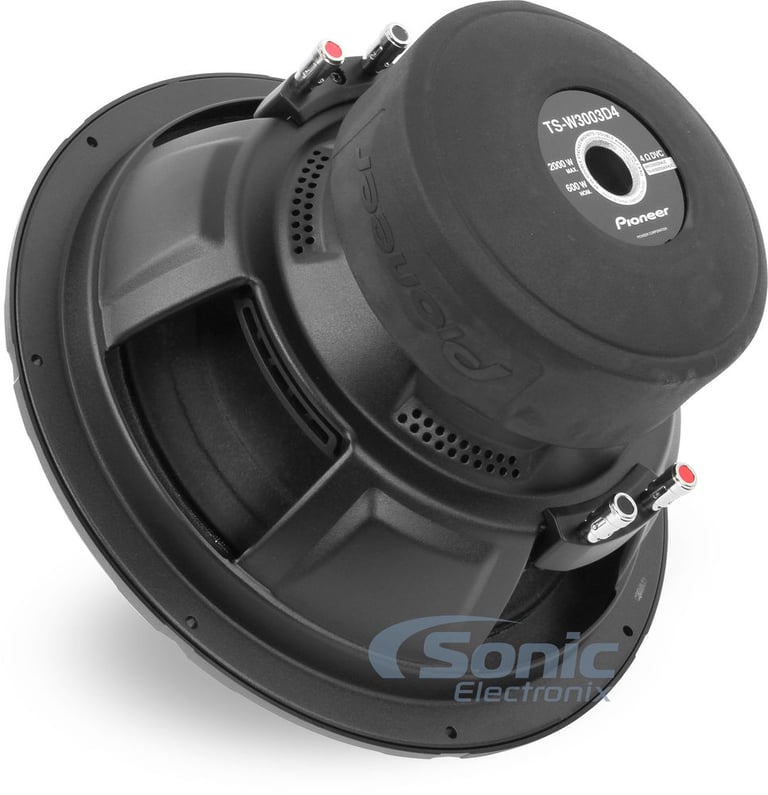

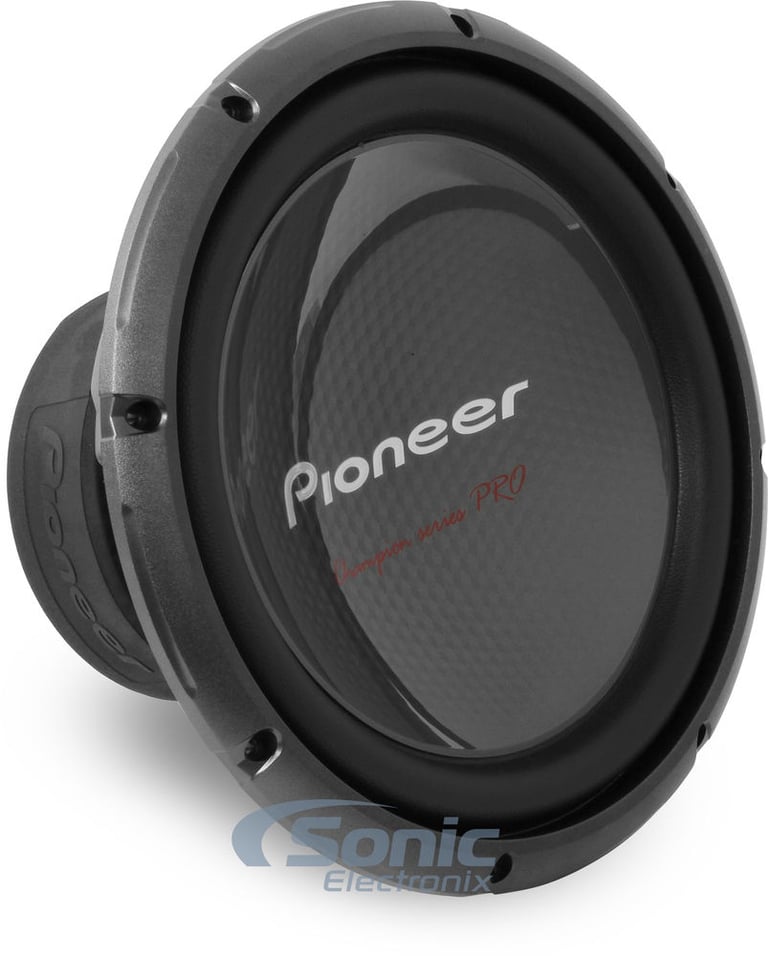

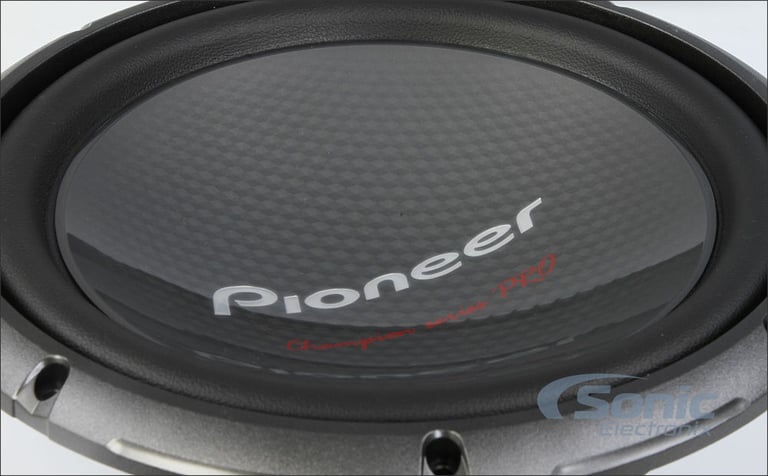

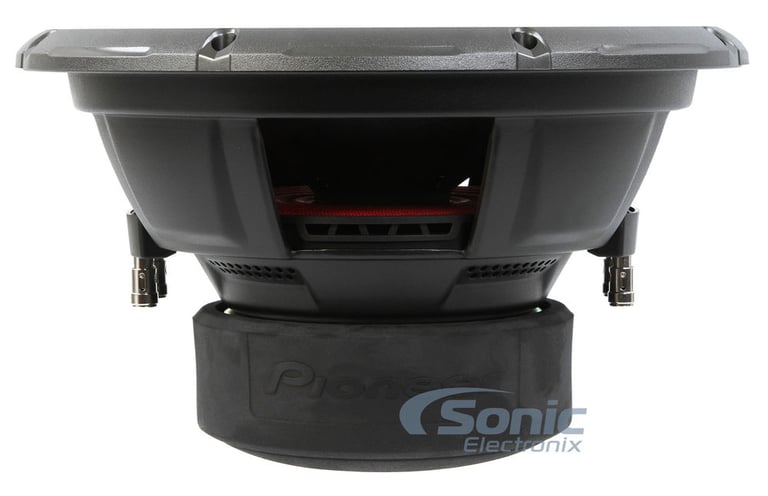

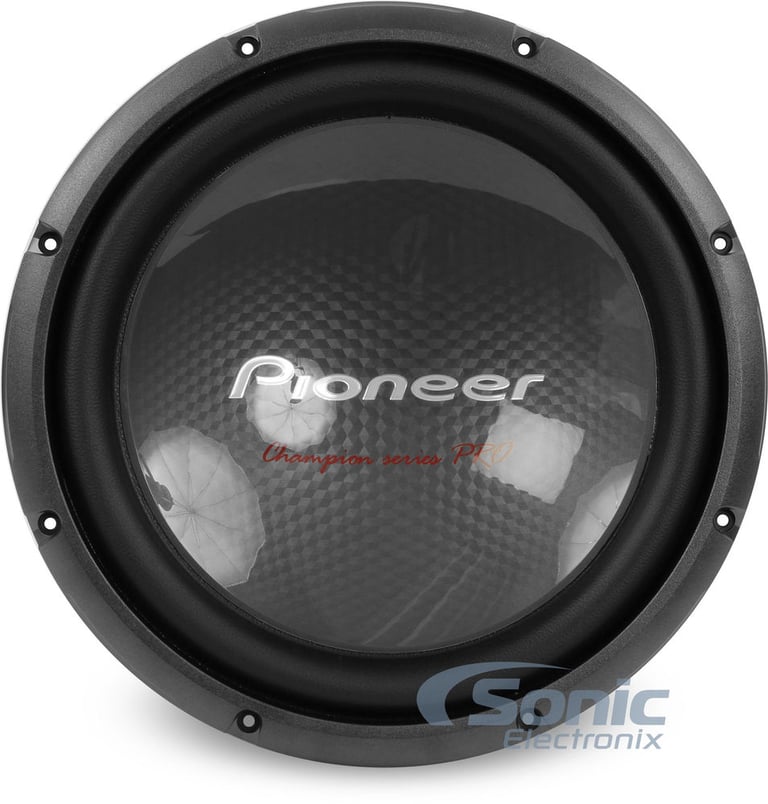

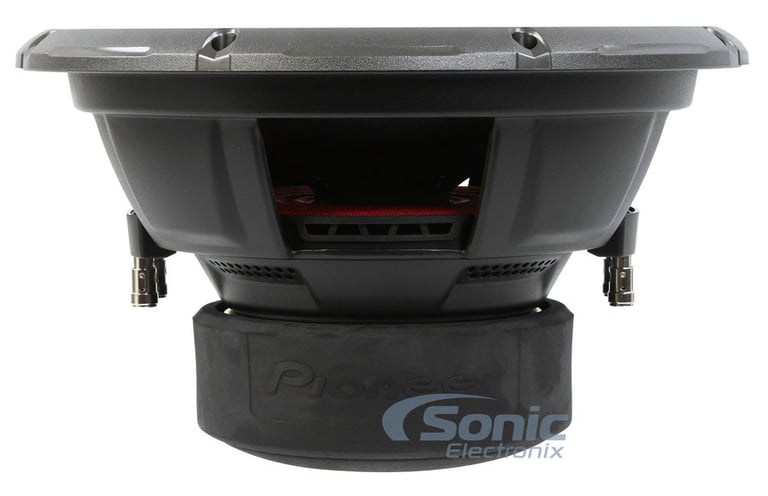

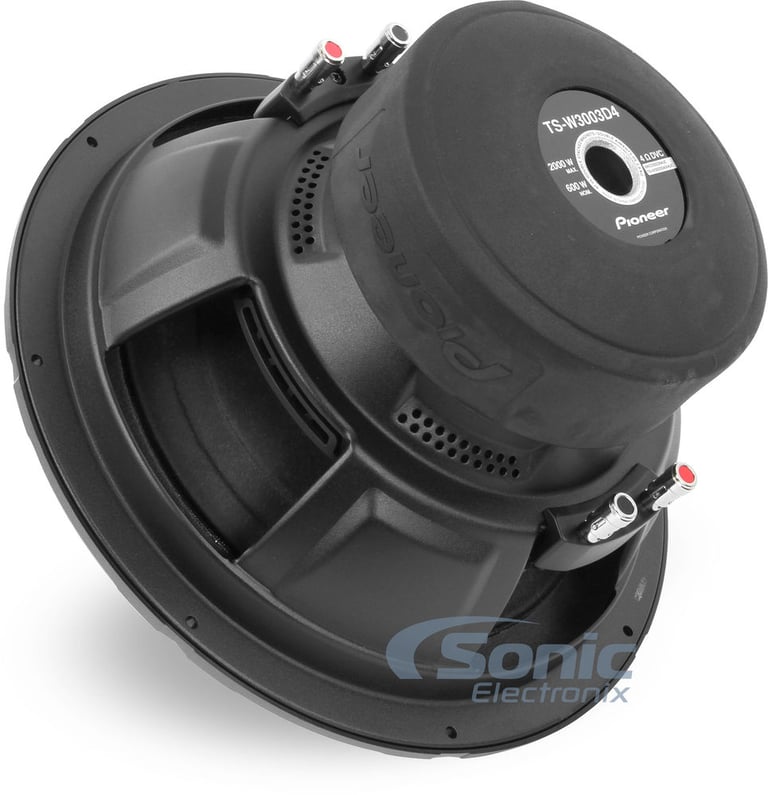

Pioneer TS-W3003D4 (LIKE NEW DAMAGED PACKAGE)

600W 12" Champion Pro Series Dual 4 ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

Like new Damaged Package
• 2000W Max
• 600W RMS
• IMPP Composite Seamless Woofer Cone
• Dual-Layer Elastic Polymer Surround
• Larger Magnet Combined With Dual Spider Design
• Frequency Response: 20-80 Hz
• Sensitivity: 96 dB

Learn more about the LS-tsw3003d4-LNDP

We apologize

This item has been discontinued

Product Highlights


Like new Damaged Package
• 2000W Max
• 600W RMS
• IMPP Composite Seamless Woofer Cone
• Dual-Layer Elastic Polymer Surround
• Larger Magnet Combined With Dual Spider Design
• Frequency Response: 20-80 Hz
• Sensitivity: 96 dB

Description


Pioneer brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)



Item Condition: Like New

  • Like new Damaged Package:
    • General Features:

      • 12" Dual 4 Ohm Champion Series Pro Subwoofer
      • Power Handling:
        • Peak: 2000 watts
        • RMS: 600 watts

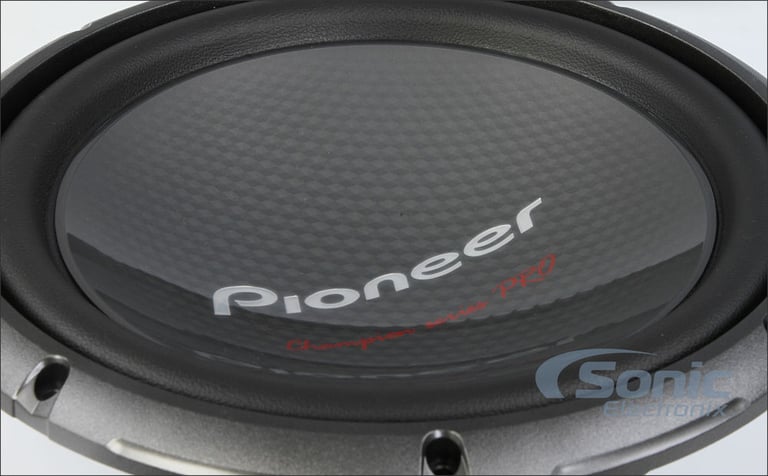

      • IMPP composite seamless woofer cone
      • Dual-layer elastic polymer surround
      • Spring-loaded speaker terminal posts
      • Perfect for a ported or sealed enclosure
      • Features larger magnet combined with a dual spider design
      • Frequency Response: 20-80 Hz
      • Top-mount depth: 6.90"
      • Cut-Out Dimensions: 11.10"
      • Sensitivity: 96 dB
      • 1-year Sonic Electronix Warranty

      Also found as: TSW-3003D4, TSW 3003D4

    Subwoofer Wiring Guide


    Wiring Guide to Wire 1 Pioneer TS-W3003D4 (LIKE NEW DAMAGED PACKAGE) Subwoofer

    Mono Amp

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 Pioneer TS-W3003D4 (LIKE NEW DAMAGED PACKAGE) Subwoofers

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 Pioneer TS-W3003D4 (LIKE NEW DAMAGED PACKAGE) Subwoofers

    Mono Amp

    4 Channel Amp

    Wiring Guide to Wire 4 Pioneer TS-W3003D4 (LIKE NEW DAMAGED PACKAGE) Subwoofers

    Mono Amp

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp

    Specifications & Details


    Subwoofer Specifications
    Series
    Champion PRO Series
    Subwoofer Size
    12"
    Peak Power Handling
    2000 watts
    RMS Power Handling
    600 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    4 ohm
    Frequency Response
    20 - 80 Hz
    Sensitivity
    96 dB
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Injection Molded Polypropylene Composite
    Woofer Surround
    Elastic Polymer
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Minimum Sealed Box Volume
    0.85 cubic feet
    Optimum Sealed Box Volume
    1.25 cubic feet
    Maximum Sealed Box Volume
    1.75 cubic feet
    Minimum Ported Box Volume
    1.25 cubic feet
    Optimum Ported Box Volume
    1.50 cubic feet
    Maximum Ported Box Volume
    2.00 cubic feet
    Top-Mount Depth (Mounting Depth)
    6.90"
    Cutout Diameter
    11.10"
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    35 Hz
    Equivalent Compliance (Vas)
    34.6 liters
    Total Speaker Q Value (Qts)
    0.59
    Electrical Q Value (Qes)
    0.62
    Mechanical Q Value (Qms)
    11.50
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Sonic Electronix

    Item Details


    Manufacturer:

    Model Number:

    LS-TS-W3003D4-LNDP

    Weight:

    19.50lbs

    Internal SKU:

    LS-tsw3003d4-LNDP

    Internal Product ID:

    106769
