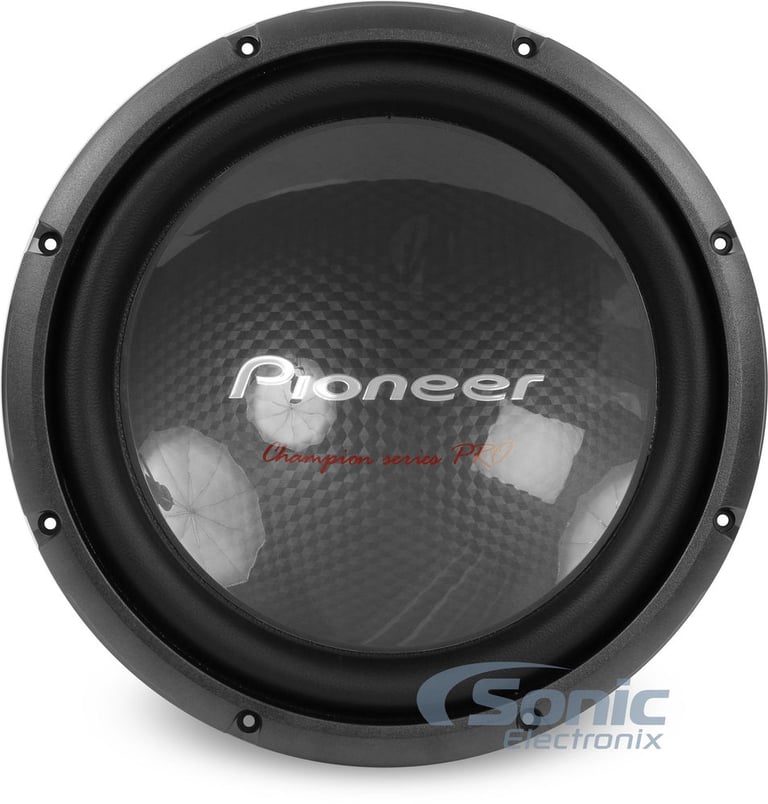

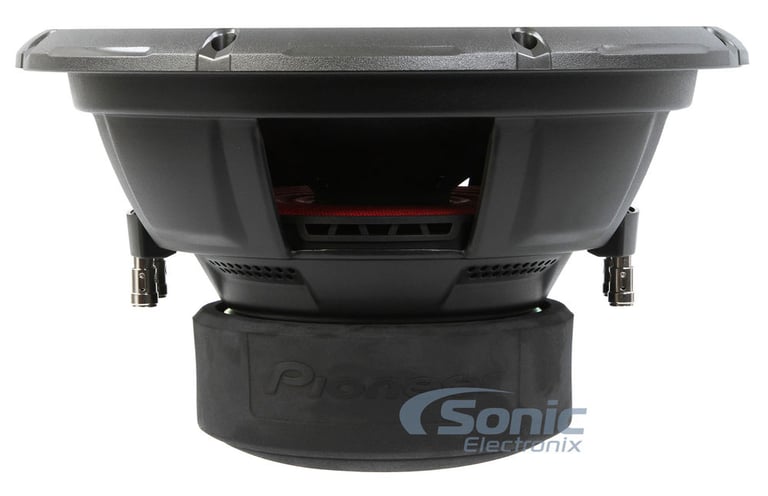

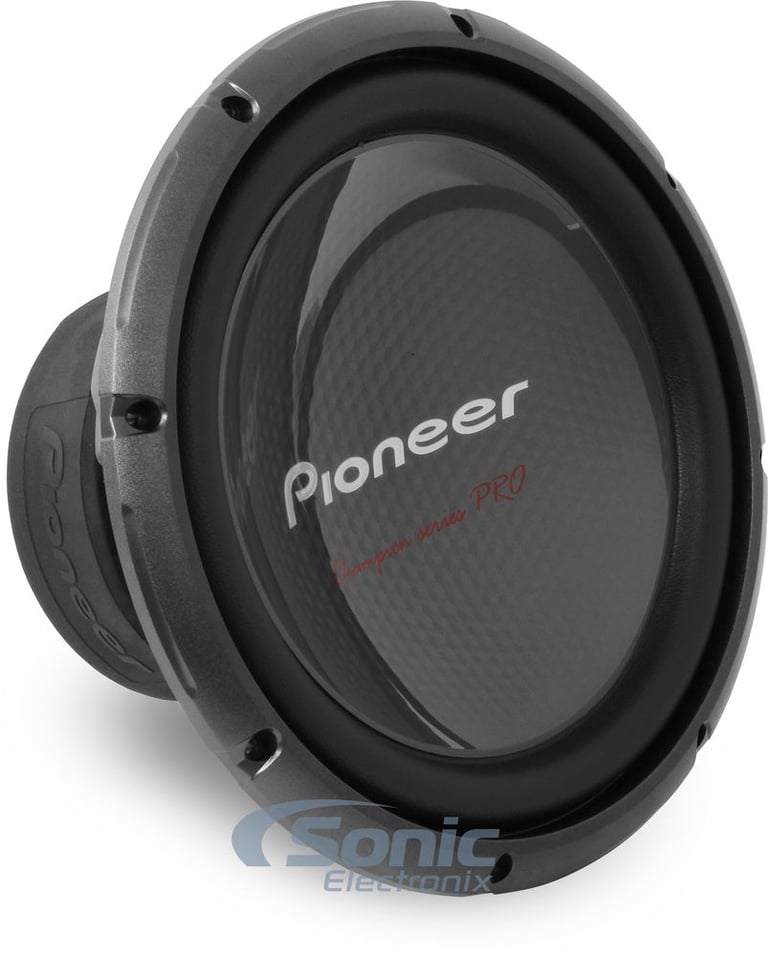

Pioneer TS-W3003D4 - Open Box, Good Condition (Used)

600W 12" Champion Pro Series Dual 4 ohm Subwoofer Open Box, Good Condition (Used)

Pioneer
Shop all Pioneer
highlight-star-icon

• 2000W Max
• 600W RMS

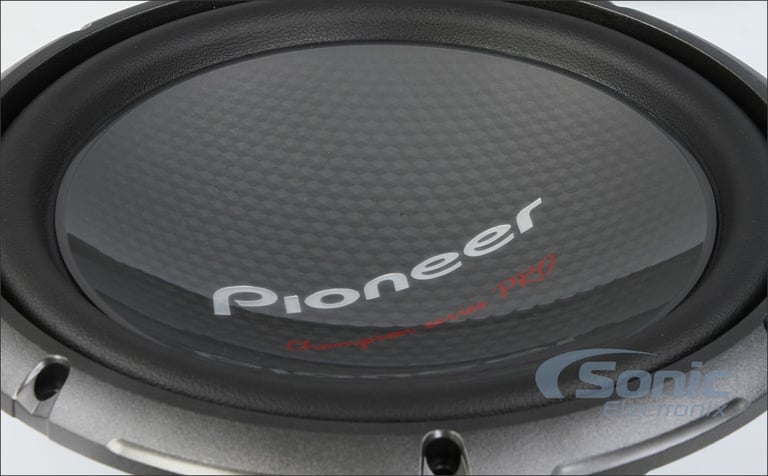

• IMPP Composite Seamless Woofer Cone
• Dual-Layer Elastic Polymer Surround
• Larger Magnet Combined With Dual Spider Design
• Frequency Response: 20-80 Hz
• Sensitivity: 96 dB

Learn more about the ls-tsw3003d4-obc5

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Good Condition:
A Good Open Box used product shows wear from consistent use, but it remains in good condition and works perfectly. It may be marked, have identifying markings on it, or show other signs of previous use or installation. Original packaging, paperwork or protective wrapping may be missing or not included in its entirety. Warranty details are included in the item description or comments.

General Features:

  • 12" Champion Series Pro Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 600 watts
  • Recommended power range: 300 - 600 watts RMS
  • Impedance: Dual 4 Ohm
  • IMPP composite seamless woofer cone
  • Dual-layer elastic polymer surround

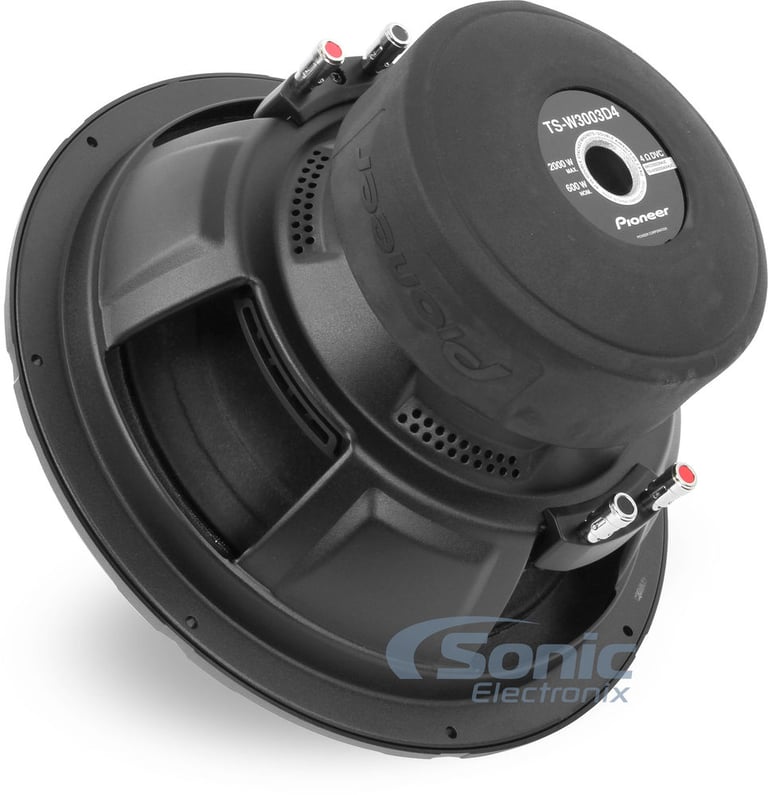

  • Spring-loaded speaker terminal posts
  • Perfect for a ported or sealed enclosure
  • Features larger magnet combined with a dual spider design
  • Frequency Response: 20-80 Hz
  • Top-mount depth: 6.90"
  • Cut-Out Dimensions: 11.10"
  • Sensitivity: 96 dB
  • 1-year Sonic Electronix Warranty
  • Also found as: TSW-3003D4, TSW 3003D4

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W3003D4 - Open Box, Good Condition (Used) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W3003D4 - Open Box, Good Condition (Used) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W3003D4 - Open Box, Good Condition (Used) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W3003D4 - Open Box, Good Condition (Used) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Champion PRO Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 80 Hz
Sensitivity
96 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene Composite
Woofer Surround
Elastic Polymer
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Optimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
2.00 cubic feet
Top-Mount Depth (Mounting Depth)
6.90"
Cutout Diameter
11.10"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35 Hz
Equivalent Compliance (Vas)
34.6 liters
Total Speaker Q Value (Qts)
0.59
Electrical Q Value (Qes)
0.62
Mechanical Q Value (Qms)
11.50
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-W3003D4-6

Weight:

19.50lbs

Internal SKU:

ls-tsw3003d4-obc5

Internal Product ID:

137985
