Sennheiser HDVD 800 (HDVD800)

Digital Headphone Amplifier and DAC

Sennheiser
Shop all Sennheiser
Product videos
highlight-star-icon

• Headphone Amplifier and DAC
• D/A transducer for all Common Formats up to 24 bit / 192 kHz
• AES/BU, S/PDIF, USB Inputs
• Symmetrical (XLR) and Asymmetrical (RCA) Analog Inputs
• Symmetrical Output
• Sockets for Four sets of Headphones

Learn more about the hdvd800

We apologize

This item has been discontinued


Loading...
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43
XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

Product Highlights


• Headphone Amplifier and DAC
• D/A transducer for all Common Formats up to 24 bit / 192 kHz
• AES/BU, S/PDIF, USB Inputs
• Symmetrical (XLR) and Asymmetrical (RCA) Analog Inputs
• Symmetrical Output
• Sockets for Four sets of Headphones

Description


Sennheiser brand icon

Authorized dealer

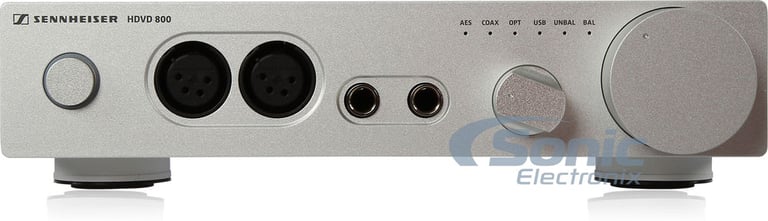

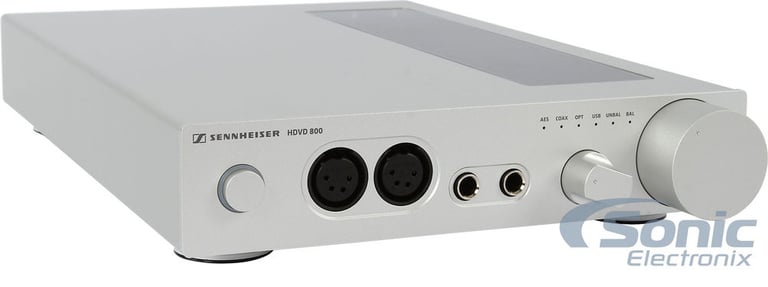

Sennheiser HDVD 800



With Sennheiser’s HDVD 800, sound is perfect. The HDVD 800 is able to connect with digital sources and is equipped with a high-quality Burr-Brown digital/analog converter (DAC) that converts digital audio data into analog signals with a resolution of 24 bits and a sampling rate of up to 192 kHz. This enables the HDVD 800 to transmit the entire frequency spectrum of high-end audio sources without any loss of frequencies.



LET THE POWER GO TO YOUR HEAD Headphone AMP + DAC

Blue Mo-Fi

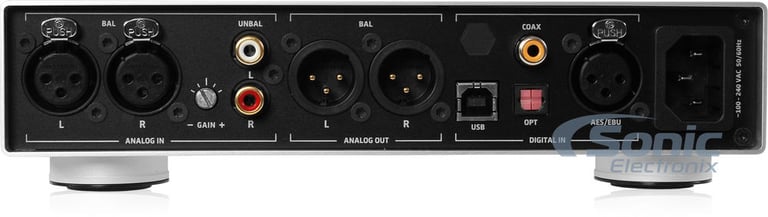

In addition to the symmetrical inputs, the HDVD 800 also has an asymmetrical input socket; incoming signals are symmetrized before further processing takes place. Digital sources can be connected to the rear of the unit via an XLR (AES/EBU) input, optical and coaxial (S/PDIF) digital inputs or USB. All digital inputs accept signals up to 24 bit at 192 KHz. Designed and manufactured in Germany, this high-end, solid-state amplifier harmonize perfectly and deliver an ultimate acoustic performance when paired with any of Sennheiser’s audiophile headphones.



General Features:

  • Analog Headphone Amplifier and DAC
  • Designed to meet the requirements of Sennheiser's HD 800 Studio Headphones
  • D/A transducer for all common formats up to 24 bit / 192 kHz
  • D/A transducer can be used for CD and DVD players
  • AES/BU, S/PDIF, USB inputs
  • Symmetrical (XLR) and asymmetrical (RCA) analog inputs
  • Symmetrical output
  • Sockets for four sets of headphones (two of which symmetrical)
  • Dimensions: 8.50"W x 12.75"D x 2.16"H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Product Specifications:

  • Frequency Response: 0.3 Hz to 100,000 Hz
  • THD, total harmonic distortion: < -110 dB (1 kHz / maximum gain)
  • Audio input:
    • Analogue input XLR-3 : Max. input voltage 20 dBV / Input impedance 10 kOhm
    • Analogue input RCA: Max. input voltage (eff) 14 dBV / Input impedance 10 kOhm
    • Digital SPDIF (RCA): Max. sampling frequency 192 kHz /AES3-compatible) / Max. resolution 24 bit
    • Digital SPDIF (TosLink): Max. sampling frequency: 88,2 kHz (AES3-compatible) Max. resolution: 24 bit
    • Digital AES/EBU (XLR-3): Max. sampling frequency: 192 kHz (AES3-compatible) / Max. resolution: 24 bit
    • USB (USB-B) USB standard: USB 2.0 / USB 3.0 USB audio class: USB Audio 2.0
  • Power Consumption: 9 Watt
  • Input Voltage Range: 100-240 V AC / 50-60 Hz

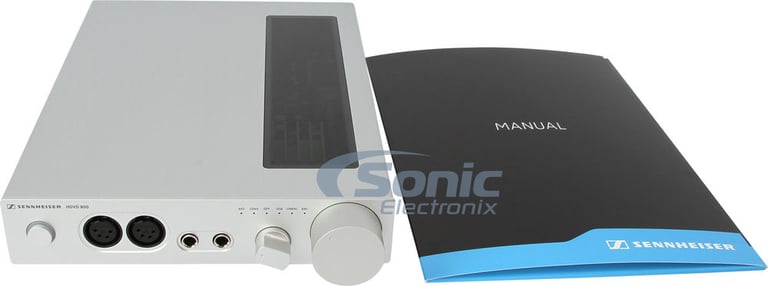

What's in the Box?

  • HDVD 800
  • Safety guide
  • Quick start guide
  • CD containing the user manual and Windows driver

Warning: Power cable for the Sennheiser HDVA 800 amplifier is not included
