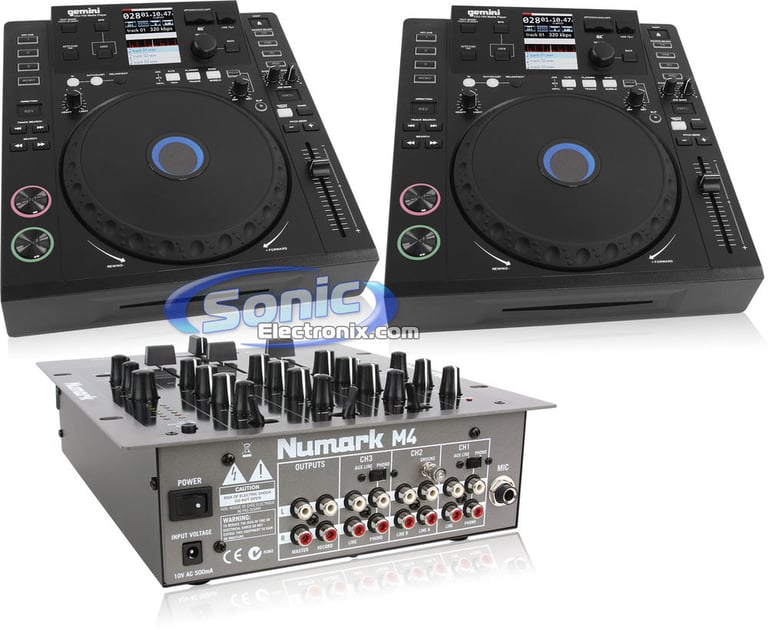

Gemini CDJ-700 + Numark M4

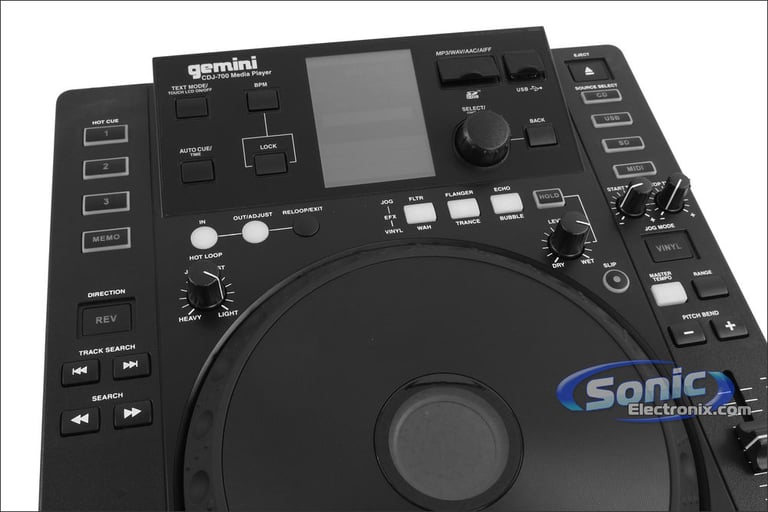

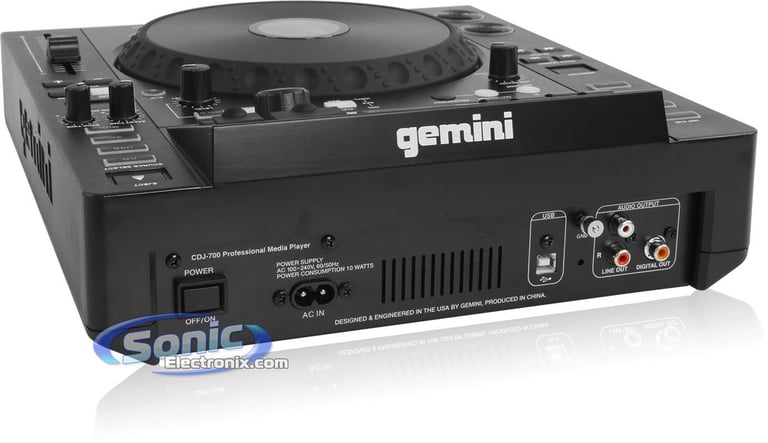

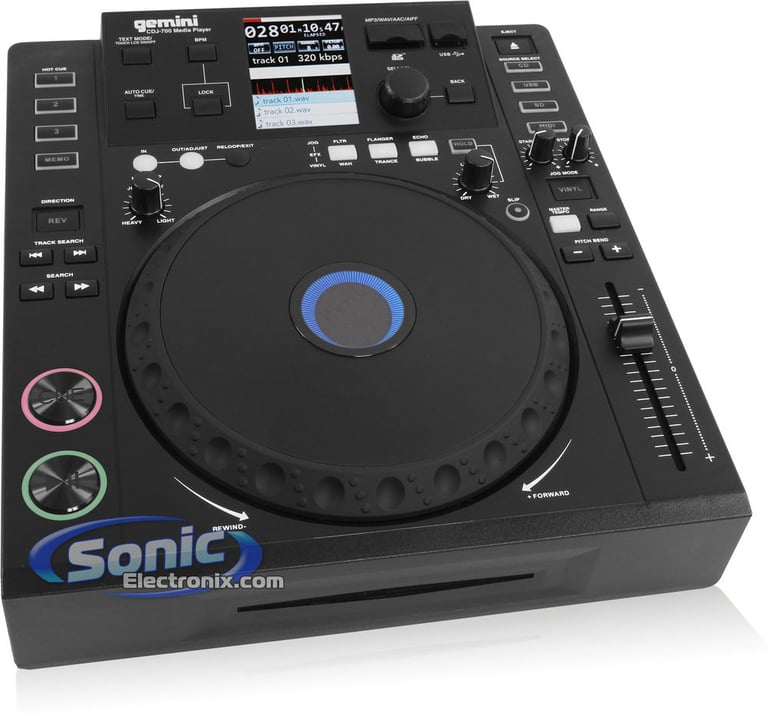

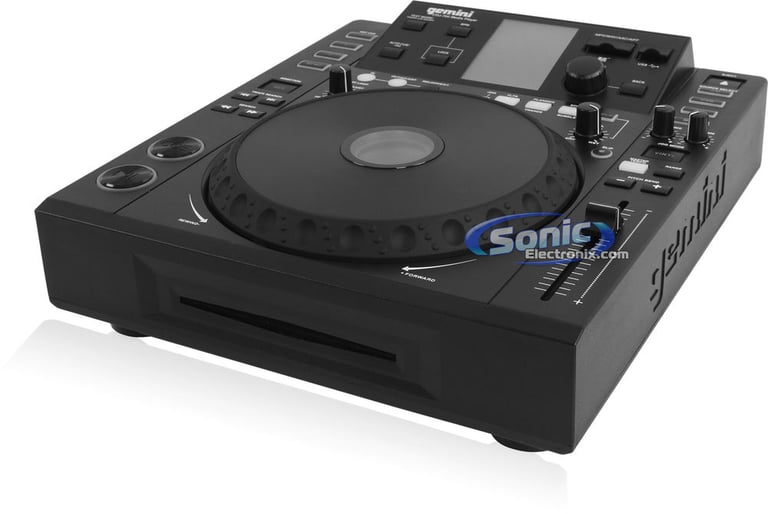

Gemini CDJ-700

• Professional Tabletop CD/MP3/USB Media Player
• Multi-Format playback of MP3, AAC, WAV and AIFF audio files
• Supports CD, CD-R, SD card, MP3 and USB memory devices
• Fast-loading Slot-in CD-ROMs

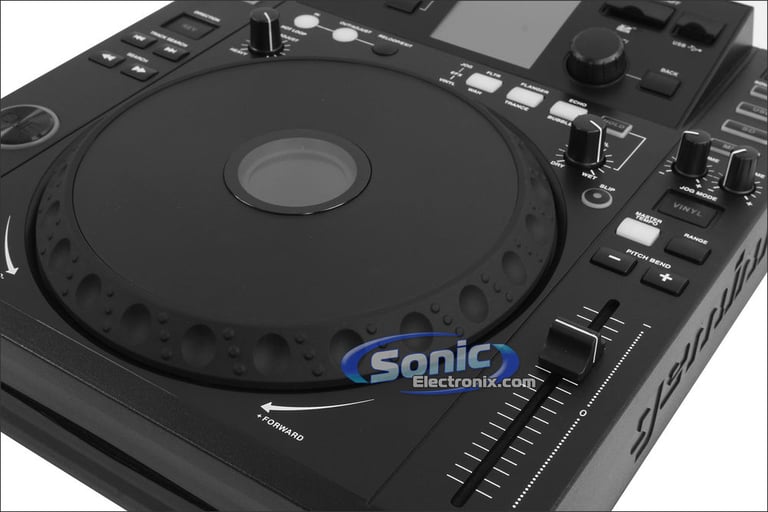

• Large touch-sensitive platter with LCD display
• 3 Selectable modes (search/pitch bend/scratch effect w/ SLIP mode and reverse)
• Six DSP-powered effects
• MIDI mapping capability
• Full-color TFT touch screen
• Pristine audio quality with a 24-bit/192 kHz soundcard
• Line and digital outputs (S/PDIF)
• Master Tempo up to +/-24%
• High resolution pitch fader with range of +/- 4, 8, 16, 24, 50, 100%
• Three BPM options: Auto, Manual Tap, and BPM Lock
• 1-year Manufacturer's warranty

Specifications:

• General:
• Type: CD/USB/SD Media Player w/ MIDI & HID
• USB Output Type: Type B
• Disc Type: Standard Compact discs (12 cm & 8 cm)

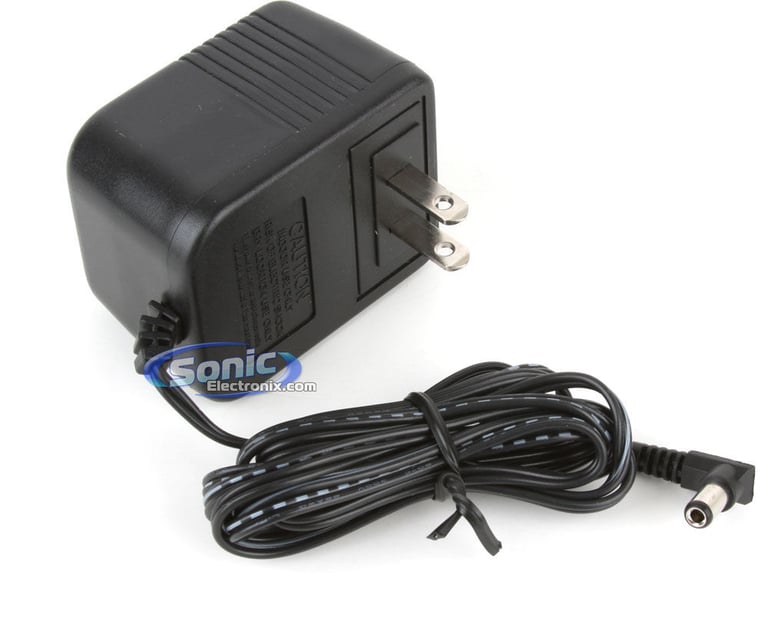

• Power Supply: AC 100/240V, 60/50 Hz
• Power Consumption: 10W
• Audio Section:
• Quantization: 1 Bit Linear/Channel, 3 Beam Laser
• Oversampling Rate: 8 Times
• Frequency Response: 20 Hz to 20 kHz
• Total Harmonic Distortion: Less Than 0.05%
• Signal to Noise Ratio: < 100 dB
• Dynamic Range: > 100 dB
• Output Level: 1.0 +/- 0.2V R.M.S.
• Digital Audio:
• Output Type: Coaxial Digital (S/PDIF)
• Sampling Rate: 44.1kHz, 16-bit
• USB Audio:
• Bit Depth: 24-bit, 16-bit
• Sampling Rate: 192kHz, 96kHz, 48kHz, 44.1 kHz
• Size & Weight:
• Weight: 7.2 lbs. (3.3 kg)
• Width: 13-1/8" (333 3/8 mm)
• Depth: 12" (304 mm)
• Height: 4-1/2" (114.3 mm)

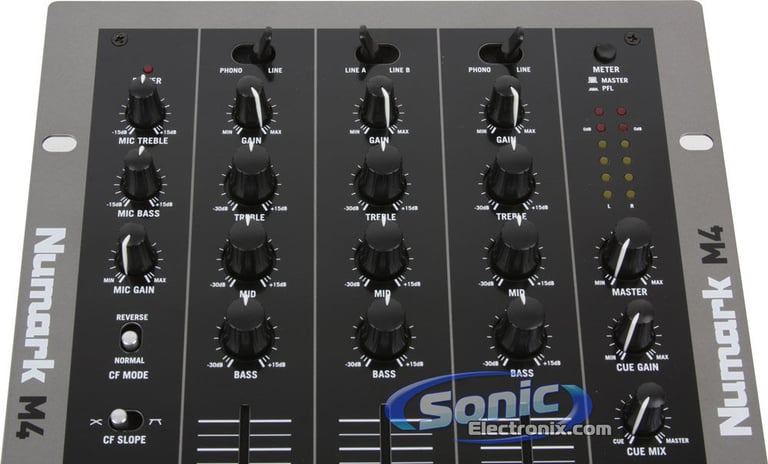

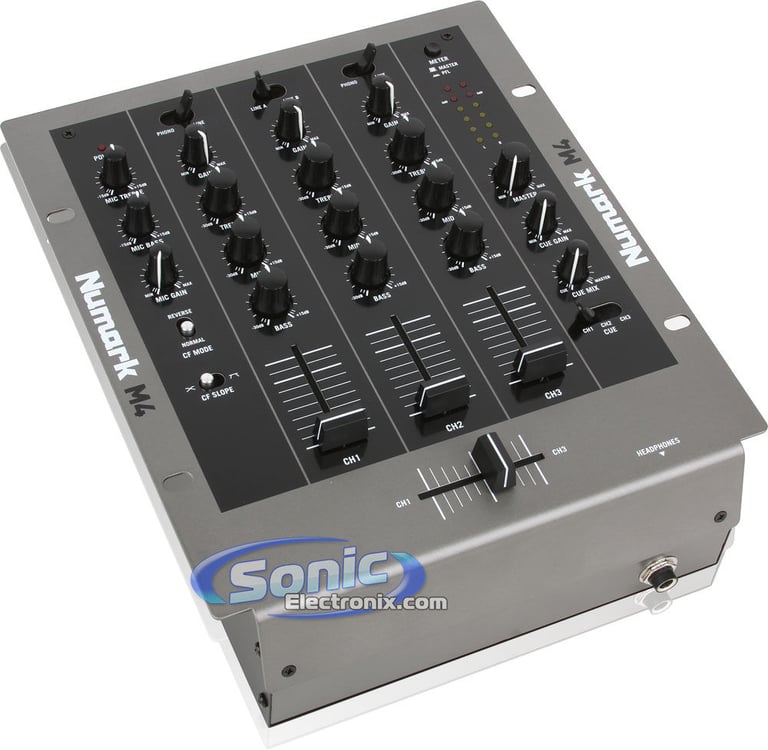

• Three-channel scratch mixer

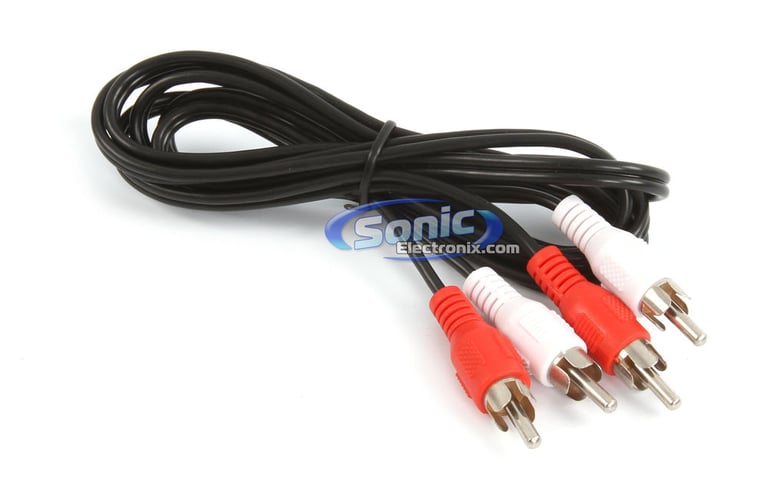

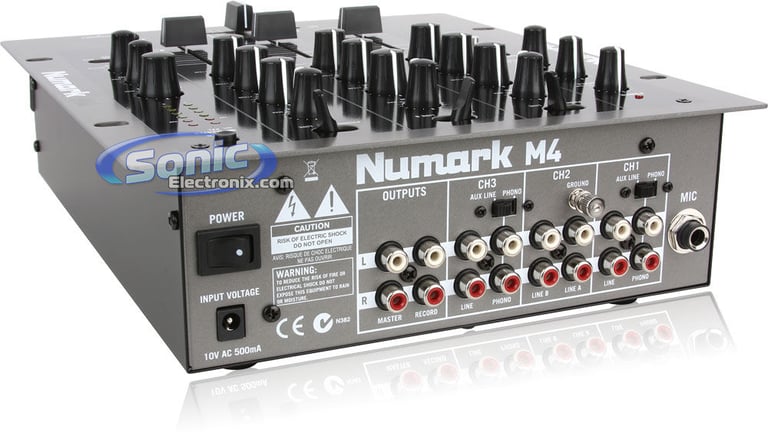

• Inputs: two phono/line switchable (RCA), four line (RCA), mic (1/4")
• Outputs: Master (RCA), Record (RCA), headphone (1/4" stereo)
• Steep three-band EQ/rotary kills on each channel
• Microphone input with EQ
• Six-segment LED display for monitoring signal strength
• Toggle for master and PFL metering

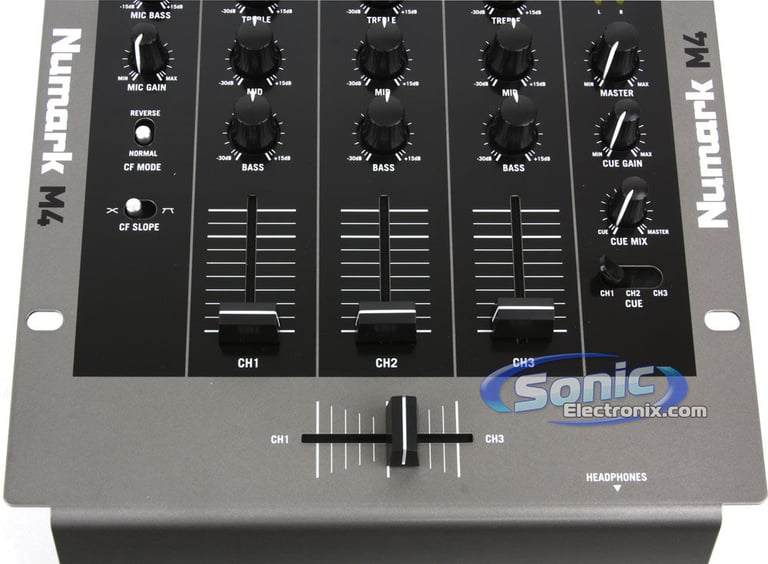

• Replaceable crossfader with reverse and slope controls
• Check the Product Overview to see more information on the Numark M4

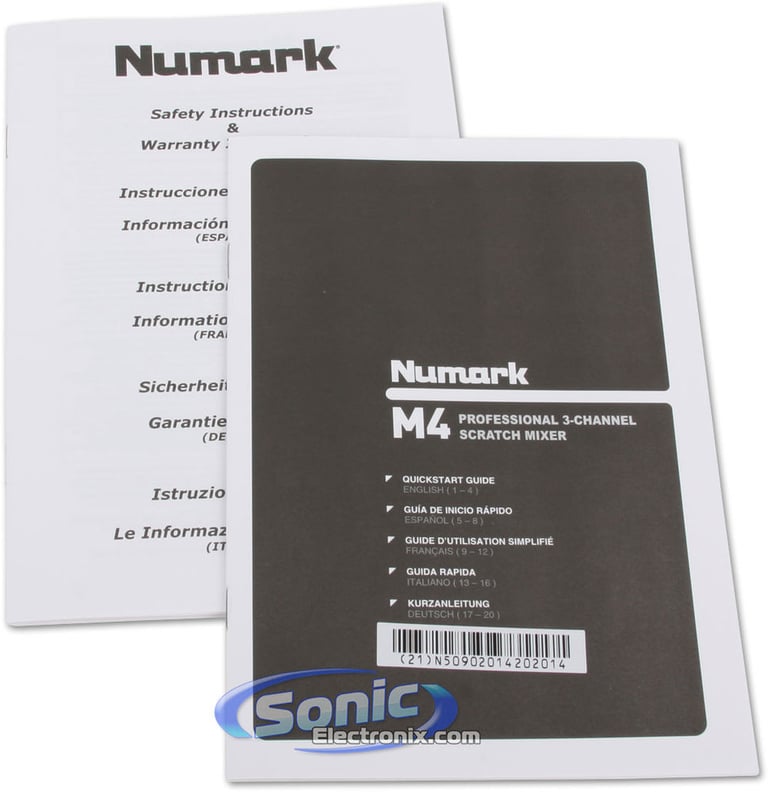

• Check the Quick Start Guide to see more information on how to set up the Numark M4
• 1-year SonicElectronix.com warranty

• Line: 10K ohm input impedance; 80mV RMS sensitivity for 0dB output
• Mic: 600 ohm input impedance unbalanced; 1.5mV RMS sensitivity for 0dB output; 400mV RMS max input
• Distortion: Less than 0.05%
• Line: 20 – 20,000 Hz ±0.5dB
• Mic: 20 – 15,000 Hz ±0.5dB
• Phono: ±1dB; -3dB attenuation at 20 Hz to reduce rumble and feedback
