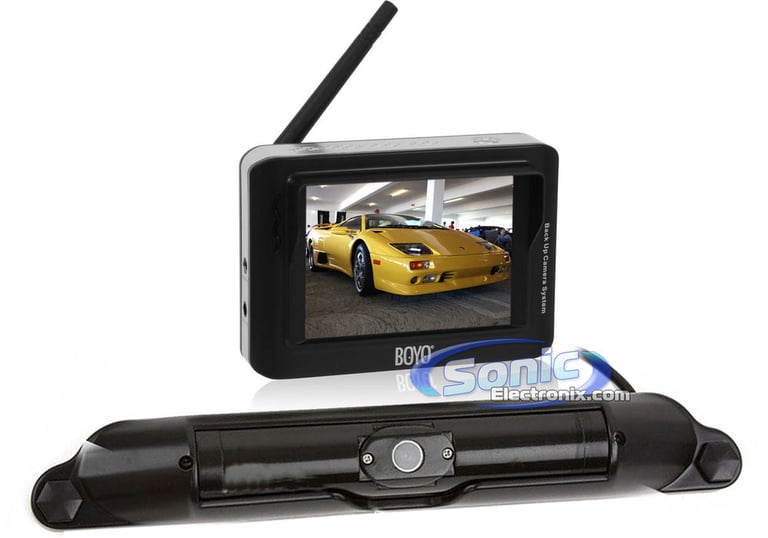

BOYO Vision Universal Bar Type Back-Up Camera and LCD Digital Wireless Monitor

Universal Bar Type Back-Up Camera and 3.6" LCD Digital Wireless Monitor and TX Box

highlight-star-icon

• Universal Bar Type CCD Backup Camera
• 130° Wide angle of view
• Premium grade 1/3" color CCD camera
• Digital Wireless 3.6" LCD Monitor and TX Box
• Eliminates the need to run cables through the vehicle
• Automatically Activates in Reverse

Learn more about the vtx3600_vtl420

We apologize

This item has been discontinued


Loading...
AXLOC-CH5 main

Axxess AXLOC-CH5

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ram, Dodge, Jeep with Non-Amplified Systems

10
-10.48%

$93.99

List price $104.99

72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

82-6901 main

Metra 82-6901

5.25” or 6.5” Speaker Mounting Adapters for select 1977-2024 vehicles from Dodge, Chevrolet, Chrysler

39
-34.80%

$14.99

List price $22.99

82-6600 main

Metra 82-6600

5-1/4" or 6-1/2" Front Door Speaker Adapter for select 1995-2024 vehicles from Dodge, Ram, Jeep

14
-40.02%

$14.99

List price $24.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

10
-37.63%

$499.00

List price $800.00

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
DMX908S main

Kenwood eXcelon DMX908S

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius-XM Ready)

-19.05%

$849.99

List price $1050.00

Description


BOYO Vision brand icon

Authorized dealer

BOYO Vision VTX3600 Features:

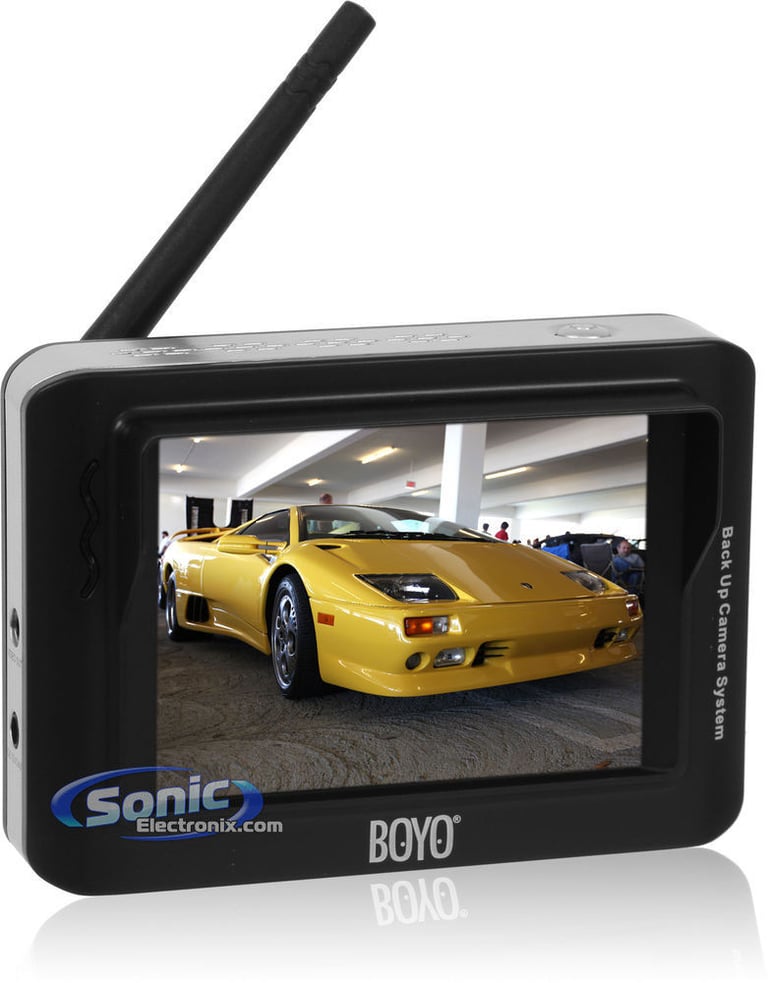

  • Digital Wireless 3.6" LCD Monitor and TX Box
  • Works with any backup camera/source with an RCA connection
  • Connect the source to TX box for a wireless transmission to the monitor
  • Eliminates the need to run cables through the vehicle
  • Ideal for large vehicles like trucks and RV's
  • Interference free transmissions outperforms analog systems
  • 4-different viewing modes
    • Normal
    • Mirror
    • Mirror Upside Down
    • Normal Upside Down
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

BOYO Vision VTX3600 Specifications:

  • Screen Type: 3.6" TFT-LCD
  • Resolution: 320 x 240
  • Brightness: 200 cd/m2
  • Contrast: 350
  • Frame Rate: 30 fps
  • Video Compression: MPEG-4
  • Operating Frequency: 2400 - 2483.5
  • Unobstructed Effective Range: 50 meters
  • Power Supply: 12/24V DC
  • Consumption: 250mA

VTL420 Features:

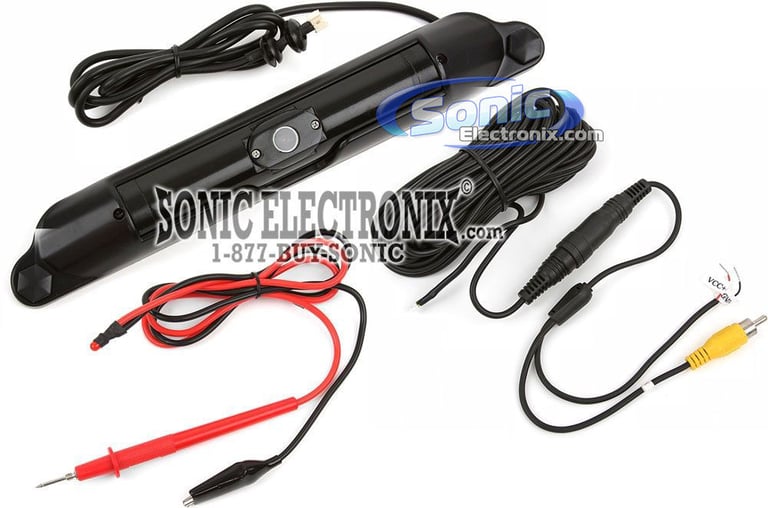

  • Universal Bar Type CCD Backup Camera
  • Standard frame fits to all state license plates
  • Super slim color CCD camera design
  • 130° Wide angle of view
  • Camera angle adjustable
  • Stainless steel frame & waterproof camera
  • Quick and easy installation
  • Premium grade 1/3" color CCD camera
  • Excellent automatic white balance
  • Extremely reliable power control
  • Automatic Reverse: When reverse gear is engaged, the system will start to work automatically
  • Beautiful design & anti-scratch coating
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

VTL420 Specifications:

  • Image: 1/3 DSP Color CCD
  • Effective Pixels: 512 (H) x 582 (V)
  • Horizontal Resolution: 420 TV Lines
  • Min Illumination: 0.5 Lux at F2.0
  • Scanning System: 2:1 Interlaced
  • S/N Ratio: More than 48db
  • Electronic Iris: 1/50 to 1/1000 sec
  • Operating Temp: -4°F~ +122°F (~20° C~ +50° C)
  • Storage Temp: -40°F ~ +176°F (-40°C ~ +80°C)
  • Wide Angle: 130°
  • Water Proof: Ip67
