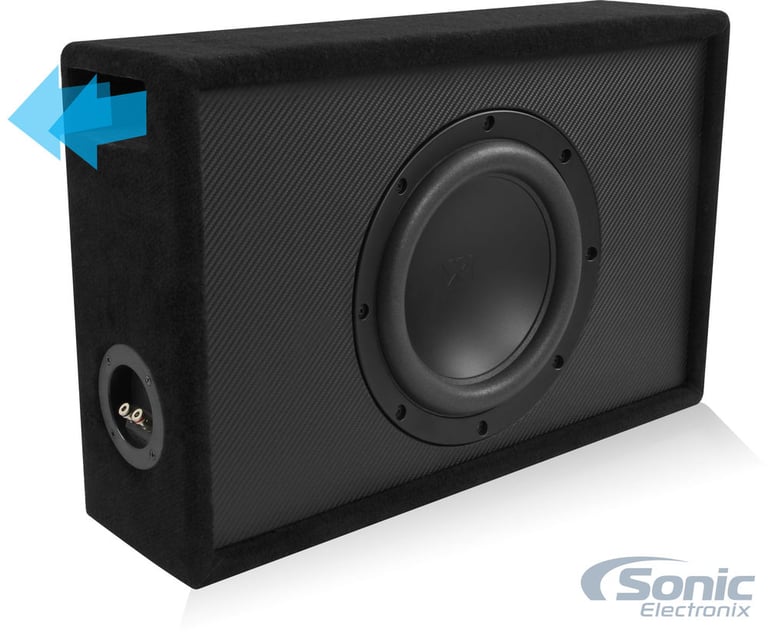

NVX XQT10D4

Preloaded NVX X-Series Shallow Mount Subwoofer in Shallow Ported Truck Box

NVX
Shop all NVX
highlight-star-icon

• RMS Power: 500W
• 4 ohm Final Impedance
• Aluminum Shorting Ring
• Finely Milled Pulp/Egyptian Papyrus Cone
• Ideal For Trucks & Shallow Installs
• Mounting Depth: 5"
• Carbon Fiber Front Board
• Black Carpet

Learn more about the xqt10d4

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Description


NVX brand icon

Authorized dealer

Egyptian Papyrus-Blend Cone [+]

The NVX X-Series features an ultra stiff, lightweight cone material custom made from finely milled pulp & Egyptian Papyrus fibers. The cone is treated with a soft matte black finish for a stylish and modern look.

Vertically Attached oSD Surround

Patented Surround Technology [+]

XQW woofers are engineered with a unique oSD (oversized SD) surround. This patented technology involves attaching the surround on a vertical edge for increased surface area, which translates to more bass. Additionally, the surround itself is constructed with a multi-radius elliptical edge for incredibly symmetrical, linear cone movement.

Aluminum Shorting Ring

Aluminum Shorting Ring [+]

Another feature which seperates the X-Series from other woofers on the market is the innovative aluminum shorting ring. The shorting ring is basically a conductive aluminum ring placed between the pole piece and the voice coil former. The purpose of this ring is essentially to reduce the negative effects of the inductance that is inherently present in any loudspeaker. In short, this shorting ring will:

  • Improves power delivery to the voice coil
  • Decreases distortion
  • Contributes to linear cone movement
  • Improves high-end extension
  • Decreases risk of overheating
Optimized for Small Enclosures

Space Efficient Design [+]

These subwoofers only require 6" of mounting depth to produce intensely powerful bass. NVX utilized the latest loudspeaker technology to design a space-saving subwoofer without the anemic sound of typical shallow-mount woofers. NVX claims that the X-Series is "The discerning listener's alternative" to such shallow subwoofers, and we agree.

High Temperature Voice Coil

3" High Temperature Voice Coil [+]

The stout 3" high temperature voice coil is constructed from a copper wire wrapped around an aluminum former. This industry standard design is powerful enough to readily drive the cone with strict linear control, yet at the same time remains efficient enough for the compact, space saving magnet structure.

Low Turbulence Basket

Custom Cast Aluminum Basket [+]

The custom basket of the X-Series woofer is striking in terms of both aesthetics and engineering. A particularly open basket was designed in order to improve airflow for superior cone response and reduced back-wave interference. NVX engineers chose aluminum both for its exceptional strength-to-weight ratio, as well as to eliminate interference with the magnet structure.

High Excursion Tinsel Leads [+]

The tinsel leads used in the X-Series woofer are a small example of the incredible attention to detail of the NVX engineers. These tinsel leads are attached at the basin of each fold in the spider with sufficient slack for full excursion. This prevents damage to the leads from the movement of the cone, while also keeping them securely attached to prevent mechanical noise.

General Features:

  • Preloaded 10" Dual 2 Ohm X-Series Series Shallow Mount Subwoofer
  • Power Handling:
    • RMS: 500 watts
  • Final Impedance: 4 ohm
  • Preloaded in a shallow ported truck box
    • Mounting Depth: 5"
  • Custom blend of finely milled pulp and Egyptian papyrus fiber cone with smooth matte finish
  • Multi-Radius Elliptical edge foam surround
  • Includes oSd surround technology (U.S. Patent #7,031,487) allowing for an extra 8-12% more surface area than competing subwoofers
  • Innovative aluminum shorting ring system with several positive impacts on the subwoofer:
    • Improved power delivery to the voice coil
    • Decreased inductive distortion
    • Improved cone linearity
    • Improved high-end extension
    • Decreased risk of overheating
  • 3" High temperature voice coil designed with an oxygen-free copper coil
  • 123 oz double stacked ferrite magnet
  • Optimal ported enclosure tuning frequency: 36 Hz
  • Frequency response: 20-200 Hz
  • Resonance Frequency (Fs): 33 Hz
  • Top-mount depth: 4-7/8"
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

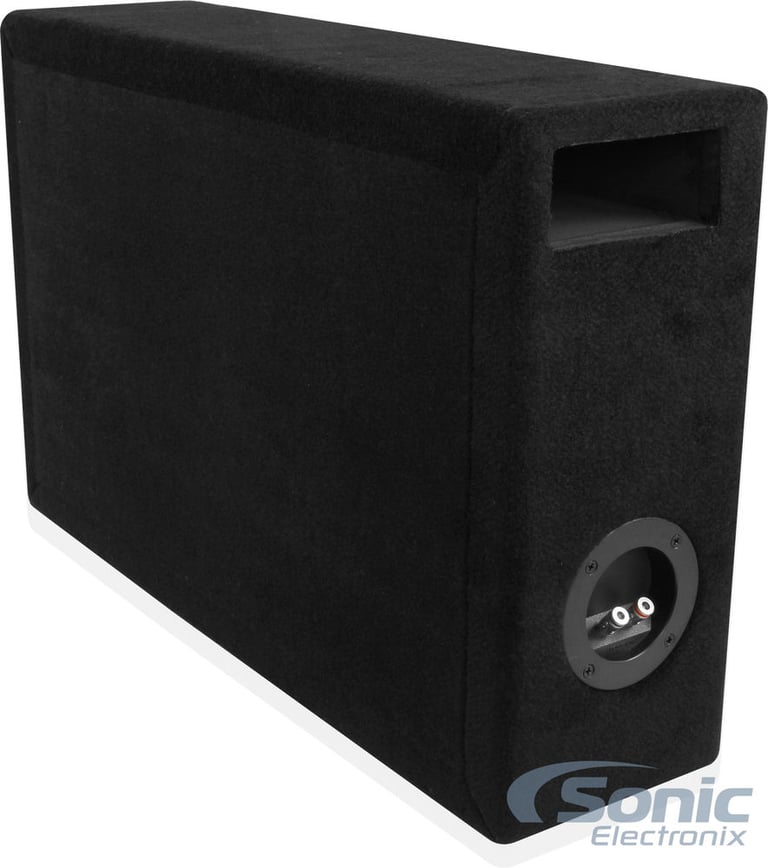

General Features:

  • 10" Ported Subwoofer Enclosure
  • Ideal for trucks and other shallow locations
  • Carbon-fiber front face board

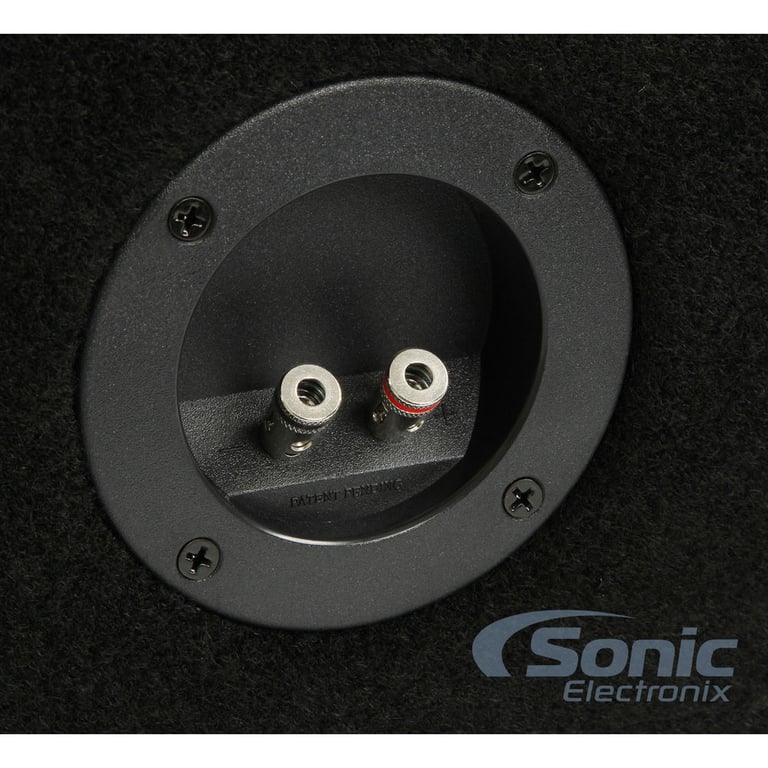

  • Spring-loaded push terminals also accept banana plugs
  • Covered in high-quality black carpet
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Subwoofer mounting depth: 5"
  • Subwoofer cutout diameter: 9-3/4"
  • Box volume: 0.55 cubic feet
  • Tuning Frequency: 34Hz

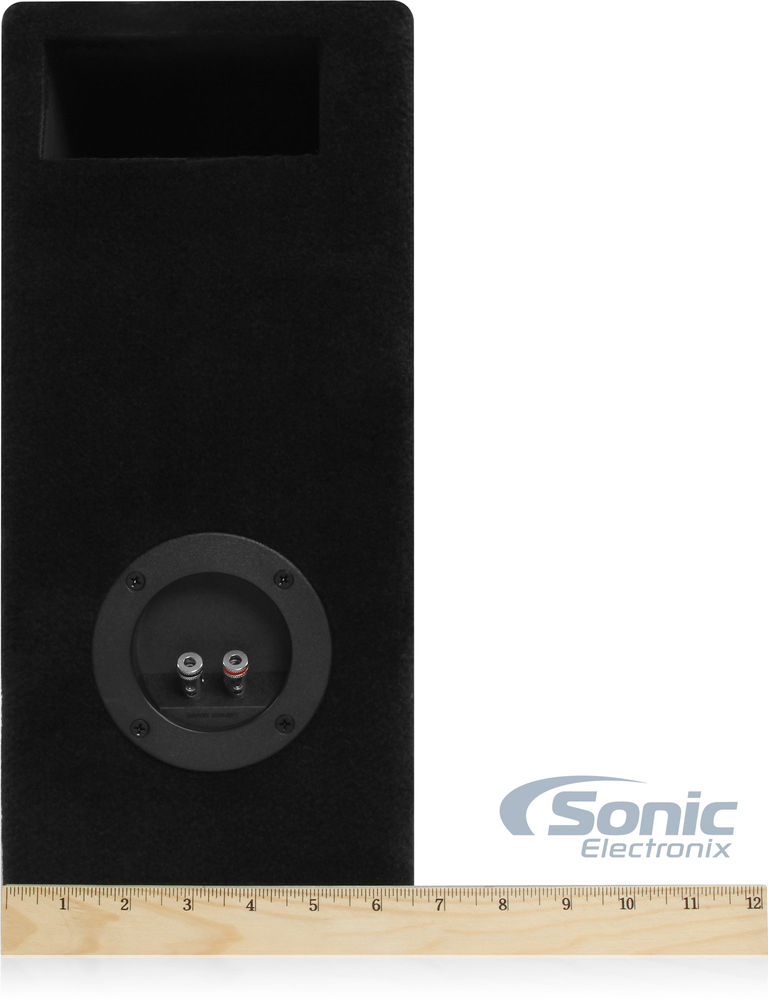

  • Dimensions: 6-5/8"D x 24-1/2"W x 15-1/2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Port Specifications:

  • Rectangular Slot Port
  • Number of ports: 1

Best selling similar products

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

P3-2X12 small

Rockford Fosgate Punch P3 P3-2X12

• Dual Punch P3 12" Loaded Subwoofer Enclosure
• 2400W Peak
• 1200W RMS
• Constructed with Durable 5/8" MDF
• High Current Binding Posts
• Durable Black Carpet Covering
• Computer Optimized Design
• 1 Ohm Final Impedance

(40)

$709.99

List price $947.99

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

Specifications & Details


Subwoofer Specifications
Series
X Series
Subwoofer Size
10"
RMS Power Handling
500 watts
Woofer Surround
Foam
Sensitivity
87 dB
Frequency Response
20 - 200 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Spring posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XQT10D4

Weight:

42.00lbs

Internal SKU:

xqt10d4

Internal Product ID:

75651
