JBL Dual 12" Bass Bundle with Amp Wiring Kit and FREE Enclosure

General Features

• MS Series Monoblock Class D Car Amplifier
• RMS Power Rating:
• 4 ohm: 500 watts x 1 chan.
• 2 ohm: 500 watts x 1 chan.
• Sonic Electronix Certified Power Rating*:
• 4 ohm: 468 watts x 1 chan.
• 2 ohm: 692 watts x 1 chan.
• CEA-2006 compliant amplifier
• Digital signal processing amplifier
• Pulse Width Modulated MOSFET power supply
• Wireless Remote bass level input (JBL MS-WBC remote level control sold separately)
• Built-in display shows tone and gain settings
• Soft Start Turn-on
• Mono channel operation
• "Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
• Speaker-level inputs with signal sensing for automatic turn-on
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Digital input-mixer control eliminates the need for Y adapters
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• CD for system setup included
• Gold-plated RCA level inputs
• Gold-plated screw terminals
• Input sensitivity: 100mV - 20V
• Signal to Noise Ratio: 80 dB
• Frequency Response: 20 - 270 Hz
• Selectable crossover slopes: 6 dB/oct, 12 dB/oct, 24 dB/oct
• Variable low-pass filter: 97 points from 20 - 140 Hz
• Variable high-pass filter: 97 points from 20 - 140 Hz
• Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H
• 4 - 8 gauge power and ground wiring is recommended for installation.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

General Features:

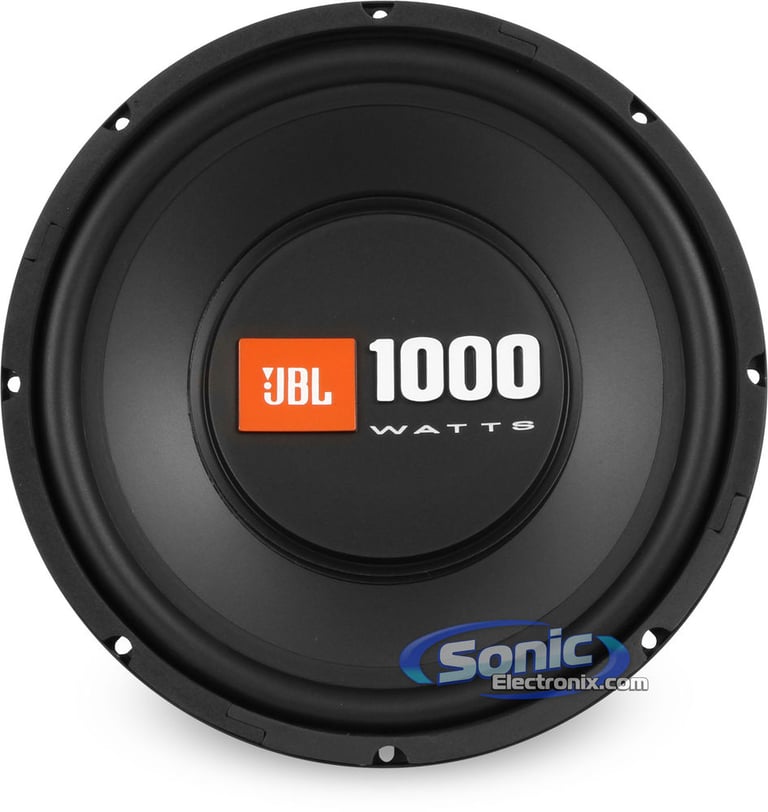

• 12" Single 4 Ohm CS Series Car Subwoofer
• Power Handling:
• Peak: 2000 watts per pair / 1000 watts each
• RMS: 500 watts per pair / 250 watts each
• Impedance: 4 ohm
• High excursion, high BL motor
• Polypropylene Cone
• Rubber Surround
• 1-1/2" Voice coil
• Frequency response: 35-200 Hz
• Resonance Frequency (Fs): 28 Hz
• Top-mount depth: 6-1/16"
• Sensitivity: 90dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

• Dual Sealed 12" Enclosure
• Internal box volume: 2.46 cubic ft. total air space - 1.23 cubic ft. per chamber.
• High Quality 3/4" MDF Construction
• Durable black carpeting
• Pre-lined with Poly-Fil
• Seams are fully caulked for better efficiency
• 2 Separate chambers allowing each subwoofer its own air space
• Gold post terminals for clean and easy wiring access
• Box Dimensions: 28-1/2"L x 14-1/4"D x 14-1/4"H
• 30 Day return policy

General Features:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium power and ground wire provides optimal power transfer
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
• Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Strand Count: 1862
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

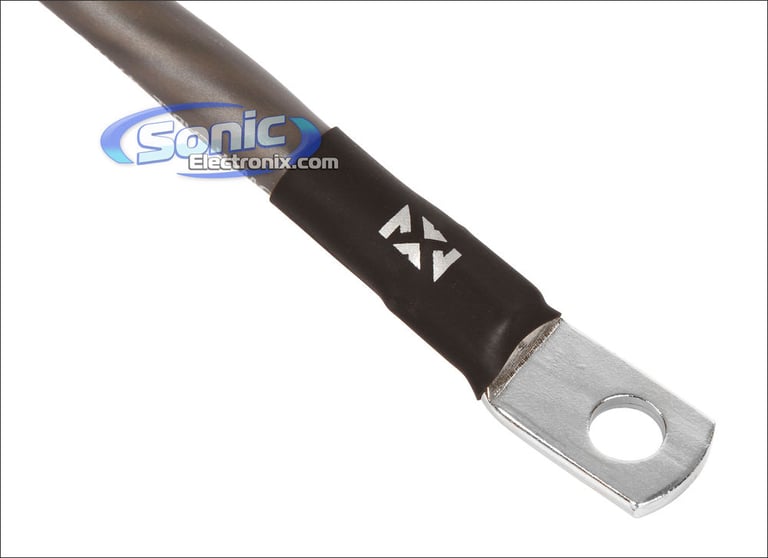

1. 20 ft. (6.1 meters) Frosted Blue 4 gauge power wire with seamless crimp ring terminal

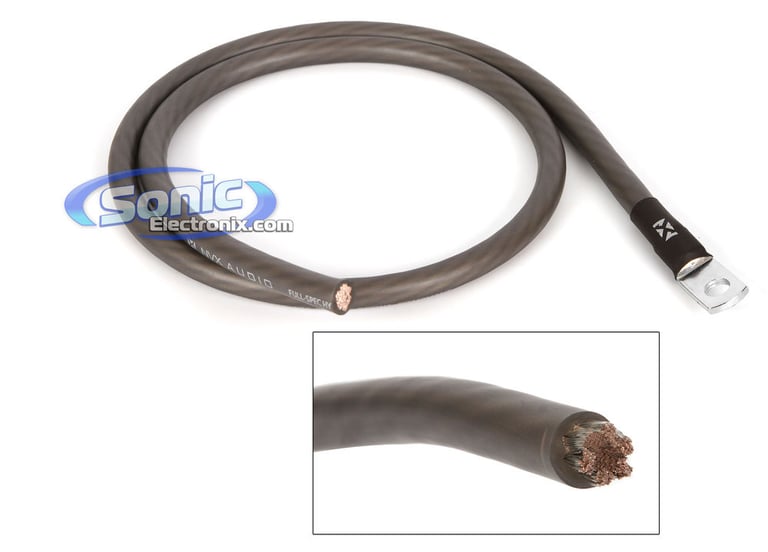

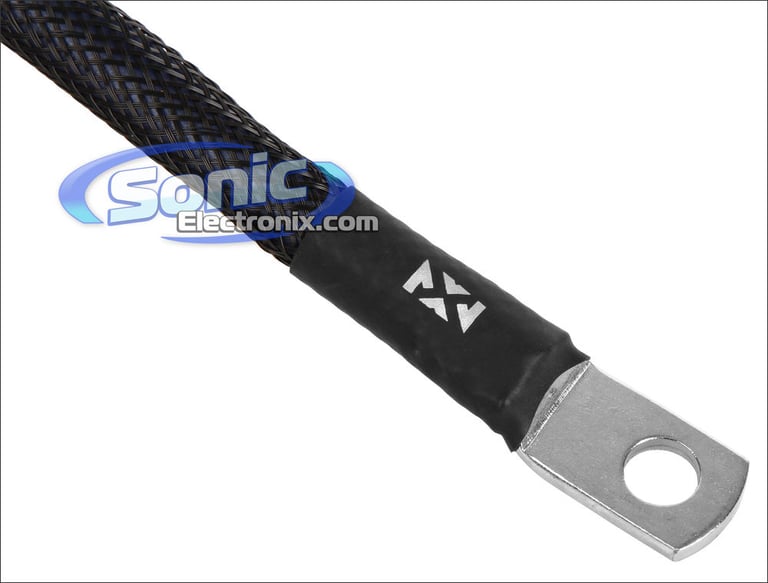

2. 3 ft. (.91 meters) Frosted Black 4 gauge ground wire with seamless crimp ring terminal

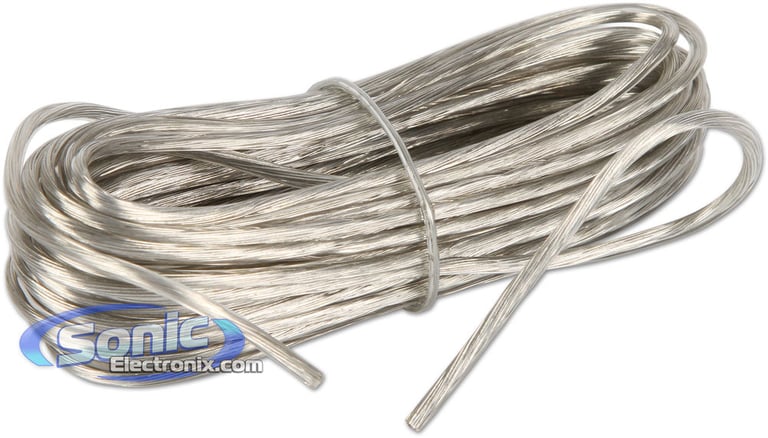

3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

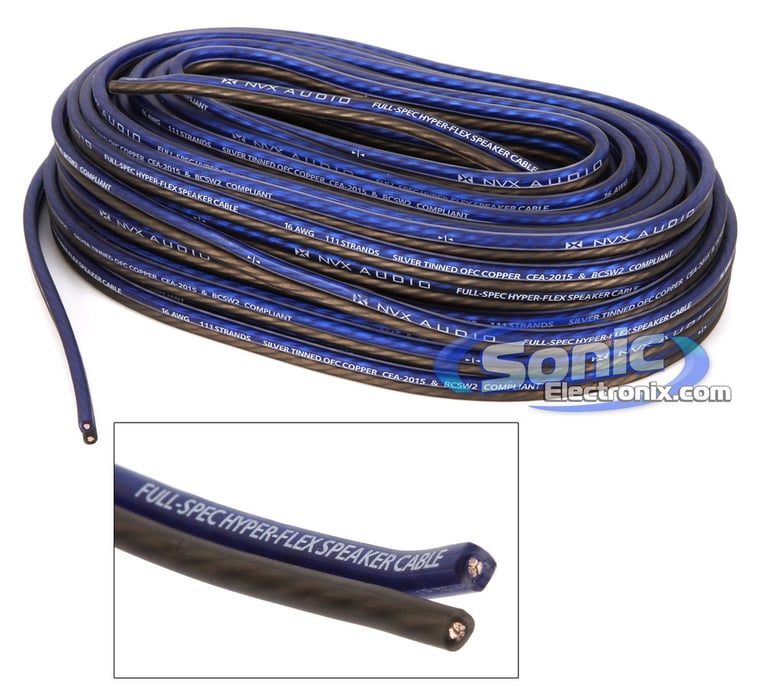

4. 40 ft. (12.2 meters) Frosted Black/Blue 16 gauge speaker wire

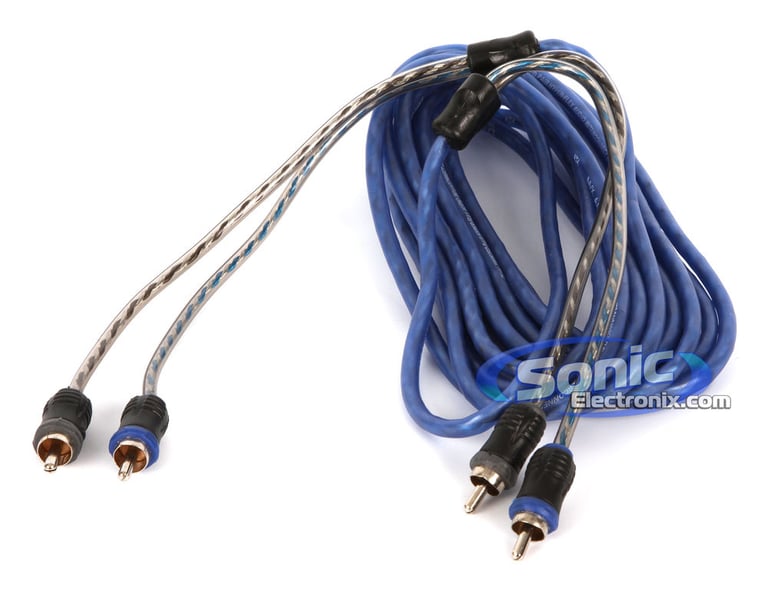

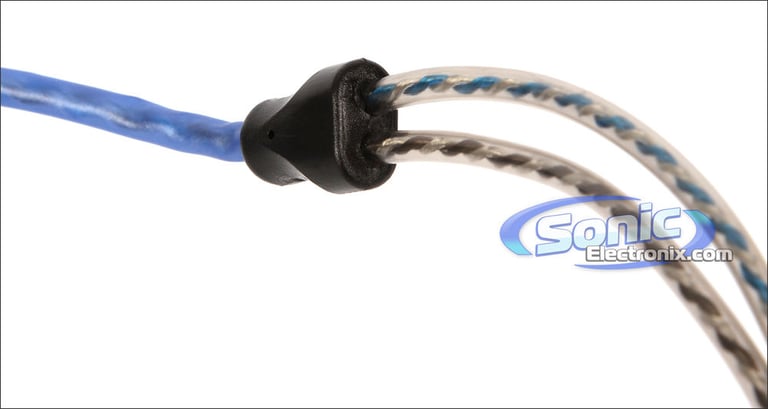

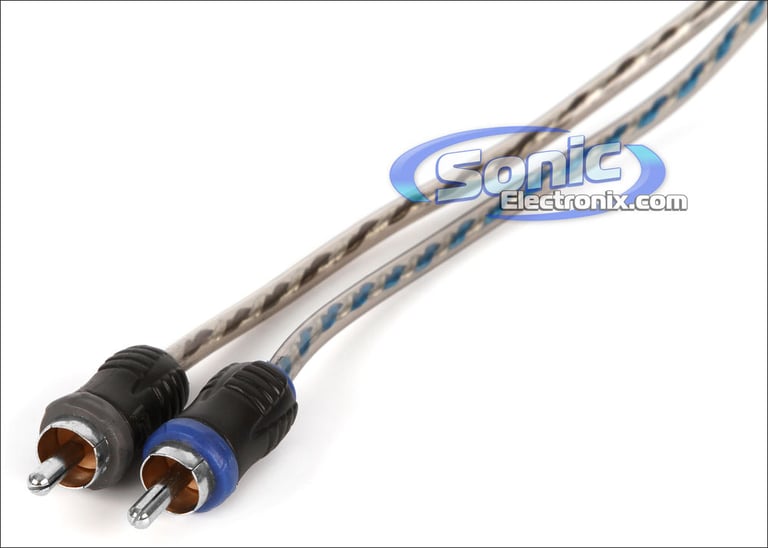

5. One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

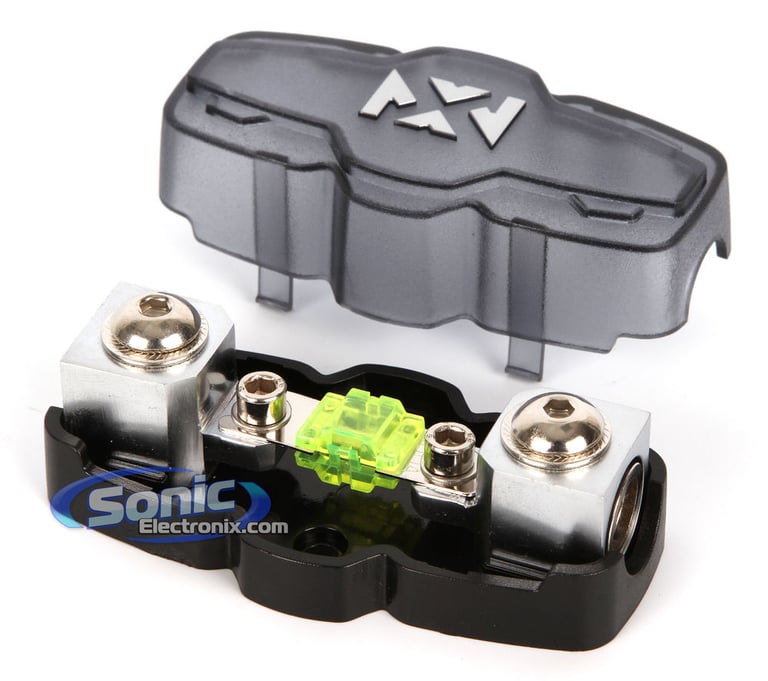

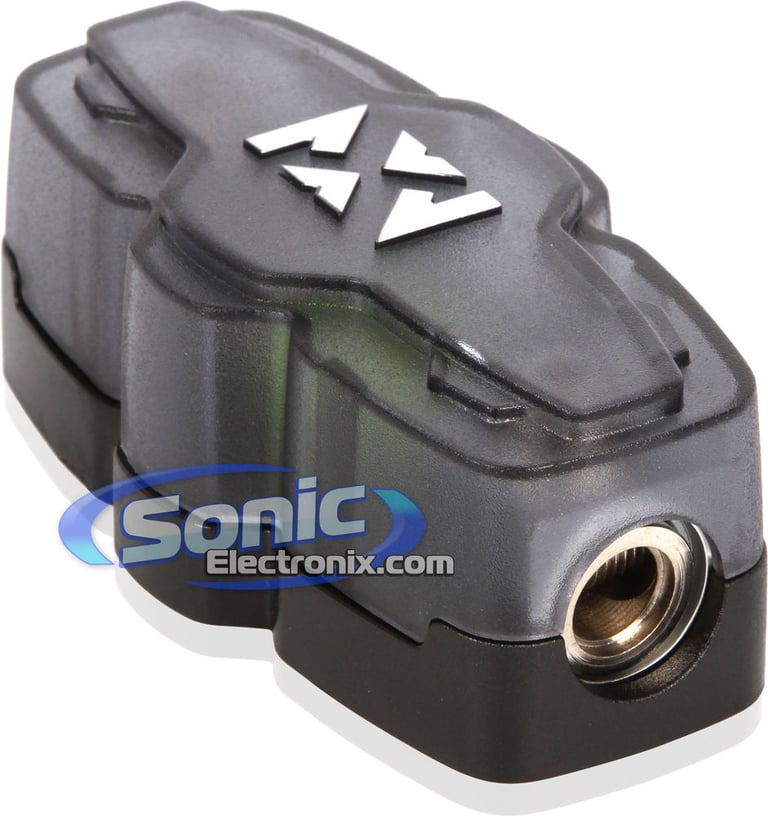

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Ten 6" Black zip ties
