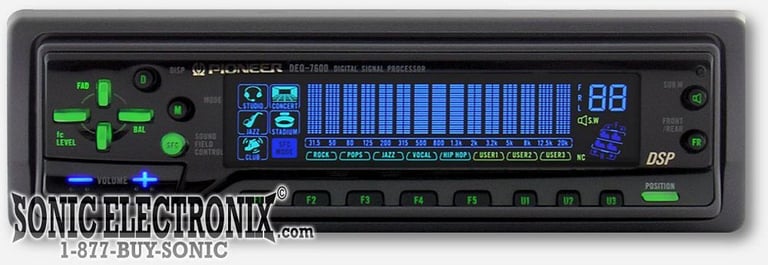

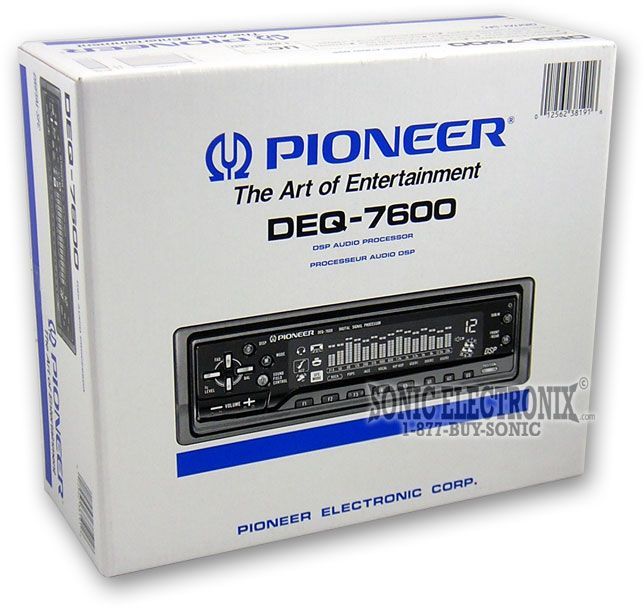

Pioneer DEQ-7600

15 Band Digital Equalizer with DSP

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

DSP Equalizer • Full-DIN chassis • 15-band digital EQ • spectrum analyzer • 5 preset/3 programmable EQ curves • 4-mode listening position switch • 5 DSP soundfields • selectable low-pass crossover • 3 sets of preamp outputs

Learn more about the deq7600

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

AXABH-CH2 main

Axxess AXABH-CH2

Amplifier Bypass Harness for select 2007-2021 vehicles from Ram, Dodge, Jeep

2
-11.77%

$29.99

List price $33.99

82-6600 main

Metra 82-6600

5-1/4" or 6-1/2" Front Door Speaker Adapter for select 1995-2024 vehicles from Dodge, Ram, Jeep

14
-40.02%

$14.99

List price $24.99

AP4-CH41 main

PAC AP4-CH41 R.2

Amplifier Integration Interface for select 2013-2023 vehicles from Ram, Jeep, Dodge

4
-16.03%

$419.00

List price $499.00

VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

47
-42.51%

$22.99

List price $39.99

Limited time!
KFC-X175 main

Kenwood eXcelon KFC-X175

480W Peak (160W RMS) 6.5" eXcelon Series 2 Way Coaxial 4-ohm Car Speakers

-38.06%

$111.50

List price $180.00

AP-X69A main

Deaf Bonce Apocalypse AP-X69A

800W Peak (400W RMS) 6x9" Apocalypse Series 2 Way Coaxial 4-ohm Speakers

3
C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30
T1693 main

Rockford Fosgate Power T1 T1693

400W Peak (200W RMS) 6x9" Power Series 3-way 4-ohm Coaxial Car Speakers with Dual Tweeters

32

Product Highlights


DSP Equalizer • Full-DIN chassis • 15-band digital EQ • spectrum analyzer • 5 preset/3 programmable EQ curves • 4-mode listening position switch • 5 DSP soundfields • selectable low-pass crossover • 3 sets of preamp outputs

Description


Pioneer brand icon

Authorized dealer

If there's just one thing you should know about Digital Signal Processing, (DSP) it's this: It can make your car sound like a concert hall. Or a jazz club. Or even Yankee Stadium. (Or Shea Stadium — we don't care how you feel about the Yankees, we just care about making your car sound better.)

The Pioneer DEQ-7600 takes the same digital technology that makes CDs sound so terrific, and uses it to broaden the possibilities of your car stereo. Not only will you gain the advantages of an on-board equalizer, you'll also be able to choose among user-adjustable and preset soundfields to actually recreate different acoustic environments, right in your vehicle.

This full-DIN, 15-band digital EQ offers five DSP soundfields, plus five preset and three programmable EQ curves. You also get a 4-mode listening position switch to adjust your soundstage and a spectrum analyzer to give you a light show with a moment-to-moment view of your system's response curve. Three sets of preamp outputs with a built-in subwoofer crossover help you configure your multi-amp system.

  • 15-band digital EQ offers +/- 15dB gain, 3 user presets and 5 factory presets (Rock, Pop Vocal, Jazz, Hip Hop)

  • 5 soundfields (Studio, Club, Jazz Club, Concert Hall, Stadium)

  • 4-mode Listening Position Selector (Front Left, Front Right, Front, All)

  • 1 set of preamp inputs

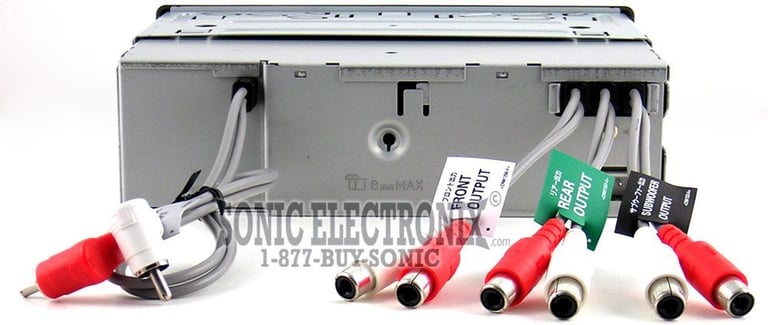

  • 3 sets of preamp outputs (Front, Rear, Subwoofer)

  • selectable low-pass crossover for subwoofer output at 50, 80 and 125 Hz with an 18 dB/slope

  • 15-band spectrum analyzer

  • memory backup retains settings for 3 days if your battery dies or is disconnected

  • signal-to-noise ratio 91 dB

  • THD 0.01%

  • 7-3/16"W x 2-1/8"H x 6-3/16"D

  • 1-year SonicElectronix.com warranty


Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(51)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

HFEQ-2 small

Hifonics HFEQ-2

• 4 band-Band Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(1)

$59.99

List price $99.99

EQL7 small

Memphis EQL7

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 8 volts max preamp outputs
• Subwoofer frequency and level control

(1)

$99.99

List price $159.95

EQP850 small

Cerwin-Vega EQP850

• 5-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Nickel-plated RCA level inputs

$139.99

List price $139.99

EQ-4000BT v2 small

Earthquake Sound EQ-4000BT v2

• 4 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$179.99

List price $199.99

EQ-770 small

Cerwin-Vega EQ-770

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 7 volts max preamp outputs
• Subwoofer frequency and level control

(2)

$99.99

List price $115.99

ACX-3.2 small

AudioControl ACX-3.2

• 4 band-Band Graphic Equalizer
• 3 setsof preamp outputs (front, rear and subwoofer)
• 9.5 volts max preamp outputs
• Subwoofer frequency and level control

$529.00

List price $709.00

EQX7 small

DS18 EQX7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$95.95

List price $95.95

eqx5 small

DS18 EQX5

• 5 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(1)

$65.95

List price $65.95

Specifications & Details


Equalizer Specifications
Equalizer Bands
15 band
Built-in Crossover
Low-Pass (LP)
Built-in Bass Reconstruction
No
Line Driver
No
Display Color
Blue
Signal Boost/Cut
15 dB
Frequency Response
50 - 125 Hz
THD (Total Harmonic Distortion)
0.01%
Signal-to-Noise Ratio
91 dB
Width
7-3/16"
Height
2-1/8"
Depth
6-3/16"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

DEQ-7600

Weight:

3.50lbs

Internal SKU:

deq7600

Internal Product ID:

771

Product and How-to Videos


Customer Ratings & Reviews


Pioneer DEQ-7600 thumbnail image

5 star
82%
4 star
18%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.5
Features
4.8
Design
4.8
Usability
4.5

Customer Reviews

Sort by:

Loading...

Where can i buy DEQ 7600

Hi guys,

I guess this model is not produced anymore.Any idea where can i buy this either new or used.

By guyy on November 3, 2009

39 found this helpful


very good

this one is good if you are going to have a nice sound in your car.
this is a product you must have to get the best sound.

By Mats on December 21, 2008

21 found this helpful


great unit

I recomend this to anyone that wants to tune their stereo to perfection. I run one, and wow the sq I now have now and the flexiblity it has is amazing.

By brian on October 5, 2007

22 found this helpful


Great Value!

tres bon produit composant Pioneer je recommande au confirmateur utilisateur et pour les oreilles sensibles A MONTER si possible avec un eclater kit de haut parleur à trois voix pour Une utilisation à 100%

By truand05 on February 2, 2010

21 found this helpful


A must Have

If you ever have thought that your system sounds amazing your working until you have this baby wired up. I had this for the last 2 years and it works like a charm the sound quality & appeal is great. I feel that this one is good value for money.

By Harish on October 5, 2007

20 found this helpful


Dsp 7600 Rahul delhi

GENUINE ZDILVERY AND SHIPPING and Dsp 7600 is awesome witll all itrms surround good

By Anonymous on April 4, 2019

18 found this helpful


Great Product

I have no regrets about buying this product. I can recommend it highly to anyone.

By Trevor on April 4, 2011

20 found this helpful


Great eq for the money!

If your looking for a eq to fine tune your system this is it. And it looks good to, Its hard to see in sunlight but not that much of a big deal. I was well pleased with its performance.It made a big diffrence in my system.

By Basscat on January 25, 2011

19 found this helpful


Hi, Im Jorge and the Pioneer DEQ-7600‏ is really good.

To be honest I really don't speak English, all I can explain about this Pioneer is, that it can make the difference in your car, is inexpensive,the sound now is just perfect and is elegant also.
I can said, Yes... This is a very good option for your audio system.

By Jorge A. on December 27, 2009

18 found this helpful


sound quality

If u want your music to sound as good as it did when it was first recorded then I say pay the money and impress yourself. This is my first equalizer and I will buy this again. It adds a very nice look to where ever u mount it. The proccessor is very easy to install and easy to use. just make sure u look at the manual to get its full functionality. Pioneer always makes good music reproduction equipment.

By Edward on October 11, 2007

17 found this helpful




XL 1 6X9-GRAY small

Ground Shaker XL 1 6X9-GRAY

6 x 9" Single Truck Square Box

(1)

$14.99

List price $34.95

SW-SAV38D2 small

Sundown Audio SA-8 v.3 D2 8" (SA8V3D2)

1200W Peak (600W RMS) 8" SA Series Dual 2-ohm Car Subwoofer (SW-SAV38D2)

(3)

$299.99

List price $359.99

No picture

Alpine ICE In-Cooler Entertainment System PWD-CB1 Open Box (Complete)

The Audio Entertainment System Cooler That Keeps Things Chill

(1)

$974.95

List price $1700.00

ZS653_SDSK2 small

Hifonics ZS653 with Sound Damping

600W Peak (100W RMS) Zeus 6.5" Series 3-Way Coaxial Car Speakers + NVX SDSK2 Sound Damping

(60)

$49.98

List price $53.73

SHAPE M7 (White) small

Samsung SHAPE M7 White (WAM751/ZA)

Wireless NFC Bluetooth Wi-Fi Speaker System

$239.99

List price $449.99

CX-CD109 Black small

Coby CX-CD109 (CXCD109BLK) Portable CD Player - Black

Portable Personal CD Player w/ Stereo Headphones (CX-CD109 BLK, Black)

(3)

$14.99

List price $29.99

HK ESQUIRE MINI WHITE small

Harman Kardon HK Esquire Mini (White)

Portable Mini Wireless Bluetooth Speaker with Built-In Conferencing System

$149.95

List price $179.95

IE 60 East small

Sennheiser IE 60 (IE60 East)

Hi-Fidelity Noise-Isolating In-Ear Headphones

(1)

$249.95

List price $319.00

HK ESQUIRE MINI BLACK small

Harman Kardon HK Esquire Mini (Black)

Portable Mini Wireless Bluetooth Speaker with Built-In Conferencing System

$89.95

List price $179.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2006 Nissan Pathfinder

2019 Acura RDX

2017 Dodge Durango

2003 Honda Civic Hybrid

2006 Chevrolet Cobalt

2012 Kia Forte

2018 Mercedes-Benz GLC-Class

2015 Ford Transit Connect

2006 BMW M3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
