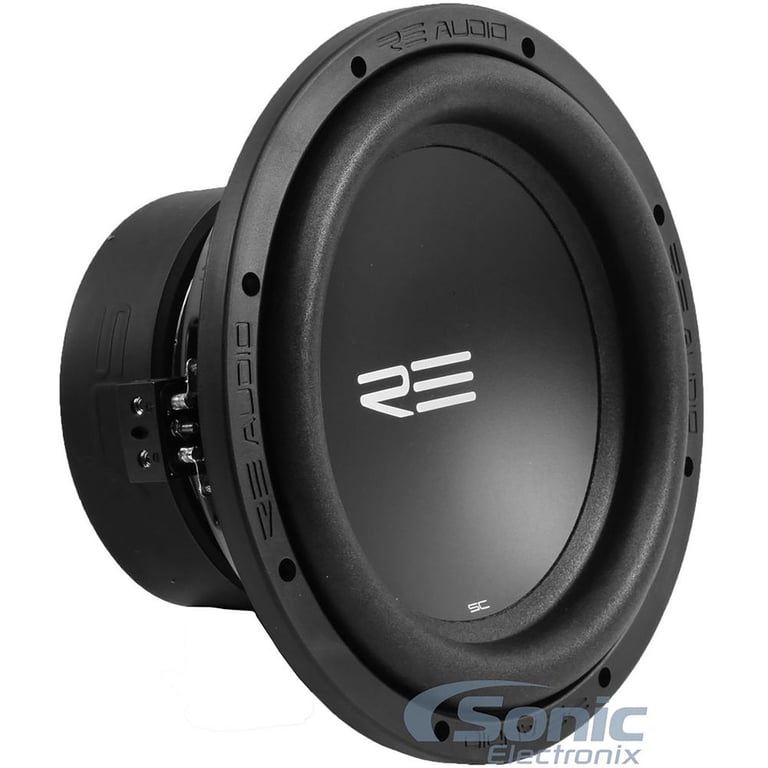

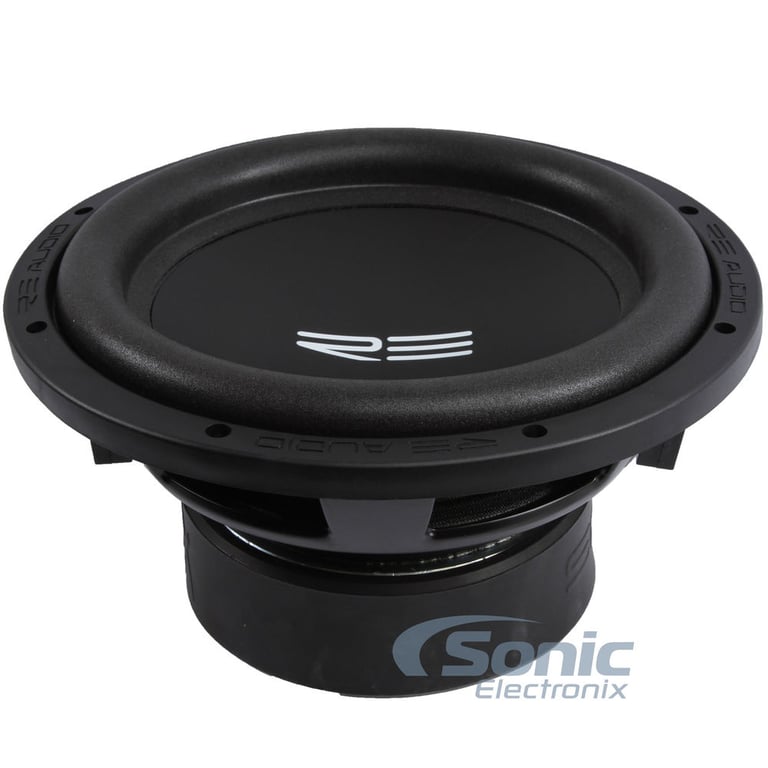

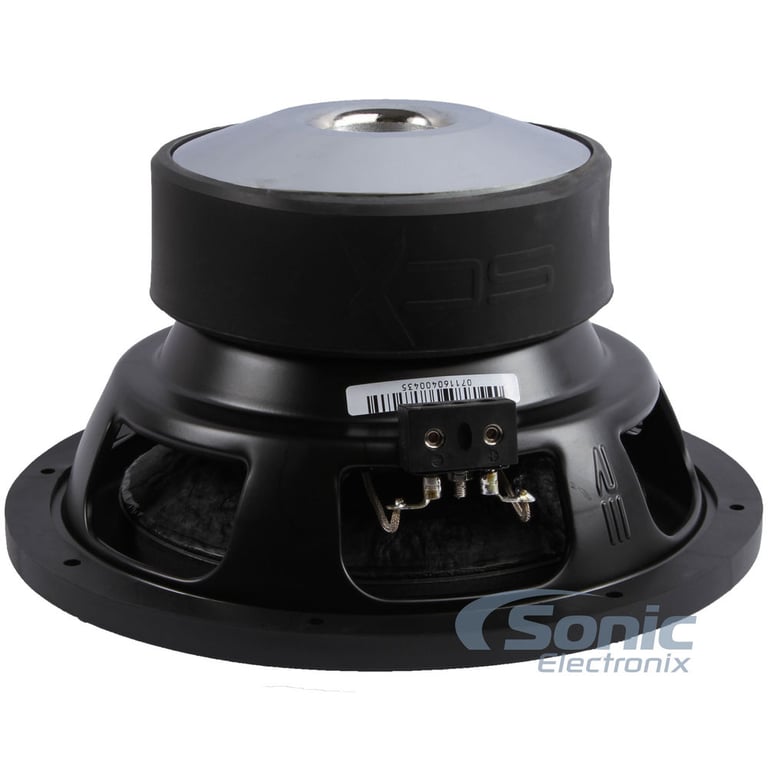

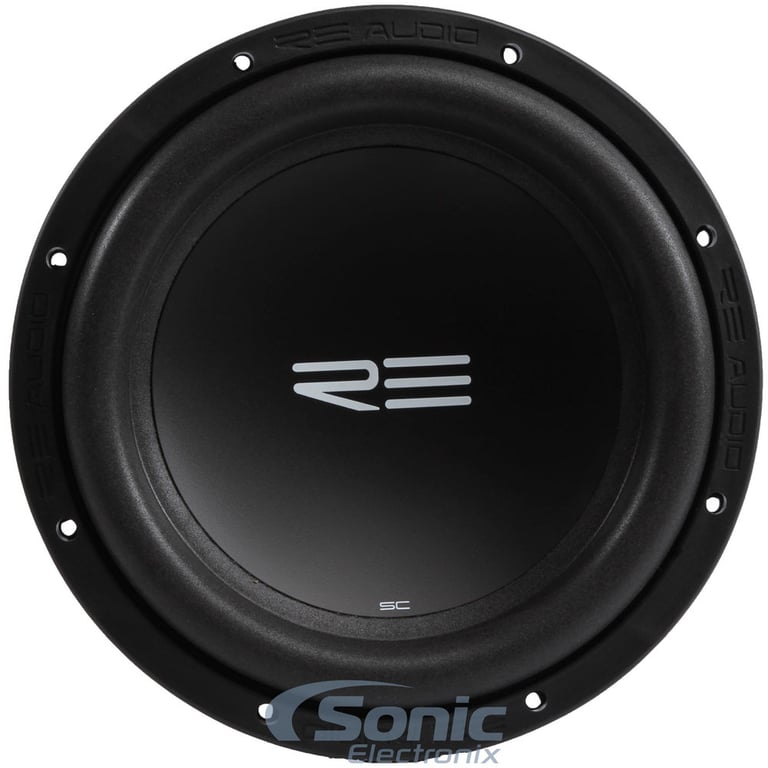

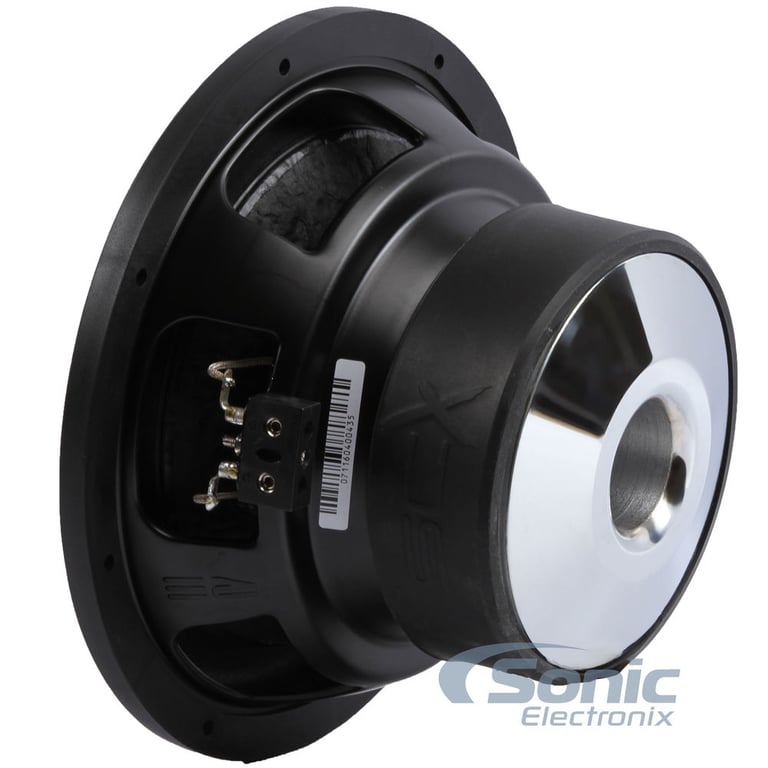

RE Audio SCXv2-10d4 Open Box Complete

450W 10" SCXv2 Series Dual 4 Ohm Subwoofer (SCXv2-10d4)

RE Audio
Shop all RE Audio
highlight-star-icon

• Open Box Complete
• 450W RMS
• Sensitivity: 86.4 dB
• Dual Composite 2-Piece Cone
• Rubatek Foam Surround
• Cast Aluminum Basket
• Double Stacked Magnets
• FEA Optimized Motor Structure

Learn more about the ls-scxv210d4-obc6

We apologize

This item has been discontinued

Description


RE Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

The all new SCX v2 Subwoofer Series by RE Audio is a replacement of the very celebrated SRX series. RE Audio went above and beyond to provide the market with a high quality, reliable and well performing driver. This goal resonates with the architecture of the driver, going from a lame stamped basket frame to a higher quality, better looking and more durable cast basket. In addition, the power handling is from a lowly 300 watts (RMS) to an above modest 450 watts. Expect louder output and lower lows along with better exotic styling, while still maintaining the desirable RE Audio look and Performance! Complete the setup with the matching RE Audio SA 1500.1 amplifier, that provides the exact power that the subwoofer(s) is asking for.


  • A part that is fully functional but shows no sign of use outside of installation.

General Features:

  • 10" Dual 4 Ohm SCXv2 Series Subwoofer
  • Power Handling:
    • RMS: 450 watts
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • Cast aluminum basket
  • Tork-Tite terminals
  • Double stacked magnets
  • FEA optimized motor structure
  • 2.5" 4-layer aluminum voice coil
  • One-Way Linear Excursion (Xmax): 18.6 mm
  • Sensitivity: 86.4 dB 1 watt / 1 meter
  • Top-mount depth: 5.50"
  • Cutout Diameter: 9.30"
  • Displacement: 0.14 ft³
  • Weight: 16.4 lb
  • Matching amplifier: RE Audio SA 1500.1
    ✔ Add a Second Subwoofer for a 900 watt (RMS) setup!
  • Also available in a 12" version: RE Audio SCX 12 v2
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also Found As: SCX10D4-V2, SCXV2-10D4, SCXV210D4

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio RE Audio SCX 10 v2 Subwoofer Enclosure Guide

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SCXv2-10d4 Open Box Complete Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SCXv2-10d4 Open Box Complete Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SCXv2-10d4 Open Box Complete Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SCXv2-10d4 Open Box Complete Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
SCX v2 Series
Subwoofer Size
10"
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
86.4 dB
Xmax (millimeters)
18.6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Polypropylene Cone - CPPC
Woofer Surround
Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.35 cubic feet
Optimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
1.08 cubic feet
Minimum Ported Box Volume
0.65 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Maximum Ported Box Volume
1.77 cubic feet
Top-Mount Depth (Mounting Depth)
5.50"
Cutout Diameter
9.30"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Electrical Resistance of Voice Coil (Re)
4 ohm
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SCXv2-10d4 Open Box Complete

Weight:

16.50lbs

Internal SKU:

ls-scxv210d4-obc6

Internal Product ID:

132123
