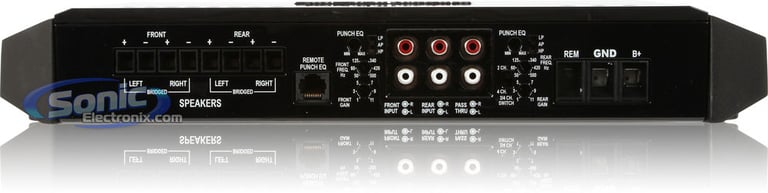

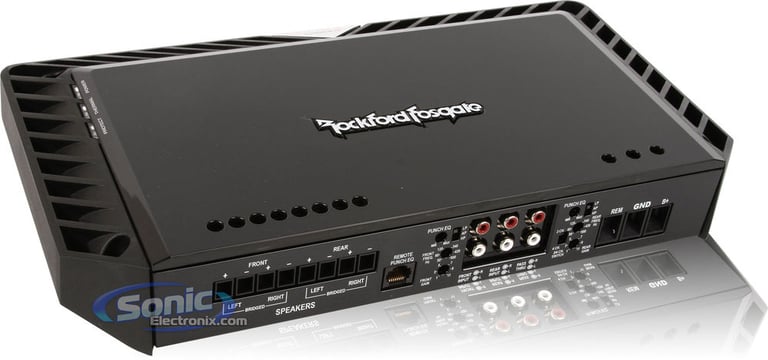

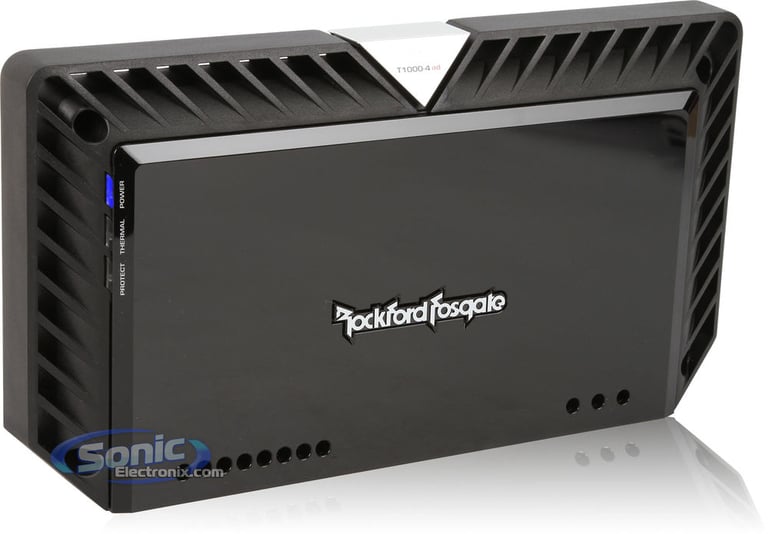

Rockford Fosgate LS-T1000-4AD-RB

1000W 4-Channel Class AD Power Series Constant Power Amplifier

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• 1000W RMS
• 250W x 1-Chan @ 1 Ohm
• NOMAD Real Time Computer Protection
• 50-500 Hz LP/AP/HP Crossovers
• Constant Power

Learn more about the LS-t10004ad-RB

We apologize

This item has been discontinued

Product Highlights


• 1000W RMS
• 250W x 1-Chan @ 1 Ohm
• NOMAD Real Time Computer Protection
• 50-500 Hz LP/AP/HP Crossovers
• Constant Power

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • Power Series 4-Channel Class A/D Car Amplifier
  • Manufacturer Refurbished
  • RMS Power Rating:
    • 4 ohm: 250 watts x 4 chan.
    • 2 ohm: 250 watts x 4 chan.
    • 1 ohm: 250 watts x 4 chan.
    • Bridged, 4 ohm: 500 watts x 2 chan.
    • Bridged, 2 ohm: 500 watts x 2 chan.
  • Dynamic Power Rating:
    • 4 ohm: 290 watts x 4 chan.
    • 2 ohm: 290 watts x 4 chan.
    • 1 ohm: 290 watts x 4 chan.
  • Class AD technology allows the amplifier to produce more power with less current draw
  • Constant Power delivers maximum power output regardless of varying impedance loads
  • Discrete surface mount circuits decrease cross-talk, lowers temperatures and improves efficiency
  • Dynamic thermal management (DTM) evenly distributes excess heat across the entire amplifier
  • 3rd Generation MESHA technology reduces MOSFET temperatures and increases durability while lowering distortion
  • NOMAD real time computer protects this amplifier from shorting wires and low speaker impedances
  • Remote bass level input (remote level control sold separately)
  • LED power (blue), thermal (red) and protect (yellow) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
  • Variable Treble Boost (0 to +12 dB bass boost at 12,000 Hz)
  • 4/3/2 channel operation
  • Preamp pass-thru RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty cast aluminum alloy convection cooled heatsink for extreme heat dissipation
  • Differential inputs (Balanced) eliminate noise picked up by signal cables
  • Nickel-plated RCA level inputs
  • Nickel-plated clamp wire terminals
  • Input sensitivity:
    • Low level: 150mV-5V
  • Efficiency average:
    • 84.1% @ 4-Ohm Full Power
    • 81.6% @ 2-Ohm Full Power
    • 81.0% @ 1-Ohm Full Power
  • Variable high-pass filter (50-500 Hz, 24 dB/octave Butterworth)
  • Variable low-pass filter (50-500 Hz, 24 dB/octave Butterworth)
  • Damping factor: >200
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 14-15/16"L x 8-3/16"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Sonic Electronix.com warranty
Note: Previous (prior to 2007) Punch Bass and Para-Punch remotes will not work with this amplifier.

Item Details


Manufacturer:

Model Number:

LS-T1000-4AD-RB

Weight:

13.50lbs

Internal SKU:

LS-t10004ad-RB

Internal Product ID:

78118
