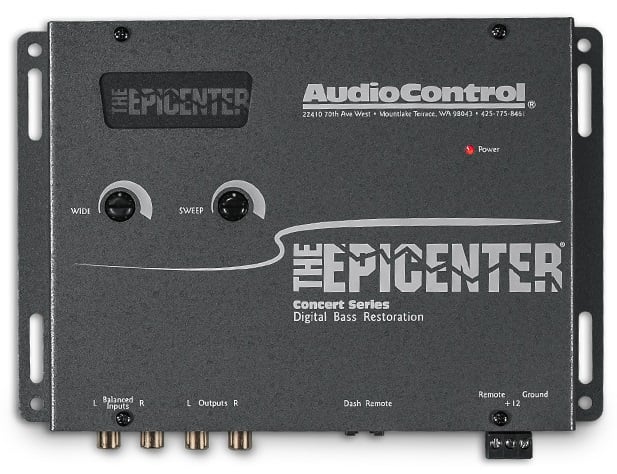

AudioControl The Epicenter (Gray)

2-Channel Concert Series Digital Bass Reconstruction Processor with Remote

Product videos
highlight-star-icon

• Salmon Gray Digital Bass Reconstruction Processor
• Patented Bass Maximizer™
• 9.5Vrms Pre-amp Max Output!
• Perfect addition to all systems

Learn more about the epicenter-gray

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

epicenter-black thumbnail

AudioControl The Epicenter - Black

OUR PRICE: $149.00

View item

Product Highlights


• Salmon Gray Digital Bass Reconstruction Processor
• Patented Bass Maximizer™
• 9.5Vrms Pre-amp Max Output!
• Perfect addition to all systems

Description


AudioControl

Authorized dealer


For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better".

The Epicenter - Bass Restoration Processor

AudioControl's legendary bass restoration circuitry, The Epicenter, brings out the best bass in any system. Whether you like rock, jazz, hip hop, country, banda, classical, CD's, MP3's, or cassettes, you will love how The Epicenter makes your system sound. More Bass... Louder!!

The unique bass restoration circuit of The Epicenter, originally patented by AudioControl, looks at the low frequency harmonics that are in the upper frequencies and uses them to recreate the lower bass fundamentals that have been compressed, rolled off, or simply removed. The chart Linked Here shows what it does for the signal. What it does for you, is provide deep earth-shaking bass that you've never heard before.

Key Features:

Patented Bass Maximizer™

The Epicenter contains a bass maximization circuit that accurately recreates and injects low frequency information back into the signal path. What that means in everyday terms is that The Epicenter will give more bass impact to your best compact discs or even your old tapes. US Patent #4,698,842

Para-Bass™

What’s the use of having good bass if you can’t control it? The Epicenter has a unique equalization circuit that contours the restored bass to your speaker system.

Dash Mount Control

The Epicenter is designed to be mounted anywhere in the vehicle, with the exception of the front bumper or radiator. It comes with a dash mountable control that allows you to enjoy the effects of The Epicenter without having to leave the drivers seat. The dash mount control also has a dual color LED indicator that can be rainforest green or sunshine amber. This LED will grow brighter as you add more bass or dimmer when you decrease it.

Bass Maximizer Indicator

Not only does The Epicenter Concert Series provide magic to your ears, but it also gives you some visual enjoyment as well. On the chassis of The Epicenter is a backlighted logo that flashes when the bass maximization circuit is activated. Special effects in your trunk!

PFM Subsonic Filter

This unique feature is legendary with many AudioControl fanatics for its ability to fine tune the bass response of any system. Why waste power on nasty subsonic information when your Programmable Frequency Match (PFM) filter can help you clean things up?

Bass Output Control

The Epicenter circuitry has the ability to produce large amounts of deep, mind shattering bass without damaging your speakers. The Bass Output Control circuit allows The Epicenter to maximize the bass output of any autosound audio system while restraining destructive bursts.




General Features:

  • Brand new Epicenter in box
  • Digital Bass Reconstruction Processor
  • Patented Bass Maximizer™
  • Dash mount control
  • Bass restoration lighted display
  • Parametric bass control
  • PFM Subsonic Filter
  • Balanced inputs
  • Bass Output Control
  • Color: Salmon Gray
  • Also Available In Sierra White
  • Now available in Black : AudioControl The Epicenter Black
  • Weight: 1.70lbs
  • Dimensions: 8"W x 5.50"D x 1.20"H
  • Authorized Internet Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

The Epicenter Specifications

  • Maximum pre-amp input level: 9.5 Vrms
  • Maximum speaker-level input: 400 watts @ 4ohm
  • Maximum output level: 9.5 Vrms
  • Frequency response: 10 - 22,000 Hz ; ±1dB
  • Total harmonic distortion: 0.003%
  • Signal to Noise ratio: -130dB
  • Balanced input noise rejection: >60dB
  • Input Impedance: 20 Kohms
  • Output Impedance: 150 Ohms
  • Power supply: High headroom PWM
  • Power draw: 285mA
  • Recommended fuse rating: 2 Amps
  • Maximum remote trigger output current: 1 Amp
  • Country of origin: U.S.A.


AudioControl The Epicenter (Gray) manual





Product history:

AudioControl Epicenter Black thumbnail
(newest, current model)
AudioControl THE EPICENTER-GRAY thumbnail
(previous model, replaced by AudioControl The Epicenter - Black)

Specifications & Details


Bass Reconstruction Processors Specifications
Amplifier Series
Concert Series
Total number of channels
2
Input Connection Type
RCA
Speaker Level Inputs
No
Output Connection Type
RCA
Maximum Input Voltage
9.5 Vrms
Maximum Output Voltage
9.5 Vrms
Adjustable Center Frequency
Yes
LED Indicators
Bass
Illuminated Logo
Bass/Gain Remote
Yes
Auxiliary Input
No
Total Number of Inputs
1
Total Number of Outputs
1
Built-in Crossover
No
Frequency Response
10 - 22,000 Hz
Subsonic Filter
25 - 45 Hz
Signal-to-Noise Ratio
130 dB
Total Harmonic Distortion (THD)
0.003%
Width
8"
Length
8"
Height
1-1/4"
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

THE EPICENTER-GRAY

Weight:

4.00lbs

Internal SKU:

epicenter-gray

Internal Product ID:

7994
