Pioneer TS-C130R

5-1/4" REV Series 2-way Component System

Pioneer
Shop all Pioneer
highlight-star-icon

5-1/4" REV Series Component Speaker Packages • 180W Max • 40W RMS • Aramid fiber composite cone woofer • Butyl Rubber Surround • VCCS™ (Voice Coil Cooling System) • 1" soft dome tweeters • VCCS voice coils

Learn more about the tsc130r

We apologize

This item has been discontinued


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Description


Pioneer brand icon

Authorized dealer

The TS-C13OR 5-1/4" REV component speaker package features Aramid fiber composite cone woofers for exceptional sound quality, wave guides for optimal sound dispersion, 1" soft dome tweeters, and hot yellow cones. The TS-C13ORs include an outboard crossover network, handle 180 watts max. music power, and deliver a frequency response of 35Hz - 32kHz. A projected pole yoke evenly distributes magnetic force for lower distortion, and our Voice Coil Cooling System (VCCS) reduces heat so you can play louder, longer.

General Features:

  • 5-1/4" 2-Way REV Series Car Component System
  • Power Handling:
    • Peak: 360 watts per set / 180 watts each side
    • RMS: 80 watts per set / 40 watts each side
  • Aramid fiber composite cone woofer
  • Butyl Rubber Surround for Smoother Response
  • Glass-Imide / Voice Coil Bobbin
  • VCCS™ (Voice Coil Cooling System) with Aluminum Dust Cap
  • Conex Damper
  • Projected Pole Yoke

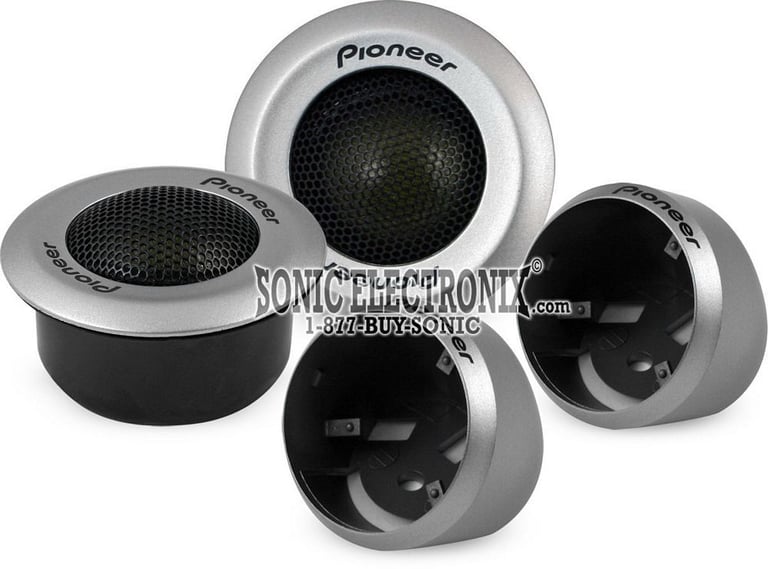

  • 1" Polyester Fiber Soft Dome Tweeter with Magnetic Fluid and Neodymium Magnet
  • Surface (Angled) or Flush Swirl Mounting

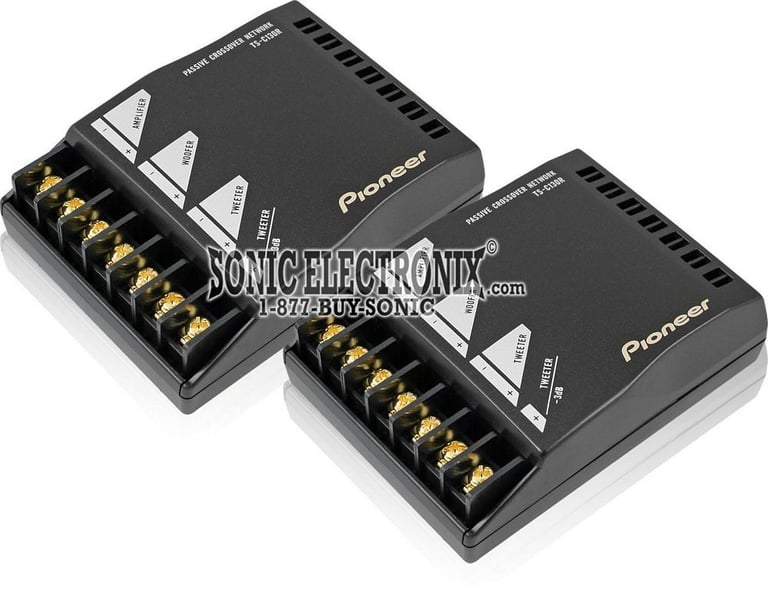

  • Outboard Crossover Network Included with -12dB/Oct. HPF and -12dB/Oct. LPF, Tweeter Protection Circuit and Tweeter level adjustment (0, -3dB)
  • Aluminum Die-Cast Full-Depth Basket for Rich Bass Response
  • Gold-Plated Binding Posts
  • 1-year SonicElectronix.com warranty

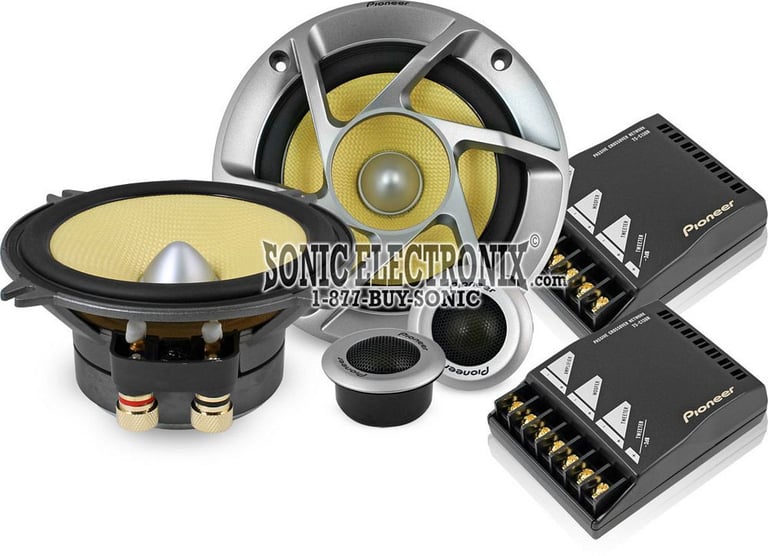

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.


Best selling similar products

Reference 5030cx small

Infinity Reference 5030cx (REF5030CX)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(2)

$99.95

List price $249.95

REF507CF small

Infinity REF507CF (INFSPKRF507CFUS)

• 195 watts Peak Each, 65 watts RMS Each
• 3/4" Textile Edge Driven Dome Tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$219.95

List price $249.95

VSP525KIT small

NVX VSP525KIT

• 375 watts Peak Each, 125 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 86 dB
• Mounting Depth: 2.04"

(27)

$99.99

List price $119.99

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Component System
Tweeter Design
Soft Dome
Tweeter Composition
Polyester Fiber
Woofer Composition
Aramid Fiber
Woofer Surround
Butyl Rubber
Peak Power Handling
180 watts
RMS Power Handling
40 watts
Sensitivity
90 dB
Frequency Response
35 - 32000 Hz
Impedance (Per Voice Coil)
4 ohm

Item Details


Manufacturer:

Model Number:

TS-C130R

Weight:

5.00lbs

Internal SKU:

tsc130r

Internal Product ID:

807

Customer Ratings & Reviews


Pioneer TS-C130R thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Worth the money

Got these put in a 95 Lexus gs300, we also added dyanmat extreme to the doors and they sound great! much better than what i had before. The tweeters are smooth and not harsh at all.

By Ali on April 30, 2009
