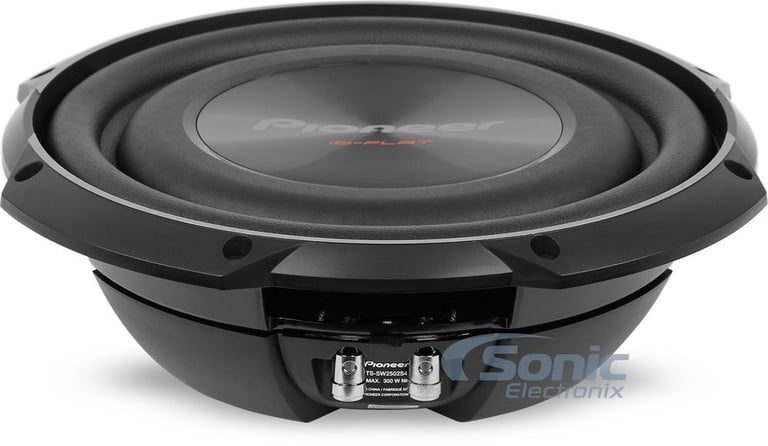

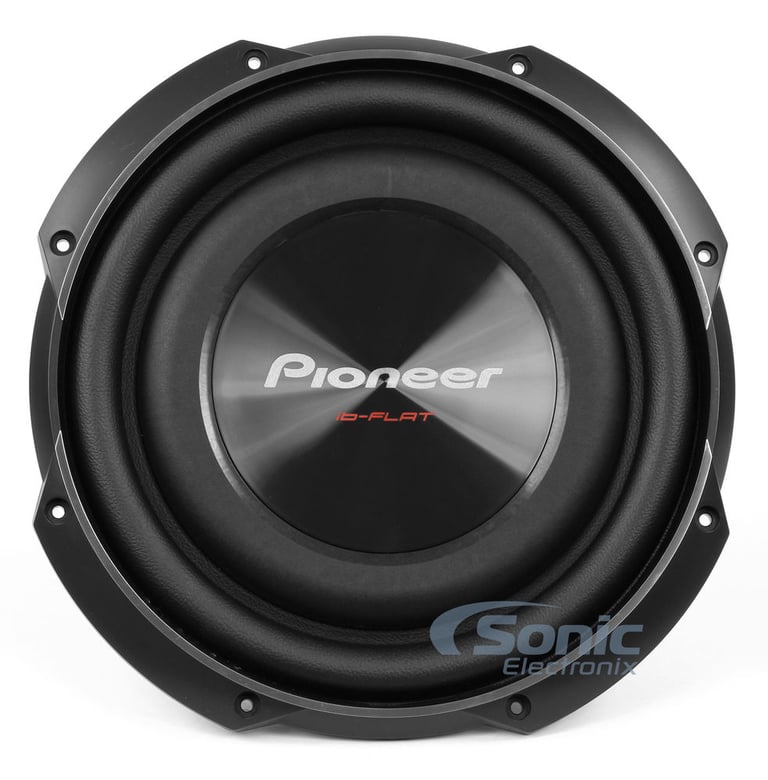

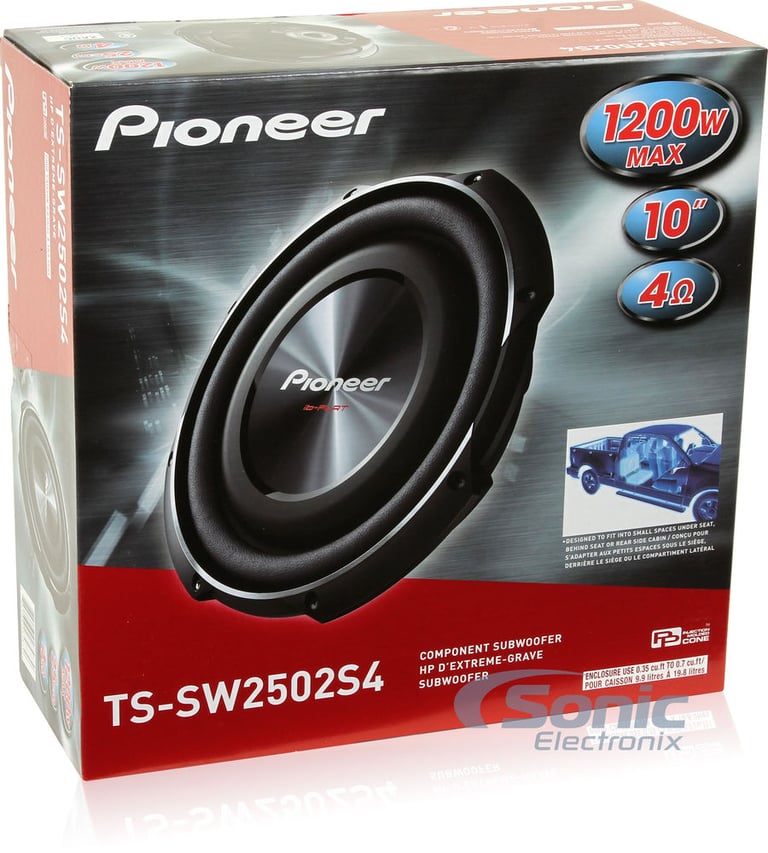

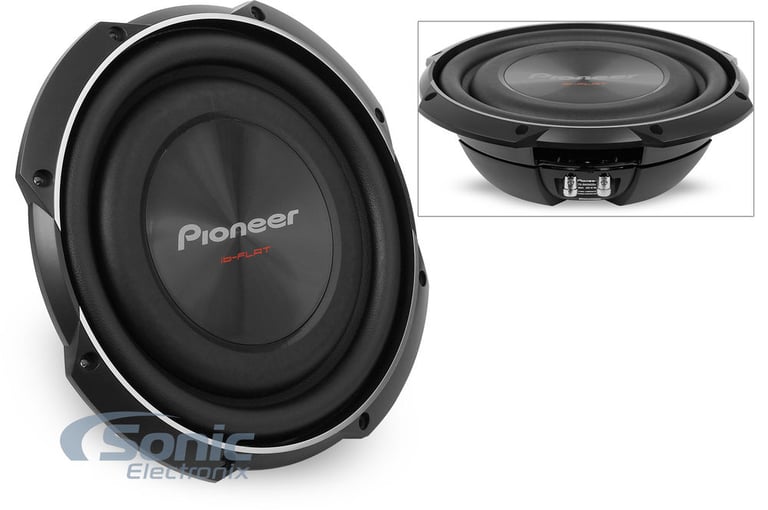

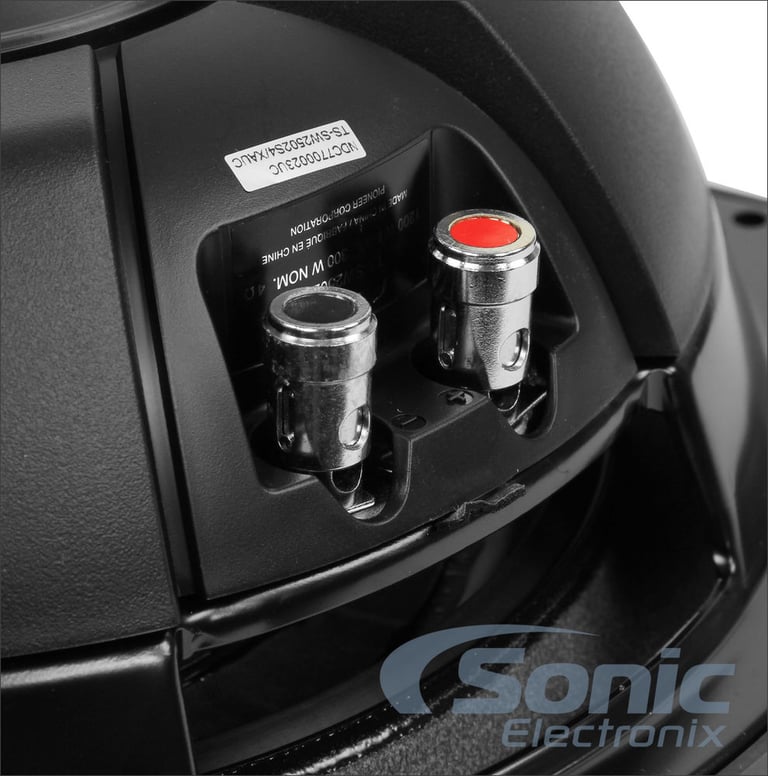

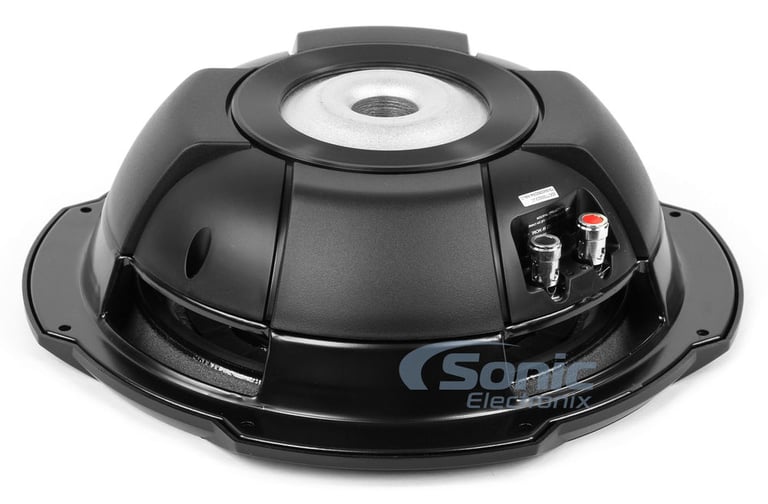

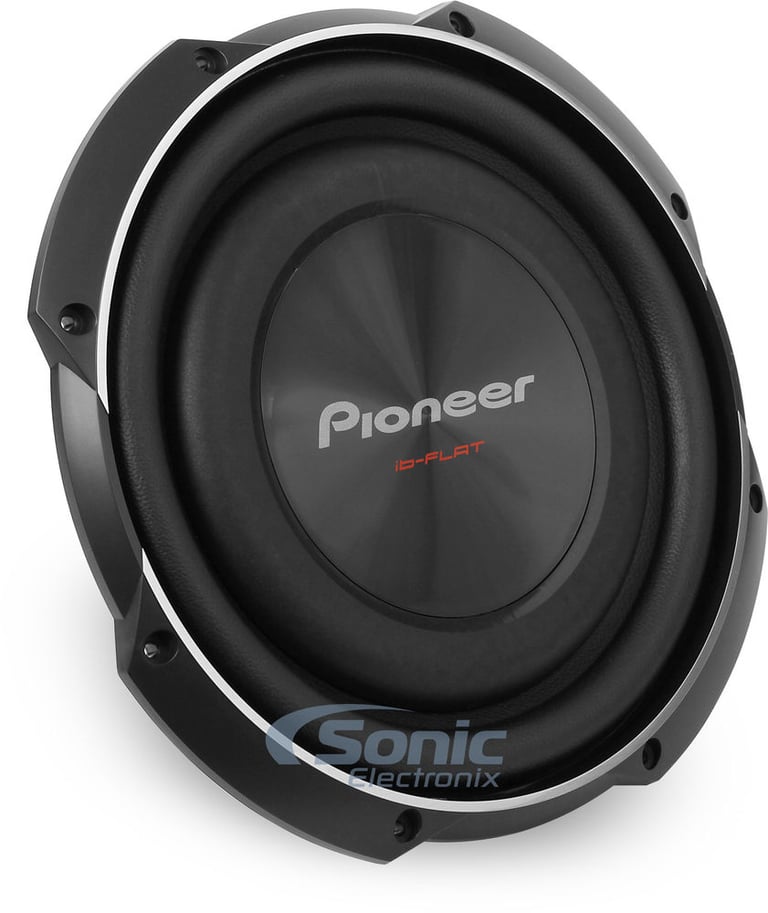

Pioneer TS-SW2502S4 (Open Box, Complete)

1200W 10" TS Series Shallow Mount Single 4 ohm Subwoofer

Pioneer
Shop all Pioneer
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 300W
• Mica Injected Molded Polypropylene Cone
• Elastic Polymer Surround

Learn more about the ls-tssw2502s4-obc7

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

.quote1 { color:#707070; font-family:'Ubuntu', sans-serif ; line-height: 1px; font-size: 18px; } .quote-background { width: 100%; padding: 10px; font-weight:normal; color: #7f7f7f; line-height:1.5; margin-bottom:10px; padding-left:45px; background: #fff1c6 url(https://www.sonicelectronix.com/landing/images/obinfo.png) no-repeat; -webkit-box-sizing:border-box; -moz-box-sizing:border-box; box-sizing:border-box; background-position:5px; } .ui-mobile-viewport .quote-background{background-position:5px 15px}

Compact Design with Full-Size Performance

Pioneer's line of shallow subwoofers are designed to provide wider installation options for a broad range of vehicles. These shallow-mount subwoofers feature multiple patent-pending features to deliver the big bass performance of a full-size subwoofer, but in a compact design that can be installed either behind or under seats depending on the type of vehicle. The mounting depth is just 3-1/8" - less than half a typical subwoofer in this class. This 10" shallow subwoofer handles 1,200 watts max., 300 watts nominal power, and delivers deep bass with top-notch sound quality thanks to features like Pioneer's MICA injection-molded resin which gives it the ability to produce accurate bass.

Product Details:

  • 10" TS Series Shallow Mount Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 300 watts
  • Recommended power range: 100 - 300 watts RMS
  • Mica injected molded polypropylene cone
  • Elastic polymer surround
  • Impedance: Single 4 ohm
  • Top-mount depth: 3-1/8"
  • Frequency Response: 20 - 125Hz
  • Sensitivity: 91dB
  • Optional Angled Shallow Sub Enclosure available
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-SW2502S4 (Open Box, Complete) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-SW2502S4 (Open Box, Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-SW2502S4 (Open Box, Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-SW2502S4 (Open Box, Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
TS Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 125 Hz
Sensitivity
91 dB
Xmax (millimeters)
6.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Elastic Polymer
Subwoofer Grille
No
Recommended Enclosure Specifications
Minimum Sealed Box Volume
0.35 cubic feet
Maximum Sealed Box Volume
0.70 cubic feet
Minimum Ported Box Volume
0.50 cubic feet
Maximum Ported Box Volume
0.70 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/8"
Cutout Diameter
9-1/8"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
42 Hz
Equivalent Compliance (Vas)
18.5 liters
Total Speaker Q Value (Qts)
.97
Electrical Q Value (Qes)
1.06
Electrical Resistance of Voice Coil (Re)
3 ohm
Mechanical Q Value (Qms)
12.04
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-SW2502S4-7

Weight:

9.60lbs

Internal SKU:

ls-tssw2502s4-obc7

Internal Product ID:

181217
