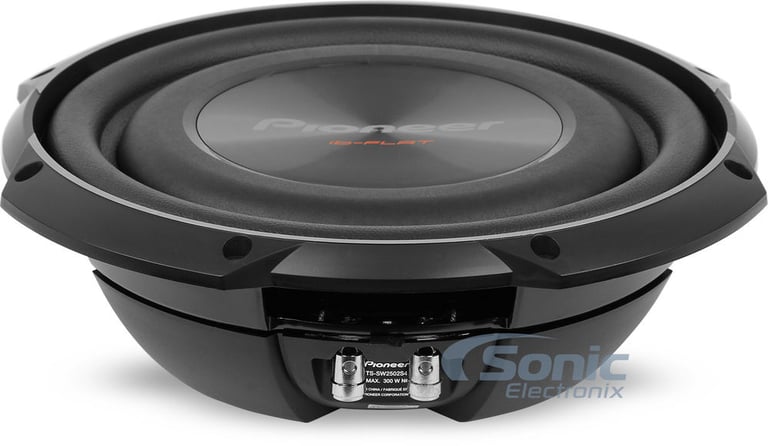

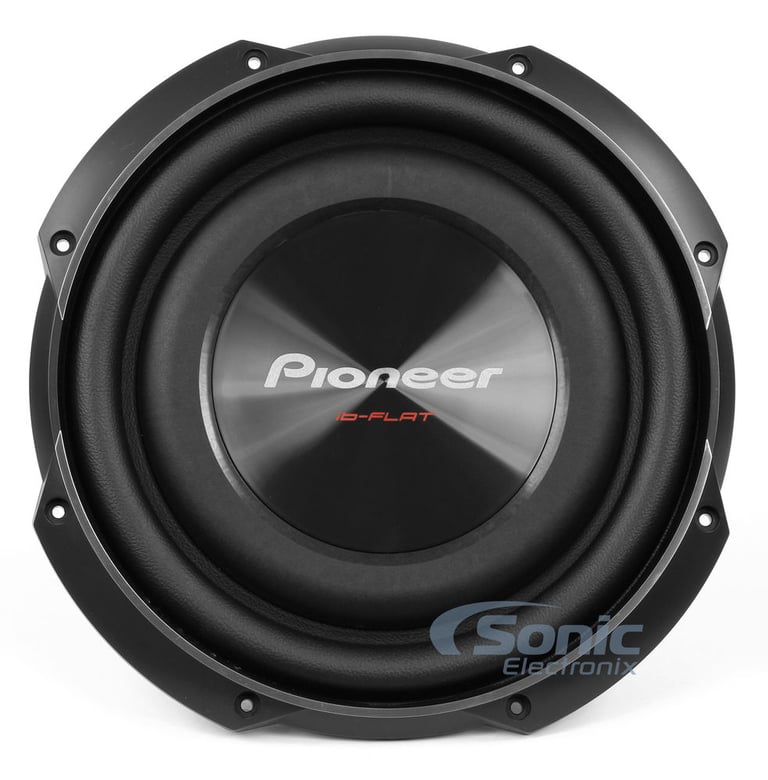

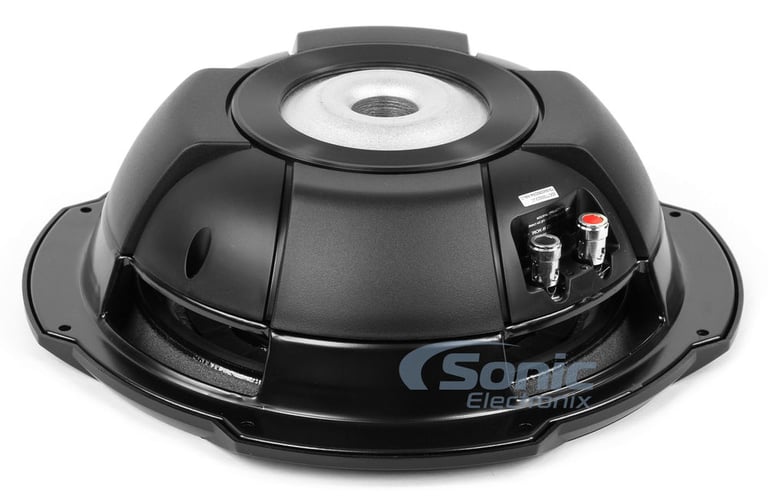

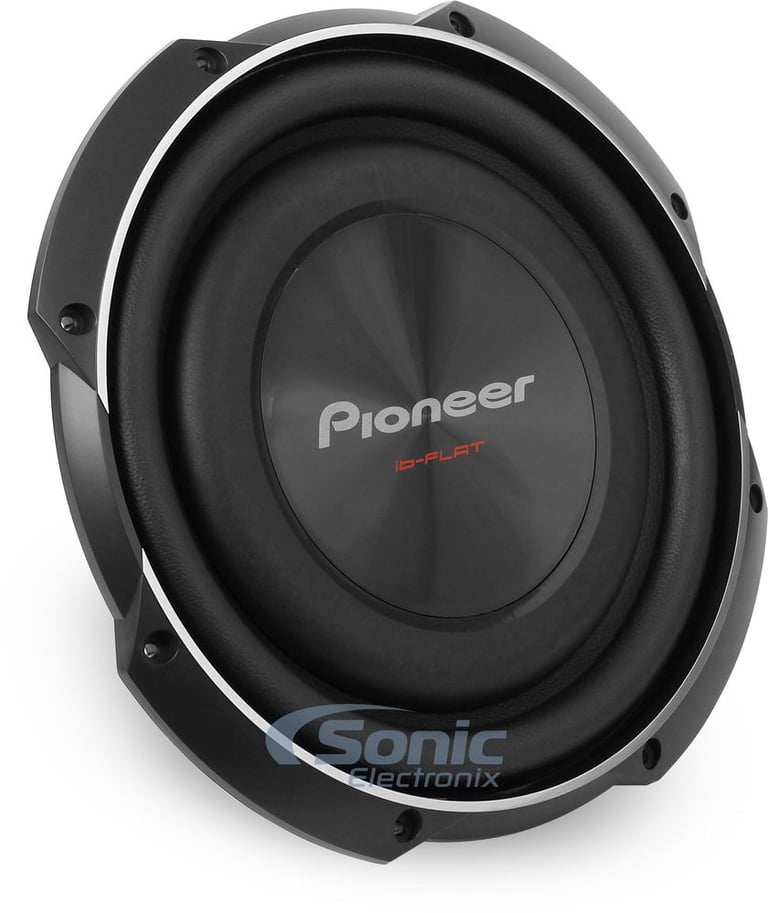

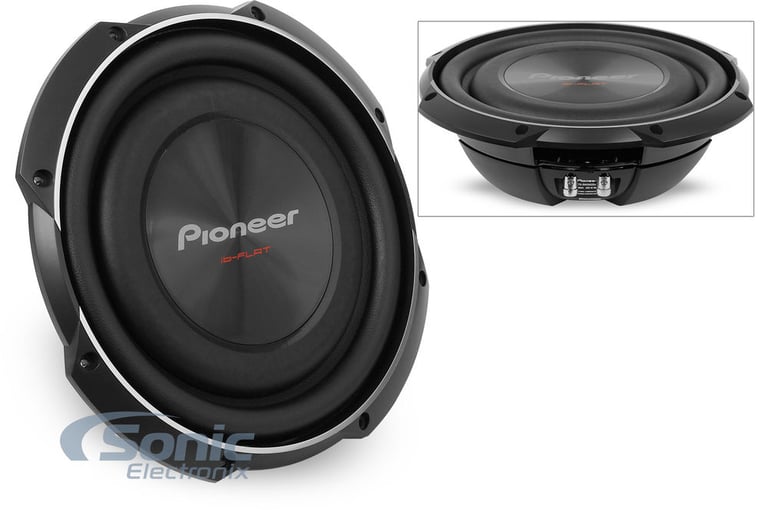

Pioneer TS-SW2502S4 (Open Box)

1200W 10" TS Series Shallow Mount Single 4 ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 300W
• Mica Injected Molded Polypropylene Cone
• Elastic Polymer Surround

Learn more about the LS-tssw2502s4-OB

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 1200W
• RMS Power: 300W
• Mica Injected Molded Polypropylene Cone
• Elastic Polymer Surround

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

  • 10" Single 4 ohm TS Series Shallow Mount Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 300 watts
  • Mica injected molded polypropylene cone
  • Elastic polymer surround

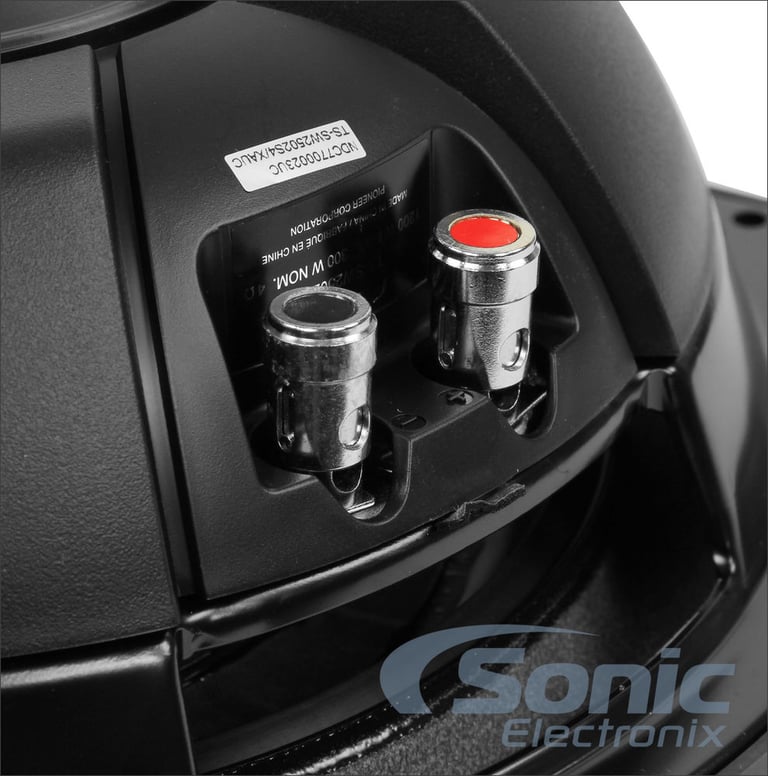

  • Single 4 ohm voice coil
  • Top-mount depth: 3-1/8"
  • Frequency Response: 20 - 125Hz
  • Sensitivity: 91dB
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-SW2502S4 (Open Box) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-SW2502S4 (Open Box) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-SW2502S4 (Open Box) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-SW2502S4 (Open Box) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 125 Hz
Sensitivity
91 dB
Xmax (millimeters)
6.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Elastic Polymer
Recommended Enclosure Specifications
Top-Mount Depth (Mounting Depth)
3-1/8"
Cutout Diameter
9-1/8"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
42 Hz
Equivalent Compliance (Vas)
18.5 liters
Total Speaker Q Value (Qts)
.97
Electrical Q Value (Qes)
1.06
Electrical Resistance of Voice Coil (Re)
3 ohm
Mechanical Q Value (Qms)
12.04
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-SW2502S4-2

Weight:

9.60lbs

Internal SKU:

LS-tssw2502s4-OB

Internal Product ID:

90376
