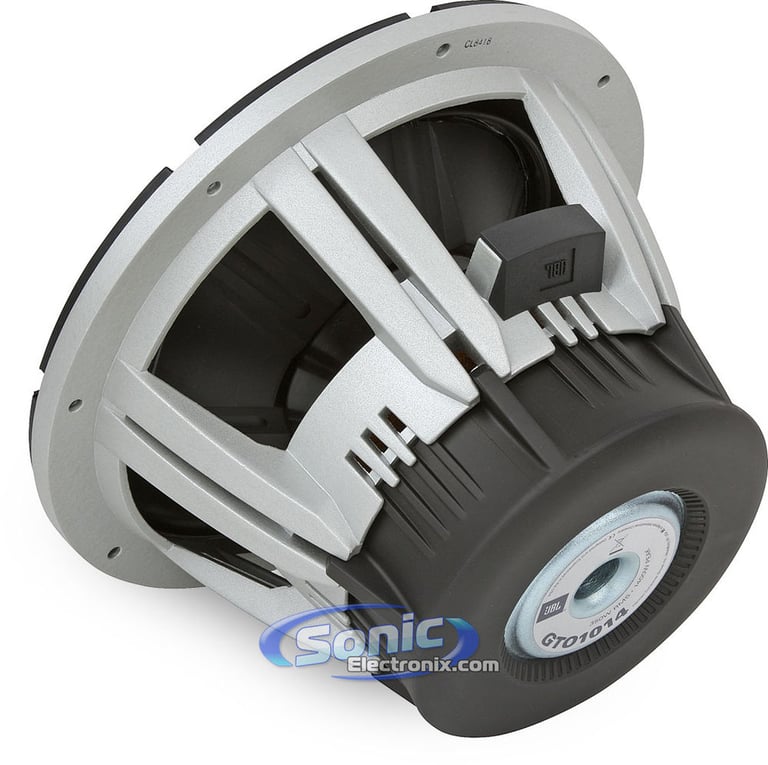

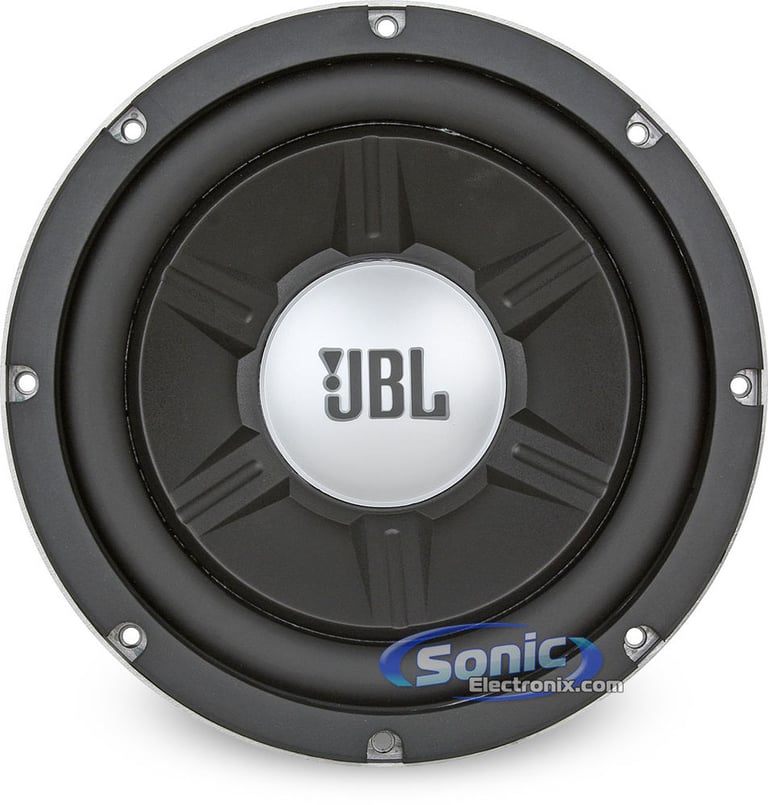

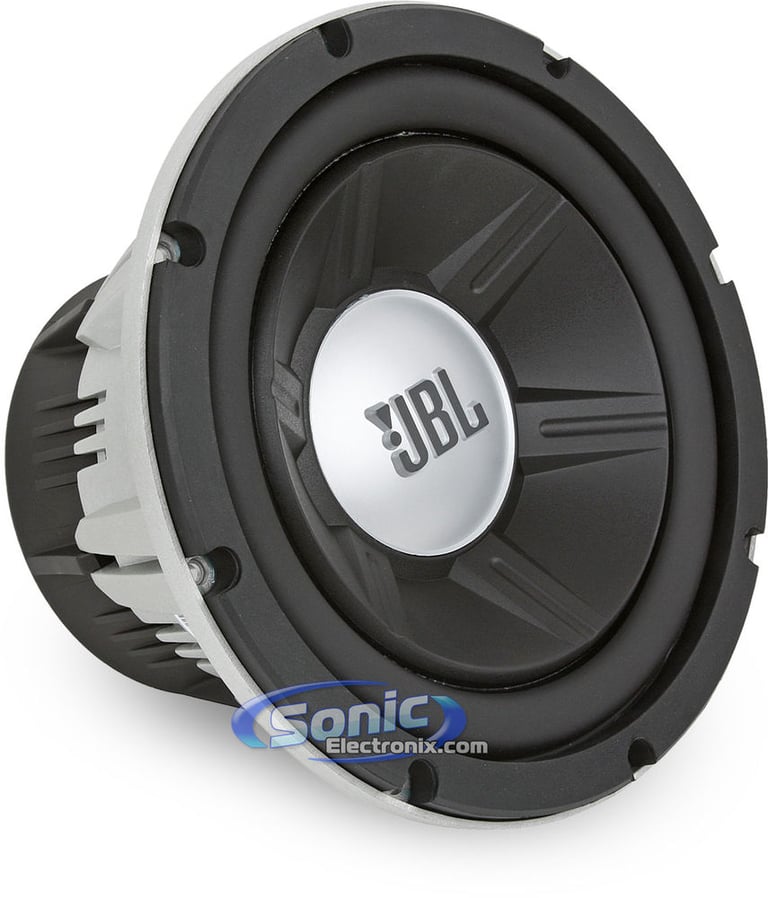

JBL GTO1014 (Open Box)

350W 10" GTO Series Single 4 ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• 1400W Peak
• 350W RMS
• Polypropylene cone woofer
• Rubber surround
• Tinsel wire protector
• Die-cast aluminum basket
• 2" Single 4 ohm voice coil

Learn more about the LS-gto1014-OB

We apologize

This item has been discontinued

Product Highlights


• 1400W Peak
• 350W RMS
• Polypropylene cone woofer
• Rubber surround
• Tinsel wire protector
• Die-cast aluminum basket
• 2" Single 4 ohm voice coil

Description


JBL brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Grand Touring Series

For over 60 years JBL has been delivering products that embody the technology gained through its leadership role in the professional arena: recording studios and movie theaters as well as live-music reinforcement ranging from dance clubs to Woodstock. Our mission continues to be to transform this expertise into products that provide the impact and excitement of a live music performance. JBL is for customers who won’t settle for less than live at home or on the road. JBL’s GTO Series Subwoofers have been engineered to put you in the front row at your next concert. They deliver deep solid, tight bass that can only be delivered by JBL, the leader in concert sound.

Car audio subwoofers take more abuse than any other car audio component, making thundering bass for hours on end. For a car audio enthusiast, there’s nothing worse than a broken sub. At JBL, we thoroughly test our designs before we deliver them. JBL woofers have to pass a 100-hour power test, where the RMS and peak power levels are tested simultaneously. When you see ‘300 watts RMS’ and ‘1200 watts peak’ in our ratings, you can be sure that those numbers are tested and verified. Additionally, to be sure the moving parts are robust; we subject every design to a proprietary mechanical power handling test at up to 17 times the RMS power handling rating. That means these woofers have to survive test signals as high as 6000 watts. We’re fanatics about product quality.

JBL GTO subwoofers include die-cast aluminum baskets, polypropylene cones, rubber surrounds and a unique tinsel wire protector that also strengthens joint between the cone, the voice coil and the spider. That joint is the most critical of all and must withstand more stress than any other point in the moving assembly. Great performance and superior reliability have been JBL’s hallmark for over 60 years and the new JBL GTO subwoofers offer both at affordable prices. The JBL Grand Touring Die-Cast Subwoofers are designed to be used in sealed, vented and bandpass enclosures.

General Features:

  • 10" Single 4 ohm Grand Touring Die-Cast Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 350 watts
  • Impedance: Single 4 ohm
  • Polypropylene cone woofer
  • Rubber surround
  • Tinsel wire protector
  • Die-cast aluminum basket
  • 2" Single 4 ohm voice coil
  • Frequency response: 25-400 Hz
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL GTO1014 (Open Box) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL GTO1014 (Open Box) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL GTO1014 (Open Box) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JBL GTO1014 (Open Box) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
GTO Series
Subwoofer Size
10"
Peak Power Handling
1400 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
25 - 400 Hz
Sensitivity
88 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28.70 Hz
Equivalent Compliance (Vas)
29.20 liters
Total Speaker Q Value (Qts)
0.46
Electrical Q Value (Qes)
0.48
Electrical Resistance of Voice Coil (Re)
4.00 ohm
Mechanical Q Value (Qms)
9.10
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

LS-GTO1014-OB

Weight:

14.00lbs

Internal SKU:

LS-gto1014-OB

Internal Product ID:

81253

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


JBL GTO1014 (Open Box) thumbnail image

5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.9
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

extra bass for low cost deal

The following review is for GTO1014, which is a part of the bundle you are viewing.

not much trunk space in my scion TC so had to go with a 10" . I think i made a good decision because i actually had to turn down my 250 watts amp so the bass wont overpower the stock highs. I cant imagine what a 12" sub would sound like.. but the 10" is very clear and powerful.

By Locness on April 8, 2010

31 found this helpful


best sub for the buck

The following review is for GTO1014, which is a part of the bundle you are viewing.

put one of these in a rx7 powered by a cheap 1000 watt max amp and is defining loud. its clear and hits hard enough to shake all mirrors. good for anyone looking for clear loud bass that wont hurt you wallet

By shane on October 20, 2009

32 found this helpful


JBL GT1014

The following review is for GTO1014, which is a part of the bundle you are viewing.

This sub rocks. Placed this sub in a .75cf sealed custom fiberglass enclosure. I chose a sealed enclosure for clean tight bass response. I wasn't disappointed! I powered the sub with a SOUNDSTREAM RUB 4.500 with a crossover point of 100hz. The bass responce is smooth and tight with a smooth roll off at the high end frequencies. The construction of the sub seems solid and well engineered. I recommend this product.

By Steve4701 on March 6, 2015

29 found this helpful


Good product

The following review is for GTO1014, which is a part of the bundle you are viewing.

This is a great sub for the price it may only be 4 ohms but it compares pretty good with RF p2. Its a very sturdy power hungry sub.

By LCBoxes on January 1, 2015

28 found this helpful


Couldn't be happier!!!

The following review is for GTO1014, which is a part of the bundle you are viewing.

I have this sub hooked to a small 250 watt RMS 1100 peak amp and it sounds great - distortion free, tight bass with plenty of thump! I wish I would of got the DVC to wire in parallel but then that would be too much bass for my CR-V. I have owned several JBL products over the years and as always quality is evident. Sonic shipped fast but did forget the polyfill in my enclosure that I ordered with this as a combo but I had a bag in the garage and they already did good by me with free shipping and a unbelievable deal!

By John on July 13, 2012

28 found this helpful


good for the buy

The following review is for GTO1014, which is a part of the bundle you are viewing.

great speaker sounds good have 2 of them in a crappie box but they still sound good

By darklotus on March 5, 2015

27 found this helpful


NICE!!!

The following review is for GTO1014, which is a part of the bundle you are viewing.

You would think i had 12's These hit HARD!!!

By Kenneth on January 7, 2010

24 found this helpful


Great sub.

The following review is for GTO1014, which is a part of the bundle you are viewing.

This is a great little sub. Have it in a 1.5cf ported box (after speaker and port displacement) tuned to 30hz (1x10x15.54" port) with 200 watts. It is more then enough to produce the lows. I turned the sub output on the head unit down to half as the sub was extremely overpowering. This thing will thump if you want it to or it blend very well and give you the lows and be accurate.

The $80 price tag is a steal.
Get 1 or 2 of these and put them each in the same box I have and a real 500 watt amp and 90% of people will be very happy with what these little puppies will do.

By Joe on March 22, 2012

21 found this helpful


Great 10 Inch

The following review is for GTO1014, which is a part of the bundle you are viewing.

If you don't have the space for 12 inch subs, this is a great sub-stitute. Nice hard hitting sub for rock, Bach and jazz. Decent 12 inch subs will pump more air if you have the room.

By Charles on February 24, 2016 Checkmark Icon Verified purchase

3 found this helpful


Awesome Little Sub!

The following review is for GTO1014, which is a part of the bundle you are viewing.

Definitely would recommend this sub if you want some nice bass but nothing crazy in your car. I had a Honda Civic 1997 and it sounded absolutely perfect. No buzzing, clear, responsive, and added enough boom :)

Unfortunately I can't say how long they last because my car with all my aftermarket audio stuff was stolen. But till buy something like this again for my new car.

By Gino on February 15, 2016 Checkmark Icon Verified purchase
