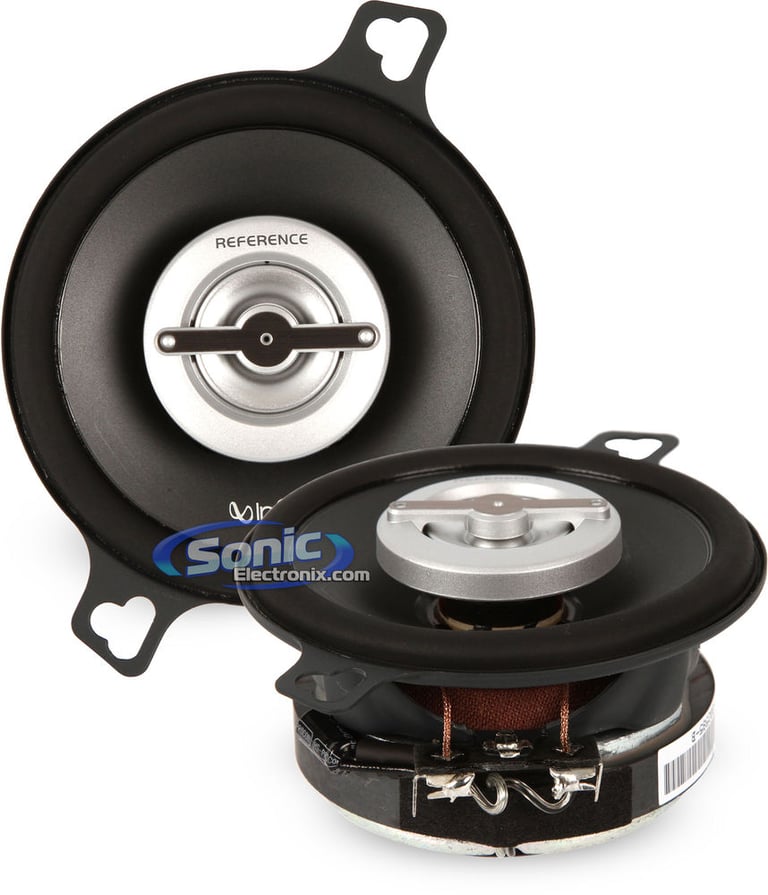

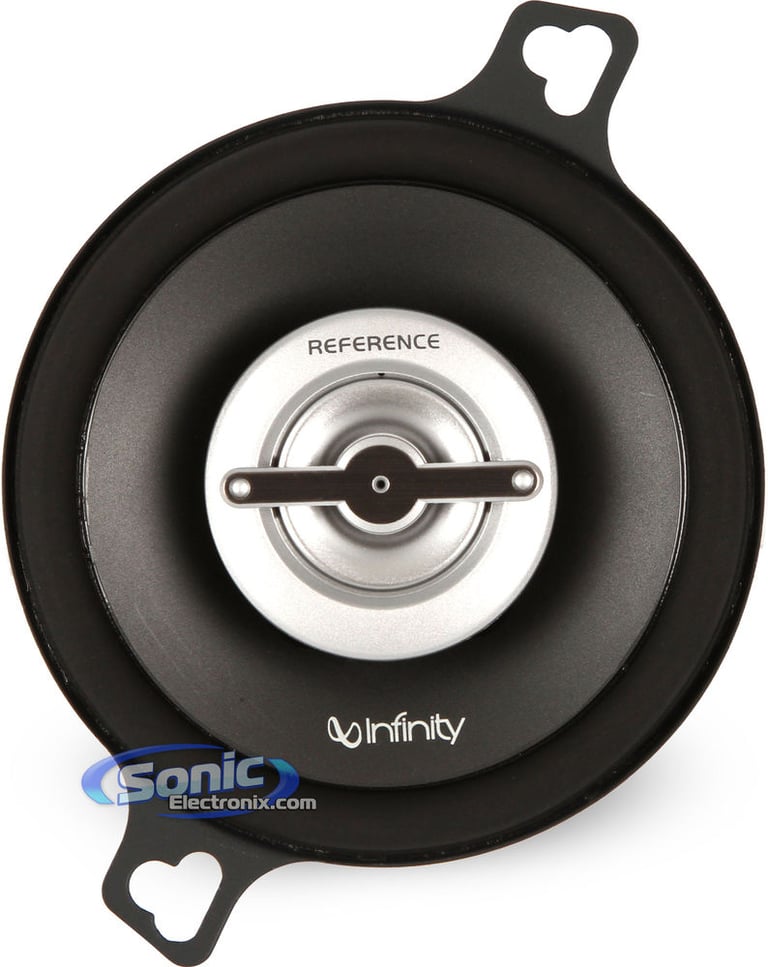

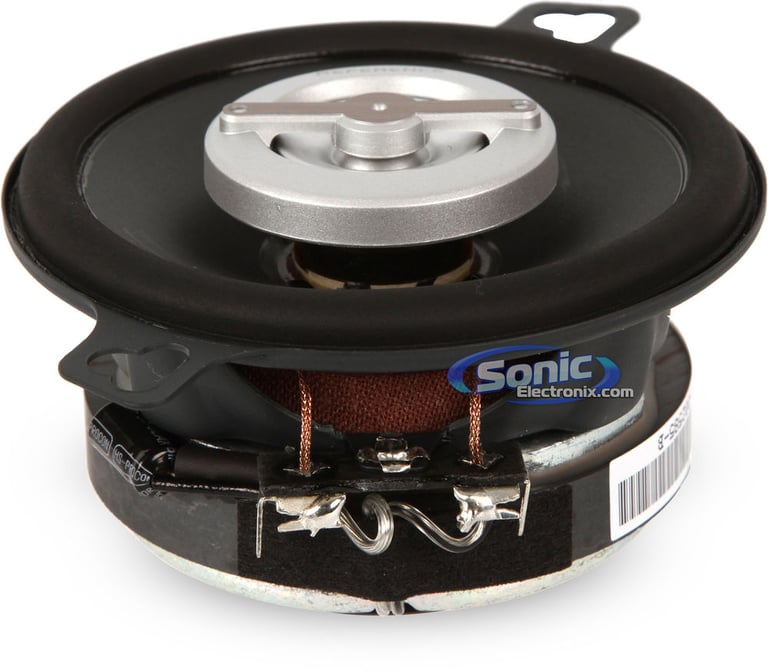

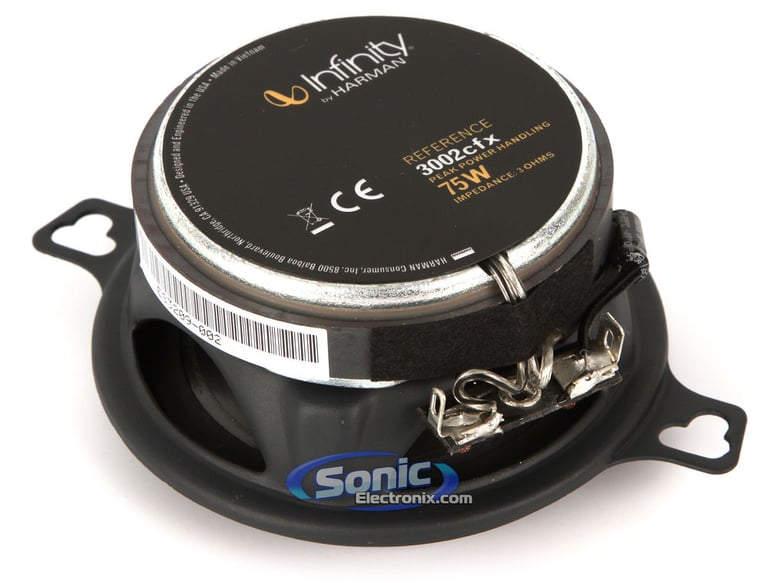

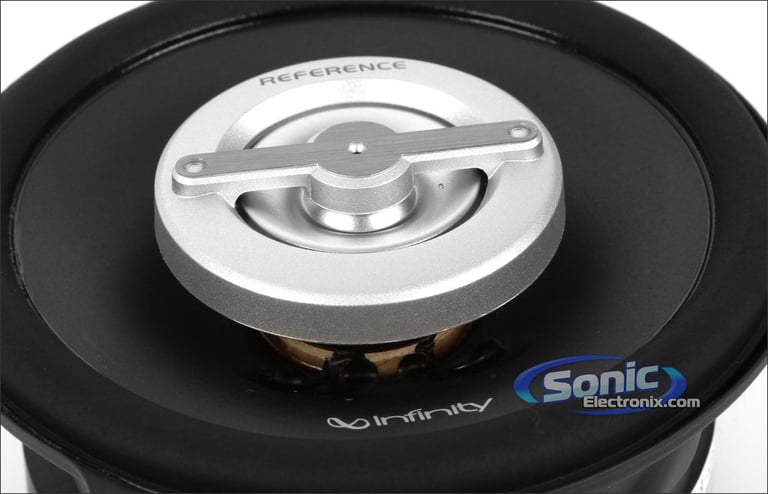

Infinity REF-3002cfx (Open Box)

3.5" 2-Way Reference X Series Coaxial Car Speakers

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• Peak Power: 150W
• RMS Power: 50W
• 1" Edge-Driven Textile Dome Tweeter
• Mounting Depth: 1-7/16"
• Injection Molded Polypropylene Cone
• True 4 Ohm Impedance
• Sensitivity: 91dB

Learn more about the LS-ref-3002cfx-OB

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 150W
• RMS Power: 50W
• 1" Edge-Driven Textile Dome Tweeter
• Mounting Depth: 1-7/16"
• Injection Molded Polypropylene Cone
• True 4 Ohm Impedance
• Sensitivity: 91dB

Description


Infinity brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

True 4 Ohm Impedance

These speakers are specially designed with true 4ohm technology. The impedance of these speakers are 3ohms, but when you pair them with thin factory wiring, the impedance will naturally rise up to a true 4ohms resulting in a maximum amount of power draw from your 4ohm rated factory receiver, aftermarket deck, or external amplifier. What it comes down to is efficiency. If you need a speaker that will get the most out of your current sound system, the Reference X series is for you.

Plus One Cone Technology

Each of the Reference X speakers features plus one woofer cone technology. This means the cone has been designed to be slightly larger than comparable speakers, giving you even more output on the same amount of power. This drastically increases the efficiency of the speaker, and also extends the frequency response even lower to give you that nice thump you’ve been looking for.

The Reference of Audio

Want an easy upgrade for your factory speakers without going over your budget? The Infinity Reference X Series is for you. Its engineered to bring your factory audio system to life, or to add clarity and depth to an aftermarket system. With innovative, patented technologies, and the kind of premium quality and construction that you would expect from the worlds top-selling premium car speaker brand, Infinity Reference X speakers will transform your listening experience into something amazing.


The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 3-1/2" Reference X Series 2-Way Car Speakers
  • Power Handling:
    • Peak: 150 watts per pair / 75 watts each
    • RMS: 50 watts per pair / 25 watts each
  • Polypropylene cone material
  • Plus One woofer cone technology maximizes cone surface area
  • Butyl Rubber speaker surround
  • 1" edge-driven Textile Dome tweeter
  • Adjustable tweeter level attenuation
  • UniPivot tweeters allow you to direct the sound
  • High-temperature voice coil design
  • Ferrite magnet motor structure is vented for fast cooling
  • 3 ohm impedance works with all amps rated for 4-ohm operation
  • True 4 ohm technology incorporates speaker impedance with factory speaker wire impedance for maximum power
  • Frequency response: 85-21,000 Hz
  • Top-mount depth: 1-7/16"
  • Sensitivity: 91dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair

Specifications & Details


Speaker Specifications
Series
Reference-X Series
Priced Per
Pair
Speaker Size
3-1/2"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Size
1"
Tweeter Composition
Textile
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
75 watts
RMS Power Handling
25 watts
Sensitivity
91 dB
Frequency Response
85 - 21000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-7/16"
Cutout Dimensions
3-3/4" x 3-3/4"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LS-REF-3002cfx-OB

Weight:

2.20lbs

Internal SKU:

LS-ref-3002cfx-OB

Internal Product ID:

81257
