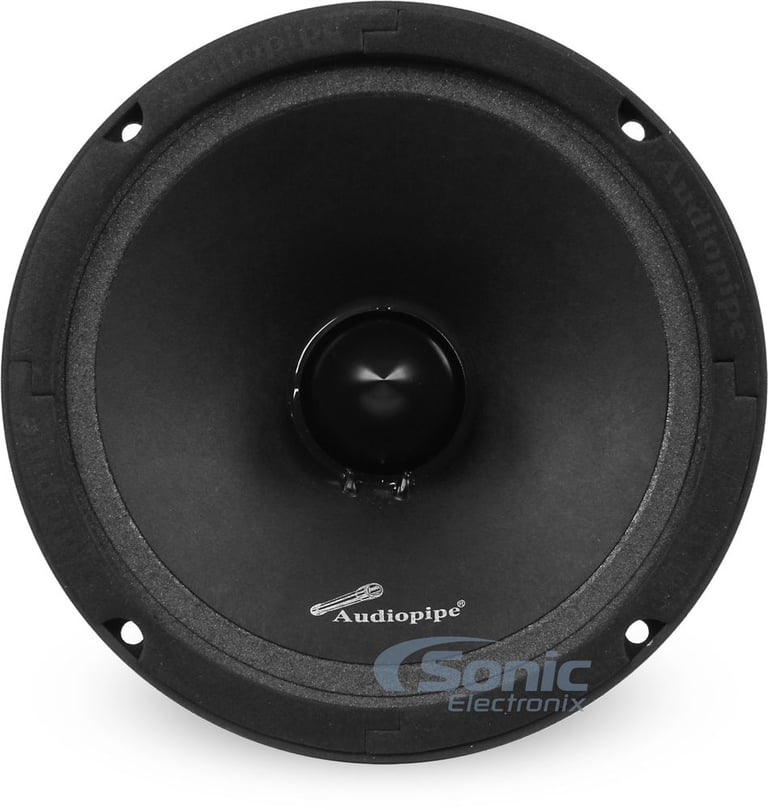

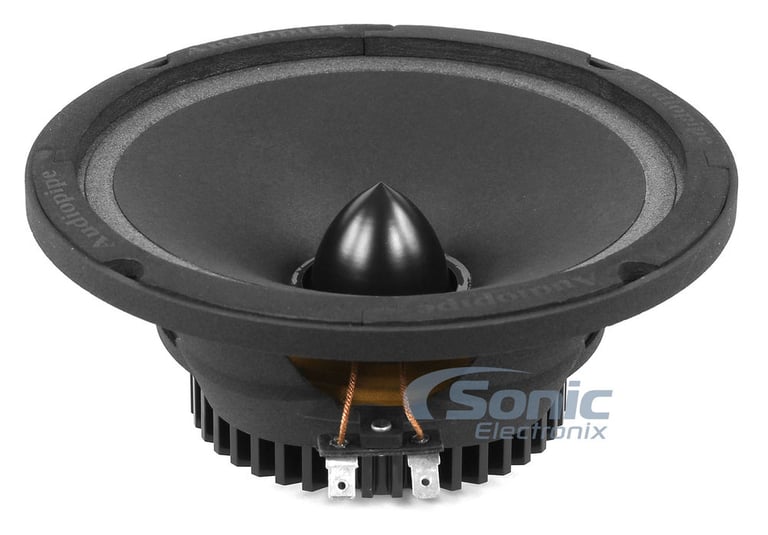

Audiopipe APMB-6SNDB

200W 6" APMB Series Midrange Driver

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 200W • RMS Power: 100W
• Low Mid Frequency
• Mounting Depth: 2-1/2"
• 3.1 Oz. Neodynium Magnet
• Die-Cast Aluminum Basket

Learn more about the apmb6sndb

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• Peak Power: 200W • RMS Power: 100W
• Low Mid Frequency
• Mounting Depth: 2-1/2"
• 3.1 Oz. Neodynium Magnet
• Die-Cast Aluminum Basket

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the 6SND speaker with an incorporated phase plug to provide high quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

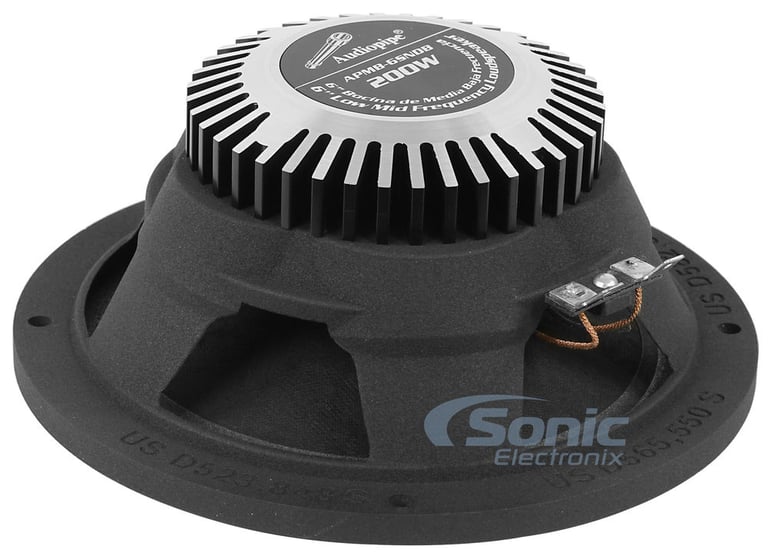

Smaller Magnet, Same Strength Compact, Lightweight Neodymium Magnet

When faced with limited space for your speaker installation, a speaker with neodymium magnets can be invaluable. Neodymium magnets take up significantly less space (and are significantly lighter in weight) than a conventional magnet without sacrificing strength. A high quality aluminum heat sink ensures your speaker won't overheat during use.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 6SND speakers feature a light weight yet incredibly stiff paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible from a paper cone.


General Features:

  • 6" APMB Series Midrange Driver
  • Power Handling:
    • Peak: 200 watts
    • RMS: 100 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • High quality paper cone
  • Corrugated surround
  • Bullet dust cap ensures high quality high frequency sound
  • Die-cast lightweight aluminum basket
  • Powerful 3.1 oz. neodynium magnet
  • Durable 1.5" TIL voice coil
  • 8 ohm impedance
  • Frequency Response: 100-8,000 Hz
  • Top-mount Depth: 2-1/2"
  • Sensitivity: 96dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

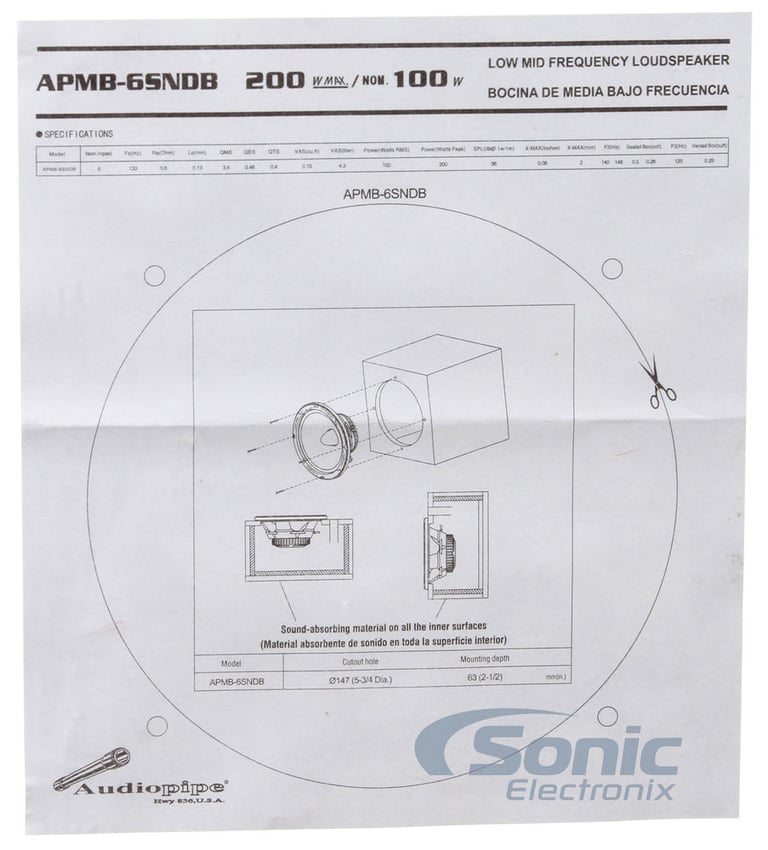

Specifications:

  • FS (Free Air Resonance): 133 Hz
  • RE (DC Resistance): 5.8 ohm
  • Le (Voice Coil Inductance): 0.13 mH
  • QMS (Mechanical Q Value): 3.4
  • QES (Electrical Q Value): 0.46
  • QTS (Total Speaker Q Value): 0.4
  • VAS (Equivalent Compliance): 4.3 L (0.15 cu ft.)
  • Xmax (One-Way Linear Excursion): 2mm (0.08")
  • F3 (for Sealed Enclosure):
    • 0.26 cu ft.: 145 Hz
    • 0.50 cu ft.: 140 Hz
  • F3 (for Vented Enclosure):
    • 0.20 cu ft.: 125 Hz

Priced Per Speaker


Best selling similar products

TS-M651PRO small

Pioneer TS-M651PRO

• 500 watts Peak, 120 watts RMS
• Lightweight Rigid Pulp cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

$149.99

List price $150.00

C165 small

Hertz C165

• 210 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$199.99

List price $230.00

C165F small

Hertz C165F

• 180 watts Peak Each, 70 watts RMS Each
• Semi-Pressed paper with Mica cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$199.99

List price $230.00

PPROV2-8 small

Rockford Fosgate Punch Pro V2 PPROV2-8

• 150 watts Peak Each, 75 watts RMS Each
• Curvilinear Pressed Pulp cone material
• Impedance: 4 ohm
• Sensitivity: 94.5 dB

$229.99

List price $229.99

PPROV2-69 small

Rockford Fosgate Punch Pro V2 PPROV2-69

• 150 watts Peak Each, 75 watts RMS Each
• Curvilinear Pressed Pulp cone material
• Impedance: 4 ohm
• Sensitivity: 93.5 dB

$269.99

List price $269.99

AP-M61SE small

Deaf Bonce Apocalypse AP-M61SE

• 260 watts Peak Each, 130 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101.5 dB

(8)

$109.90

List price $109.90

CF-275mt small

JL Audio CF-275mt

• 2-3/4" CF Series Midtweeters
• 30 watts RMS Each
• 4 ohm Impedance

(12)

$144.99

List price $169.99

CF-350mt small

JL Audio CF-350mt

• 3-1/2" CF Series Midtweeters
• 35 watts RMS Each
• 4 ohm Impedance

(4)

$179.99

List price $229.99

Specifications & Details


Speaker Specifications
Series
APMB Series
Priced Per
Each Speaker
Speaker Size
6"
Design
Mid-range
Woofer Composition
Paper
Woofer Surround
Corrugated
Peak Power Handling
200 watts
RMS Power Handling
100 watts
Sensitivity
96 dB
Frequency Response
100 - 8000 Hz
Impedance (Per Voice Coil)
8 ohm
Top-Mount Depth (Mounting Depth)
2-1/2"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APMB-6SNDB

Weight:

2.40lbs

Internal SKU:

apmb6sndb

Internal Product ID:

81707
