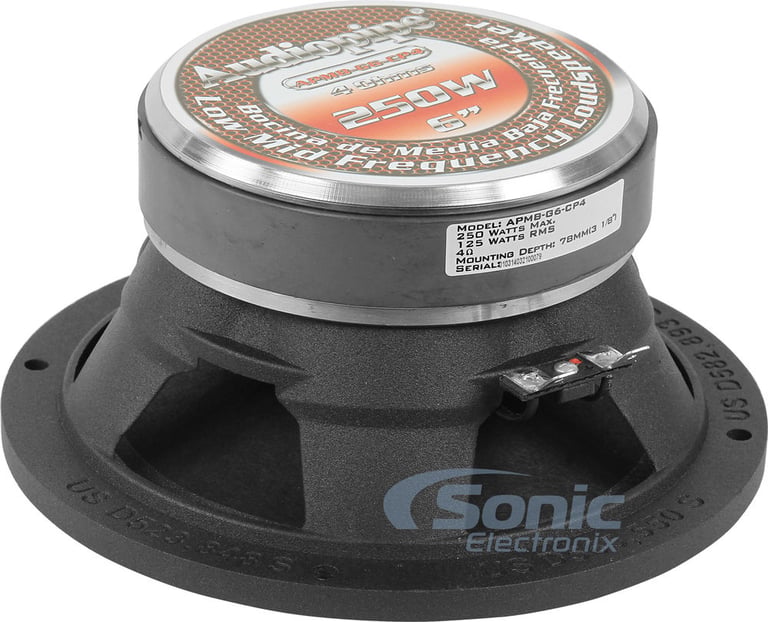

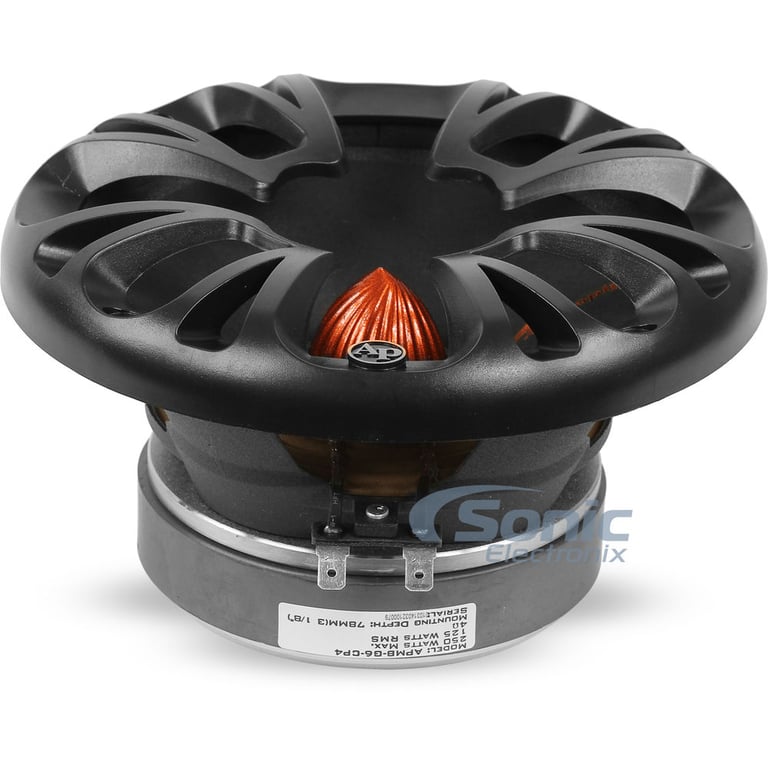

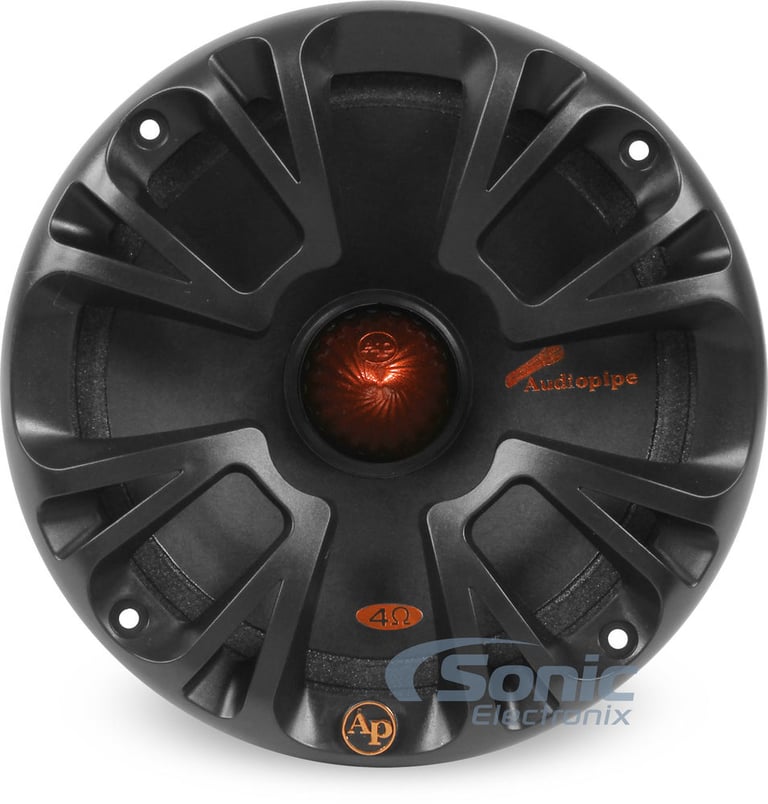

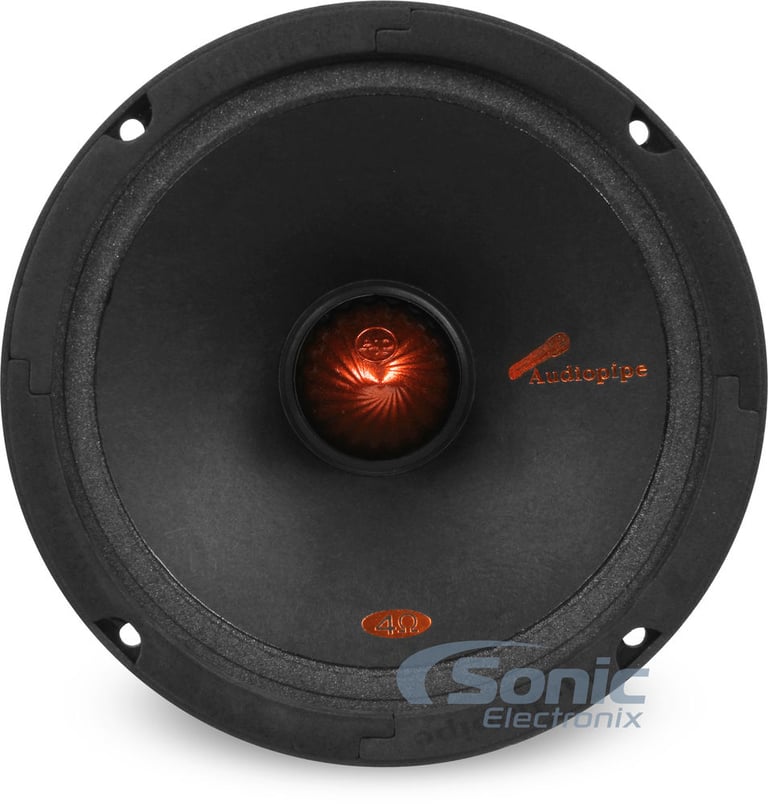

Audiopipe APMB-G6-CP4

250W 6" APMB Series Midrange Driver

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 3-1/8"
• 30 Oz. Magnet
• Includes Speaker Grills
• Sensitivity: 95dB
• Bullet Dust Cap

Learn more about the apmbg6cp4

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

APH-FD02 main

PAC APH-FD02

Speaker Connection Harnesses for select 2018-2020 vehicles from Ford with Factory B&O Amplifier

-54.44%

$35.99

List price $79.00

108-FD9B main

Metra 108-FD9B Dash Kit

Install a new Double-DIN car stereo in select 2019-2025 Ranger (Matte Black)

-43.83%

$49.99

List price $88.99

82-5604 main

Metra 82-5604

Speaker Plates for select 2014-2024 Transit Connect and Ranger and Maverick

-40.01%

$17.99

List price $29.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Product Highlights


• Peak Power: 250W • RMS Power: 125W
• Low Mid Frequency
• Mounting Depth: 3-1/8"
• 30 Oz. Magnet
• Includes Speaker Grills
• Sensitivity: 95dB
• Bullet Dust Cap

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the G6-CP4 speaker with an incorporated phase plug to provide quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's G6-CP4 speaker features a light weight yet incredibly stiff paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible from a paper cone.


General Features:

  • 6" APMB Series Midrange Driver
  • Power Handling:
    • Peak: 250 watts
    • RMS: 125 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Bullet dust cap ensures high quality high frequency sound
  • High quality paper cone
  • Corrugated surround
  • Includes speaker grills to protect the speaker
  • Heavy duty 30 oz. magnet
  • Durable 1.5" TIL voice coil
  • 4 ohm impedance
  • Frequency Response: 100-8,000 Hz
  • Top-mount Depth: 3-1/8"
  • Mounting Diameter: 5-13/16"
  • Sensitivity: 95dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • FS (Free Air Resonance): 114 Hz
  • RE (DC Resistance): 3.6 ohm
  • Le (Voice Coil Inductance): 0.16 mH
  • QMS (Mechanical Q Value): 4.3
  • QES (Electrical Q Value): 0.45
  • QTS (Total Speaker Q Value): 0.4
  • VAS (Equivalent Compliance): 7.2 L (0.26 cu ft.)
  • Xmax (One-Way Linear Excursion): 1mm (0.04")
  • F3 (for Sealed Enclosure):
    • 0.35 cu ft.: 125 Hz
    • 0.6 cu ft.: 120 Hz
  • F3 (for Vented Enclosure):
    • 0.4 cu ft.: 110 Hz

Priced Per Speaker
