• XLR 3- and 5-pin
• SpeakoON 2-, 4-, and 8-pole
• Phono (RCA)
• Phone (1/4" TRS and TS)
• 3-, 5-, and 8-pin DIN
• RJ45 (Ethernet)
• 75-ohm BNC
• USB Type A to Type B

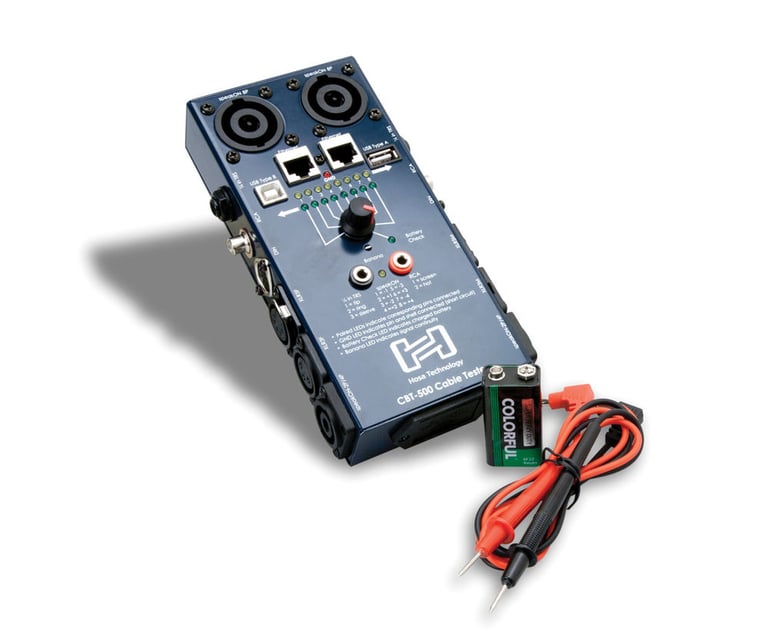

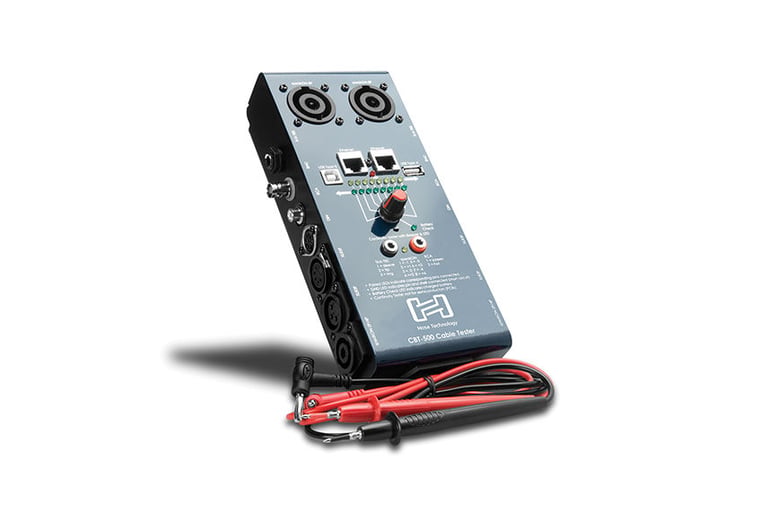

Signal path continuity is the key to any successful show, studio session, or installation. The Hosa CBT-500 Audio Cable Tester verifies continuity on just about every cable audio technicians use in the field. This easy-to-use tester will ensure your cables are in top working condition, preventing unwanted surprises on the job.

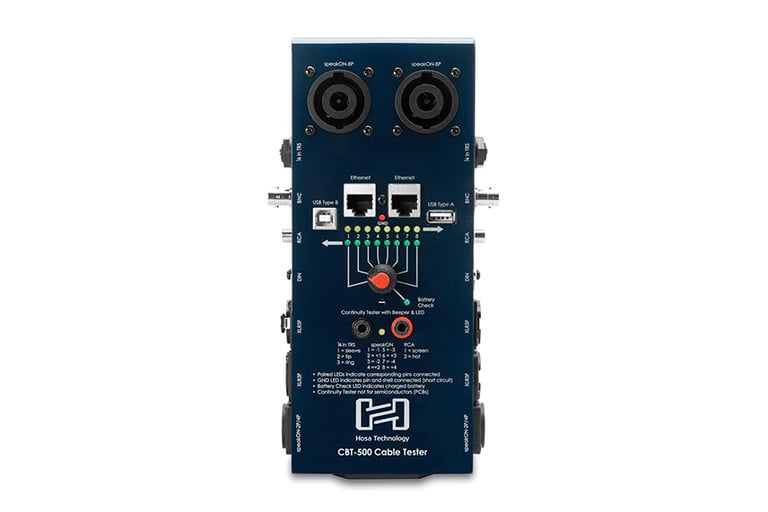

With a simple turn of a knob, you can verify pin-by-pin continuity of microphone cables, instrument cables, even USB cables.
The Hosa Audio Cable Tester is also equipped with removable test probes for continuity testing of bare wire and connector combinations not already found on the unit. Operation requires a 9-volt battery, which is included so you can put the tester to work immediately.
Manufacturer:
Model Number:
CBT-500
Weight:
2.00lbs
Internal SKU:
cbt500
Internal Product ID:
86080
