DC Audio Level 2 15 m2 D4

1200W Peak 15" Level 2 Series m2 Version Dual 4-Ohm Car Subwoofer - M2LV215D4

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 1200W
• RMS Power: 600W
• Dual 4 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m2lv215d4

We apologize

This item has been discontinued


Loading...
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
H7652 main

Cerwin Vega H7652

640W Peak (120W RMS) 6.5" HED Series 2-Way Coaxial 4-ohm Speakers

31
-16.67%

$69.99

List price $83.99

K 165 main

Hertz K 165

300W Peak (75W RMS) 6.5" Uno Series 2-way 4-ohm Component Speaker System

4
-33.34%

$99.99

List price $150.00

Club 64SQ main

JBL Club 64SQ (JBLSPKCB64SQ)

450W Peak (150W RMS) 6.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-15.00%

$169.95

List price $199.95

ZXI-654 main

DS18 ZXI-654

480W Peak (160W RMS) 6.5" ZXI Series 2-way 4-ohm Coaxial Car Speakers

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Product Highlights


• Peak Power: 1200W
• RMS Power: 600W
• Dual 4 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

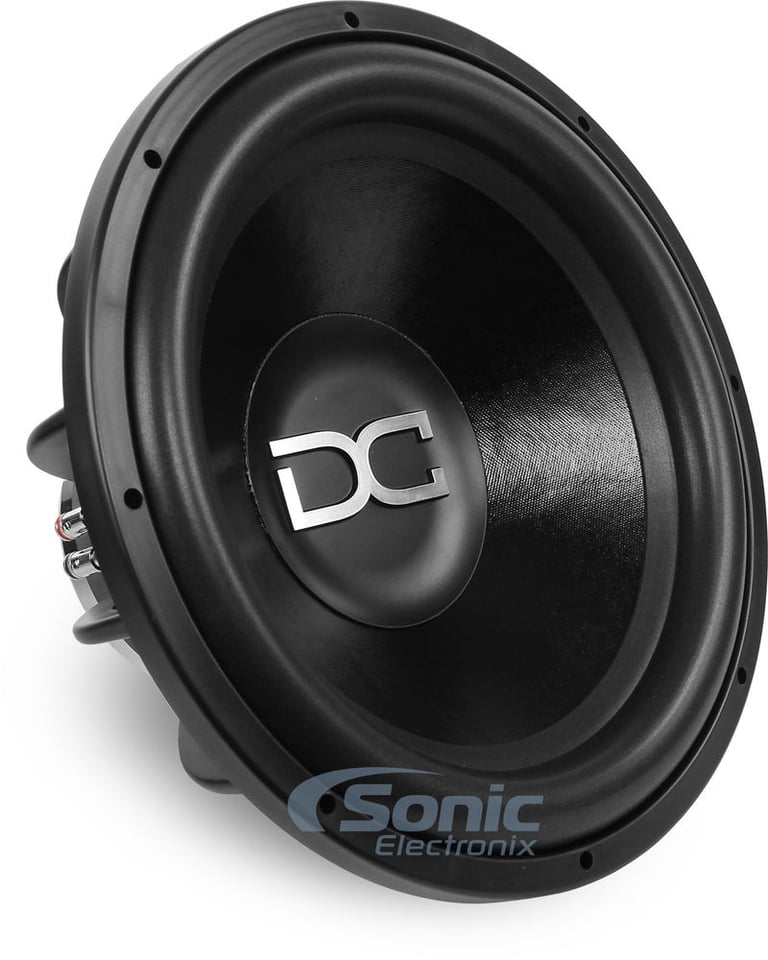

  • 15" Dual 4 ohm Level 2 Series m2 Version Car Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Recommended power range: 200 - 600 watts RMS
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround

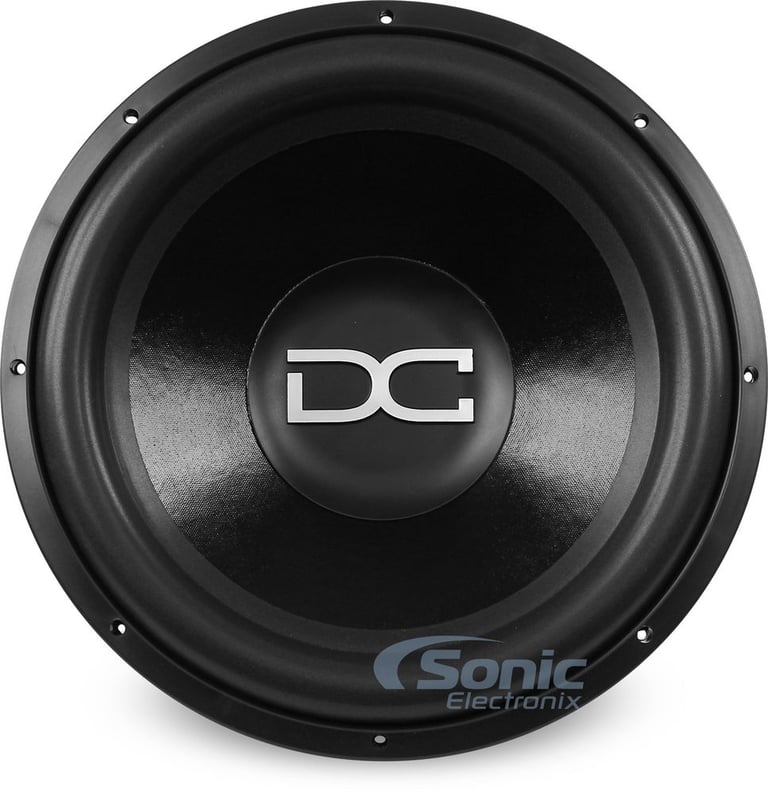

  • Polypropylene dust cover with embossed DC logo
  • 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
  • 2.5" high temperature copper voice coil
  • Rubber mounting gasket

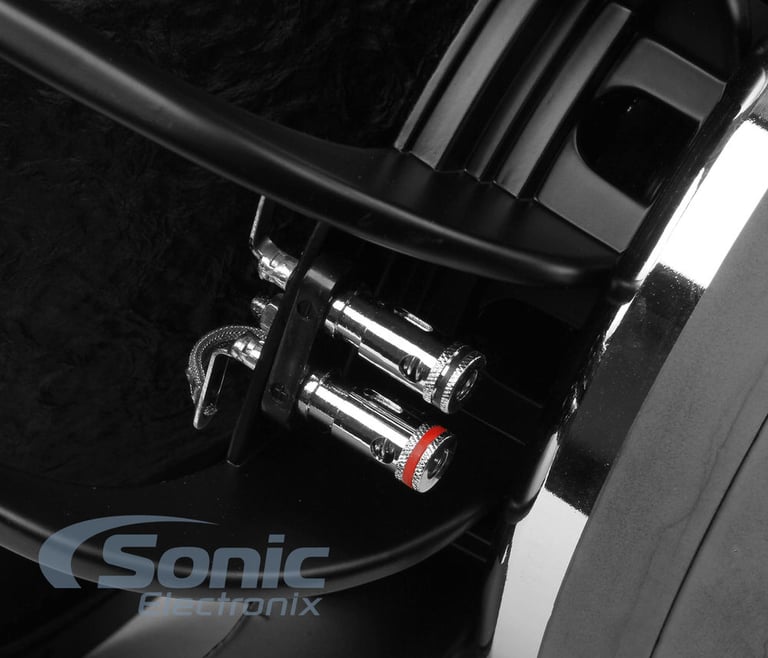

  • Chrome spring loaded push terminals

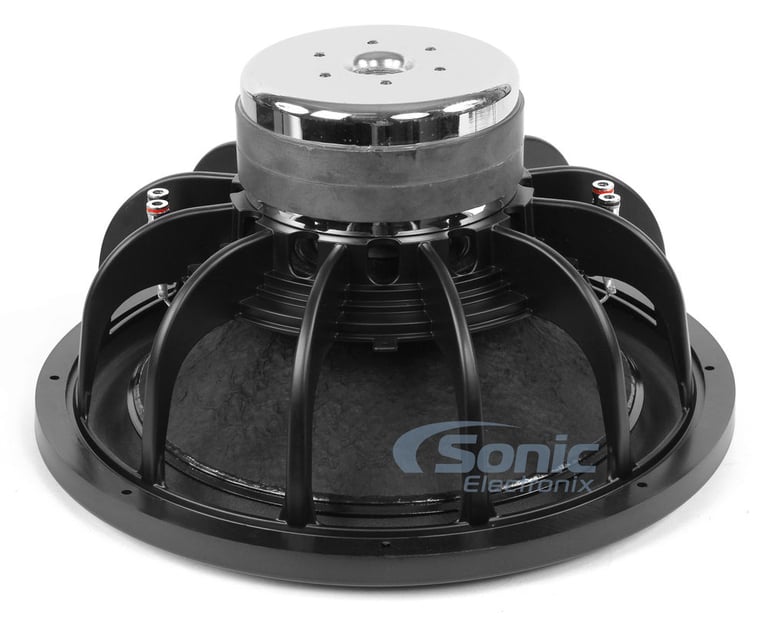

  • FEA analyzed and optimized motor assembly
    • Fully CNC machined

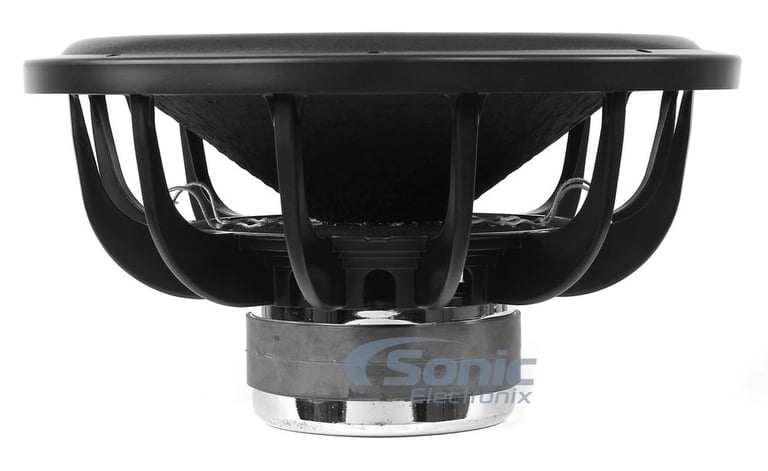

  • Top-mount depth: 7.5"
  • Mounting Hole Diameter: 14"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

m2 Level 2 15" T/S Parameters:

  • Electrical Q Value (Qes): 0.71
  • Mechanical Q Value (Qms): 9.4
  • Total Speaker Q Value (Qts): .66
  • Free Air Resonance (Fs): 29.7 Hz
  • Equivalent Compliance (Vas): 89.59 liters
  • One-Way, Linear Excursion (Xmax): 22 mm
  • Efficiency (Ref SPL @ 1W): 87 dB (87.5dB @ 2.83V)
  • Effective Piston Area (Sd): 823 cm²
  • DC Resistance (Re): 7.20 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Force Factor (Bl): 24
  • Mechanical Compliance (Cms): .095 mm/N
  • Mechanical Mass (Mms): 302 g
  • Voice Coil Inductance (Le): 7 mH
  • Suggested Sealed Enclosure: 2.0 ft³
  • Suggested Ported Enclose: 3.0 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 2 15 m2 D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 2 15 m2 D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 2 15 m2 D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 2 15 m2 D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
Level 2 Series
Subwoofer Size
15"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
87 dB
Xmax (millimeters)
22 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Double Stacked
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2.00 cubic feet
Optimum Ported Box Volume
3.00 cubic feet
Top-Mount Depth (Mounting Depth)
7.5"
Cutout Diameter
14"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.7 Hz
Equivalent Compliance (Vas)
89.59 liters
Total Speaker Q Value (Qts)
.66
Electrical Q Value (Qes)
.71
Electrical Resistance of Voice Coil (Re)
7.20 ohm
Mechanical Q Value (Qms)
9.4
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M2LV215D4

Weight:

25.20lbs

Internal SKU:

m2lv215d4

Internal Product ID:

88148

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 2 15 m2 D4 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


M4LV615D2 small

DC Audio Level 6 15 m4 D2

9000W Peak (4500W RMS) 15" Level 6 Series M4 Version Dual 2-Ohm High SPL Car Subwoofer with 4.0" Voice Coils

$1080.00

List price $1250.00

41-1001 small

InstallCard 41-1001 (Flat Panel Wall Mount)

Prepaid Home Video InstallCard for 30" or Smaller Flat Panel Wall Mount

$249.99

List price $249.99

42-1015 small

InstallCard 42-1015 (Radar Detector Deluxe)

Prepaid Convenience InstallCard for Radar/Laser Detection System with 2 Sensors Installation

$229.99

List price $229.99

TS-A653FH small

Pioneer TS-A653FH

680W Peak (150W RMS) 6.5" A Series 2-way 4-ohm Coaxial Car Speakers

(1)

$99.99

List price $120.00

AL-1510-EDP small

Omega Excalibur AL-1510-EDP

Deluxe 2-way Keyless Entry Car Alarm System with Code Hopping Feature

(7)

$114.99

List price $199.99

GROOVE2_W60 small

Apogee GROOVE + Westone W60

Portable USB DAC Headphone Amplifier for Mac, PC and Signature Series Wired In-Ear Monitors w/ 6 Balanced Armature Drivers

(5)

$777.10

List price $1594.99

E07K small

FiiO E07K - E7 "Andes"

Andes Series Portable Headphone Amplifier and USB DAC (E-7K, E7K)

(7)

$89.00

List price $99.95

MO-FI Open Box small

Blue Mo-Fi Headphones with Built-In Audiophile Grade Amp (Open Box Complete)

Powered High-Fidelity Headphones with Built-In Audiophile Grade Amp

(1)

$230.56

List price $349.99

AVIC-U280 small

Pioneer AVIC-U280

Add-On GPS Navigation System for Select 2010 or later Pioneer AVH Model Stereo Receivers

(6)

$399.99

List price $600.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2009 MINI Cooper

2004 Ford Freestar

2012 Dodge Challenger

2012 Chevrolet Silverado 2500 HD

2014 Ford Expedition

2006 Saab 9-5

2006 MINI Cooper

2002 Ford Explorer

2003 Ford Excursion

2012 Chrysler 200

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
