  6. DC Audio LS-M2LV412D2-OBC

See all parts that fit your 2013 X1

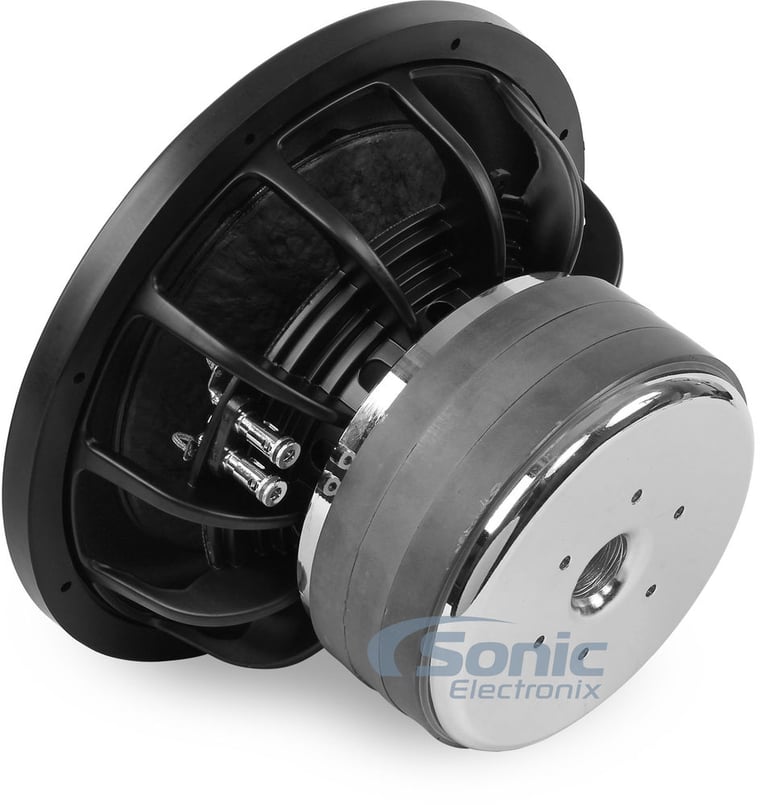

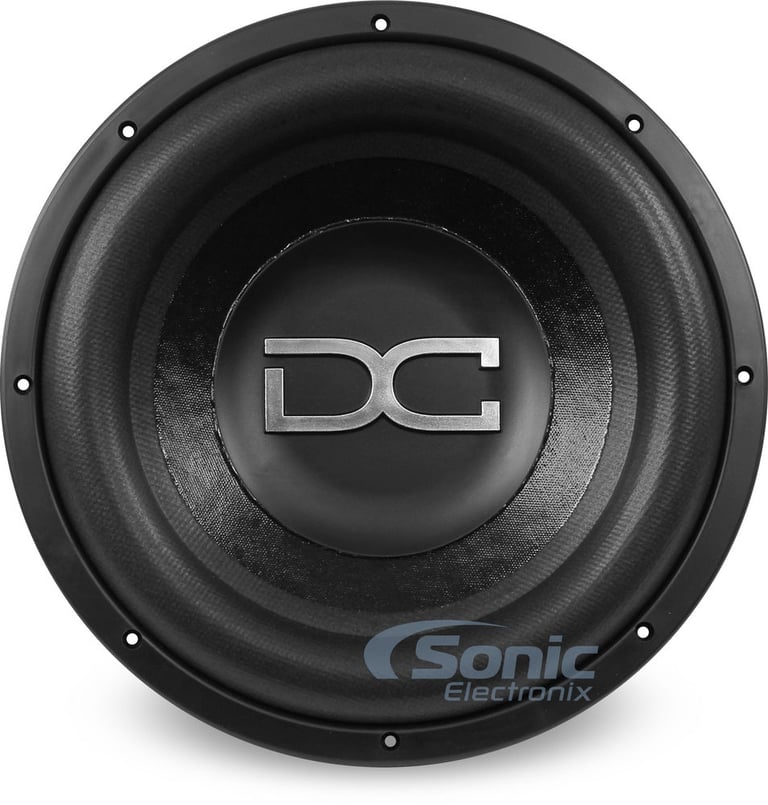

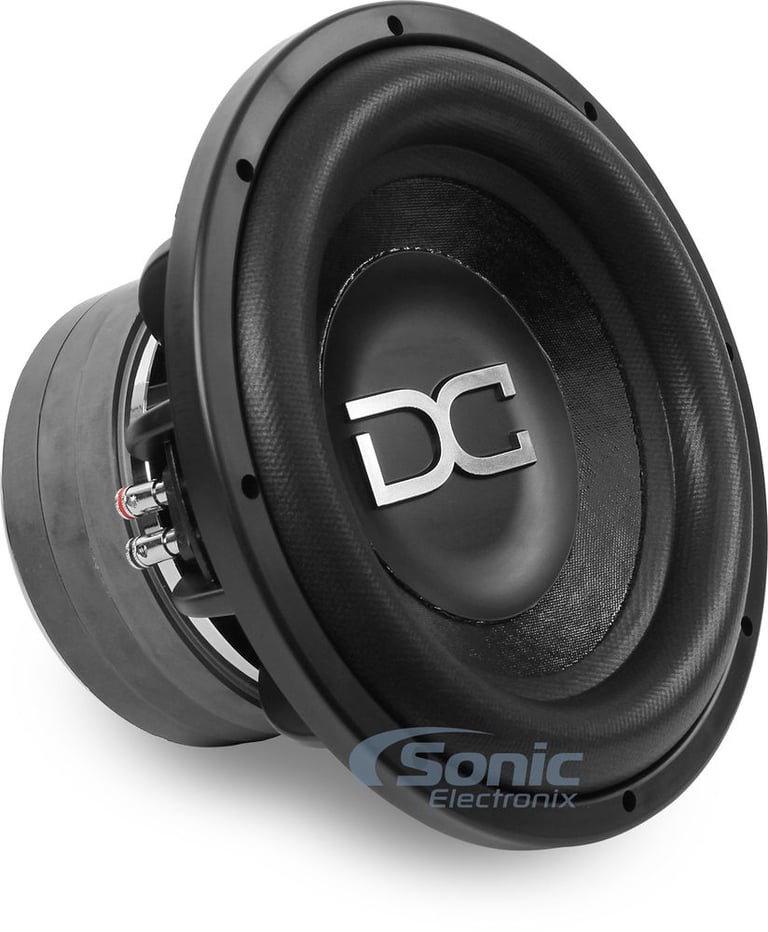

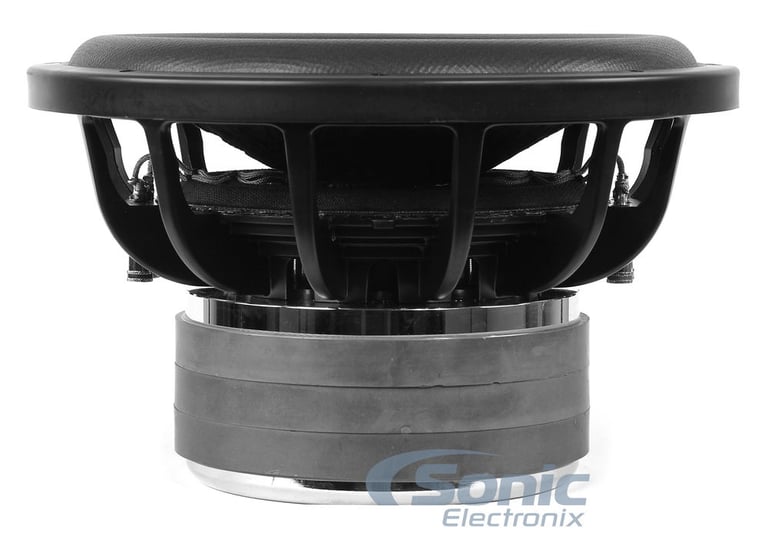

DC Audio Level 4 12D2 (M2LV412D2) OPEN BOX COMPLETE

1400W RMS 12" Level 4 Series Dual 2 ohm Car Subwoofer

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Item Condition: Open Box Complete
• Peak Power: 2800W
• RMS Power: 1400W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the LS-m2lv412d2-OBCra219403

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

• Item Condition: Open Box Complete
• Peak Power: 2800W
• RMS Power: 1400W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description

DC Audio brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

General Features:

  • Item Condition: Open Box Complete
    • Original packaging replaced
    • 12" Dual 2 ohm Level 4 Series Subwoofer
    • Power Handling:
      • Peak: 2800 watts
      • RMS: 1400 watts
    • Extremely rigid non-pressed paper cone assembly
    • Multilayered polymer wide roll foam surround
    • Polypropylene dust cover with embossed DC logo
    • Triple 8" OD flat linear roll spider
    • Extra heavy duty interwoven tinsel lead wire sewn to spider
    • 3" high temperature Edge wound aluminum voice coil
    • Rubber mounting gasket

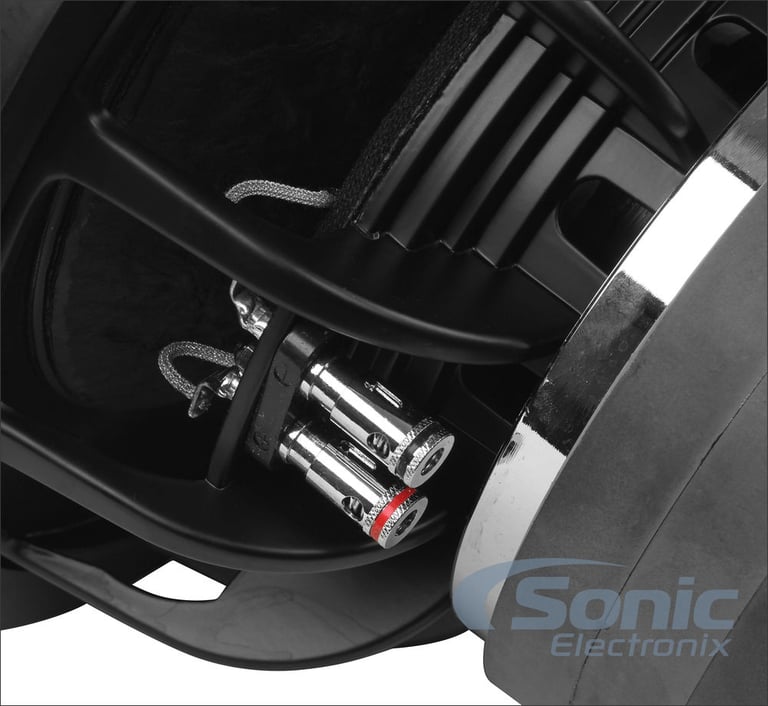

    • Chrome spring loaded push terminals
    • FEA analyzed and optimized motor assembly
      • Fully CNC machined
    • Top-mount depth: 6.75"
    • Mounting Hole Diameter: 11"
    • Authorized Internet Dealer
    • 1-year Manufacturer's Warranty

    m2 Level 4 12" T/S Parameters:

    • Electrical Q Value (Qes): 0.52
    • Mechanical Q Value (Qms): 8.24
    • Total Speaker Q Value (Qts): .489
    • Free Air Resonance (Fs): 37.9 Hz
    • Equivalent Compliance (Vas): 27.38 liters
    • One-Way, Linear Excursion (Xmax): 23.5 mm
    • Efficiency (Ref SPL @ 1W): 86.4dB
    • Effective Piston Area (Sd): 481 cm²
    • DC Resistance (Re): 3.82 ohm
    • Nominal Impedance (Znom): Dual 2 ohm
    • Force Factor (Bl): 19.18
    • Mechanical Compliance (Cms): .085 mm/N
    • Mechanical Mass (Mms): 207.53 g
    • Voice Coil Inductance (Le): 3.78 mH
    • Suggested Sealed Enclosure: 1.00³ ft
    • Suggested Ported Enclose: 1.50³ ft

    For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

    Subwoofer Wiring Guide

    Wiring Guide to Wire 1 DC Audio Level 4 12D2 (M2LV412D2) OPEN BOX COMPLETE Subwoofer

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 DC Audio Level 4 12D2 (M2LV412D2) OPEN BOX COMPLETE Subwoofers

    Mono Amp

    2 Channel Amp

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 DC Audio Level 4 12D2 (M2LV412D2) OPEN BOX COMPLETE Subwoofers

    Mono Amp

    Mono Amp - Option 1

    4 Channel Amp

    Wiring Guide to Wire 4 DC Audio Level 4 12D2 (M2LV412D2) OPEN BOX COMPLETE Subwoofers

    2 Channel Amp

    4 Channel Amp

    Specifications & Details

    Subwoofer Specifications
    Series
    Level 4 Series
    Subwoofer Size
    12"
    Peak Power Handling
    2800 watts
    RMS Power Handling
    1400 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    2 ohm
    Voice Coil Diameter
    3"
    Sensitivity
    86.4 dB
    Xmax (millimeters)
    23.5 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Non-Pressed Paper
    Woofer Surround
    Poly-Foam
    Magnet Structure
    Triple Stacked
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Optimum Sealed Box Volume
    1.00 cubic feet
    Optimum Ported Box Volume
    1.50 cubic feet
    Top-Mount Depth (Mounting Depth)
    6.75"
    Cutout Diameter
    11"
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    37.9 Hz
    Equivalent Compliance (Vas)
    27.38 liters
    Total Speaker Q Value (Qts)
    .489
    Electrical Q Value (Qes)
    .52
    Electrical Resistance of Voice Coil (Re)
    3.82 ohm
    Mechanical Q Value (Qms)
    8.24
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details

    Manufacturer:

    DC Audio

    Model Number:

    LS-M2LV412D2-OBC

    Weight:

    34.60lbs

    Internal SKU:

    LS-m2lv412d2-OBCra219403

    Internal Product ID:

    96716
