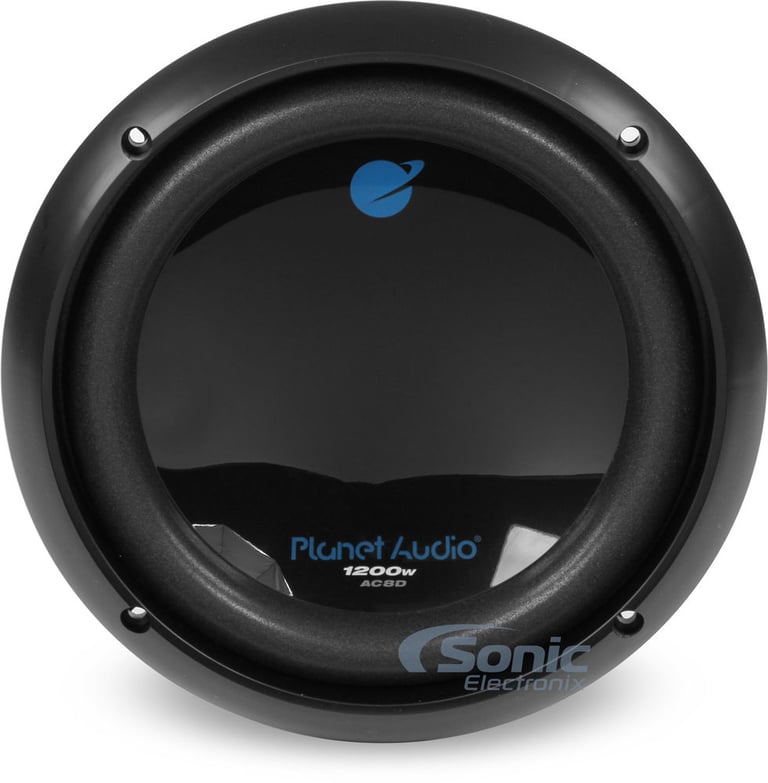

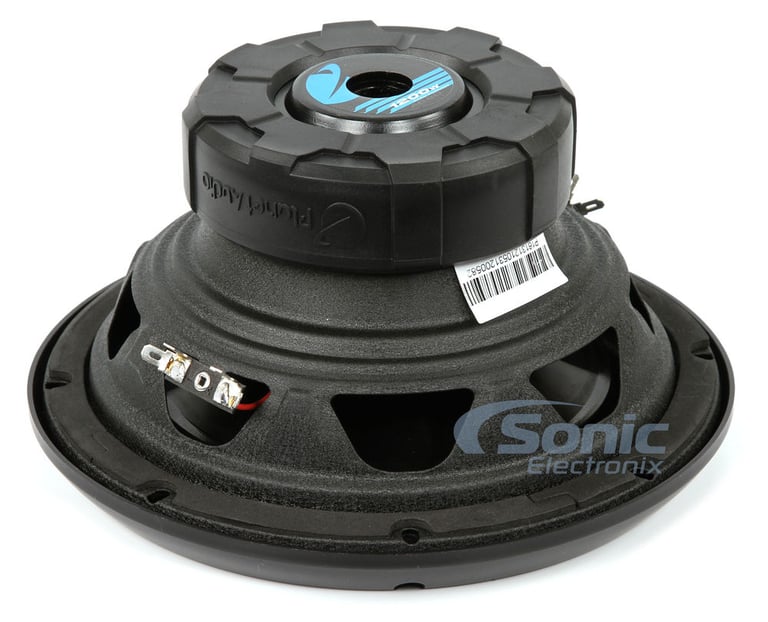

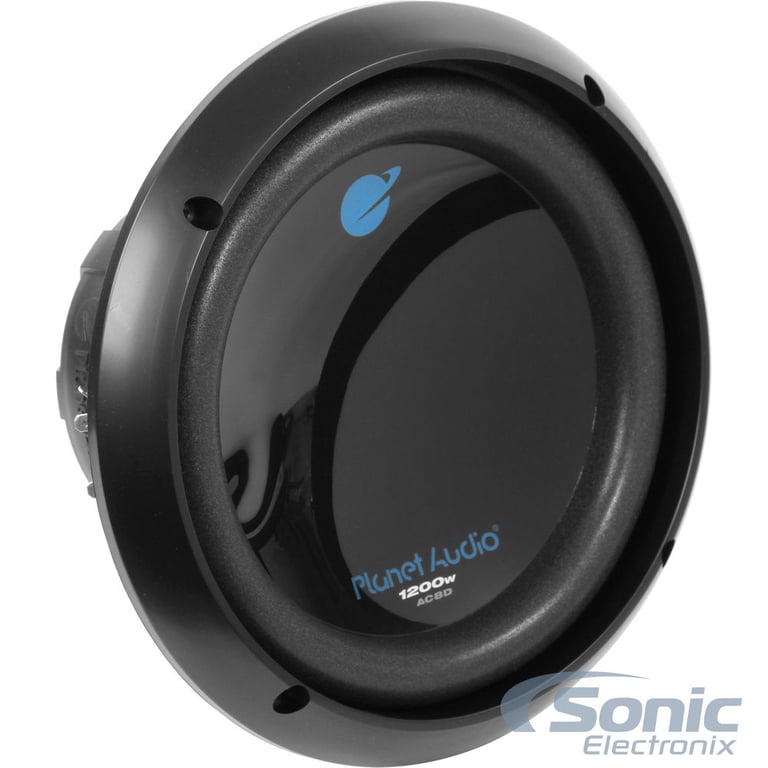

Planet Audio AC8D

1200W Peak (600W RMS) 8" Anarchy Series Dual 4-ohm Car Subwoofer

Product videos
highlight-star-icon

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Injection Molded Polypropylene - IMPP Cone
• Foam Surround
• Mount depth: 3-15/16"
• Sensitivity: 85 dB

Learn more about the ac8d

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

95-8202 main

Metra 95-8202 Dash Kit

Install a new Double-DIN car stereo in select 2000-2020 vehicles from Toyota, Subaru, Scion

35
-43.50%

$12.99

List price $22.99

82-3412 main

Metra 82-3412

Speaker Adapter Bracket for select 1998-2024 vehicles from Chevrolet, GMC, Subaru

1
-34.63%

$16.99

List price $25.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

Product Highlights


• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Injection Molded Polypropylene - IMPP Cone
• Foam Surround
• Mount depth: 3-15/16"
• Sensitivity: 85 dB

Description


Planet Audio brand icon

Authorized dealer

Product Details:

  • 8" Dual 4 ohm Anarchy Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Injection Molded Polypropylene - IMPP cone
  • Foam surround
  • 2" high-temperature voice coil
  • 10 mm Xmax
  • Single Stacked Ferrite magnet motor structure
  • Resonance Frequency (Fs): 39 Hz
  • Sensitivity: 85 dB
  • Recommended sealed box volume: 0.35 cubic feet
  • Recommended ported box volume: 0.9 cubic feet
  • Top-mount depth: 3-15/16"
  • Cutout diameter: 7"
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Planet Audio AC8D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Planet Audio AC8D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Planet Audio AC8D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Planet Audio AC8D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SW-EV68D2 small

Sundown Audio E8 v.6 D2 8" (E8V6D2)

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Pressed Foam Surround
• Mount depth: 4.98"
• Sensitivity: 82.4 dB

$169.99

List price $203.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

49L7X81 small

Kicker L7X81 (49L7X81)

• RMS Power: 400 - 800 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 7-15/16"

(1)

$449.99

List price $479.99

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

Specifications & Details


Subwoofer Specifications
Series
Anarchy Series
Subwoofer Size
8"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
85 dB
Xmax (millimeters)
10 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Foam
Magnet Structure
Single Stacked
Magnet Type
Ferrite
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Optimum Sealed Box Volume
0.35 cubic feet
Optimum Ported Box Volume
0.9 cubic feet
Top-Mount Depth (Mounting Depth)
3-15/16"
Cutout Diameter
7"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
39 Hz
Equivalent Compliance (Vas)
29.3 liters
Total Speaker Q Value (Qts)
0.63
Electrical Q Value (Qes)
0.859
Mechanical Q Value (Qms)
2.4
What is in the box?
Paperwork

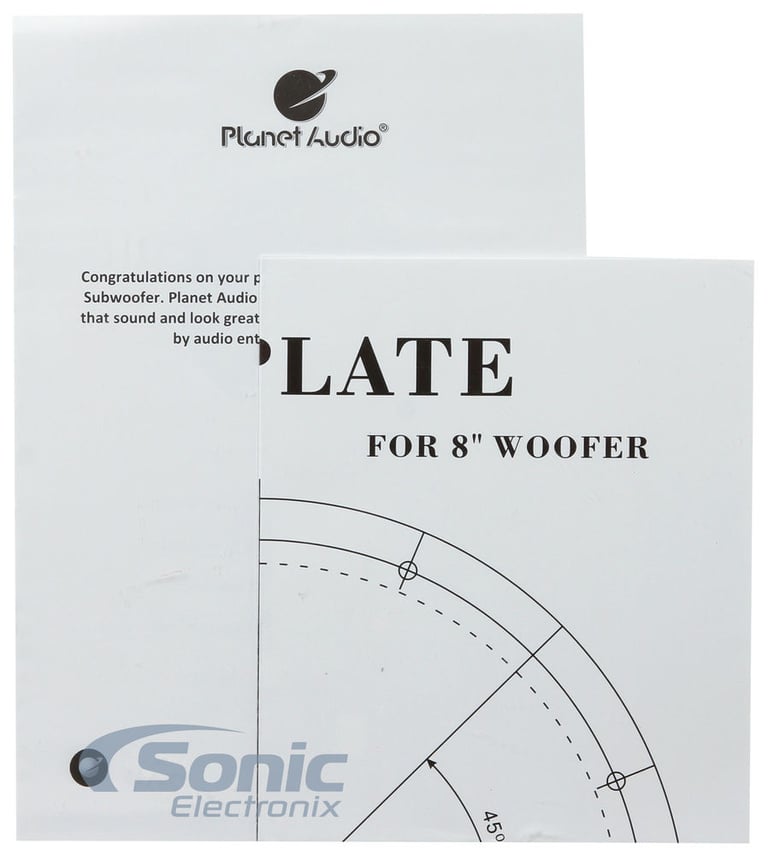

User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AC8D

Weight:

5.40lbs

Internal SKU:

ac8d

Internal Product ID:

88974

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio AC8D thumbnail image

5 star
75%
4 star
18%
3 star
7%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

best bang for your buck

I have 4 8" planet audio ac8d subs they sound better then the fosgates they replaced

By tattedj on November 25, 2014

61 found this helpful


BIG BANG for the buck!!!

I bought this sub to replace the blown stock woofer in my 01 Suburban. I took the outer cardboard ring off the stock woofer and put it under the AC8D so the magnet did not bottom out in the stock enclosure. I am truly shocked how good this thing sounds. I would recommend this to anyone looking for some cheap bang. Clear deep and tight bass, no muddy sound at all. If you were like me and debated over so many options....This is it!!!!

By Bandy on January 18, 2015

58 found this helpful


BIG BANG for the buck!!!

I bought this sub to replace the blown stock woofer in my 01 Suburban. I took the outer cardboard ring off the stock woofer and put it under the AC8D so the magnet did not bottom out in the stock enclosure. I am truly shocked how good this thING sounds. I would recommend this to anyone looking for some cheap bang. Clear deep and tight bass, no muddy sound at all. If you were like me and debated over so many options....This is it!!!!

By Bandy on January 18, 2015

56 found this helpful


1600 Watts?

The sound is crisp, and the range is incredible! I had just replaced all the speakers and feel like I now have a rolling concert hall. However, the only complaint is that I thought 1600 watts would be much louder. But, hey! I only have less than $400 in the entire system, and I've got blue tooth connectivity, iPod connection, etc. overall, this is amazing!

By Chevytunes on February 16, 2015

53 found this helpful


Get's the job done

I just purchased a pair of these subs and put them in a sealed box w a little poly fill in and they sound GREAT!!!!!. You really can't beat the price on these. They are being pushed by a Hifonics Brutus 1200 watt amp and are bridged. So far so good. Works great in a smaller car. Mine is a VW Karman Ghia.

By AJay 3 on August 3, 2014

53 found this helpful


great subs for the price

I bought 8 of these and have them in a custom built 5.5 cubic foot box tuned at 21 hertz. These subs are great for the price. I have all them running at 0.25 ohms on 5k plus daily. I'm burping anywhere from 148 to my highest the other day of 151.3 dB on the dash sealed all the way up. I'm going to be ordering 4 more and doing another build. Love these subs

By BassHead on April 23, 2015

47 found this helpful


sub

hello i buy from sonicelectronix a sub planet audio 600rms i love to buy from them for my car i am a tehnical for car and the item from them is good and i want to buy more like the ampiflier hifonics good store

By natizohar z multimedia on September 26, 2014

49 found this helpful


Great Value for price

This sub-woofer gets the job done! It sounds great and looks great. I bought this for a replacement of a Sony sub-woofer that started to blow and for 35$ it couldn't get better. I would highly recommend this product.

By Basshead on September 9, 2014

47 found this helpful


great value

Great price for a great product sounds really good for a 8 in sub

By Clydesdale on March 3, 2015

44 found this helpful


Good value.

For the price, these are excellent speakers so far. Just got the right size sealed box according to specs and thy work really good. Time will tell if they are durable.

By Pete on December 11, 2014

47 found this helpful




FS-50 small

Crimestopper FS-50

2-way Car Alarm, Keyless Entry, Remote Start Vehicle Security System w/ 1 LCD and 1 Side Kick Transmitter

$109.99

List price $299.99

SLICK10-V2 small

VIBE Audio Slick S10 (SLICK10-V2) Open Box

10" Single 4 ohm Slick Series Subwoofer

$39.99

List price $99.99

CS-2014FM small

Crimestopper CS2014FM / CS2014TW2

SuperPage 2-Way LCD Pager Alarm ( CS-2014TW2 / CS2014FM TW2 )

$114.99

List price $199.99

3015-STROCNT small

Griffin 3015-STROCNT

6 ft. (1.83 Meters) of iPhone and iPod StereoConnect Cable

$8.99

List price $14.99

C3RS-622LCD small

AutoPage C3 RS-622 LCD

Two Way LCD Remote Car Starter with Keyless Entry and Data Bus Serial Communication Port (RS622, RS-622LCD)

$109.99

List price $169.99

U1155TL small

Ultra Start by AST U1155TL

Add on Remote Start System Works with Factory and After Market Alarms

$49.99

List price $99.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Toyota Highlander

1994 Mazda 323

1990 Jaguar XJS

2023 Kia EV6

2012 Toyota Sequoia

2016 Kia Forte

2020 Audi RS5

1986 Ford Ranger

1966 Buick Special

1974 Dodge Monaco

Vehicle
Store
Delete

2005 Harley Davidson FLHTC/I Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
