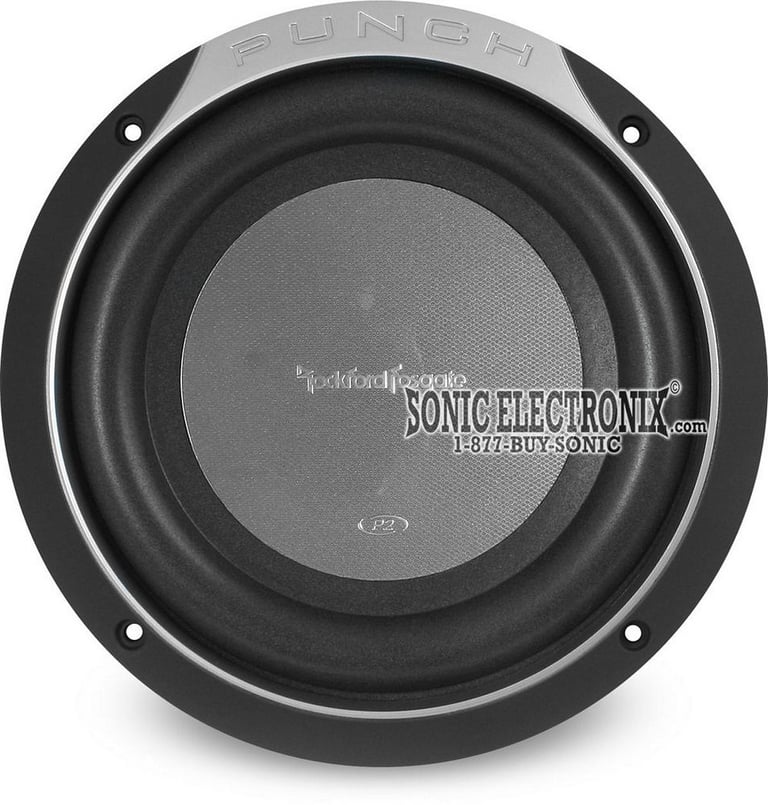

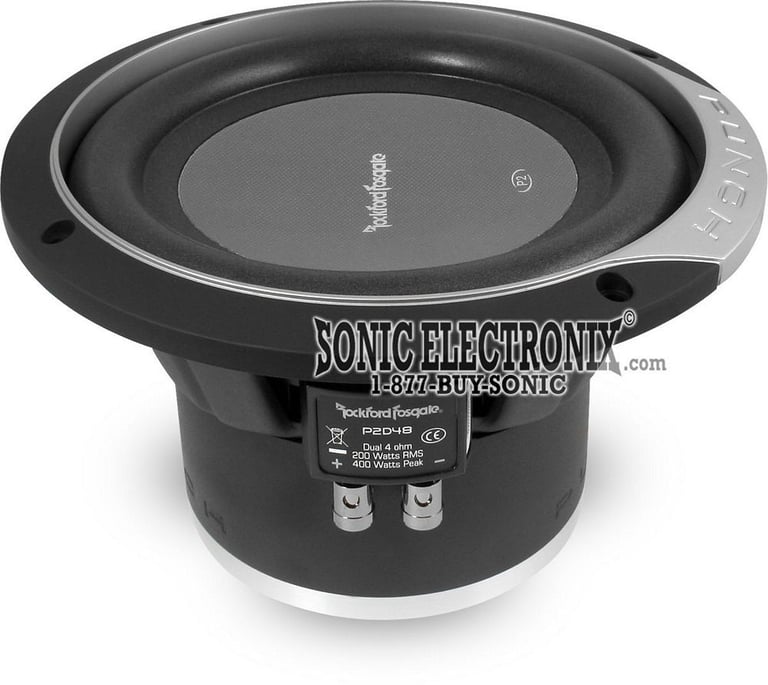

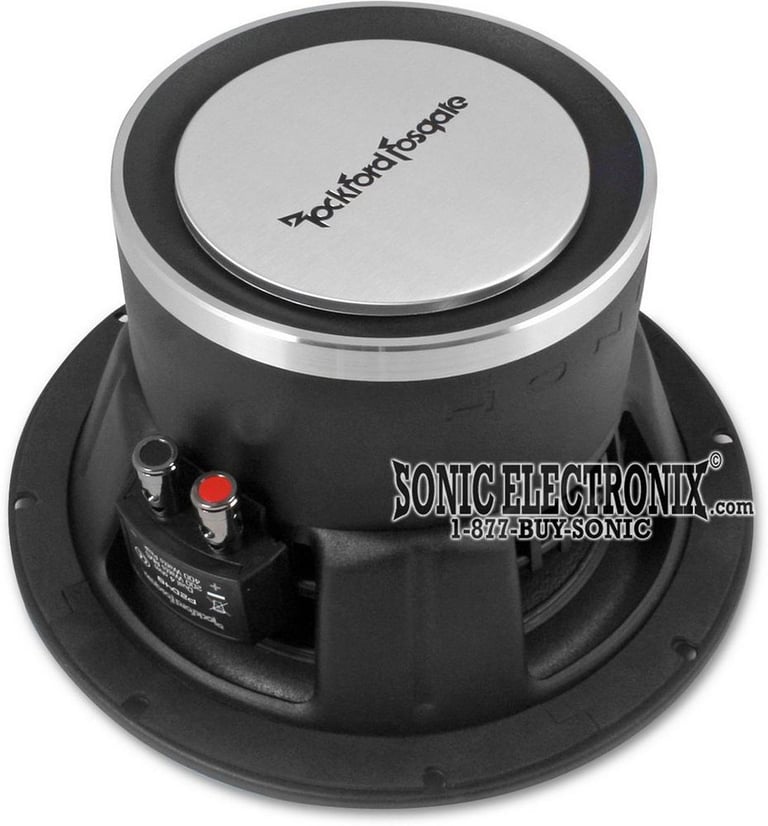

Rockford Fosgate Punch P2D48

8" Dual 4 ohm Punch Stage 2 Subwoofer

Product videos
highlight-star-icon

8" Dual 4 ohm Punch Stage 2 Subwoofer • Power Handling: Peak: 400 watts / RMS: 200 watts • Parabolic Triangular Geometry cone support system for reduced piston flex • Stitched-in tinsel leads handle tons of power • 40-250 Hz

Learn more about the 09-p2d48

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

p2d48 thumbnail

Rockford Fosgate Punch P2 P2D4-8

OUR PRICE: $134.99

View item

Loading...
Limited time!
R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34
-11.11%

$39.99

List price $44.99

Lowest price in 30 days

PAC RadioPro RP5-GM11

Radio Replacement Interface with OnStar Retention and Steering Wheel Control Retention for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

9
-65.17%

$138.99

List price $399.00

Product Highlights


8" Dual 4 ohm Punch Stage 2 Subwoofer • Power Handling: Peak: 400 watts / RMS: 200 watts • Parabolic Triangular Geometry cone support system for reduced piston flex • Stitched-in tinsel leads handle tons of power • 40-250 Hz

Description


Rockford Fosgate brand icon

Authorized dealer

When it comes to car subwoofers, Rockford Fosgate raised the bar in terms of high quality affordable subwoofers. These Punch Stage 2 subwoofers are the perfect combination of price and deep bass. With a RMS power rating of only 200 watts, these subwoofers are designed for lower wattage amplifiers. However, don’t be fooled by the lower power rating. These efficient woofers are fully capable of producing crisp, clean bass that will shake you to the core. As with all of the other Rockford subwoofers, they have packed patented technology into this sub to enhance the performance of the subwoofer. The Venturi-effect cooling system helps to keep the voice coil cool, while the double stacked ferrite magnet help maintain the power. On the face of the woofer is a polypropylene cone and ABS/Acrylic dustcap. A little further out is the half-roll sealed poly-foam surround that assists with the high excursion of the motor assembly. For those that need a low wattage and high output subwoofer, the Rockford Fosgate Punch P2D48 is the choice subwoofer.

  • 8" Dual 4 ohm Punch Stage 2 Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Impedance: Dual 4 ohm
  • Parabolic Triangular Geometry cone support system for reduced piston flex
  • 30oz. double-stacked magnet assembly increases excursion capability
  • Compliant linear spider eliminates need for break-in period
  • 2" anodized aluminum voice coil former stays up to 100° cooler
  • Reversible concealing ring hides mounting screws
  • Large roll surround allows for 20% greater linear excursion than standard surrounds
  • Stitched-in tinsel leads handle tons of power
  • Custom 10-AWG nickel plated push terminals
  • Venturi-effect cooling design
  • Frequency Response: 40-250 Hz
  • Sensitivity: 84 dB
  • 1-year SonicElectronix.com warranty

Product history:

Rockford Fosgate P2D4-8 thumbnail
(newest, current model)
Rockford Fosgate P2D48 thumbnail
(previous model, replaced by Rockford Fosgate Punch P2 P2D4-8)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P2D48 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P2D48 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P2D48 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P2D48 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
LVE-GM-SLVECG1-D12S main

NVX BOOST Box - 1999-2006 Chevrolet Silverado, GMC Sierra - LVE-GM-SLVECG1-D12S

For select 1999-2006 vehicles from GMC, Chevrolet Extended Cab - Dual 12" 800W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.86%

$369.99

List price $455.99

LVE-GM-SLVECG1-D10S main

NVX BOOST Box - 1999-2006 Chevrolet Silverado, GMC Sierra - LVE-GM-SLVECG1-D10S

For select 1999-2006 Silverado 3500 / 2500 / 1500 / 2500 HD and Sierra 3500 / 2500 HD / 2500 / 1500 and SIerra 2500 HD Extended Cab - Dual 10" 700W RMS Loaded Down Firing BOOST Sealed Truck Enclosure

-18.98%

$349.99

List price $431.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
40 - 250 Hz
Sensitivity
84 dB
Xmax (millimeters)
9-1/2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polypropylene
Woofer Surround
Poly-Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
4-5/8"
Cutout Diameter
7-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P2D48

Weight:

10.00lbs

Internal SKU:

09-p2d48

Internal Product ID:

8899

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Rockford Fosgate Punch P2D48 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.8
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Rockford Punch P2D48 bought for Lexus es300

This speaker is an excellent replacement for the 8" Mark Levinson subwoofer that crapped-out of my Lexus ES300. I was initially concerned that the replacement sub should be free-air, however, I found that with this speaker- its not a requirement. I have the speaker wired for 4 ohms...I initially thought the system would require 2 ohm wiring...its a good thing that this speaker is a dual voice coil and I was able to wire it at 4 ohms.

By Lextechs on October 4, 2010

21 found this helpful


Great Subs

I bought these to save trunk space in my Scion tC. Sounds amazing. Can't believe these are 8's. Powered by a Kicker 550.2 amp, sound like 12's. Very happy with these.

By Luke on August 24, 2010

19 found this helpful


Enough Said

I can't say enough about the P2 Model. Interestingly enough, I like them better than the set of P3's that I bought. You'll get your money's worth out of these babies, especially if you are buying them for a truck.

By JDS8810 on January 20, 2010

20 found this helpful


hard

these subs hit pretty hard the ones i have are a little older and are 8 ohms but all my friends think there 12s and mine are hooked up to a cheep jensen 600 watt amp

By adam on December 7, 2007

20 found this helpful


One P2D8 is plenty of speaker for a small truck cab.

Great speakers! We built a behind the seat, vented box for a Toyota Tacoma extended cab and used one P2D8 and the results were amazing. No one believes it is only an 8” woofer and many times I’ve had to show them the 8” speaker. One P2D8 is plenty of speaker for a small truck cab. I have tried other 8” that are in the same category, but the RockFord has the best overall tone, powerful, full bass response.

By Odougbo on March 13, 2010

17 found this helpful


By Lonny on August 12, 2023 Checkmark Icon Verified purchase

13 found this helpful




AVIC-N5 small

Pioneer AVIC-N5

In-Dash 7" TFT-LCD Touchscreen Monitor with Built-in Navigation, DVD, CD, MP3/WMA, DivX Player

(4)

$729.99

List price $1499.99

VCW102_KX1200.1_TC6KIT-0B_BBIC5_MDFD10 small

Two 10" NVX Subs + Kicker Amp Upgrade Bundle w/ Sub Box

VCW102 10" Subwoofer + KX1200.1 Monoblock Amplifier + TC6KIT-0B 1/0F OFC Amp Wiring Kit + BBIC5 2-Ch RCA Cable + MDFD10 Dual 10" Sub Box

$630.05

List price $1387.90

10CVX152 small

Kicker 15" CompVX 2 Ohm (10CVX152)

2000W Peak (1000W RMS) 15" CompVX Series Dual 2-ohm Subwoofer

(18)

$299.95

List price $449.95

UD-N2PRS small

Pioneer Premier UD-N2PRS

2-way Passive Crossover Network (works great with TS-M7PRS and TS-T3PRS components)

$99.99

List price $164.99

No picture

American Bass VFL44801D Open Box Complete

4500W VFL Series Class D Mono Hybrid Car Amplifier

$229.99

List price $399.99

05C84-2-PACK small

2-PACK --> Kicker 05C84 8" Comp Series C84

2 AWESOME SUBS FOR THE PRICE OF 1!

$99.95

List price $199.99

SonicElectronix-175-Gift-Card small

$175 e-Gift Card at Sonic Electronix

Digital e-Gift Card for value of $175 applies electronically to account

$175.00

List price $175.00

S2000.1 small

Cerwin-Vega S2000.1 - STROKER 2000.1

2000W STROKER Series Monoblock Amplifier (S2000.1, Stroker-2000.1)

(1)

$549.99

List price $699.99

HAC-1500.1D small

Hifonics HAC-1500.1D Colossus Pro

1500W Peak Class D Colossus Pro Series Monoblock Car Amplifier with Bass Remote

$249.99

List price $449.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 GMC Sierra 2500

2017 Audi A7 Quattro

2012 Subaru Legacy

1994 Ford Explorer

2002 GMC Envoy XL

2012 Chevrolet Equinox

2013 Subaru Outback

2014 Toyota Sienna

2020 Audi Q5 PHEV

2004 Subaru Forester

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
