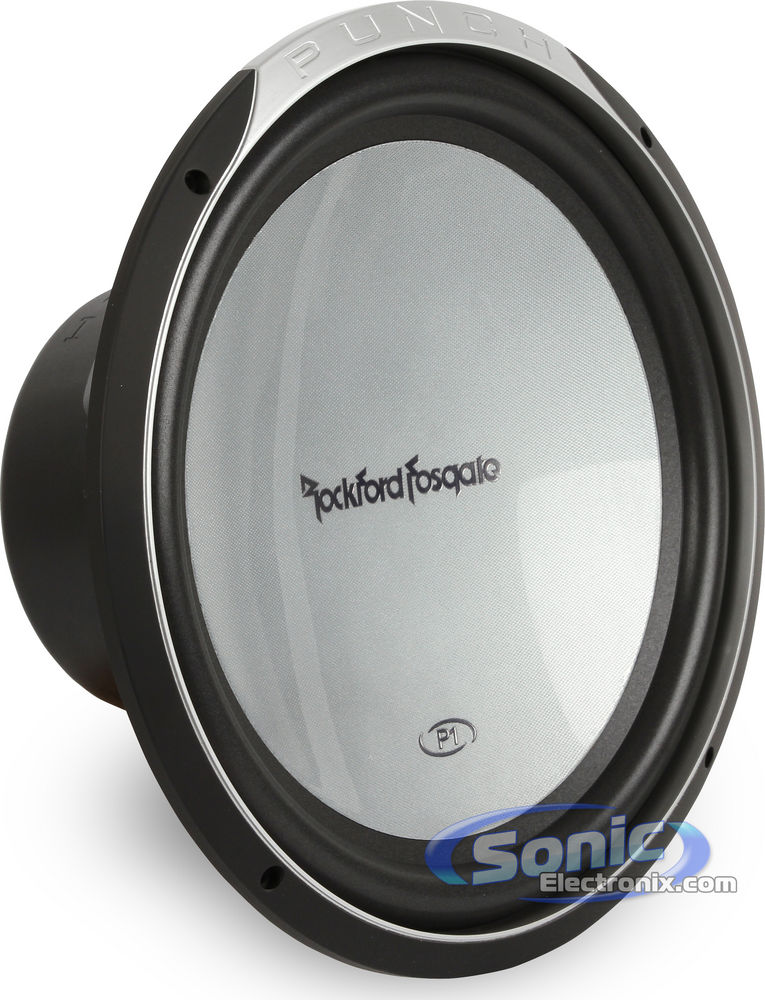

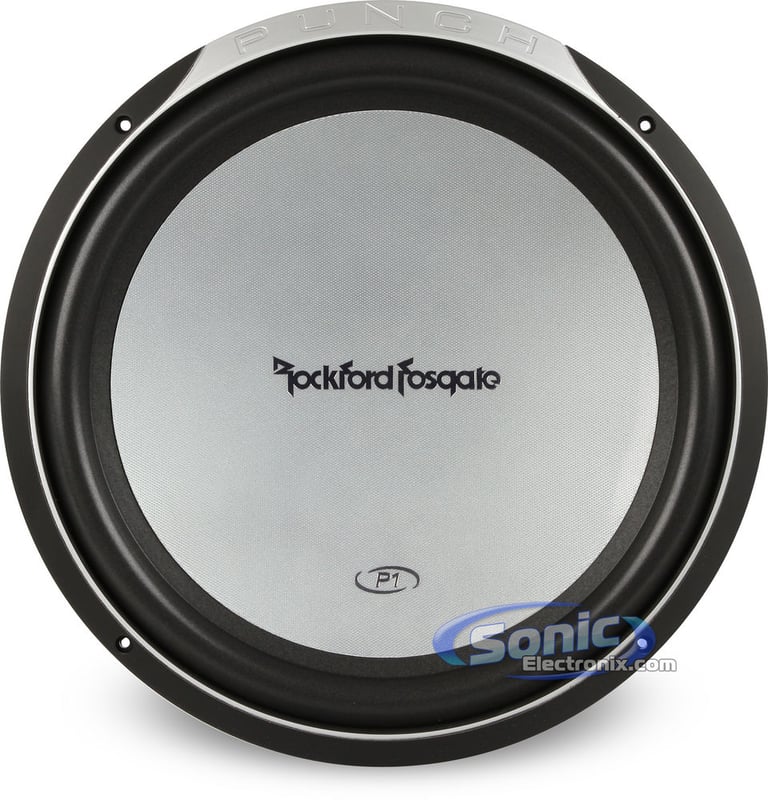

Rockford Fosgate Punch P1S815 (09P1S815)

15" Single 8 ohm Punch Stage 1 Subwoofer

Product videos
highlight-star-icon

15" Punch Series Stage 1 Subwoofer • 400W Max • 200W RMS • Thermoformed Polypropylene Cone • Poly-foam Surround • 1.5" 6-Layer high-temp 8 ohm voice coil with spun-laced Nomex® reinforced collar • 54oz. magnet

Learn more about the 09p1s815

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

p1s215 thumbnail

Rockford Fosgate Punch P1S2-15

OUR PRICE: $159.99

View item

Product Highlights


15" Punch Series Stage 1 Subwoofer • 400W Max • 200W RMS • Thermoformed Polypropylene Cone • Poly-foam Surround • 1.5" 6-Layer high-temp 8 ohm voice coil with spun-laced Nomex® reinforced collar • 54oz. magnet

Description


Rockford Fosgate brand icon

Authorized dealer

  • 15" Punch Series Stage 1 Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts

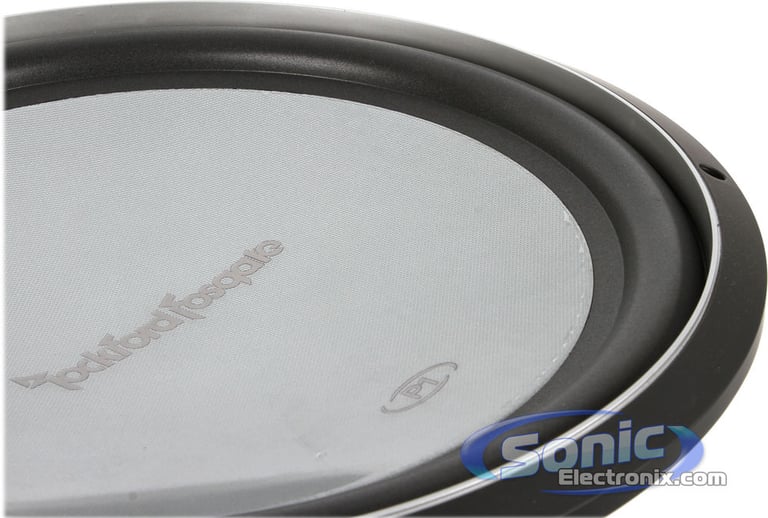

  • Thermoformed Polypropylene Cone
  • Poly-foam Surround

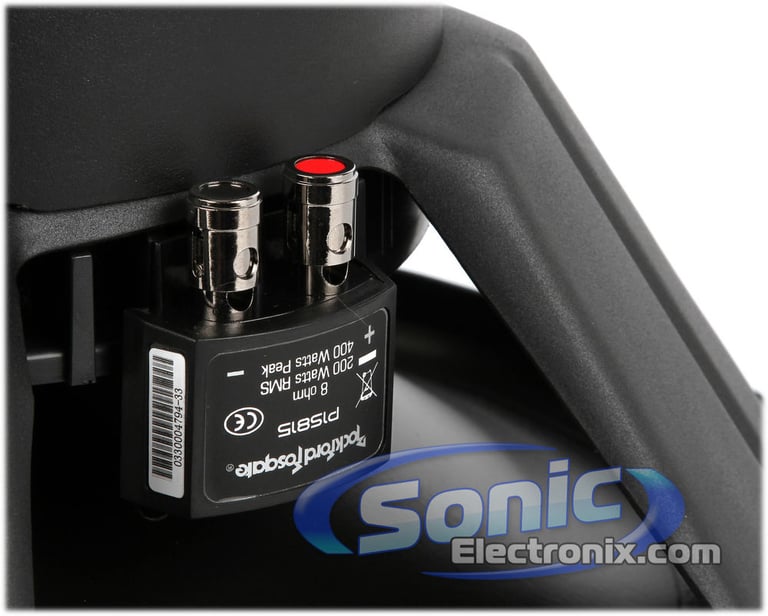

  • Custom 10-AWG nickel plated push terminals
  • Linear spider with embedded 16 AWG tinsel leads
  • Protective PVC textured magnet cover
  • Reversable ABS trim ring
  • Parabolic injection molded ABS/Acrylic dustcap
  • 1.5" 6-Layer high-temp 8 ohm voice coil with spun-laced Nomex® reinforced collar
  • 54oz. magnet
  • Frequency response: 24-250 Hz
  • Sensitivity: 87 dB
  • 1-year SonicElectronix.com warranty

Product history:

Rockford Fosgate P1S2-15 thumbnail
(newest, current model)
Rockford Fosgate P1S8-15 thumbnail
(previous model, replaced by Rockford Fosgate Punch P1S2-15)
Rockford Fosgate P1S815 thumbnail
(previous model, replaced by Rockford Fosgate P1S8-15 (11P1S815))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P1S815 (09P1S815) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P1S815 (09P1S815) Subwoofers

Mono Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P1S815 (09P1S815) Subwoofers

Mono Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P1S815 (09P1S815) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Specifications & Details


Subwoofer Specifications
Subwoofer Size
15"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohms
Frequency Response
24 - 250 Hz
Sensitivity
87 dB
Xmax (millimeters)
9-1/2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Thermoformed Polypropylene
Woofer Surround
Poly-Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.30 cubic feet
Maximum Sealed Box Volume
3.50 cubic feet
Minimum Ported Box Volume
2.66 cubic feet
Maximum Ported Box Volume
2.66 cubic feet
Top-Mount Depth (Mounting Depth)
6-7/8"
Cutout Diameter
13-7/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P1S815

Weight:

17.00lbs

Internal SKU:

09p1s815

Internal Product ID:

8900
