See all parts that fit your 1996 Trooper

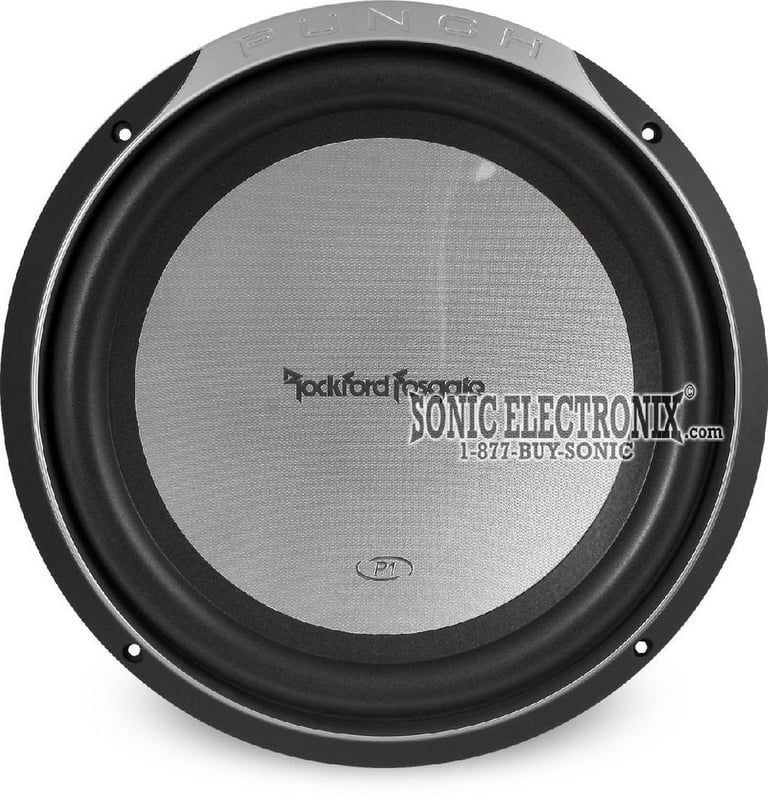

Rockford Fosgate Punch P1S415 (09P1S415)

15" Single 4 ohm Punch Stage 1 Subwoofer

Product videos
highlight-star-icon

15" Punch Series Stage 1 Subwoofer • 400W Max • 200W RMS • Thermoformed Polypropylene Cone • Poly-foam Surround • 1.5" 6-Layer high-temp 4 ohm voice coil with spun-laced Nomex® reinforced collar • 54oz. magnet

Learn more about the 09p1s415

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

Product Highlights


15" Punch Series Stage 1 Subwoofer • 400W Max • 200W RMS • Thermoformed Polypropylene Cone • Poly-foam Surround • 1.5" 6-Layer high-temp 4 ohm voice coil with spun-laced Nomex® reinforced collar • 54oz. magnet

Description


Rockford Fosgate brand icon

Authorized dealer

  • 15" Punch Series Stage 1 Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Thermoformed Polypropylene Cone
  • Poly-foam Surround
  • Custom 10-AWG nickel plated push terminals
  • Linear spider with embedded 16 AWG tinsel leads
  • Protective PVC textured magnet cover
  • Reversable ABS trim ring
  • Parabolic injection molded ABS/Acrylic dustcap
  • 1.5" 6-Layer high-temp 4 ohm voice coil with spun-laced Nomex® reinforced collar
  • 54oz. magnet
  • Frequency response: 24-250 Hz
  • Sensitivity: 87 dB
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P1S415 (09P1S415) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P1S415 (09P1S415) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P1S415 (09P1S415) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P1S415 (09P1S415) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
15"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
24 - 250 Hz
Sensitivity
87 dB
Xmax (millimeters)
9.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Thermoformed Polypropylene
Woofer Surround
Poly-Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.30 cubic feet
Maximum Sealed Box Volume
3.50 cubic feet
Minimum Ported Box Volume
2.66 cubic feet
Maximum Ported Box Volume
2.66 cubic feet
Top-Mount Depth (Mounting Depth)
6-7/8"
Cutout Diameter
13-7/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P1S415

Weight:

17.00lbs

Internal SKU:

09p1s415

Internal Product ID:

8901

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Rockford Fosgate Punch P1S415 (09P1S415) thumbnail image

5 star
71%
4 star
29%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.3
Design
4.2
Usability
5

Customer Reviews

Sort by:

Loading...

dang

beats like crazy. friend of mine has 2 and they just shakes the whole truck, nobody around here can out do him

By atl on February 11, 2010

6 found this helpful


The Truth

These subs are the best Ive run across. Happened to come across a free 1 and decided to buy the other from this site. Powered by a Phoenix Gold ,1000 watt amp these subs made me a believer in less than 20mins of play. a while back my rear view fell off and i used a glue that was so strong you could only get it off by breaking the glass. Well ruffly 20 mins of play and the "TWINS" made me an RF customer for life. they took a descent chunk out the glass, bout the size of a nickel. this never even happened with my kicker l5 r.i.p.. Dont sleep on these subs. TRUE STORY ---Basshead

By Black Elite-2003 buick regal ls on April 28, 2010

3 found this helpful


Rockfordfosgate Subs

These subs are awesome cheap but sounds great buy them i have 2 of them they pound hard

By Brad on January 29, 2010

3 found this helpful


GOOD SUBS.

MY UNCLE HAS TWO OF THIS IN HIS BURBAN AND THEY SOUND LOUD BUT DONT HIT HARD. THEY LAST LONG. BUT IF YOU WANT HARD HITTING SUBS GET P3S OR CVRS.

By FRANK on June 30, 2009

2 found this helpful


good priced

I recommend these to anyone who wants less expensive good quality subs.

By john on December 2, 2010

2 found this helpful


Great Subs

These subs are outstanding. I own four of them powered by an Orion 180 RMS x 4 and they pound hard. They stay going after long beats also. They resound nicely, look great, and are very affordable. I would highly recommend this to anyone (if you have the room)

By Austy on January 14, 2010

1 found this helpful


Fosgate, what more do I need to say.

Really? It's a Fosgate 15" sub. It pounds. It rocks, It's Fosgate. End of story.

By Shane on March 16, 2010
