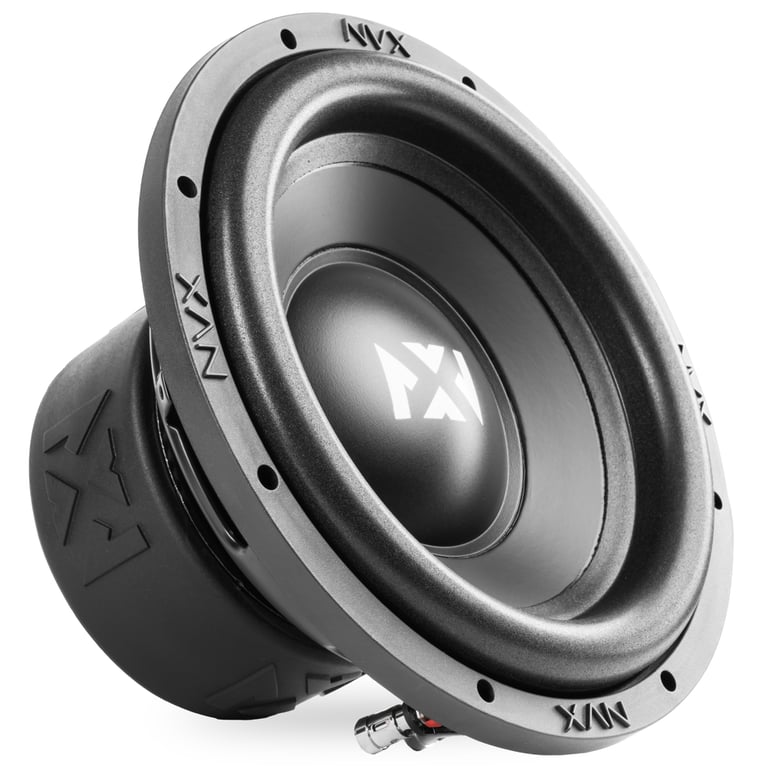

NVX NSW102v2 (NSW102 v2) - Open Box, Very Good Condition (Used)

350W 10" N-Series V2 Dual 2-Ohm Car Subwoofer

NVX
Shop all NVX
highlight-star-icon

• RMS Power: 200-350W
• Ultra-Light Non Pressed Paper Cone
• Custom Blended Foam Surround

Learn more about the LS-nsw102v2-OBC6

We apologize

This item has been discontinued

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.


Wallet Friendly N-Series Power

The NVX N-Series subwoofers offer top-notch sound quality at an entry level price. The NSW102V2 is a great multi-purpose sub that has been engineered to meet the highest audio standards. The stiff, ultra light non pressed paper cone allows the N-Series subs to give you accurate and responsive low-end even when you have your system blasting. The custom blended high roll foam surround allows for greatly improved excursion for further improved sound quality. The 2" dual 4-ohm high temperature aluminum voice coil gives you a wide array of Ohm load wiring options for different applications. With an RMS Power Range of 200-350 watts, the NSW102V2 requires less power to operate efficiently without losing bass quality.

Continuing with the excellent engineering is a stamped steel basket that provides exceptional rigidity while minimizing any unwanted distortion. The N-Series subwoofers also include spring-loaded, chrome plated push terminals that provide an easy and secure speaker wire connection. NVX's mission was to create an exceptional subwoofer at an entry-level price without sacrificing the quality and sound that the consumer deserves. They have succeeded!



Severed Ties Toyota Show Truck
(NVX at Slamology 2015)



General Features:

  • 10" Dual 2-Ohm N-Series Subwoofer
  • Power Handling:
    • RMS: 200-350 watts

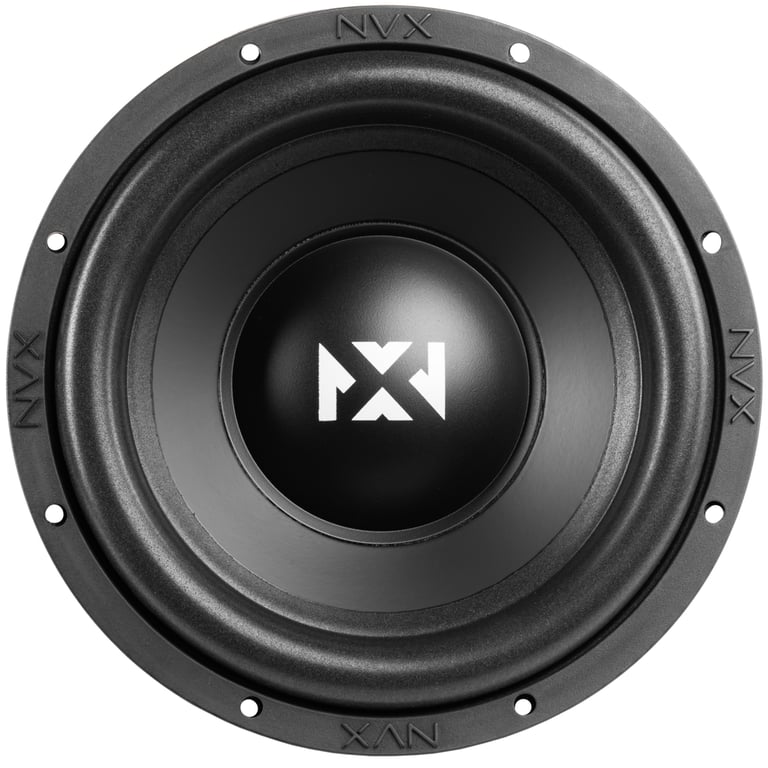

  • Ultra-Light Non Pressed Paper Cone ensures accurate, responsive performance even at high volume levels

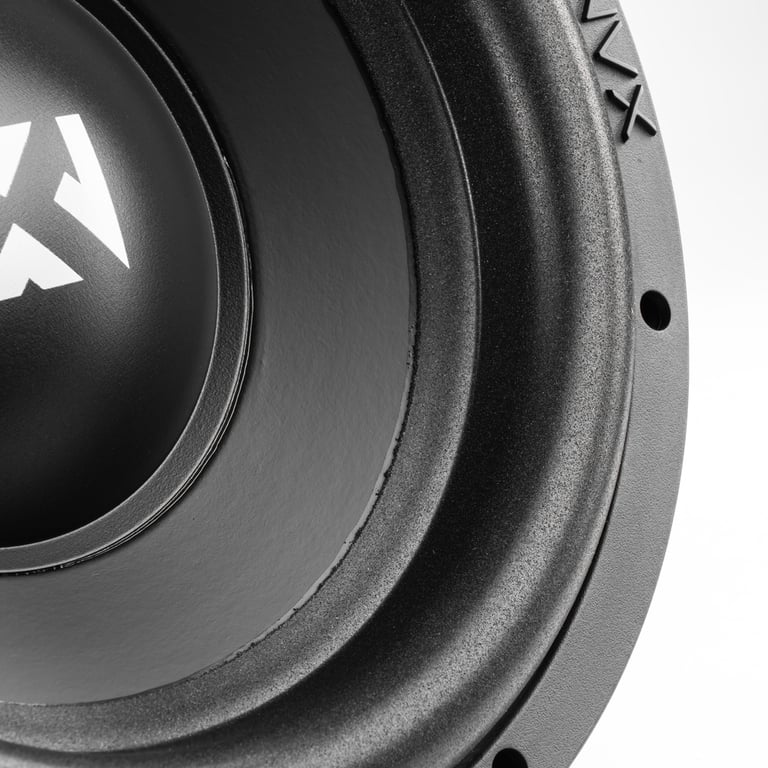

  • Custom Blended High-Roll Foam Surround for extended excursion

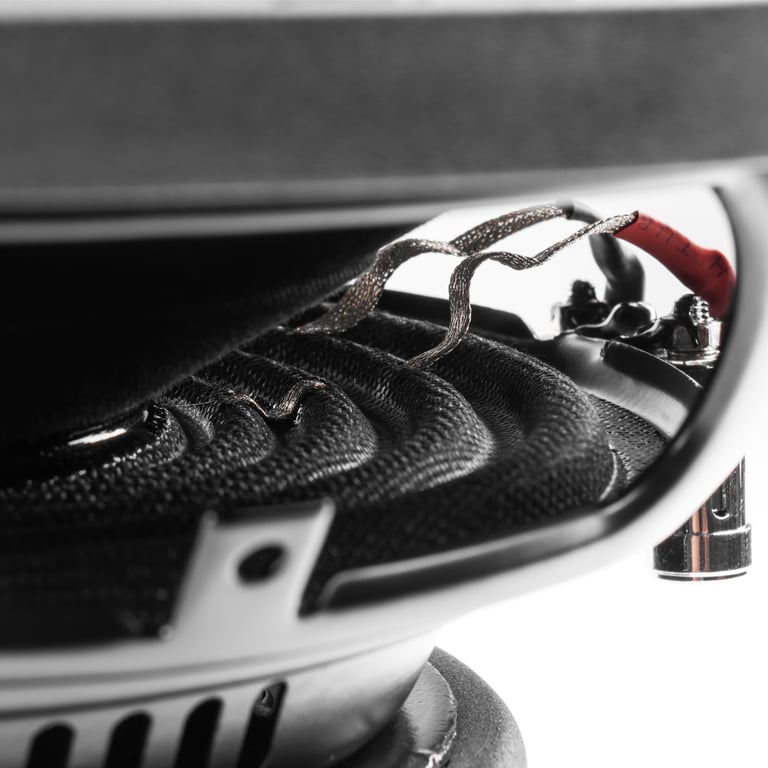

  • Specially designed high excursion strain-relieved tinsel leads
  • 2” High Temperature Aluminum Voice Coil
  • Top-mount depth: 4.20"
  • Frequency Response: 20 - 200Hz
  • Sensitivity: 84.8 dB
  • High strength steel basket retains exceptional rigidity to minimize distortion

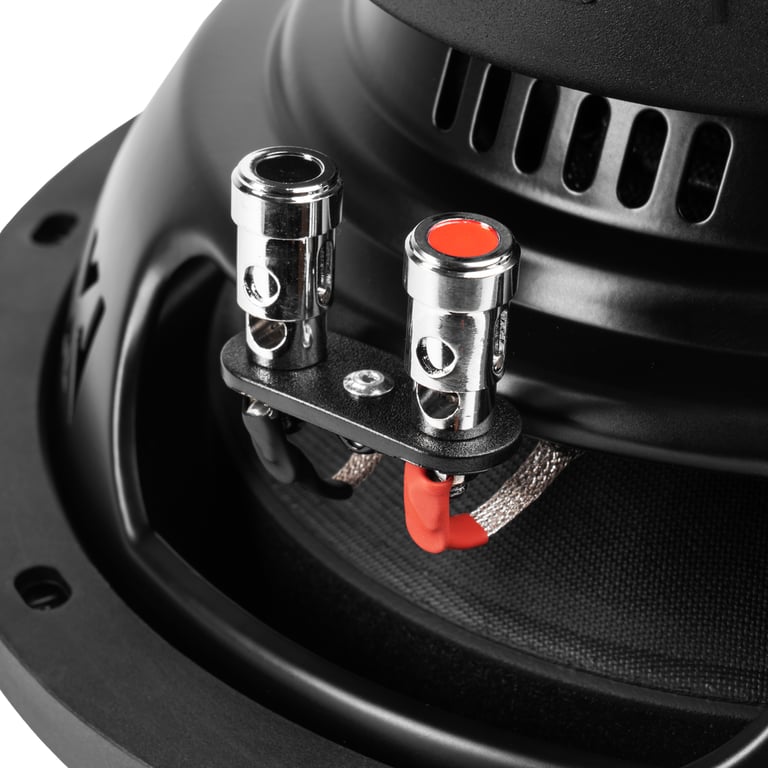

  • Chrome plated, spring loaded push terminals for easy, secure installations
  • High energy ferrite magnet motor structure allows for greater power handling and voice coil control during high excursions
  • Subwoofer grille sold separately - NV10GR
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Enclosure Recommendations:

  • Ported Enclosure:
    • Recommended Volume: 1.25 ft3
    • Tuning Frequency: 34 Hz
    • Ideal Power RMS: 300W
    • F3 (Hz): 31
  • Sealed Enclosure:
    • Recommended Volume: .75 ft3
    • Ideal Power RMS: 350W
    • F3 (Hz): 43
    • FC (Hz): 49
    • QTC: 0.862
Tips for Installing the your NVX NSW102V2 subwoofer


Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX NSW102v2 (NSW102 v2) - Open Box, Very Good Condition (Used) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX NSW102v2 (NSW102 v2) - Open Box, Very Good Condition (Used) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX NSW102v2 (NSW102 v2) - Open Box, Very Good Condition (Used) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 NVX NSW102v2 (NSW102 v2) - Open Box, Very Good Condition (Used) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
N Series
Subwoofer Size
10"
Peak Power Handling
700 watts
RMS Power Handling
350 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2"
Frequency Response
20 - 200 Hz
Sensitivity
84.8 dB
Xmax (millimeters)
8.1 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Optimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
4.20"
Cutout Diameter
9.06"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36.40 Hz
Equivalent Compliance (Vas)
17.32 liters
Total Speaker Q Value (Qts)
0.640
Electrical Q Value (Qes)
0.730
Electrical Resistance of Voice Coil (Re)
3.46 ohm
Mechanical Q Value (Qms)
8.151
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

NSW102V2-3

Weight:

11.01lbs

Internal SKU:

LS-nsw102v2-OBC6

Internal Product ID:

137191
