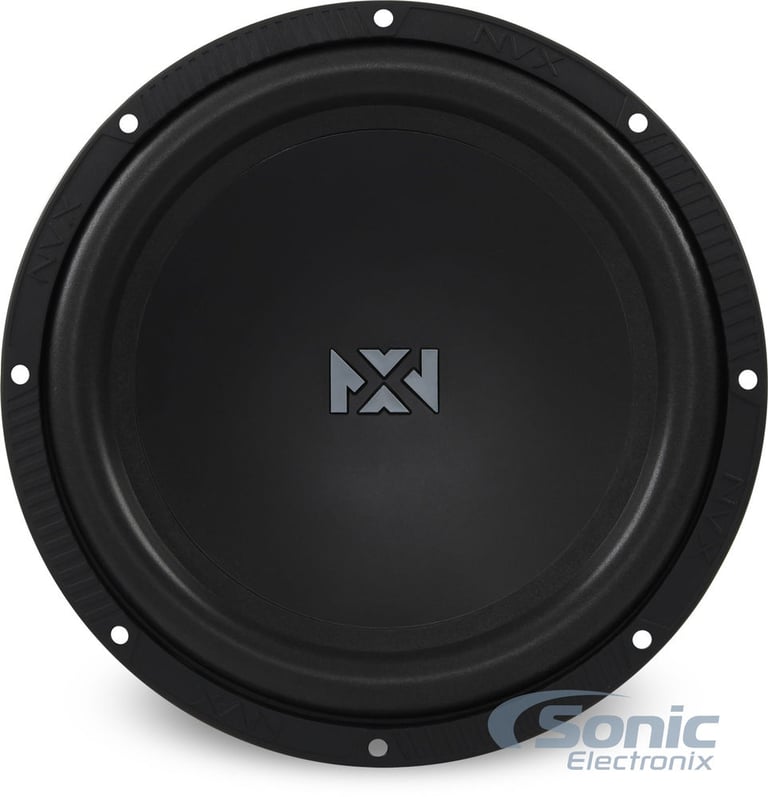

NVX NSW122v2 (NSW122 v2) LIKE NEW DAMAGED PACKAGING

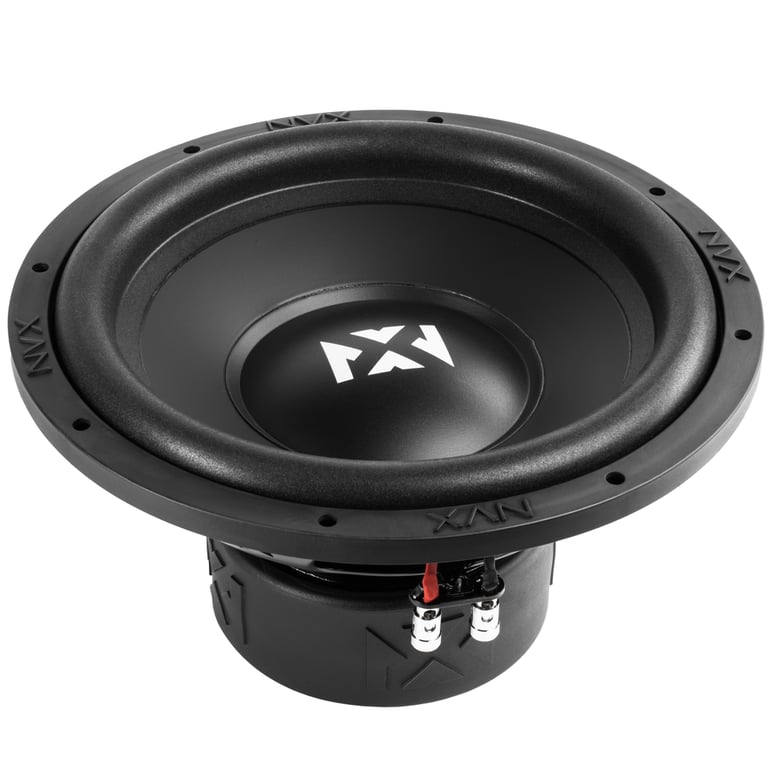

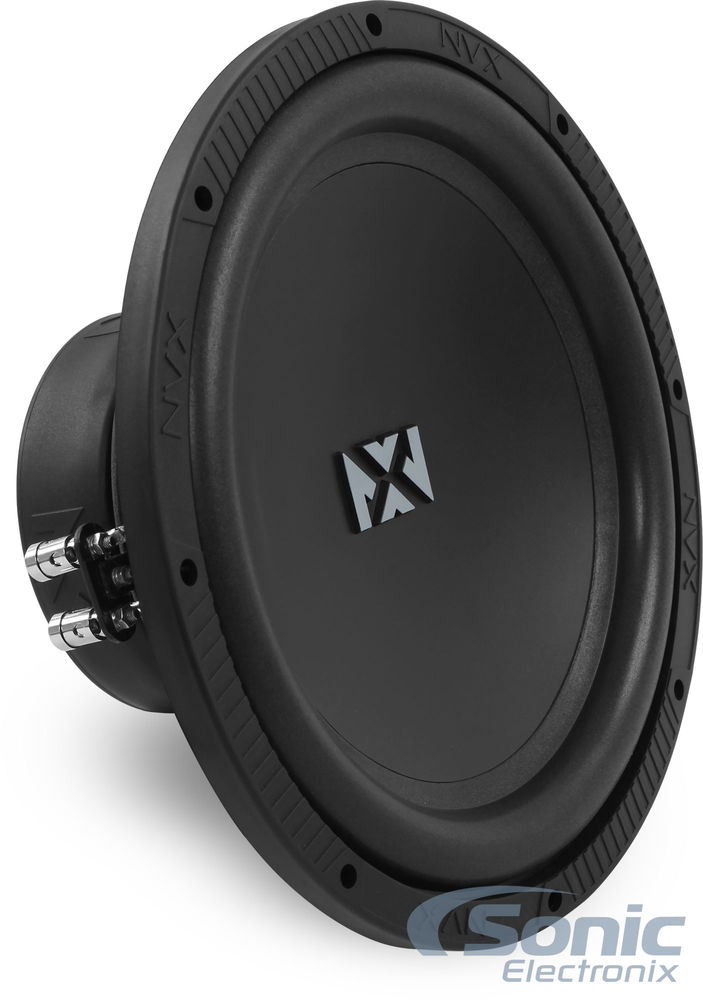

350W N-Series V2 12" Dual 2-Ohm Car Subwoofer

NVX
Shop all NVX
Product videos
highlight-star-icon

Like new Damaged Package
• RMS Power: 200-350W
• Ultra-Light Non Pressed Paper Cone
• Custom Blended Foam Surround

Learn more about the LS-nsw122v2-LNDP

We apologize

This item has been discontinued

Product Highlights


Like new Damaged Package
• RMS Power: 200-350W
• Ultra-Light Non Pressed Paper Cone
• Custom Blended Foam Surround

Description


NVX brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)



Wallet Friendly N-Series Power

The NVX N-Series subwoofers offer top-notch sound quality at an entry level price. The NSW122V2 is a great multi-purpose sub that has been engineered to meet the highest audio standards. The stiff, ultra light non pressed paper cone allows the N-Series subs to give you accurate and responsive low-end even when you have your system blasting. The custom blended high roll foam surround allows for greatly improved excursion for further improved sound quality. The 2" dual 4-ohm high temperature aluminum voice coil gives you a wide array of Ohm load wiring options for different applications. With an RMS Power Range of 200-350 watts, the NSW122V2 requires less power to operate efficiently without losing bass quality.

Continuing with the excellent engineering is a stamped steel basket that provides exceptional rigidity while minimizing any unwanted distortion. The N-Series subwoofers also include spring-loaded, chrome plated push terminals that provide an easy and secure speaker wire connection. NVX's mission was to create an exceptional subwoofer at an entry-level price without sacrificing the quality and sound that the consumer deserves. They have succeeded!



Severed Ties Toyota Show Truck
(NVX at Slamology 2015)



Item Condition: Like New

  • Like new Damaged Package:
    • General Features:

      • 12" Dual 2-Ohm N-Series Subwoofer
      • Power Handling:
        • RMS: 350 watts
      • Recommended power range: 200 - 350 watts RMS

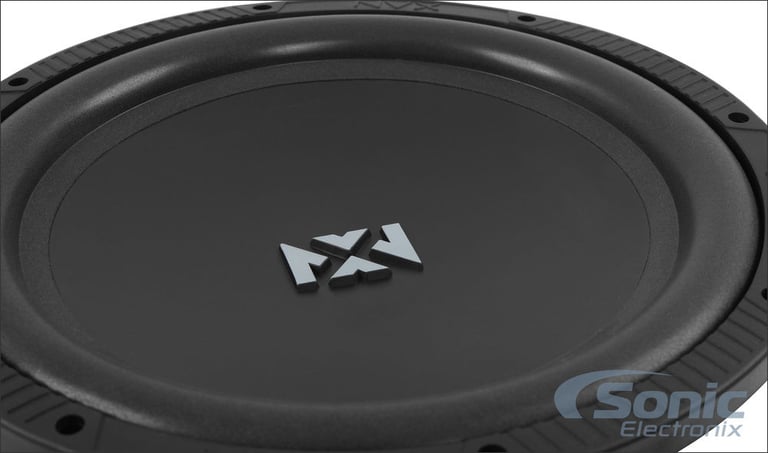

      • Ultra-Light Non Pressed Paper Cone ensures accurate, responsive performance even at high volume levels

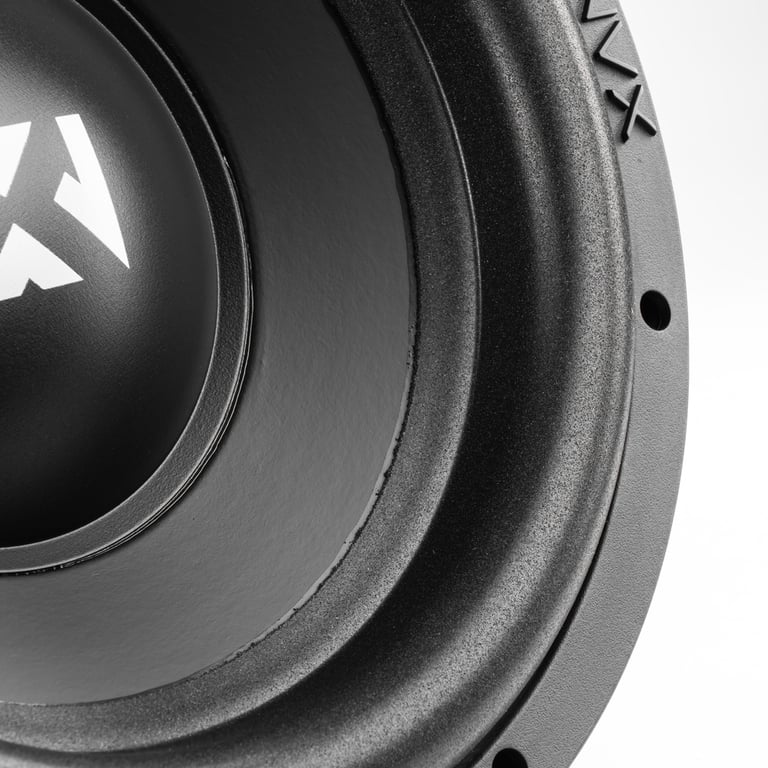

      • Custom Blended High-Roll Foam Surround for extended excursion

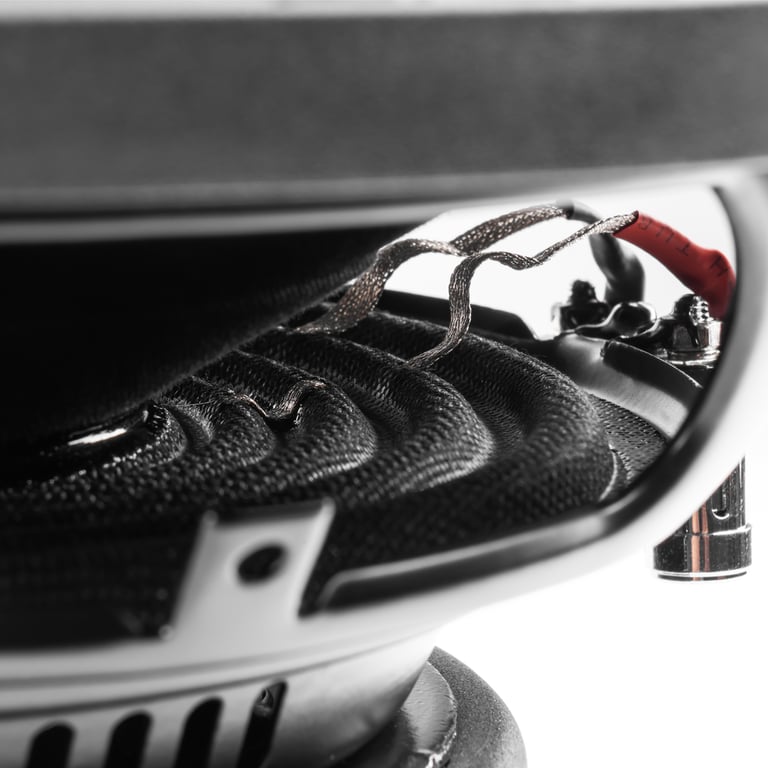

      • Specially designed high excursion strain-relieved tinsel leads
      • 2" High Temperature Aluminum Voice Coil
      • Top-mount depth: 5.01"
      • Frequency Response: 20 - 200Hz
      • Sensitivity: 86.9 dB

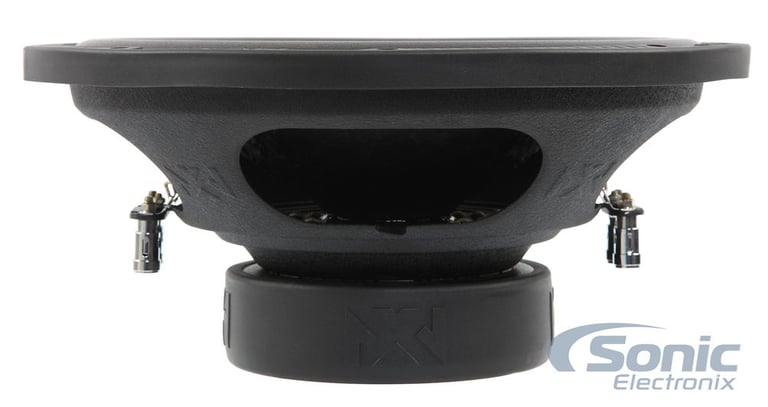

      • High strength steel basket retains exceptional rigidity to minimize distortion

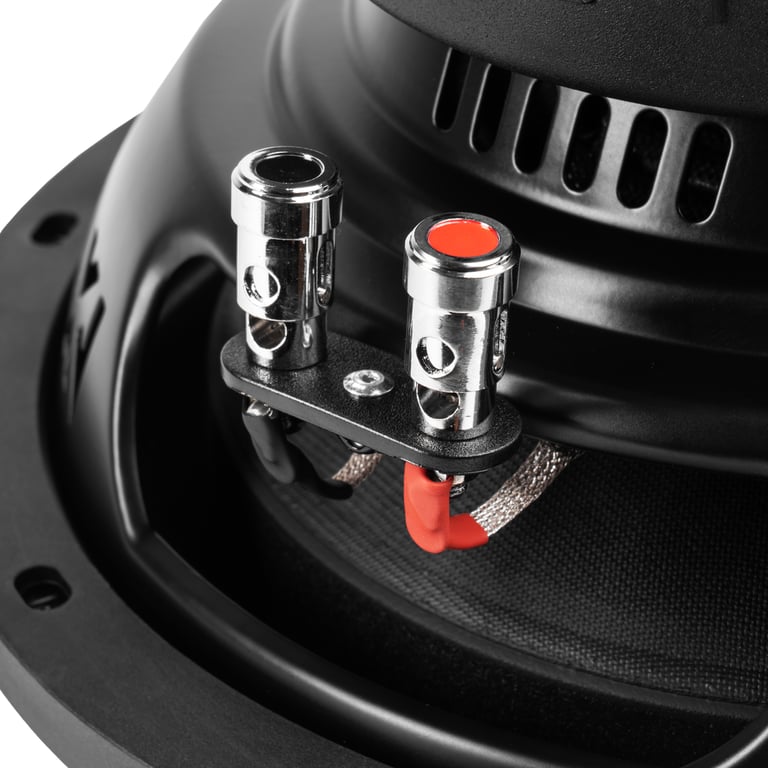

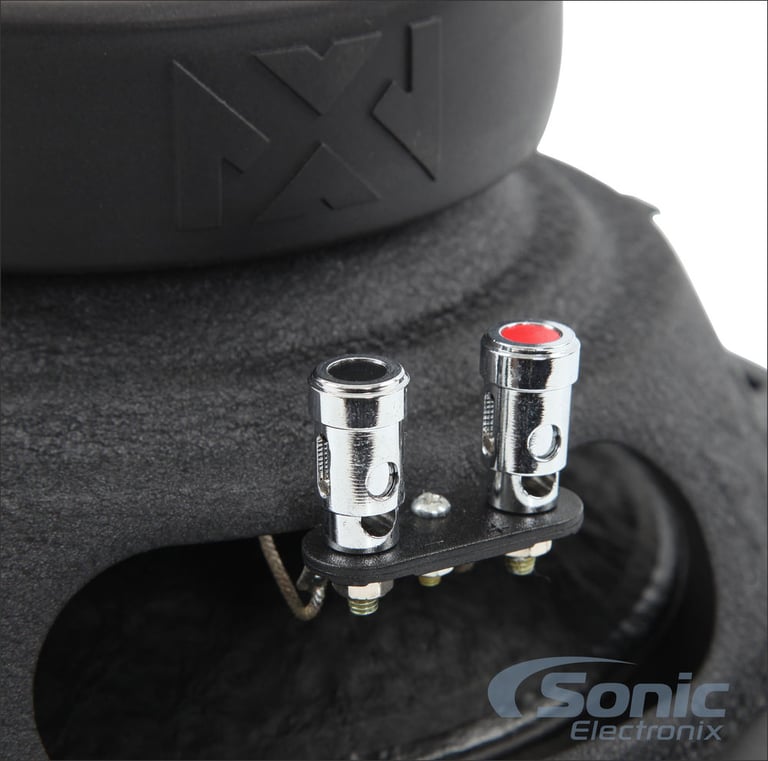

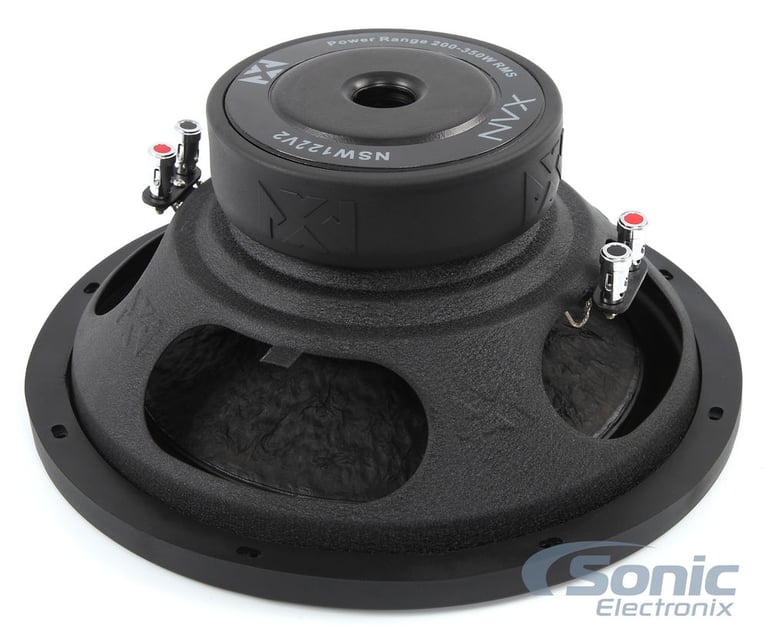

      • Chrome plated, spring loaded push terminals for easy, secure installations
      • High energy ferrite magnet motor structure allows for greater power handling and voice coil control during high excursions
      • Authorized Internet Dealer
      • 1-year Manufacturer's Warranty

      Enclosure Recommendations:

      • Ported Enclosure:
        • Recommended Volume: 1.75 ft3
        • Tuning Frequency: 36 Hz
        • Ideal Power RMS: 350W
        • F3 (Hz): 41
      • Sealed Enclosure:
        • Recommended Volume: 1.25 ft3
        • Ideal Power RMS: 350W
        • F3 (Hz): 47
        • FC (Hz): 55
        • QTC: 0.941
        Tips for Installing the your NVX NSW122V2 subwoofer


    Subwoofer Wiring Guide


    Wiring Guide to Wire 1 NVX NSW122v2 (NSW122 v2) LIKE NEW DAMAGED PACKAGING Subwoofer

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 NVX NSW122v2 (NSW122 v2) LIKE NEW DAMAGED PACKAGING Subwoofers

    Mono Amp

    2 Channel Amp

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 NVX NSW122v2 (NSW122 v2) LIKE NEW DAMAGED PACKAGING Subwoofers

    Mono Amp

    Mono Amp - Option 1

    4 Channel Amp

    Wiring Guide to Wire 4 NVX NSW122v2 (NSW122 v2) LIKE NEW DAMAGED PACKAGING Subwoofers

    2 Channel Amp

    4 Channel Amp

    Specifications & Details


    Subwoofer Specifications
    Series
    N Series
    Subwoofer Size
    12"
    Peak Power Handling
    700 watts
    RMS Power Handling
    350 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    2 ohm
    Voice Coil Diameter
    2"
    Frequency Response
    20 - 200 Hz
    Sensitivity
    86.9 dB
    Xmax (millimeters)
    10.2 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Non-Pressed Paper
    Woofer Surround
    Foam
    Subwoofer Grille
    No
    Re-Cone Kit Available
    No
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Optimum Sealed Box Volume
    1.25 cubic feet
    Optimum Ported Box Volume
    1.75 cubic feet
    Top-Mount Depth (Mounting Depth)
    5.01"
    Cutout Diameter
    10.83"
    Shallow Mount Installation
    No
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    34.5 Hz
    Equivalent Compliance (Vas)
    54.57 liters
    Total Speaker Q Value (Qts)
    0.590
    Electrical Q Value (Qes)
    0.660
    Electrical Resistance of Voice Coil (Re)
    3.46 ohm
    Mechanical Q Value (Qms)
    5.75
    Efficiency Bandwidth Product (EBP)
    52
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    NVX

    Model Number:

    LS-NSW122V2-LNDP

    Weight:

    13.50lbs

    Internal SKU:

    LS-nsw122v2-LNDP

    Internal Product ID:

    116407
