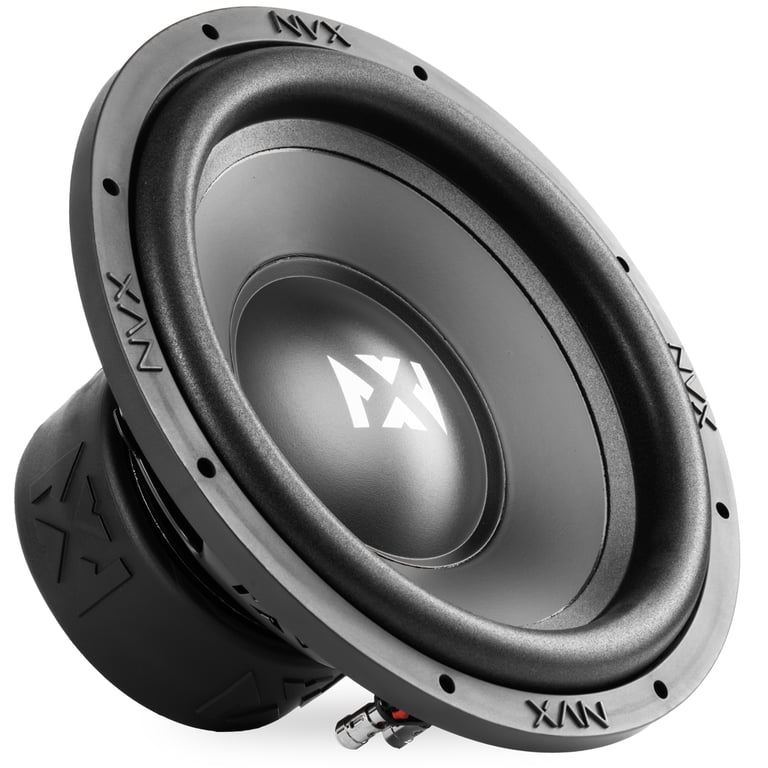

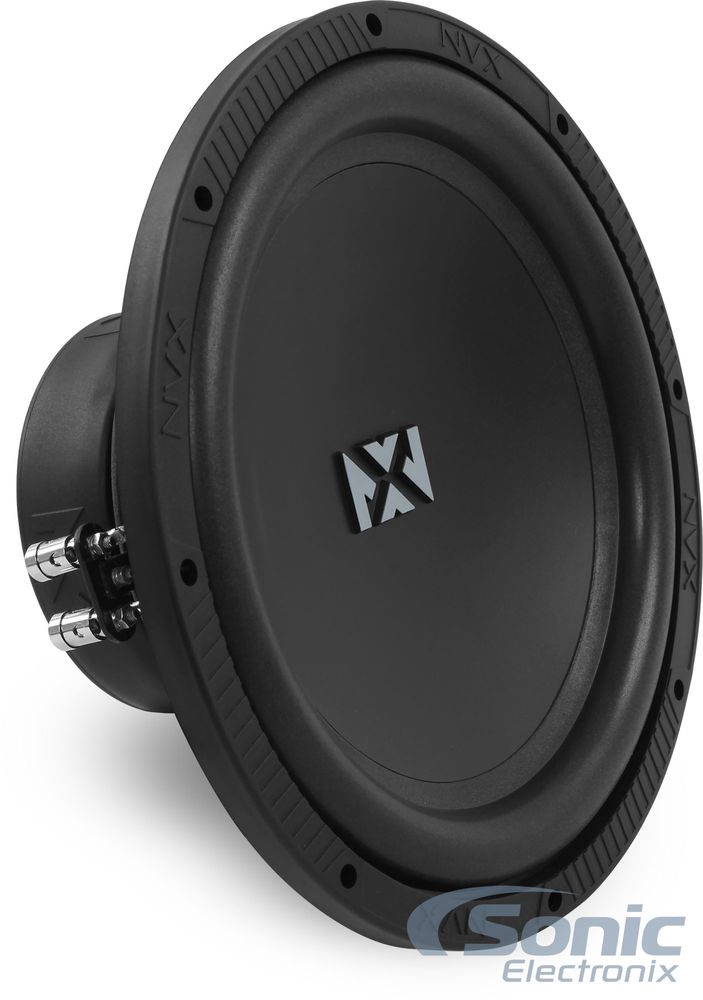

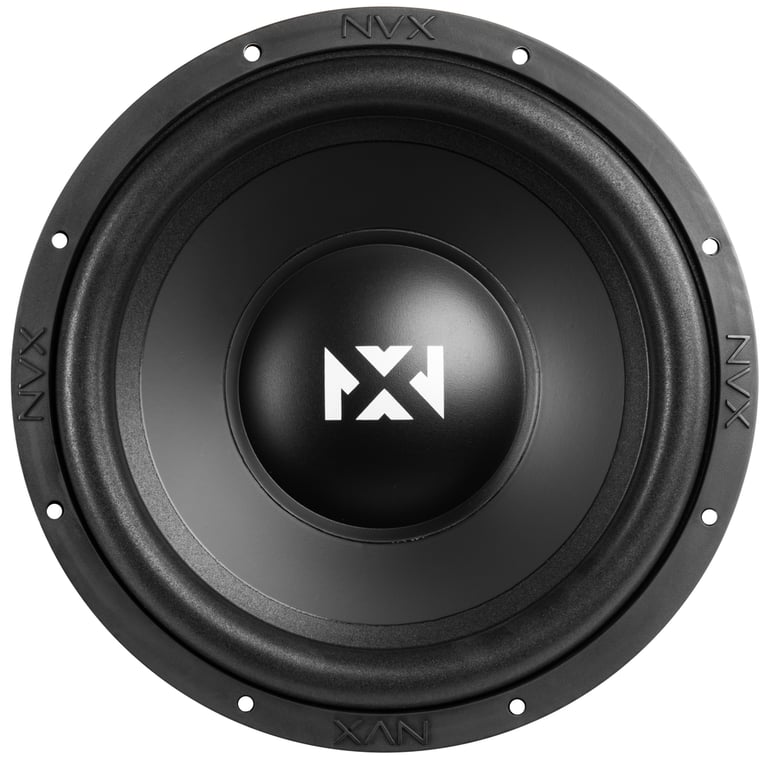

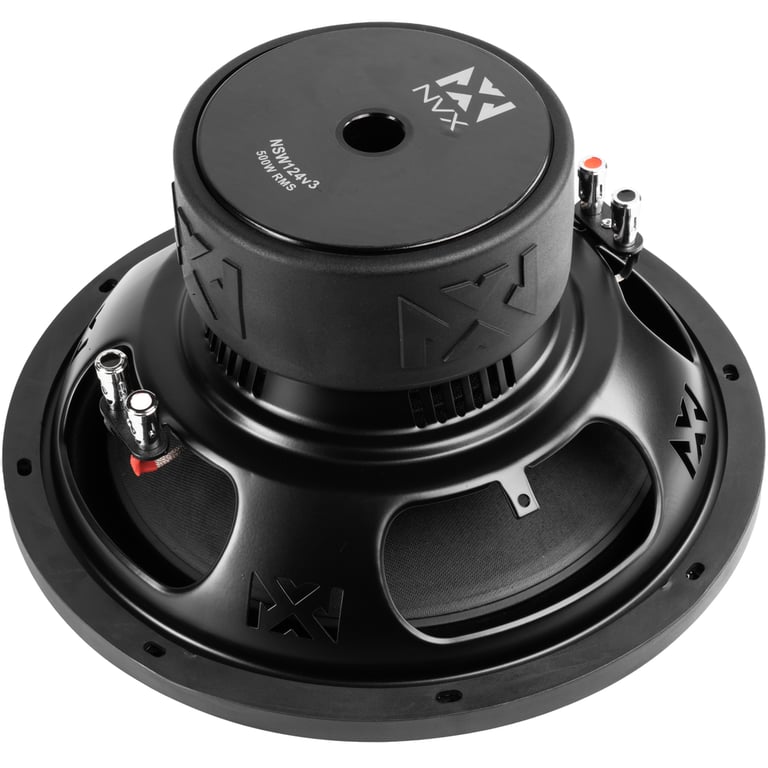

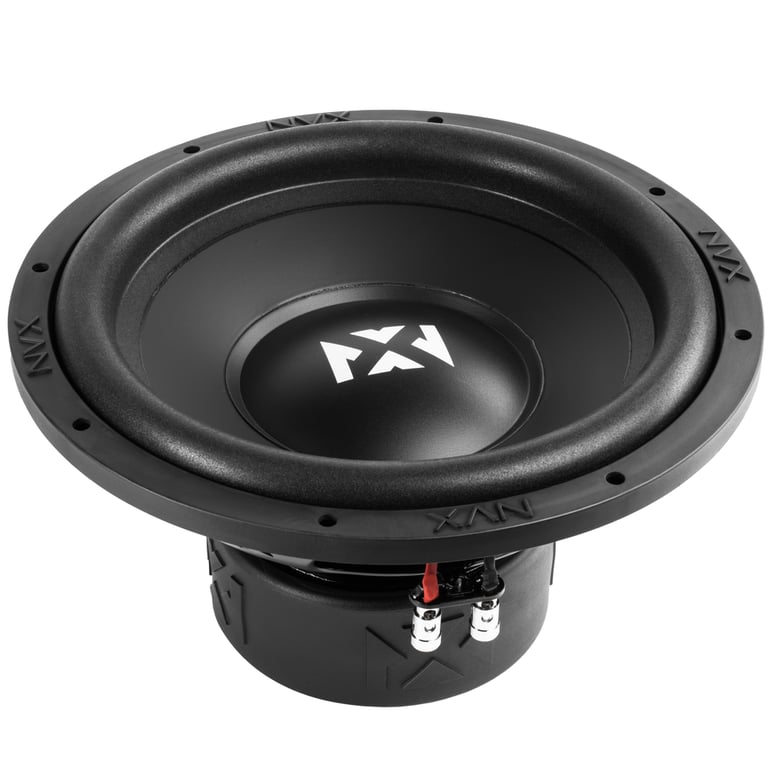

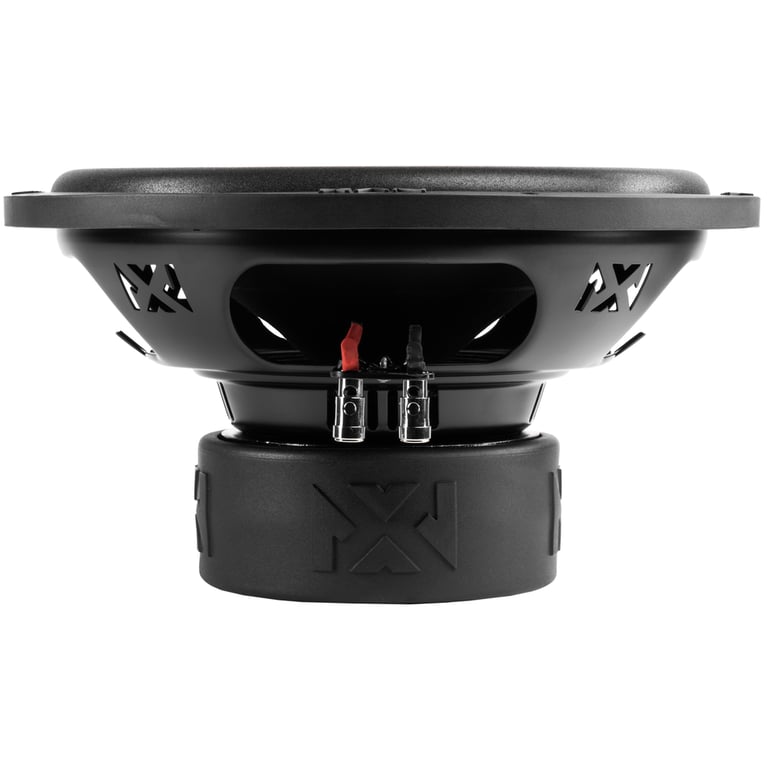

NVX NSW124V2 OPEN BOX COMPLETE

350W 12" N-Series V2 Dual 4-Ohm Car Subwoofer

NVX
Shop all NVX
Product videos
highlight-star-icon

• RMS Power: 200-350W
• Ultra-Light Non Pressed Paper Cone
• Custom Blended Foam Surround

Learn more about the LS-nsw124v2-OBCra223536

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 200-350W
• Ultra-Light Non Pressed Paper Cone
• Custom Blended Foam Surround

Description


NVX brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.


Wallet Friendly N-Series Power

The NVX N-Series subwoofers offer top-notch sound quality at an entry level price. The NSW124V2 is a great multi-purpose sub that has been engineered to meet the highest audio standards. The stiff, ultra light non pressed paper cone allows the N-Series subs to give you accurate and responsive low-end even when you have your system blasting. The custom blended high roll foam surround allows for greatly improved excursion for further improved sound quality. The 2" dual 4-ohm high temperature aluminum voice coil gives you a wide array of Ohm load wiring options for different applications. With an RMS Power Range of 200-350 watts, the NSW124V2 requires less power to operate efficiently without losing bass quality.

Continuing with the excellent engineering is a stamped steel basket that provides exceptional rigidity while minimizing any unwanted distortion. The N-Series subwoofers also include spring-loaded, chrome plated push terminals that provide an easy and secure speaker wire connection. NVX's mission was to create an exceptional subwoofer at an entry-level price without sacrificing the quality and sound that the consumer deserves. They have succeeded!


General Features:

  • Item Condition: Open Box Complete
    • Item has been installed and used
    • Original packaging damaged
    • 12" Dual 4-Ohm N-Series Subwoofer
    • Power Handling:
      • RMS: 200-350 watts
    • Ultra-Light Non Pressed Paper Cone ensures accurate, responsive performance even at high volume levels

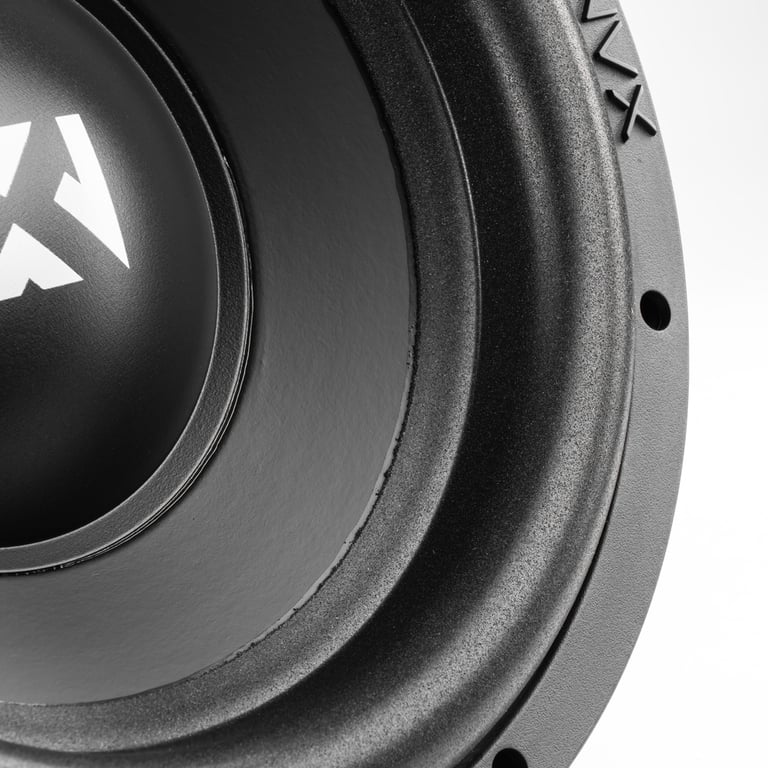

    • Custom Blended High-Roll Foam Surround for extended excursion

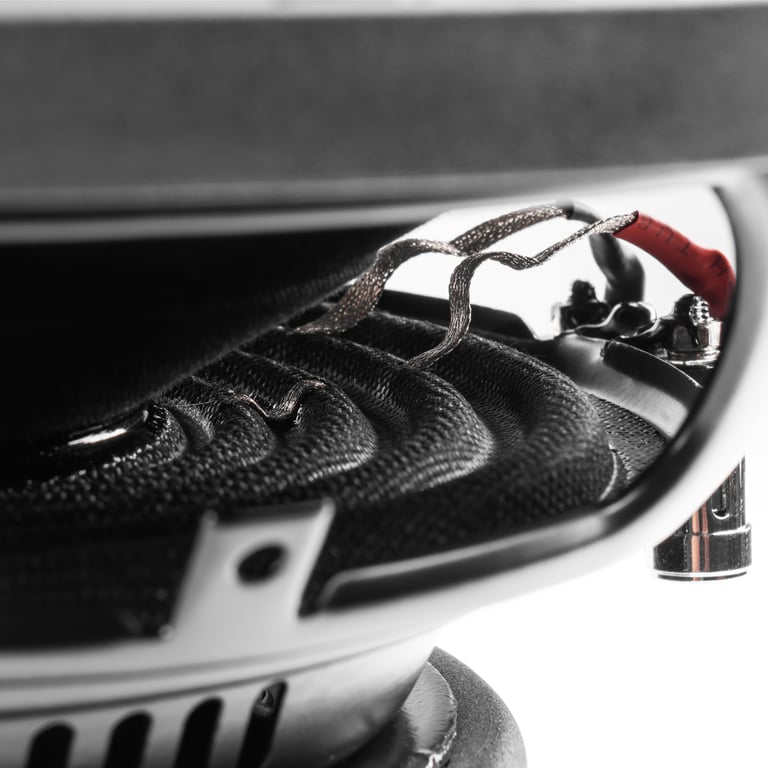

    • Specially designed high excursion strain-relieved tinsel leads
    • 2" High Temperature Aluminum Voice Coil
    • Top-mount depth: 5.01"
    • Frequency Response: 20 - 200Hz
    • Sensitivity: 86.9 dB

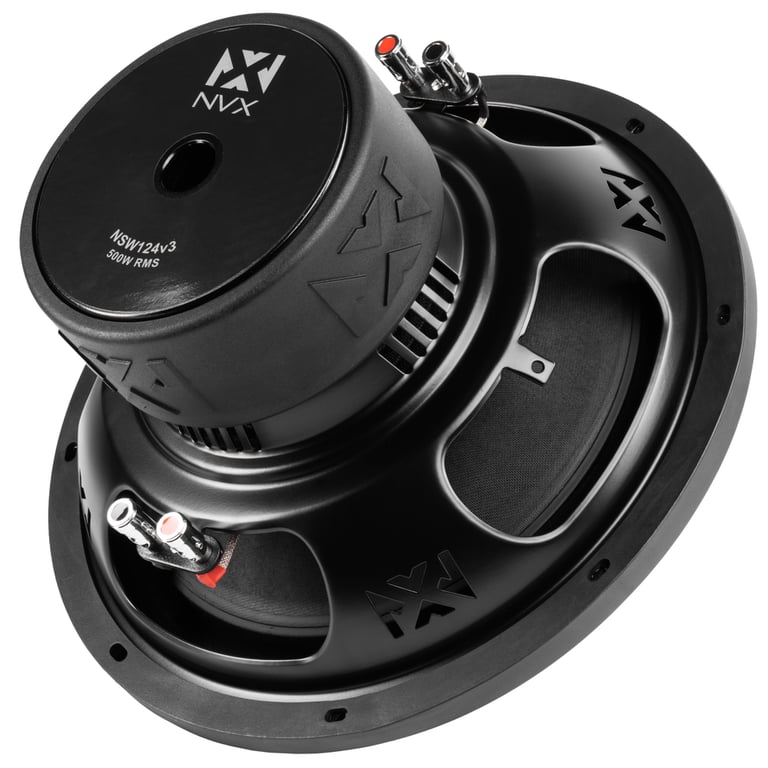

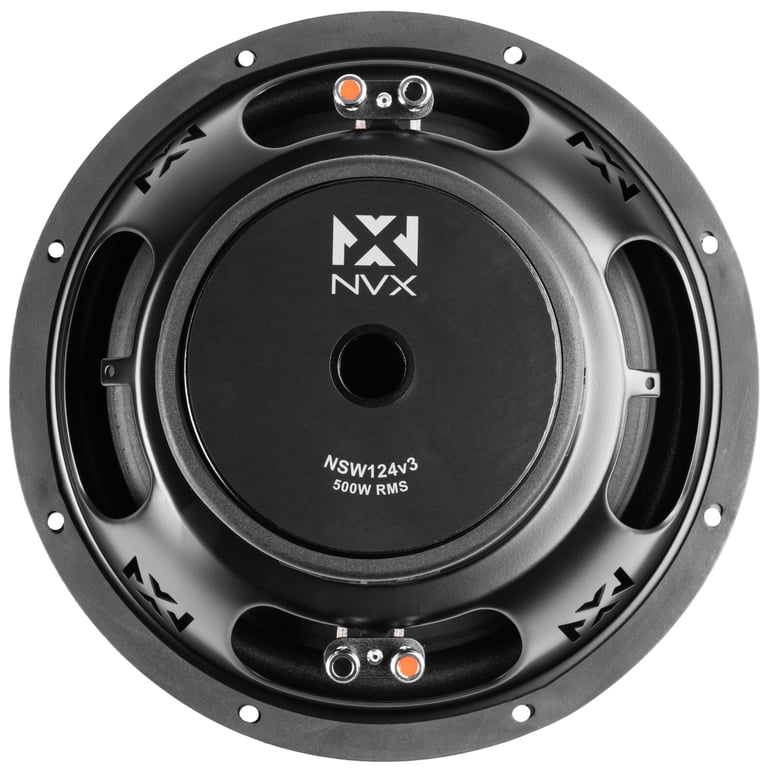

    • High strength steel basket retains exceptional rigidity to minimize distortion

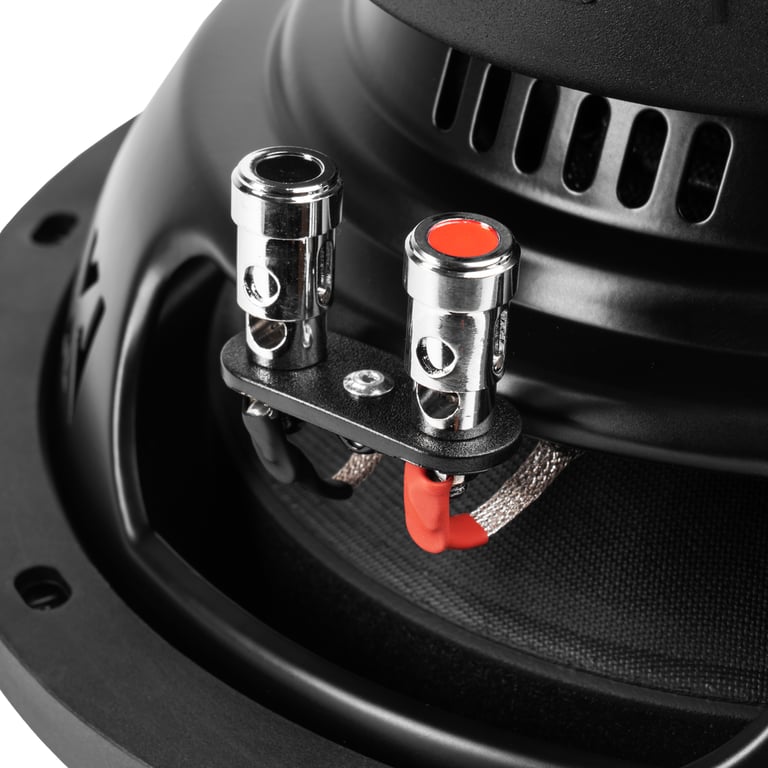

    • Chrome plated, spring loaded push terminals for easy, secure installations
    • High energy ferrite magnet motor structure allows for greater power handling and voice coil control during high excursions
    • Authorized Internet Dealer
    • 1-year Manufacturer's Warranty

    Enclosure Recommendations:

    • Ported Enclosure:
      • Recommended Volume: 1.75 ft3
      • Tuning Frequency: 36 Hz
      • Ideal Power RMS: 350W
      • F3 (Hz): 41
    • Sealed Enclosure:
      • Recommended Volume: 1.25 ft3
      • Ideal Power RMS: 350W
      • F3 (Hz): 47
      • FC (Hz): 55
      • QTC: 0.941

    Subwoofer Wiring Guide


    Specifications & Details


    Subwoofer Specifications
    Series
    N Series
    Subwoofer Size
    12"
    RMS Power Handling
    200-350 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    4 ohm
    Voice Coil Diameter
    2"
    Frequency Response
    20 - 200 Hz
    Sensitivity
    86.9 dB
    Xmax (millimeters)
    10.2 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Non-Pressed Paper
    Woofer Surround
    Foam
    Subwoofer Grille
    No
    Re-Cone Kit Available
    No
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Optimum Sealed Box Volume
    1.25 cubic feet
    Optimum Ported Box Volume
    1.75 cubic feet
    Top-Mount Depth (Mounting Depth)
    5.01"
    Cutout Diameter
    10.83"
    Shallow Mount Installation
    No
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    34.5 Hz
    Equivalent Compliance (Vas)
    54.57 liters
    Total Speaker Q Value (Qts)
    0.590
    Electrical Q Value (Qes)
    0.660
    Electrical Resistance of Voice Coil (Re)
    3.46 ohm
    Mechanical Q Value (Qms)
    5.75
    Efficiency Bandwidth Product (EBP)
    52
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    NVX

    Model Number:

    LS-NSW124V2-OBC-2

    Weight:

    11.00lbs

    Internal SKU:

    LS-nsw124v2-OBCra223536

    Internal Product ID:

    97800
