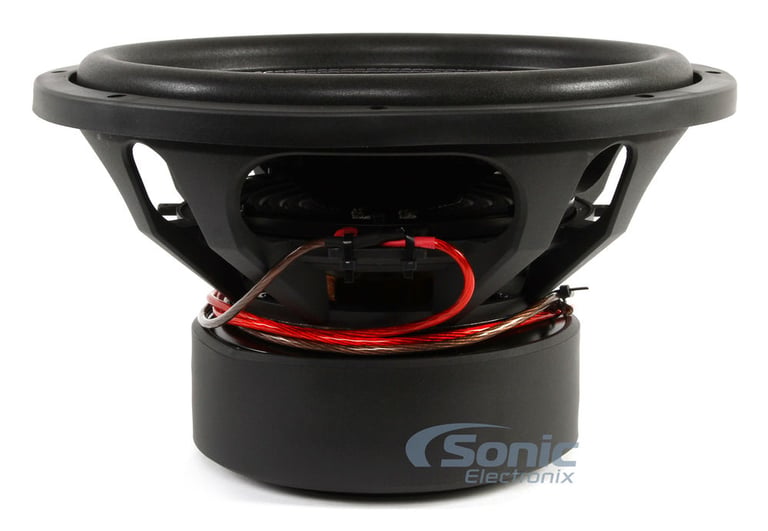

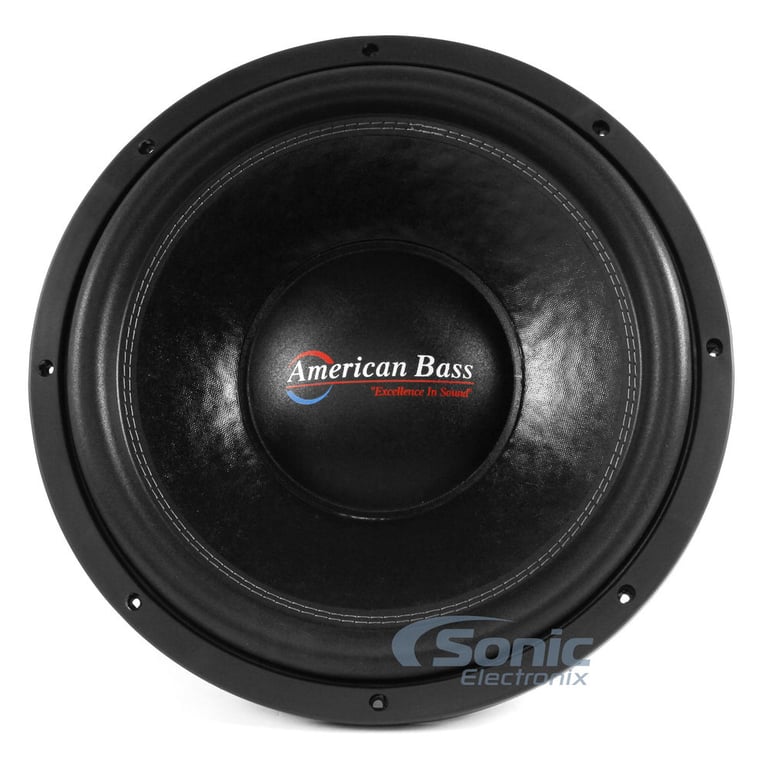

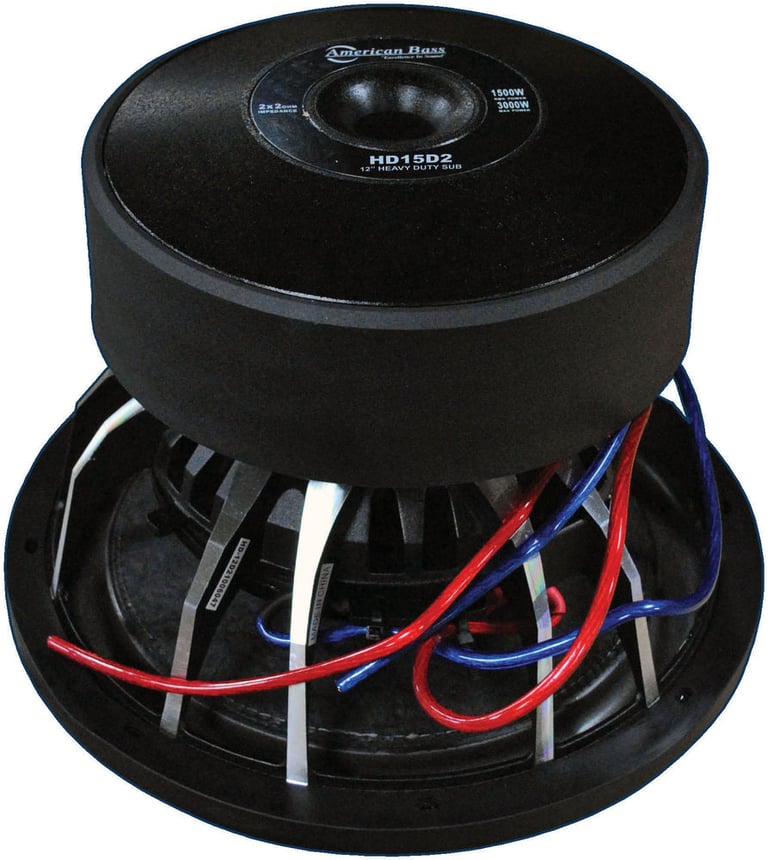

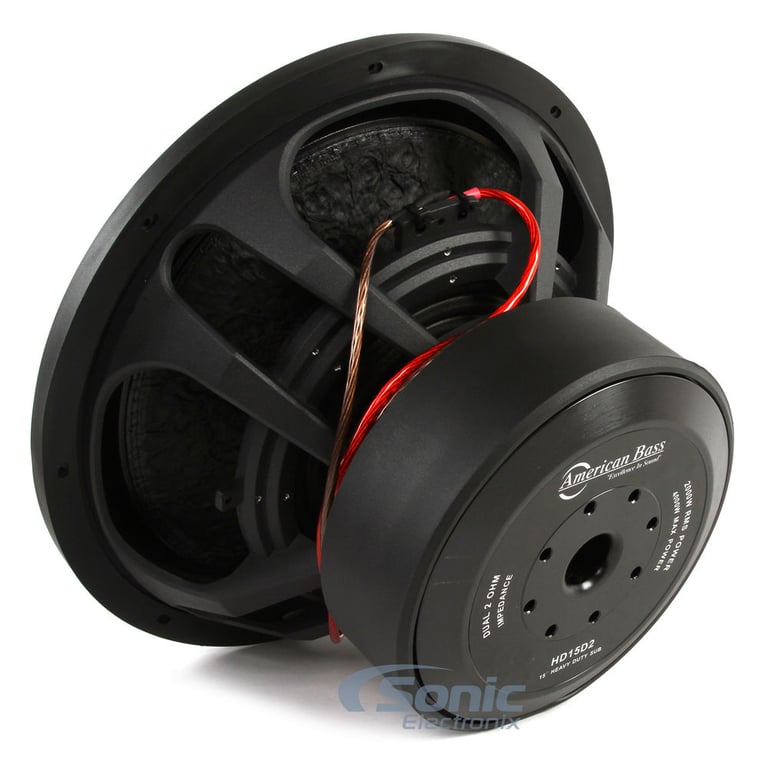

American Bass HD 15 D2 (HD15D2)

3000W Peak (1500W RMS) 15" Dual 2-Ohm HD Series Car Subwoofer

Product videos
highlight-star-icon

• 1500W RMS
• 3000W Max
• Carbon Kevlar Woven Backed With Non-Pressed Paper Cone
• High Density Foam Surround
• Cast Aluminum Basket
• 3" High Temperature Voice Coil
• Triple stacked 300 oz. Magnets

Learn more about the hd15d2a

We apologize

This item has been discontinued


Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
GM1483B main

Scosche GM1483B / GM1483 Dash Kit

Install a new Single-DIN car stereo in select 1995-2023 vehicles from GMC, Chevrolet, Cadillac trucks (Black)

119
-54.55%

$6.34

List price $13.95

MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

70-1858 main

Metra 70-1858 Wiring Harness

Install a new car stereo in select 1986-2006 vehicles from Chevrolet, GMC, Pontiac

63
95-3003G main

Metra 95-3003G Dash Kit

Double DIN Stereo Dash Kit for select 1995-2000 vehicles from GMC, Chevrolet, Cadillac

17
-57.59%

$13.99

List price $32.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

Limited time!
DCPA1013 main

Dual DCPA1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

5
-24.48%

$289.99

List price $383.99

FH-S722BS main

Pioneer FH-S722BS

Double DIN CD Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

7
-11.54%

$229.99

List price $260.00

FRING46 main

NVX FRING46

Universal 4x6" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

1
-45.02%

$10.99

List price $19.99

REF467F main

Infinity REF467F (INFSPKRF467FUS)

270W Peak (90W RMS) 4x6" Reference Series 2-Way Coaxial 3-ohm Speakers

-21.44%

$109.95

List price $139.95

Product Highlights


• 1500W RMS
• 3000W Max
• Carbon Kevlar Woven Backed With Non-Pressed Paper Cone
• High Density Foam Surround
• Cast Aluminum Basket
• 3" High Temperature Voice Coil
• Triple stacked 300 oz. Magnets

Description


American Bass brand icon

Authorized dealer

General Features:

  • 15" Dual 2-Ohm HD Series Car Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 1500 watts
  • Carbon Kevlar Woven Backed With Non-Pressed Paper Cone
  • Nt Multilayer High Density Foam Surround
  • Multi-Pieces Of New Comex Spiders
  • Cast Aluminum Basket
  • Push Terminals
  • 3" High Temperature Voice Coil With Ultra Long Windings
  • Triple stacked 300 oz. Magnet
  • Top-mount depth: 9"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 American Bass HD 15 D2 (HD15D2) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 American Bass HD 15 D2 (HD15D2) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 American Bass HD 15 D2 (HD15D2) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 American Bass HD 15 D2 (HD15D2) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

Specifications & Details


Subwoofer Specifications
Series
HD Series
Subwoofer Size
15"
Peak Power Handling
3000 watts
RMS Power Handling
1500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
3"
Frequency Response
15 - 200 Hz
Sensitivity
91.5 dB
Xmax (millimeters)
30 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Kevlar Woven Backed Non Press Paper
Woofer Surround
Foamed Rubber
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31.7 Hz
Equivalent Compliance (Vas)
62.3 liters
Total Speaker Q Value (Qts)
0.382
Electrical Q Value (Qes)
0.425
Mechanical Q Value (Qms)
3.716
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HD15D2

Weight:

52.00lbs

Internal SKU:

hd15d2a

Internal Product ID:

90783
