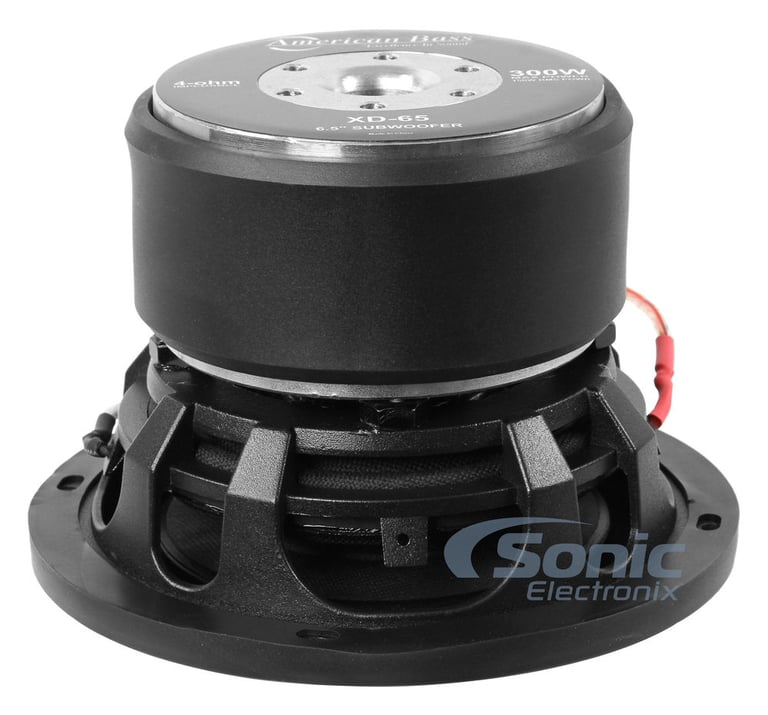

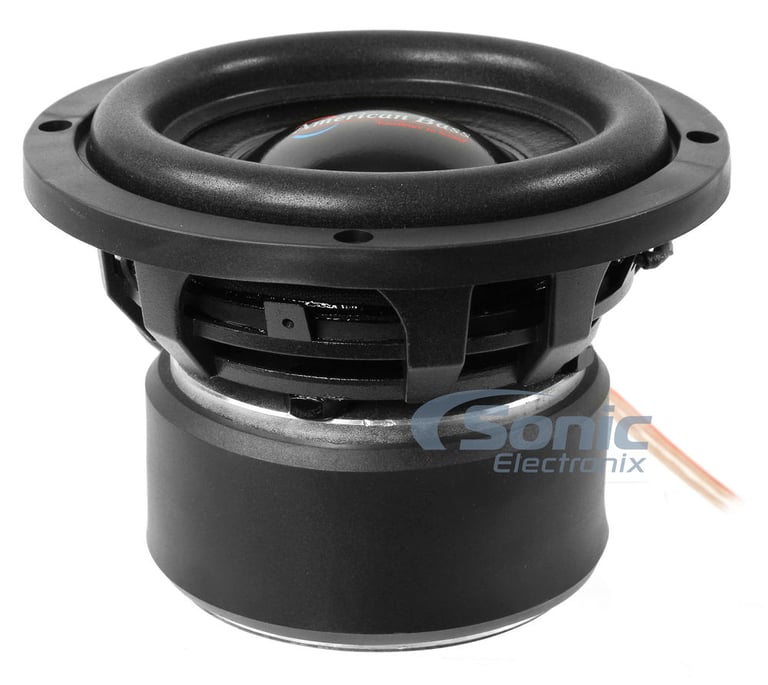

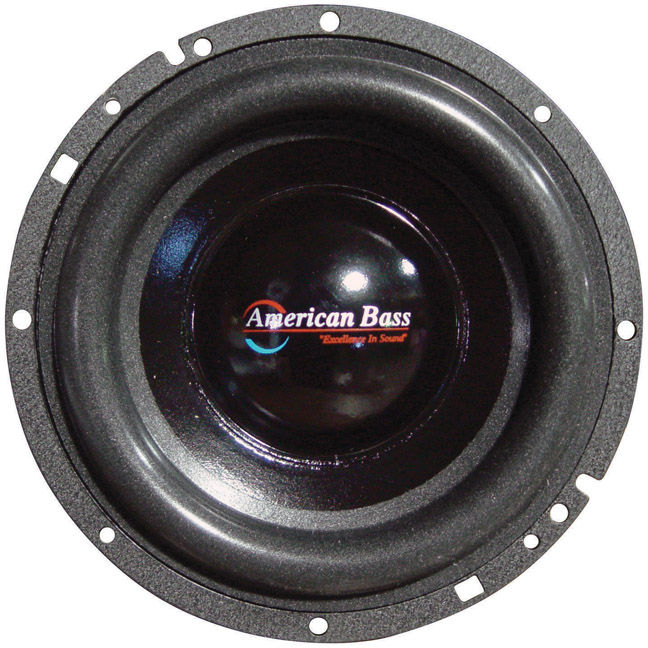

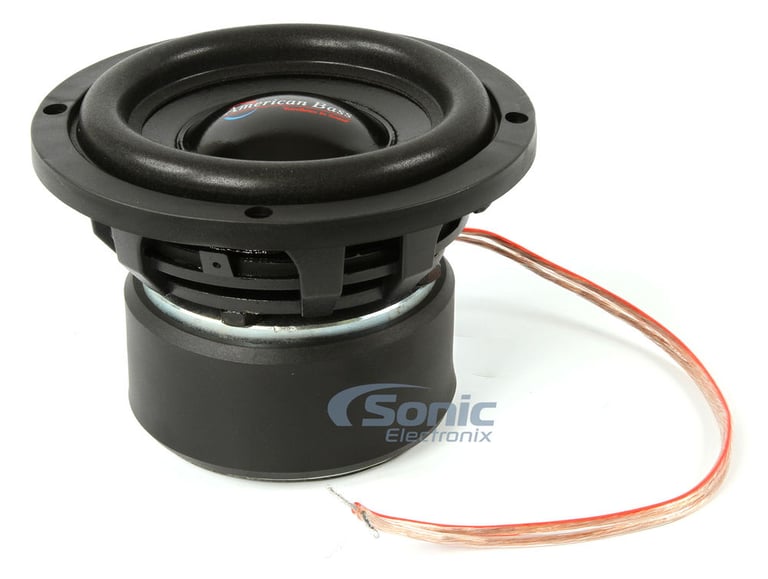

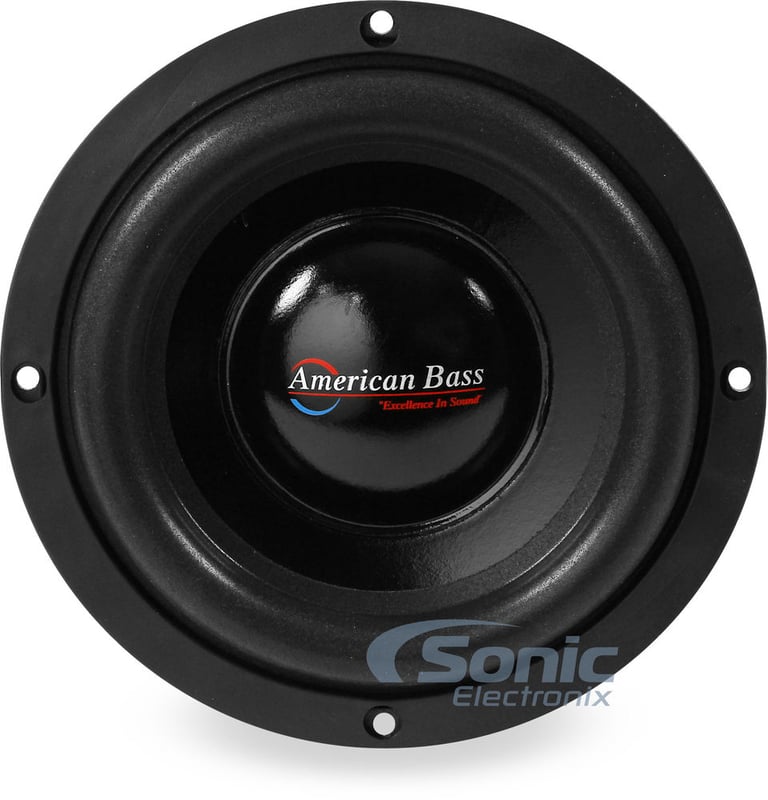

American Bass XD65

300W 6-1/2" Single 4-Ohm XD Series Car Sub Woofer

American Bass
Shop all American Bass
Product videos
highlight-star-icon

• 150W RMS
• 300W Max
• Kevlar Enhanced Non-Pressed Paper Cone
• High Excursion Foam Surround
• Stamped Steel Basket
• 60 OZ. Magnet Structure
• 1.5" High-Temperature Kapton Voice Coil

Learn more about the xd65

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

54
70-7301 main

Metra 70-7301 Wiring Harness

Install a new car stereo in select 1999-2008 vehicles from Hyundai, Kia

16
95-1006 main

Metra 95-1006 Dash Kit

Install a new Double-DIN car stereo in select 2003-2006 Sorento

-12.12%

$28.99

List price $32.99

Product Highlights


• 150W RMS
• 300W Max
• Kevlar Enhanced Non-Pressed Paper Cone
• High Excursion Foam Surround
• Stamped Steel Basket
• 60 OZ. Magnet Structure
• 1.5" High-Temperature Kapton Voice Coil

Description


American Bass brand icon

Authorized dealer

General Features:

  • 6-1/2" Single 4-Ohm XD Series Car Sub Woofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Coated Strong Kevlar Enhanced Non-Pressed Paper Cone
  • High Excursion Foam Suspension Surround
  • Stamped Steel Basket
  • 1.5" High-Temperature Kapton Voice Coil
  • 60 OZ. Magnet Structure
  • Top-mount depth: 4.2"
  • Sensitivity: 82.6 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 American Bass XD65 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 American Bass XD65 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 American Bass XD65 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 American Bass XD65 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

SW-UV16.5D4 small

Sundown Audio U-6.5SW D4 6.5" (U65SWD4)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Pressed Paper Cone
• Double-Stitched Surround
• Mount depth: 5.71"
• Sensitivity: 78.14 dB

(3)

$199.99

List price $239.99

V65DV4 small

Cerwin-Vega V65DV4

• Peak Power: 1500 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.65"
• Sensitivity: 82 dB

$129.99

List price $155.99

V65DV2 small

Cerwin-Vega V65DV2

• Peak Power: 1500 watts
• RMS Power: 500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 4.65"
• Sensitivity: 80 dB

$129.99

List price $155.99

SW-SA6.5SWD2 small

Sundown Audio SA-6.5 SW D2 6.5" (SA65D2)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 2 ohm
• Paper Cone
• Foam Surround
• Mount depth: 3.79"
• Sensitivity: 81.6 dB

$129.99

List price $167.99

6W3V3-4 small

JL Audio 6W3V3-4

• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.25"
• Sensitivity: 80.49 dB

(25)

$319.99

List price $319.99

SWS-6.5X small

Earthquake Sound SWS-6.5X

• Peak Power: 200 watts
• RMS Power: 100 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 1-3/4"
• Sensitivity: 77.3 dB

(9)

$119.99

List price $149.00

CWRT674 small

Kicker CWRT674 (48CWRT674)

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Dual 4 ohm
• UV-Resistant Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-3/4"
• Sensitivity: 82.6 dB

(9)

$103.96

List price $149.99

VMAX65D2 small

Cerwin Vega VMAX65D2

• Peak Power: 400 watts
• RMS Power: 200 watts
• Treated Semi-Pressed Pulped Cone
• Impedance: Dual 2 ohm
• Mount depth: 4.25"

$129.99

List price $155.99

SUMMO64XL small

Massive Audio SUMMO64XL

• Peak Power: 400 watts
• RMS Power: 200 watts
• Kevlar Fiber-Enforced Non-Pressed Paper cone
• EROM Foam with red stitching surround
• Impedance: Dual 4 ohm
• Mount depth: 4.37"
• Sensitivity: 85 dB

(20)

$89.99

List price $134.99

VMAX65D4 small

Cerwin-Vega VMAX65D4

• Peak Power: 400 watts
• RMS Power: 200 watts
• Treated Semi-Pressed Pulped Cone
• Treated Foam Surround
• Impedance: Dual 4 ohm
• Mount depth: 4.25"
• Sensitivity: 83.5 dB

$129.99

List price $155.99

Specifications & Details


Subwoofer Specifications
Series
XD Series
Subwoofer Size
6.5"
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1.5"
Sensitivity
82.6 dB
Xmax (millimeters)
8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
4.2"
Cutout Diameter
5.47"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
48.8 Hz
Equivalent Compliance (Vas)
4.423 liters
Total Speaker Q Value (Qts)
0.397
Electrical Q Value (Qes)
0.438
Mechanical Q Value (Qms)
4.334
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD65

Weight:

8.10lbs

Internal SKU:

xd65

Internal Product ID:

90866
