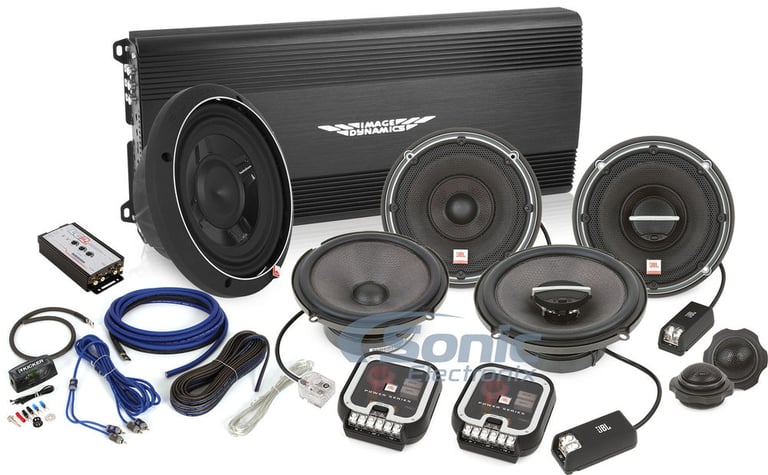

The Import Car Upgrade Combo

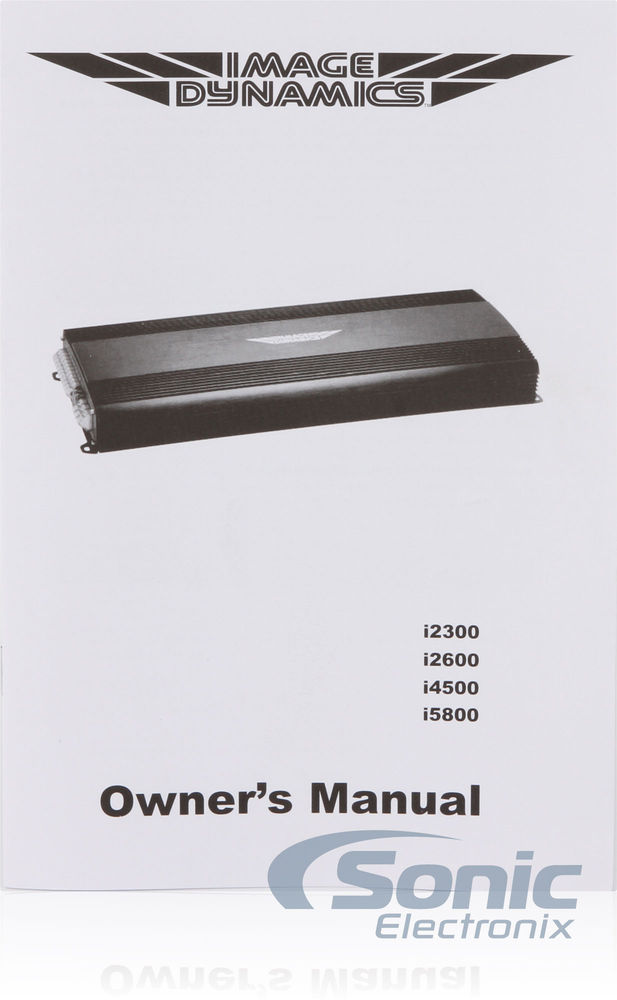

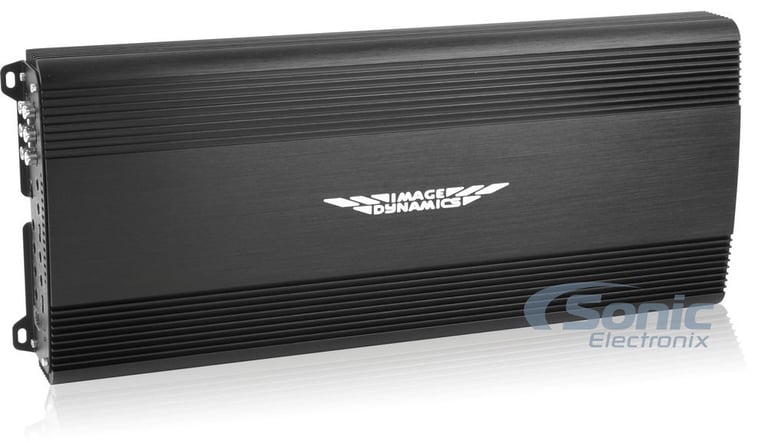

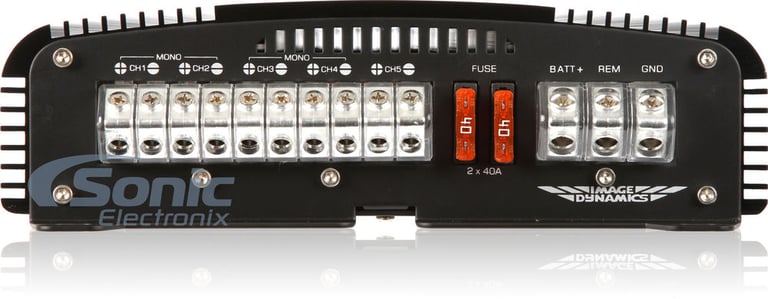

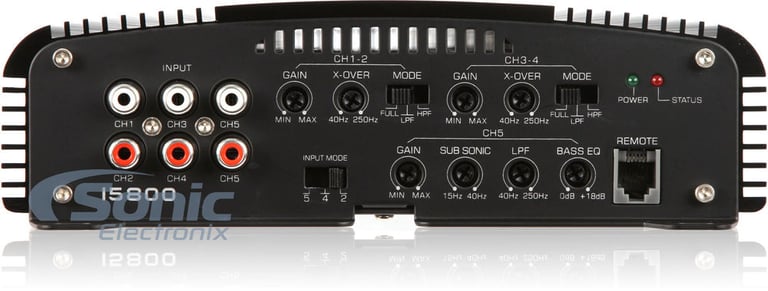

• 5-Channel Class AB i Series Car Amplifier
• RMS Power Rating:
  • 4 ohm: 65 watts x 4 chan. + 250 x 1 chan.
  • 2 ohm: 90 watts x 4 chan. + 400 x 1 chan.
  • Bridged, 4 ohm: 180 watts x 2 chan. + 400 x 1 chan. @ 2 ohm
• CEA Power Rating @ 14.4V:
  • 2 ohm: 100 watts x 4 chan. + 425 x 1 chan.
• Pulse Width Modulated MOSFET power supply
• LED status indicator
• Fully adjustable bass EQ (0-18 dB @ 40 Hz)
• Soft delay remote turn on/off circuit to eliminate pops and clicks
• 5/4/3/2/1 Channel operation
• Low level line inputs and outputs
• 3-Way System Protection circuitry (thermal, DC, and speaker short protection)
• Remote bass level sold separately
• Heavy duty aluminum finned heatsink for extreme heat dissipation
• Silver-plated RCA level inputs
• Silver-plated screw terminals
• Input sensitivity: 0.5V-4.0V
• Variable High-Pass Filter (40-250 Hz)
• Variable Low-Pass Filter (40-250 Hz)
• Crossover Slope: 12 dB
• Damping Factor: >150
• THD (Total Harmonic Distortion): 0.5%
• Frequency Response: 20-22,000 Hz
• Signal-to-Noise Ratio: >94 dB
• Fuse Rating: 2 x 40 amp
• Dimensions: 18-1/2"L x 8"W x 2-1/4"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• 1-year SonicElectronix.com warranty

General Features

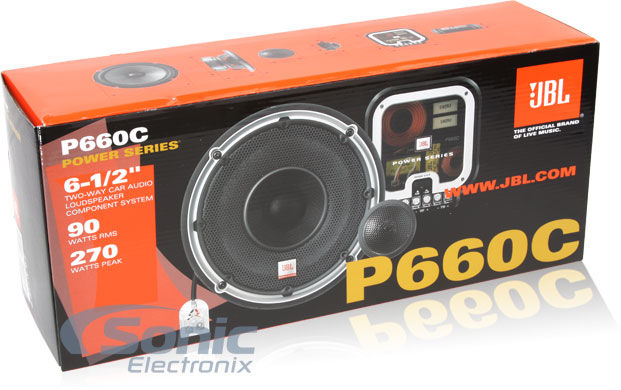

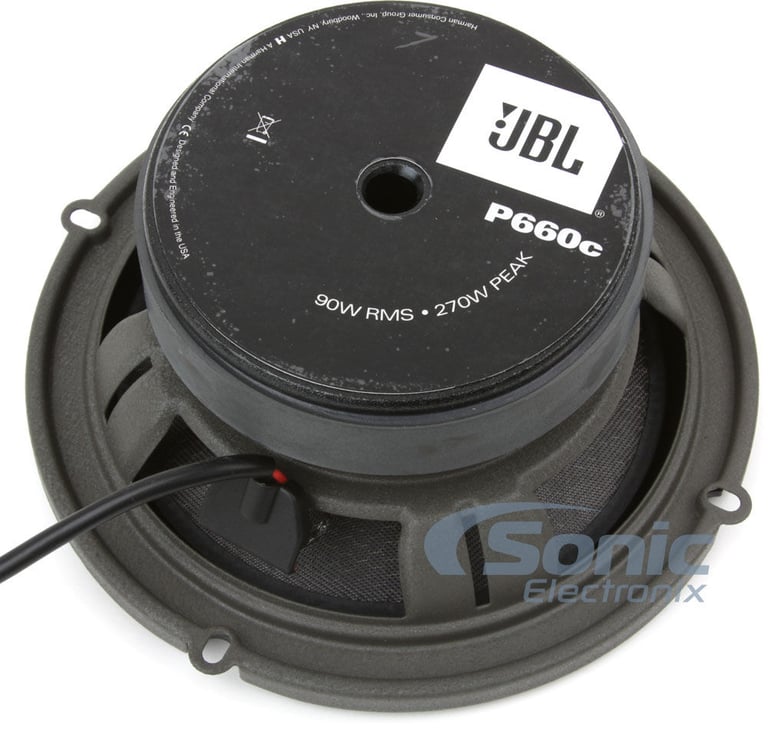

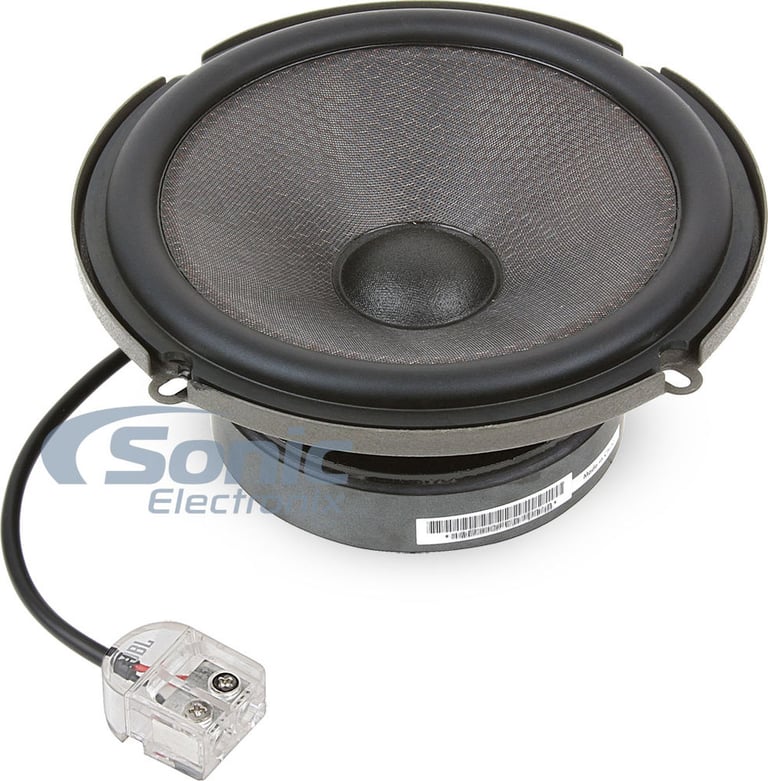

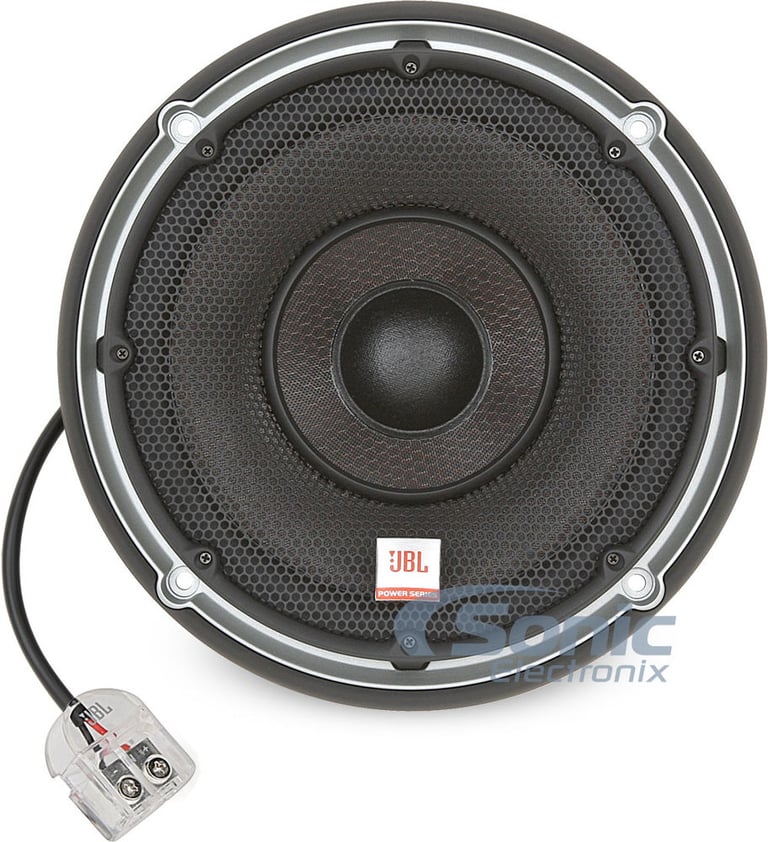

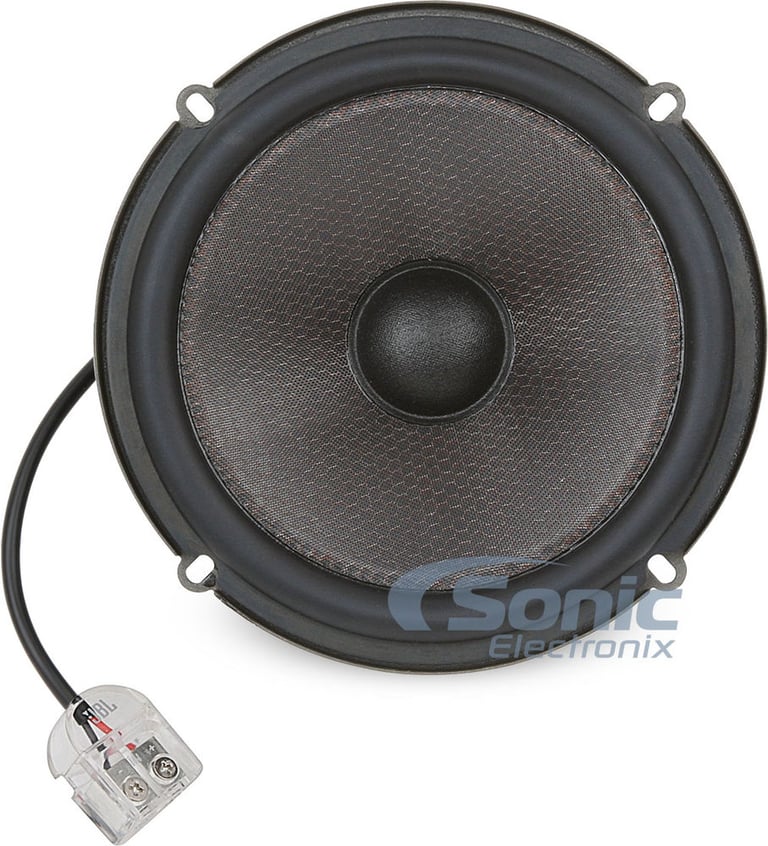

• 6-1/2" Power Series Component System
• Power Handling:
• Peak: 540 watts per system / 270 watts each side
• RMS: 180 watts per system / 90 watts each side
• Plus One Honeycomb Laminate(HCL)Woofer cone consists of two woven glass fiber layers with Nomex core

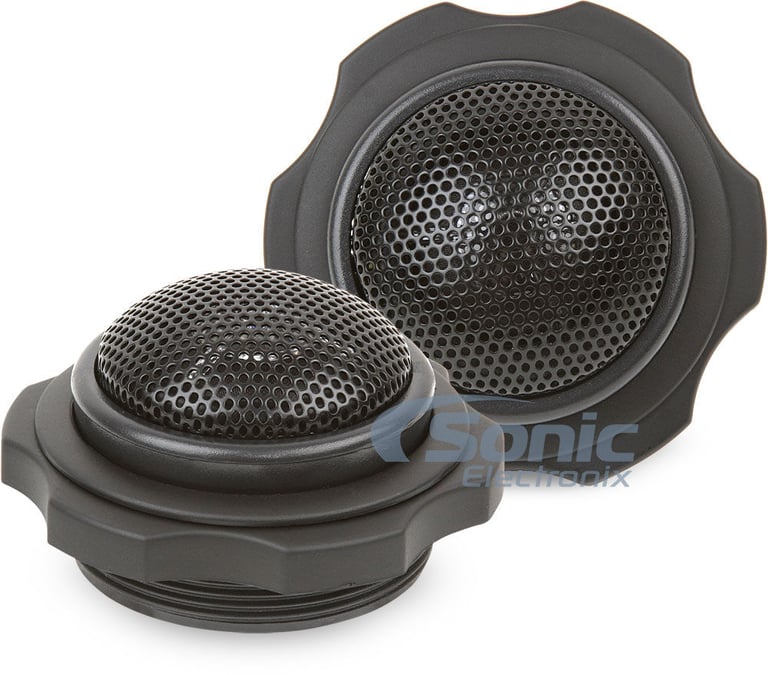

• Textile dome tweeters reduce distortion at high output levels
• Tweeter-level control features a switch to reduce the tweeter output level to match personal listening preferences

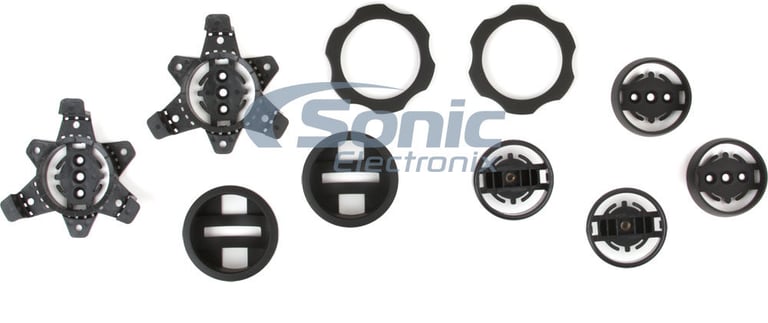

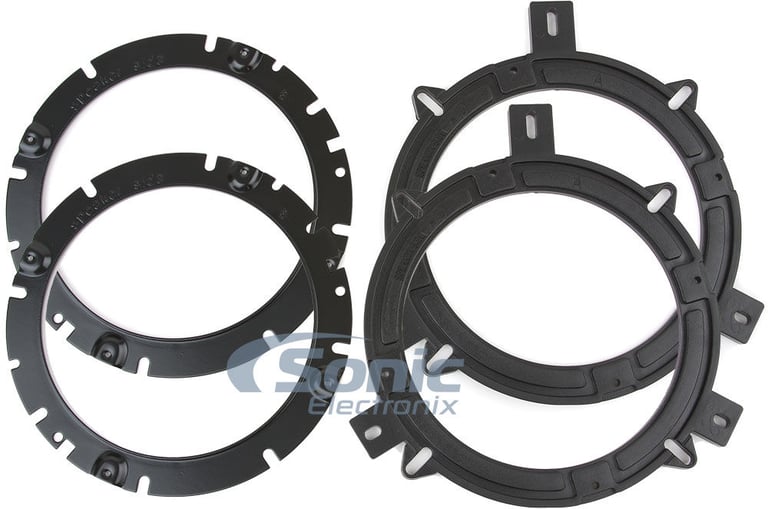

• I-mount tweeter mounting system for precise imaging and easy installation

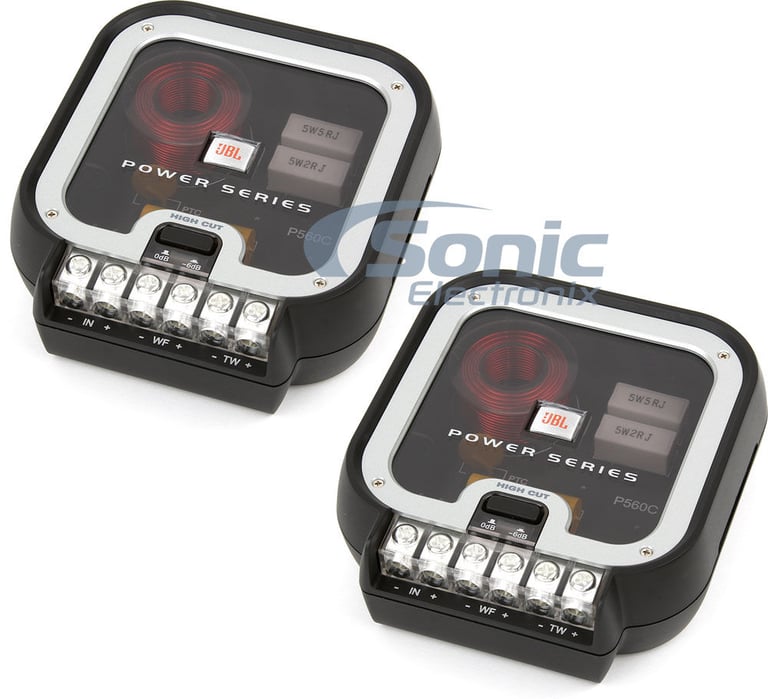

• Computer-optimized voice-matched passive crossover to ensure clarity and detail
• 2 ohm impedance
• Oversized voice coils and integrated tinsel leads
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features

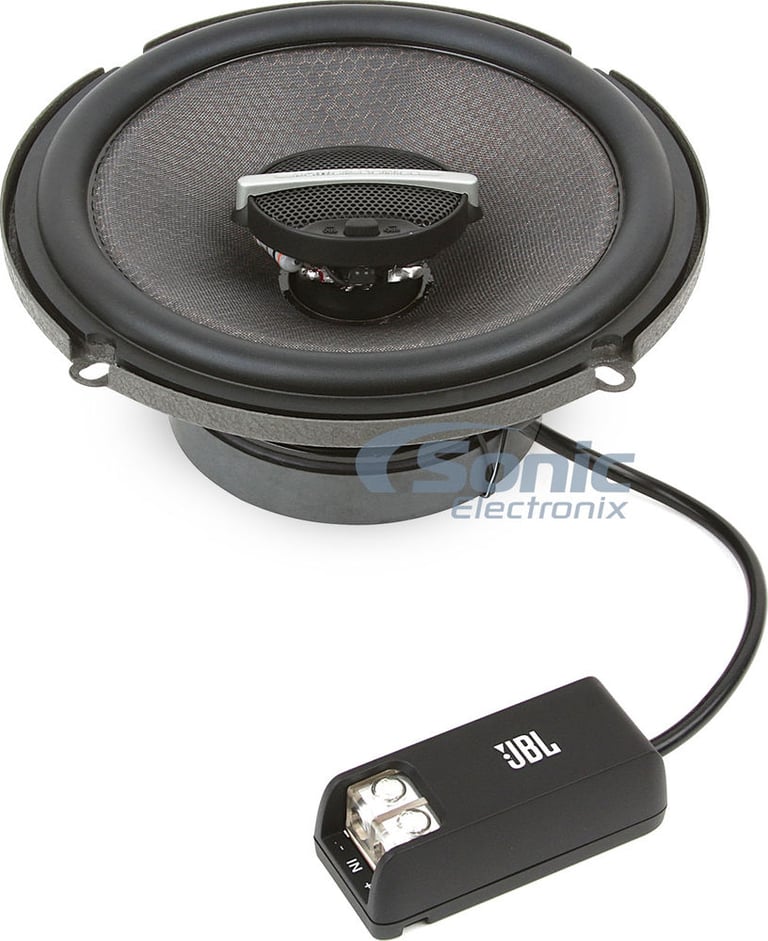

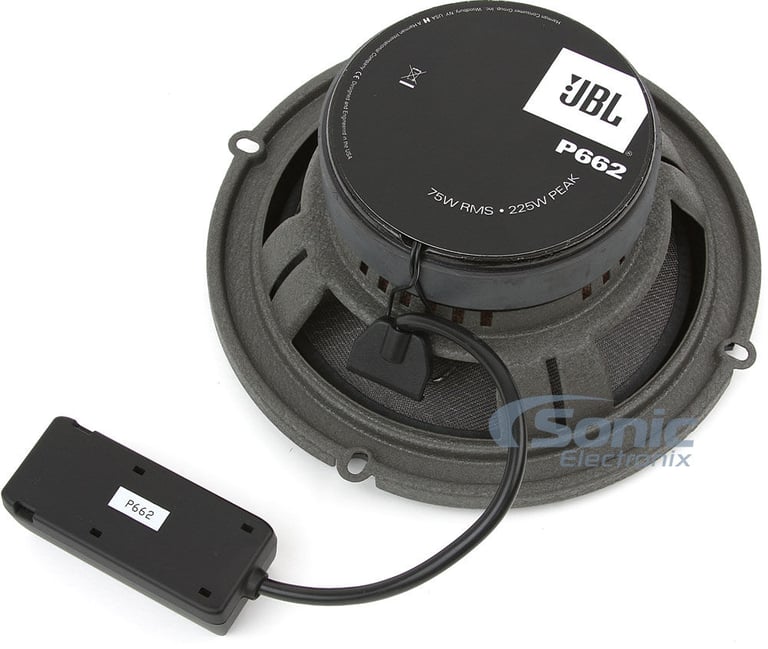

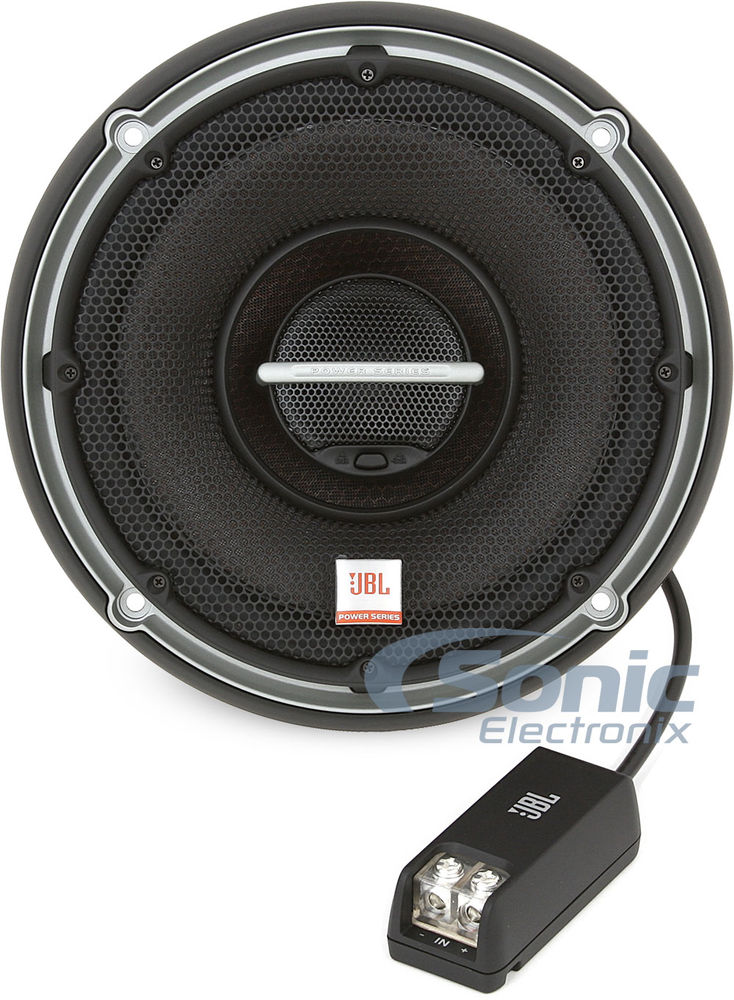

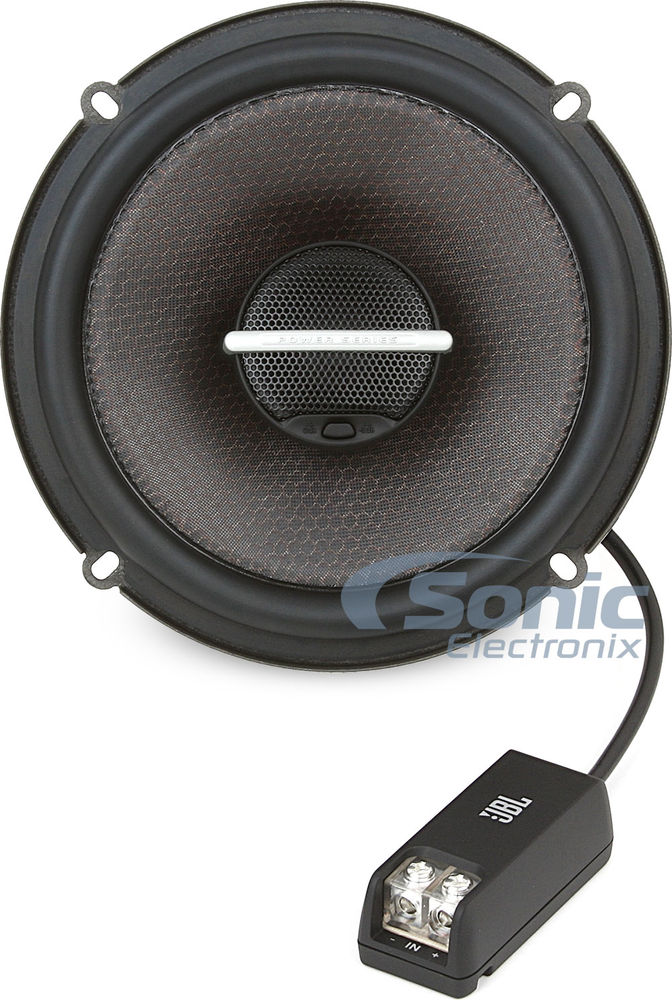

• 6-1/2" Power Series Car Speakers
• Power Handling:
• Peak: 450 watts per pair / 225 watts each
• RMS: 150 watts per pair / 75 watts each
• Plus One Honeycomb Laminate(HCL)Woofer cone consists of two woven glass fiber layers with Nomex core
• Textile dome tweeters reduce distortion at high output levels
• Tweeter-level control features a switch to reduce the tweeter output level to match personal listening preferences

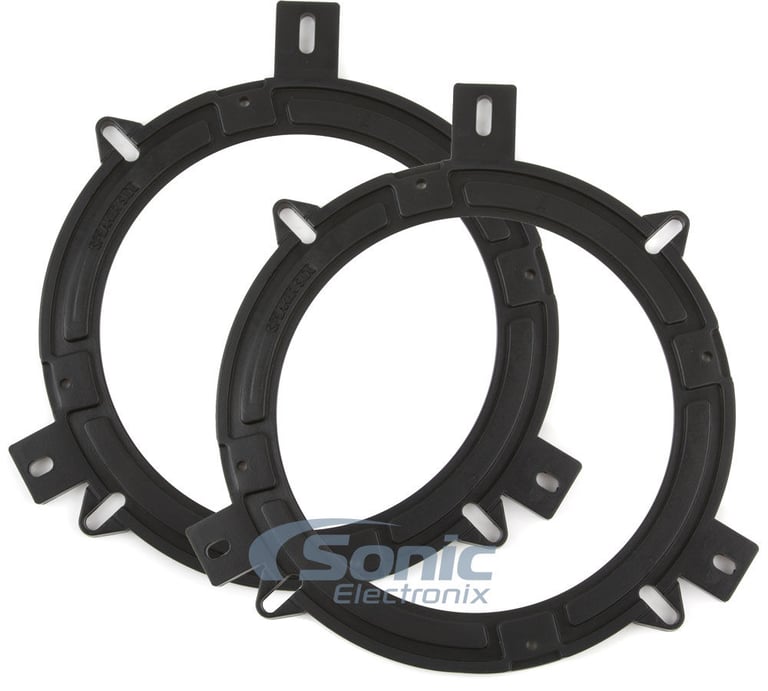

• I-mount tweeter mounting system for precise imaging and easy installation
• Computer-optimized voice-matched passive crossover to ensure clarity and detail
• 2 ohm impedance
• Oversized voice coils and integrated tinsel leads
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features:

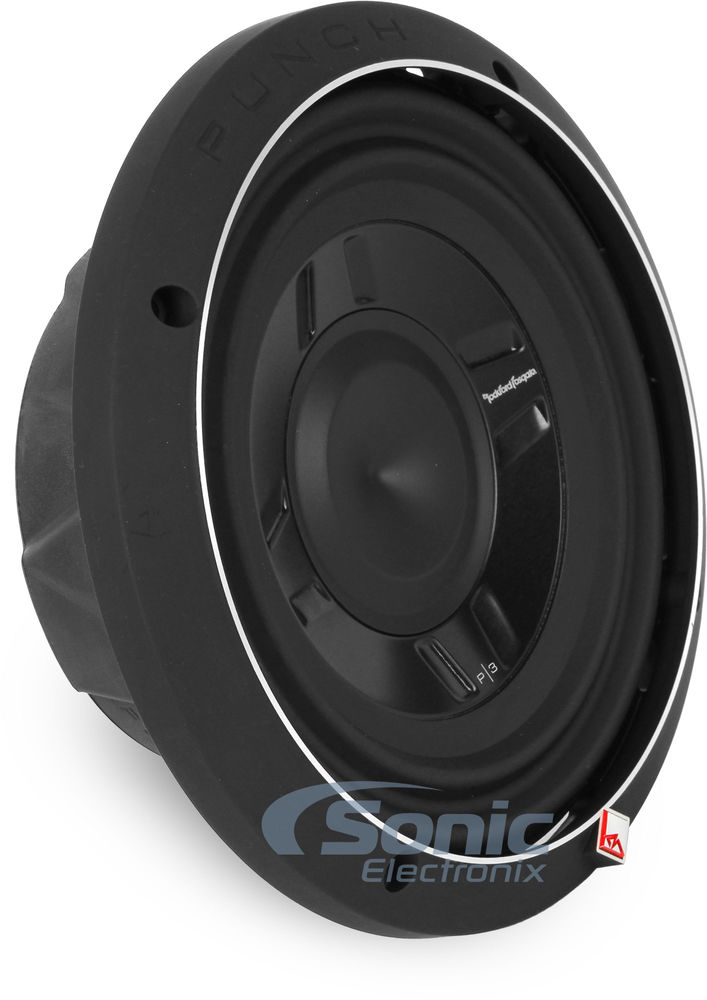

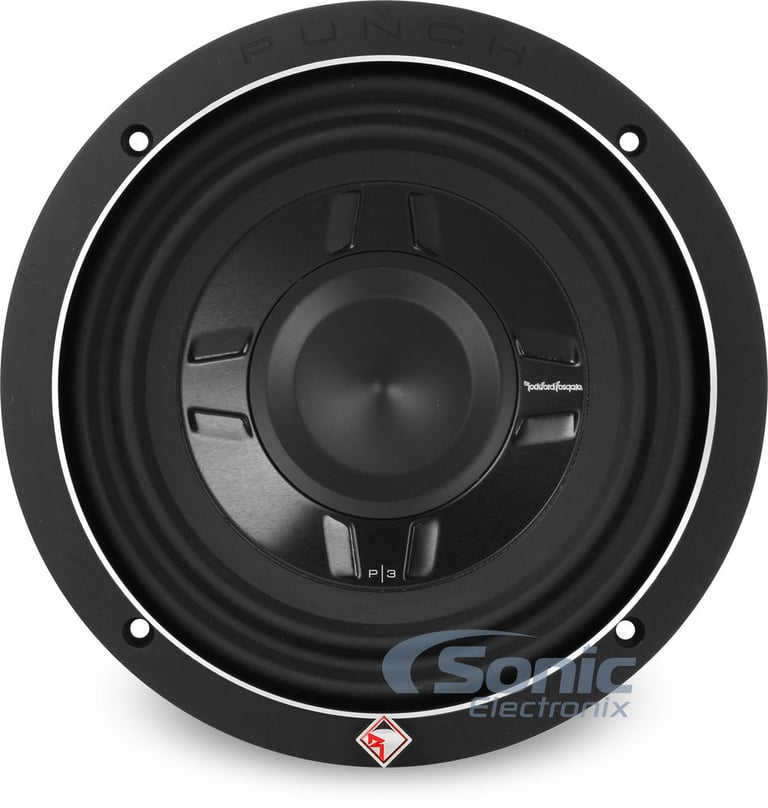

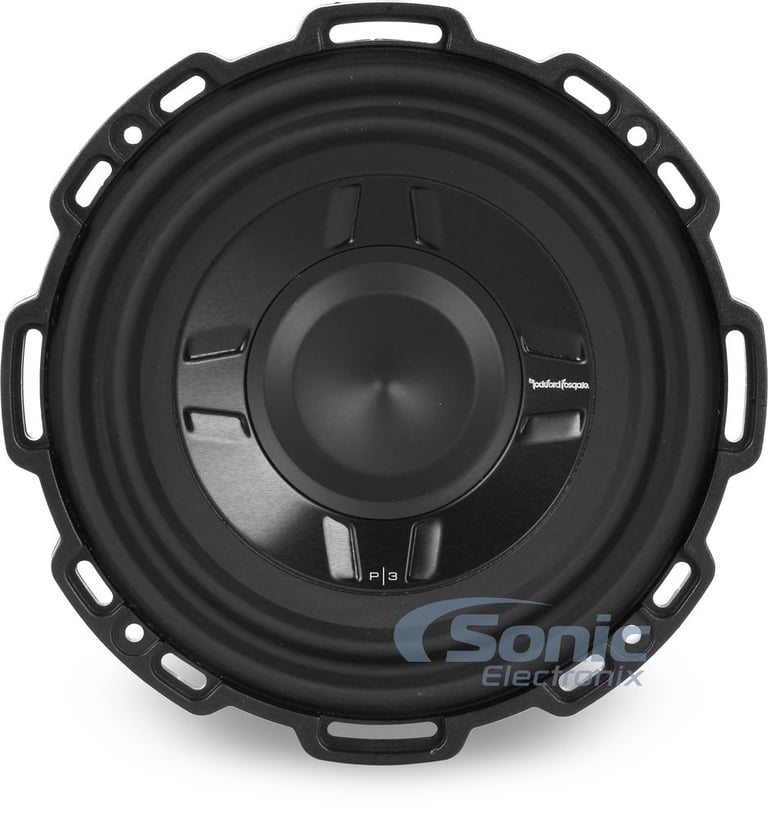

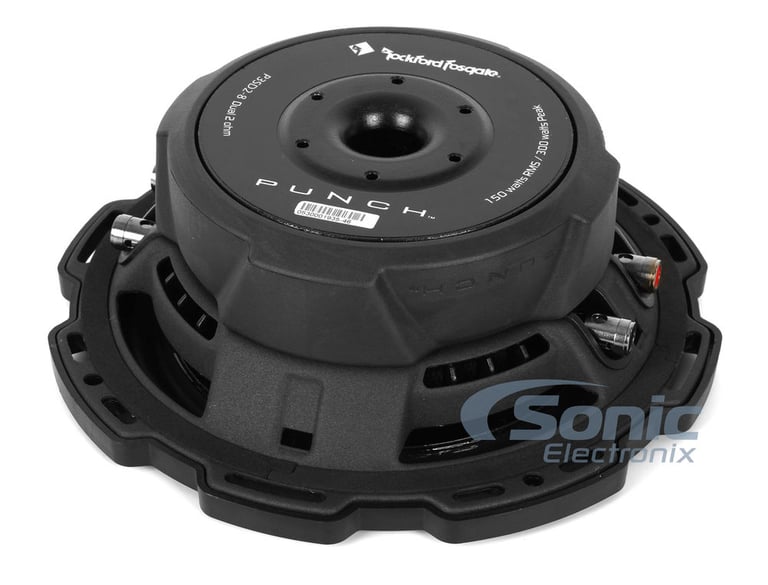

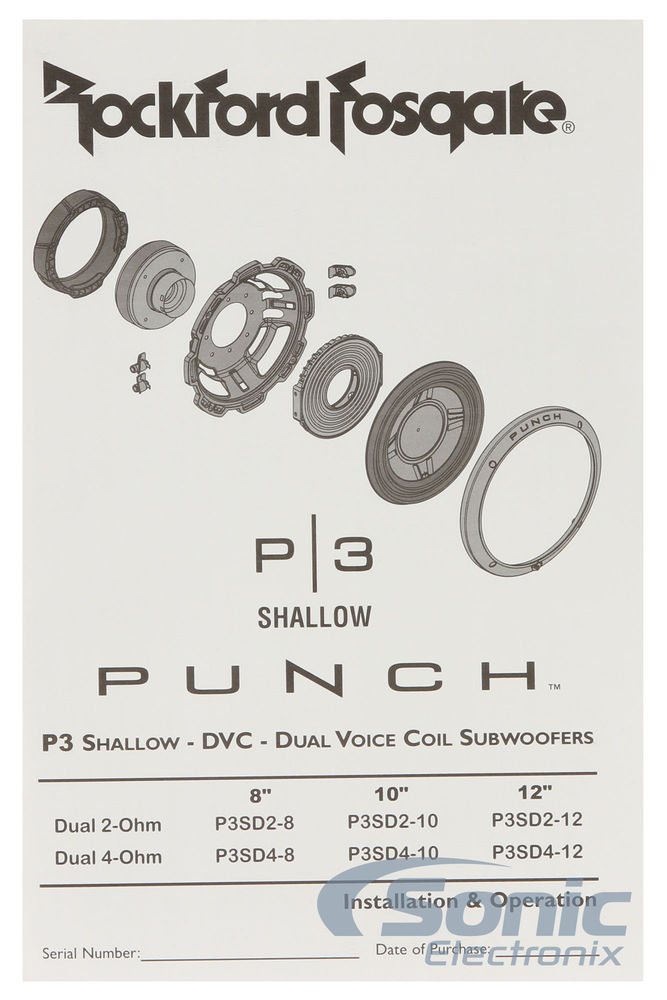

• 8" Dual 2-Ohm Punch Series Shallow Mount Car Subwoofer
• Power Handling:
• Peak: 300 watts
• RMS: 150 watts
• Impedance: Dual 2 ohm
• Anodized aluminum cone and dustcap
• M-Roll Santoprene surround
• StampCast basket with integrated spider venting
• Dual linear spider with embedded 16 AWG tinsel leads
• CEA-2031 Compliant
• 2" Anodized aluminum voice coil
• Top-mount depth: 2-11/16"
• Frequency response: 38-250 Hz
• Sensitivity: 82dB
• 1-year Sonic Electronix Warranty

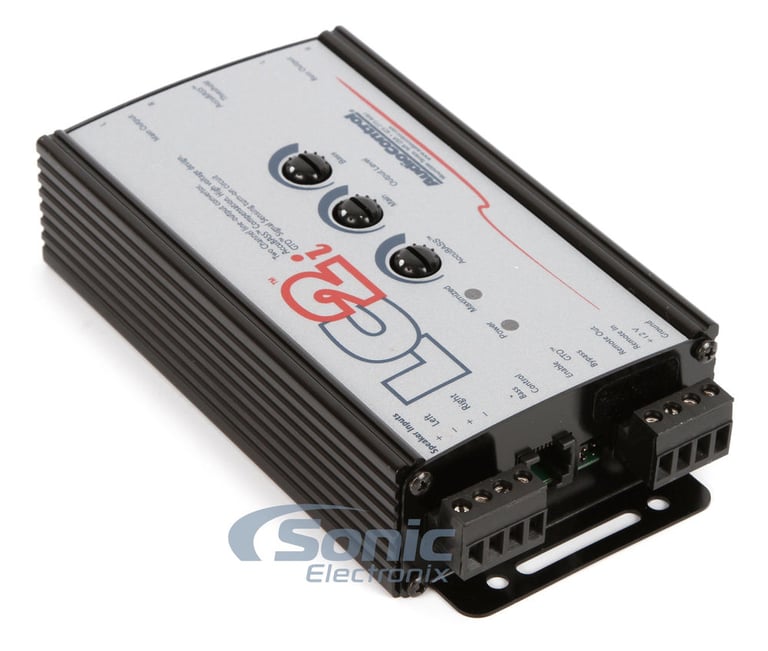

General Features:

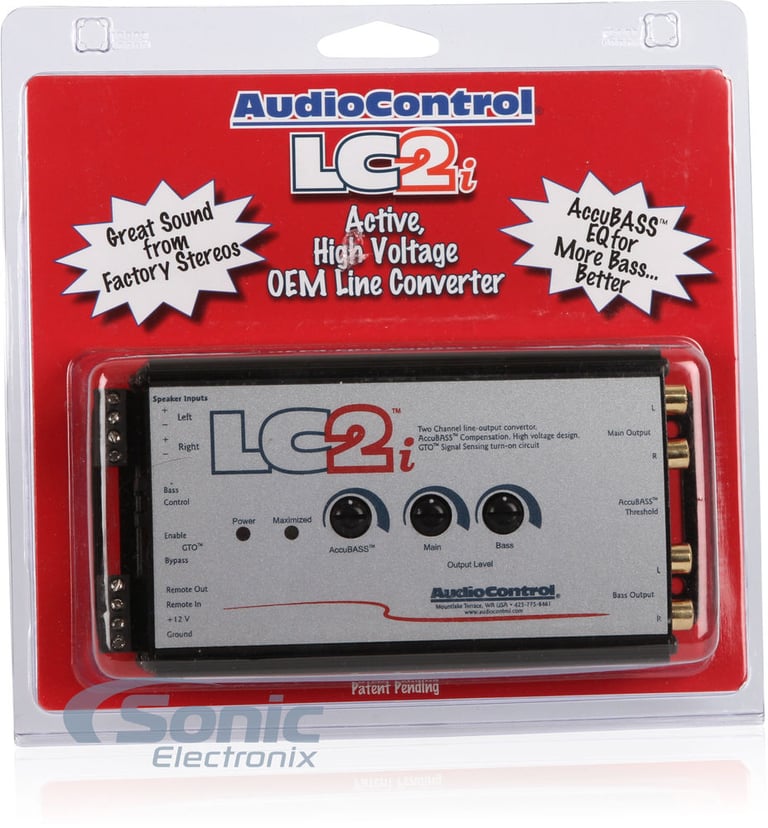

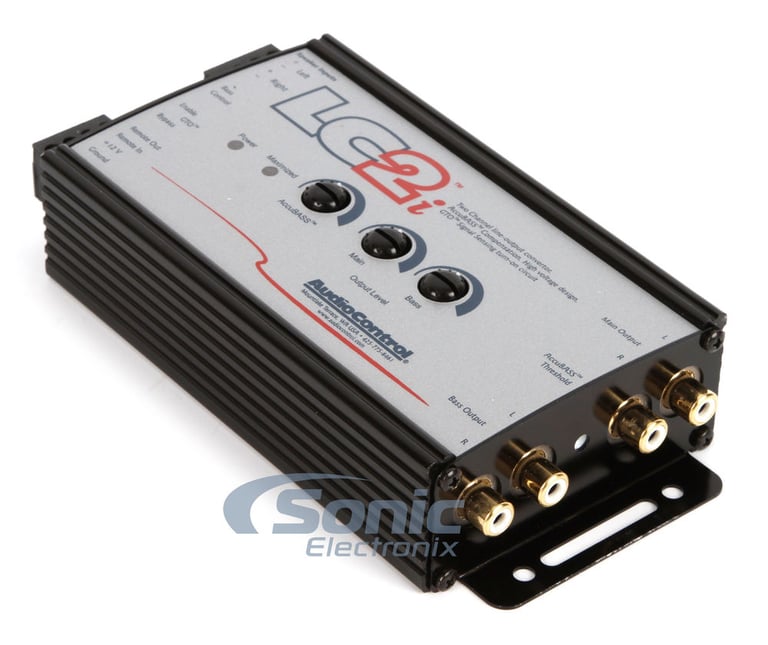

• Two channels of active speaker level inputs - Accepts 400 watt signals per channel
• AccuBASS processing for correction of bass roll-off
• Fixed and variable outputs with discrete level controls
• GTO - Signal sensing inputs
• Dual amplifier, 9.5 Volt pre-amp outs
• Level matching controls
• 12 Volt trigger output
• Optional dash remote level control
• Dimensions: 6-3/8"W x 3-1/8"D x 1-1/2"H
• 1-year SonicElectronix.com Warranty

Product Features:

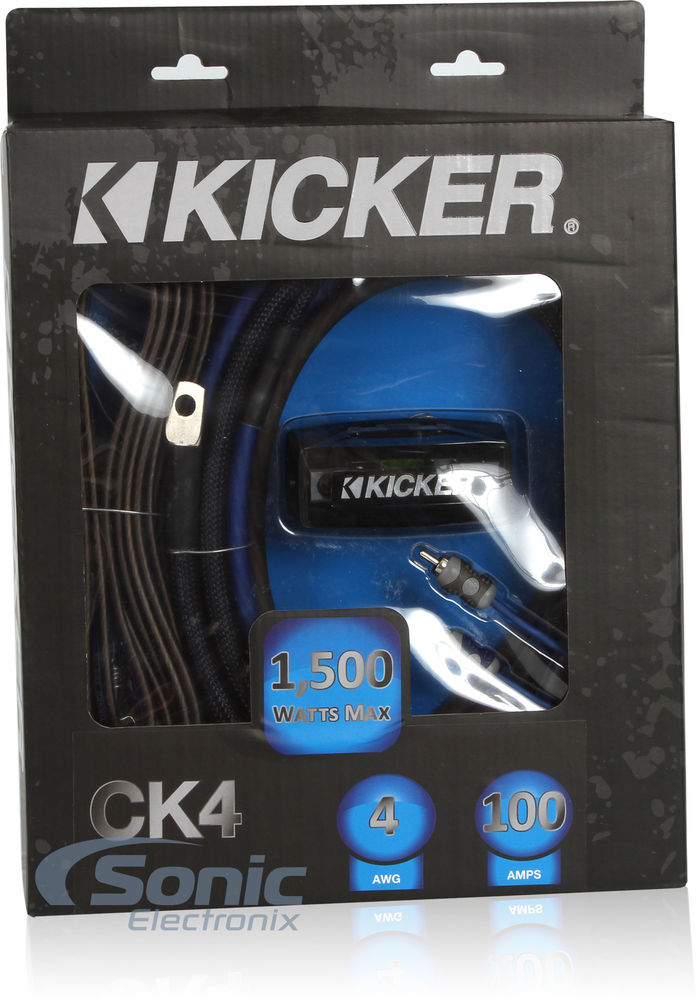

• Complete 4 Gauge OFC CK-Series 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts
• Premium power and ground wire provides optimal power transfer
• Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
• Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
• RCA Interconnects are made with twisted-pair technology for noise reduction
• Terminals are nickel-plated for excellent signal transfer
• AFS Fuse holder offers ideal protection for high powered systems
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

What's in the Box:

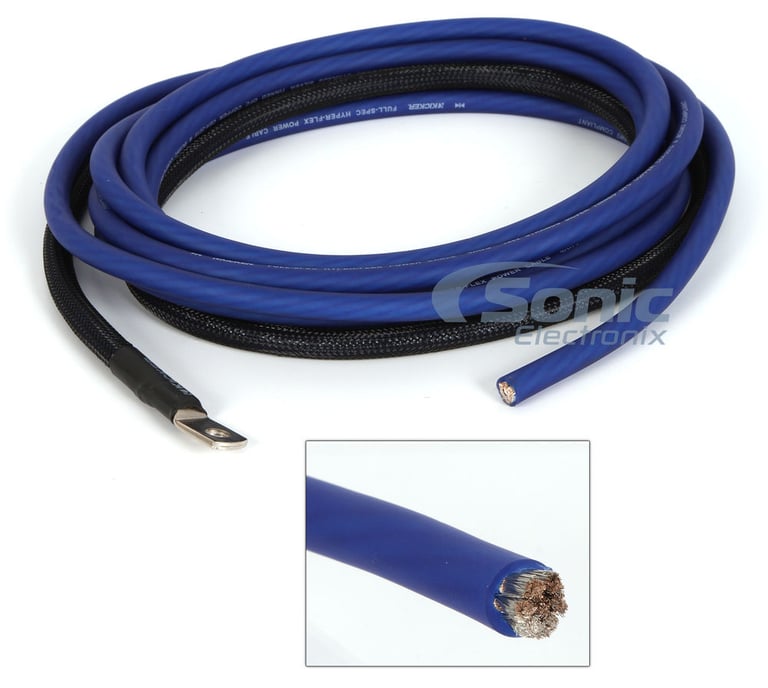

• 17ft. CK-Series 4 Gauge OFC matte blue multi-strand power wire

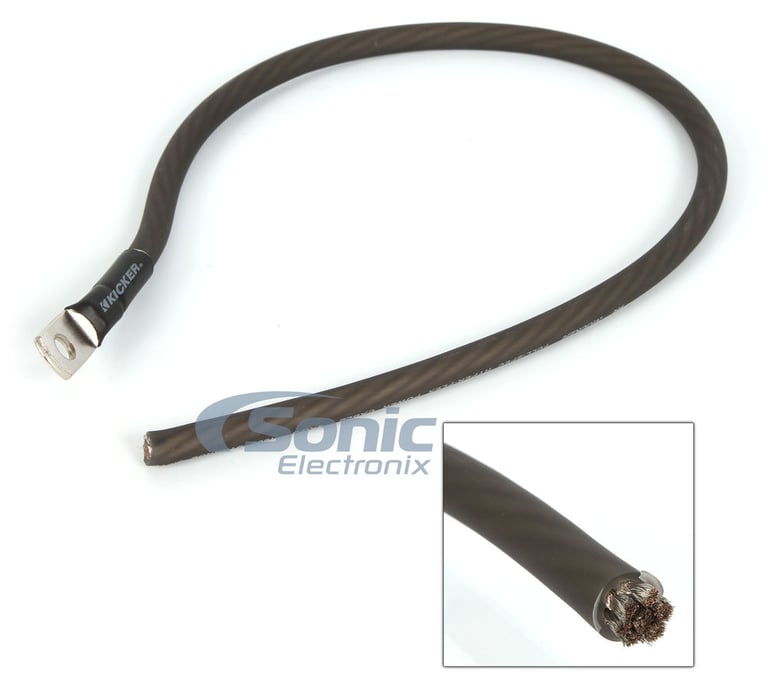

• 2ft. CK-Series 4 Gauge OFC matte smoked multi-strand ground wire

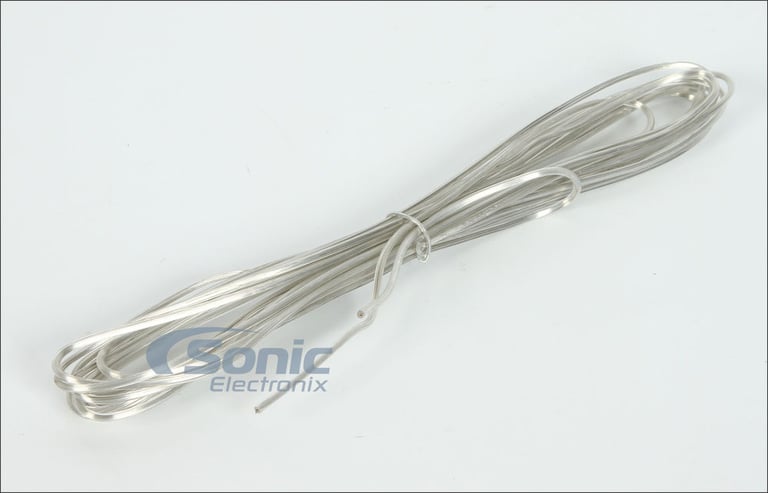

• 17ft. 16 Gauge OFC clear remote turn-on wire

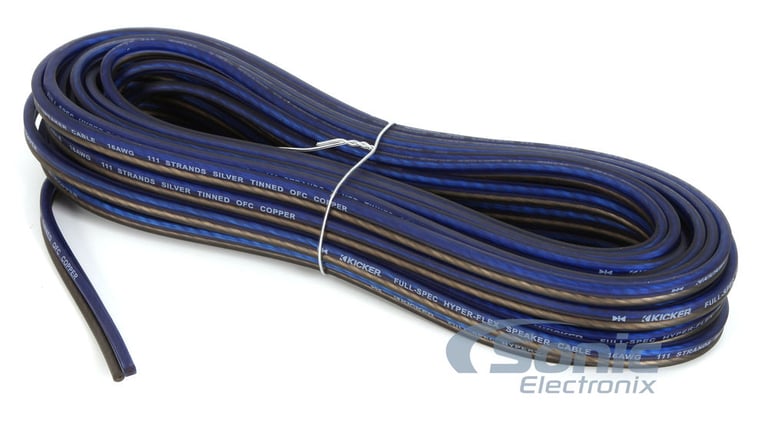

• 40ft. 16 Gauge OFC two-color speaker wire

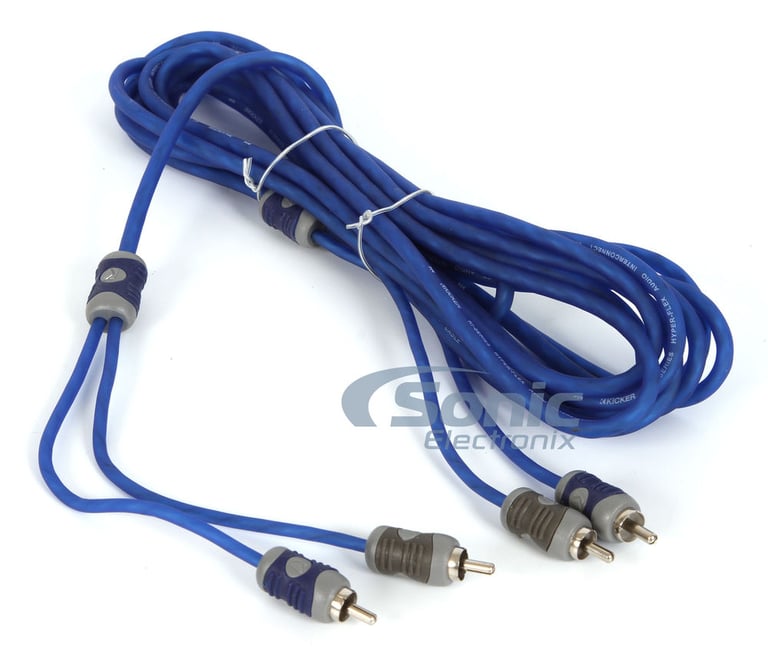

• 17ft. CK-Series noise rejecting braided three conductor RCA cable with precision machined ends

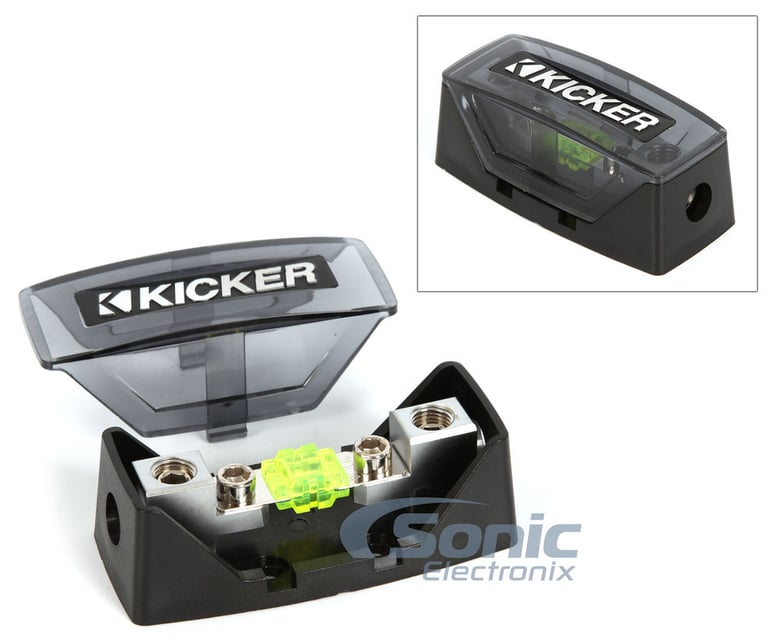

• CK-Series compact brass AFS fuse holder with 100A fuse
• 4 Gauge spade terminals, with red and black boots for amp connection

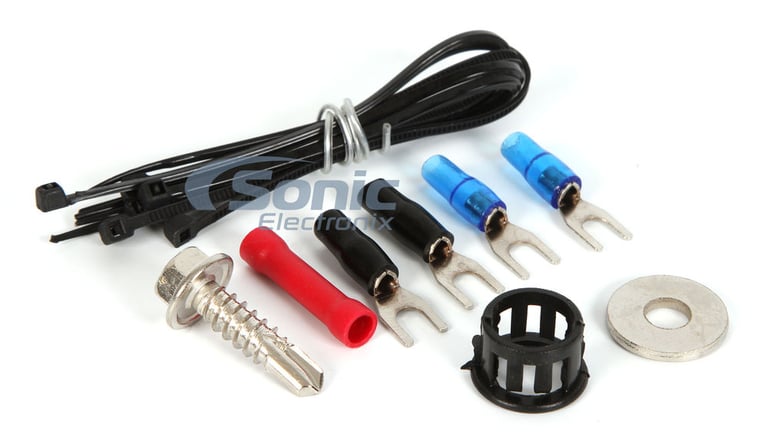

• Miscellaneous connectors, terminals and wire ties
