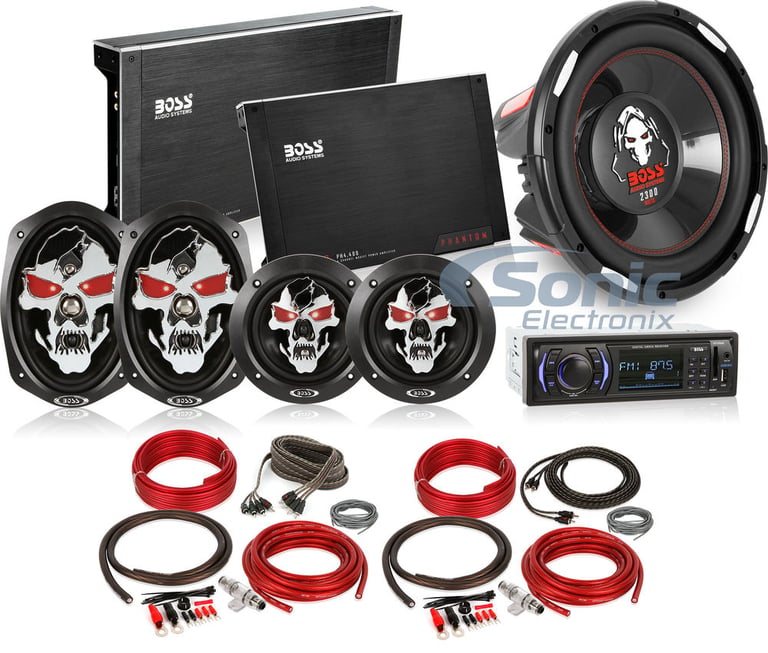

Boss Phantom Series Car Stereo Upgrade

General Features:

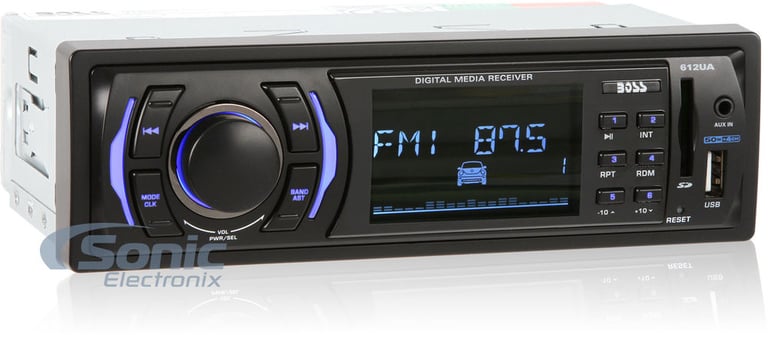

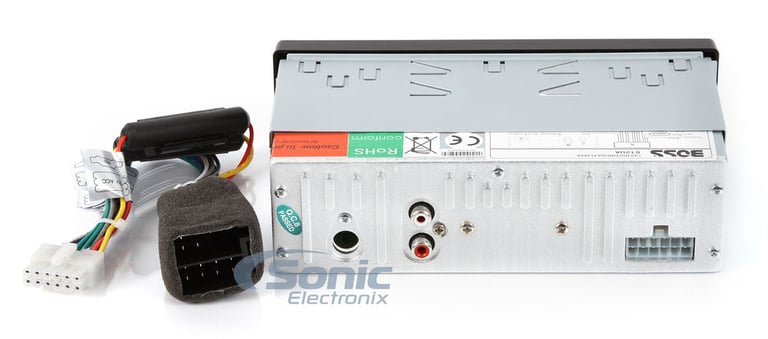

• Boss 612UA In-Dash Digital Media Receiver
• Quartz digital clock
• Solid state receiver (No built-in CD player)
• Active black mask display
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 10 watts x 4 channels
• MP3 ID3 Tag Display (Title/Artist/Album)
• 1-year Manufacturer's warranty

Playback and Audio Features:

• Playback of MP3 files
• PLL Synthesized tuner with 18FM/12AM presets
• Switchable USA/Europe radio frequencies
• EQ (preset tone curves)

• 1 Pair of pre-amp outputs
• 3.5mm Front-panel aux input
• Front-panel USB input
• Front-panel SD card reader

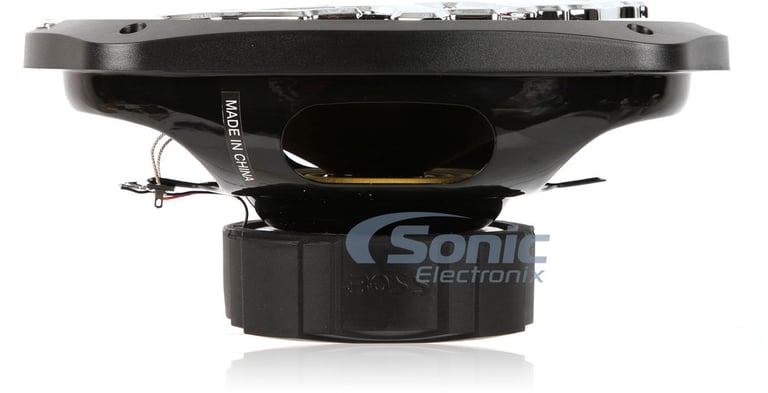

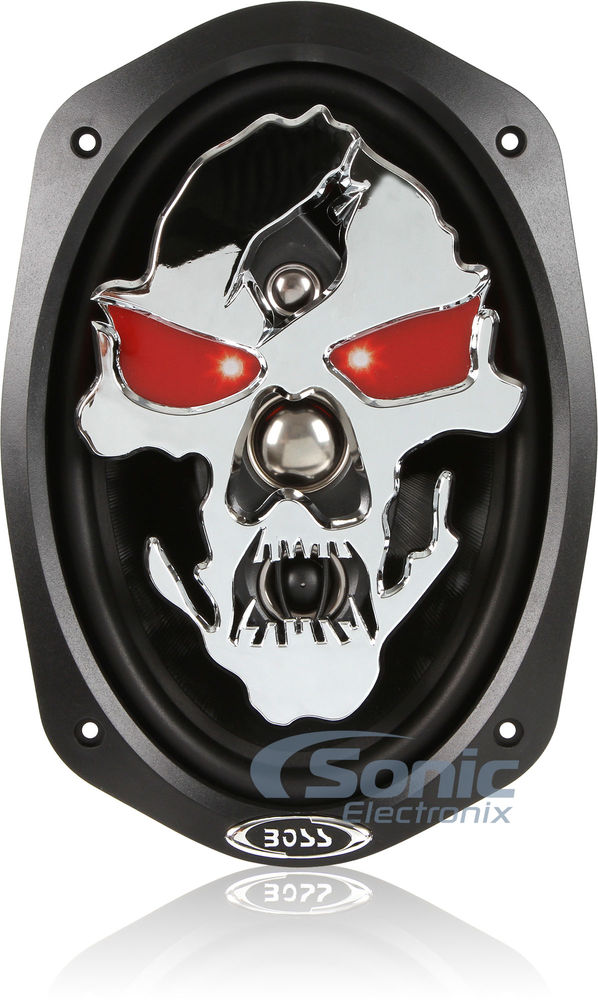

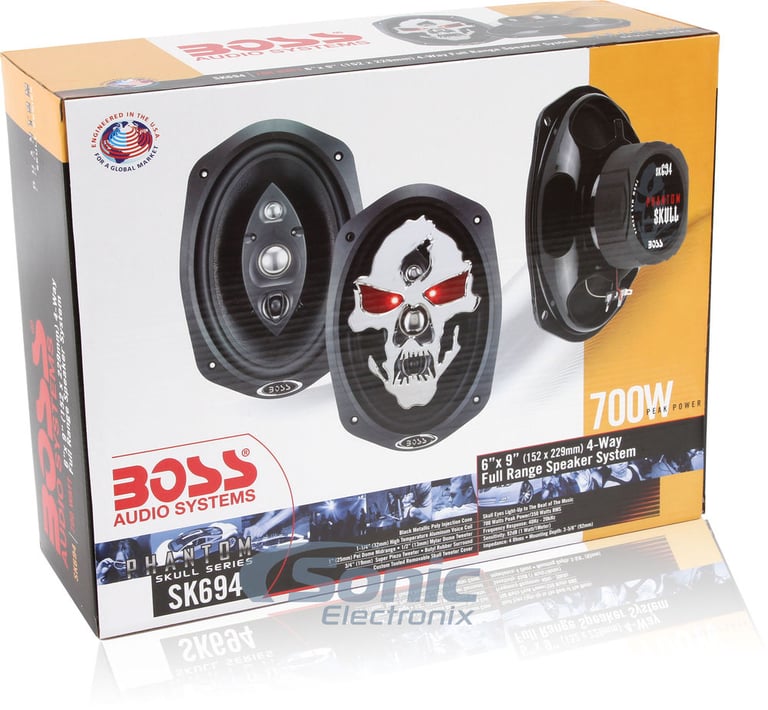

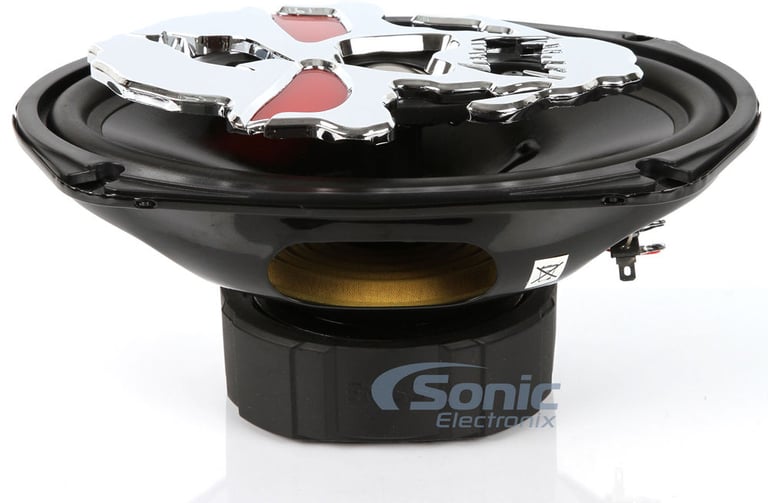

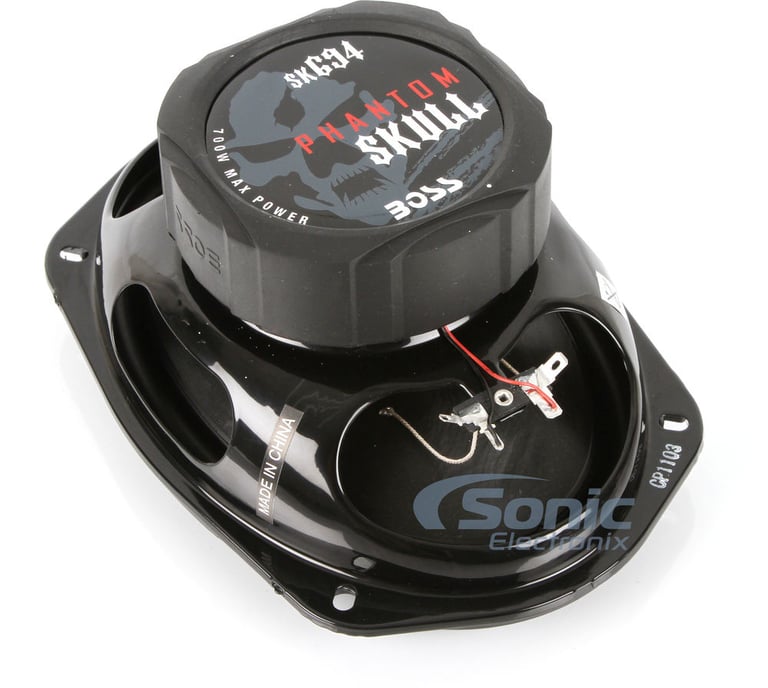

• 6" x 9" Phantom Skull Series 4-way Full Range Speaker System
• Power Handling:
• Peak: 1400 watts per pair / 700 watts each
• RMS: 700 watts per pair / 350 watts each
• Impedance: 4 Ohm
• Black metallic poly injection cone
• Butyl rubber surround
• 1" High- temperature aluminum voice coil
• 1" polymide dome tweeter
• 1/2" Mylar Dome Tweeter
• 3/4" Super Piezo tweeter

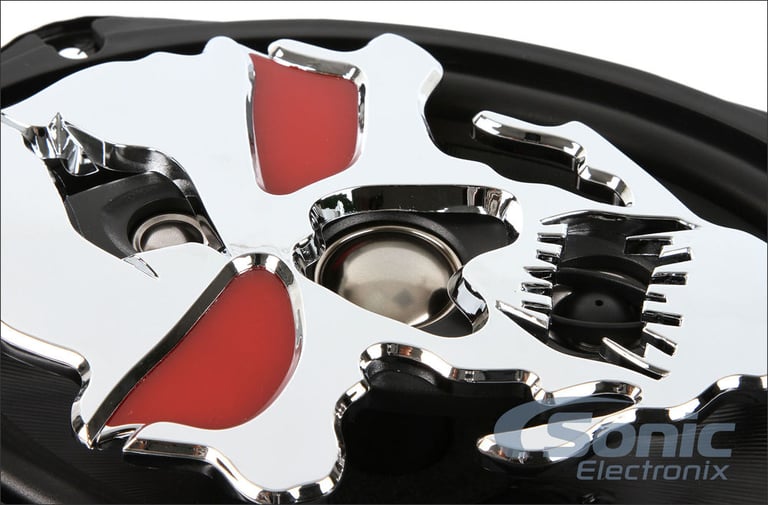

• Custom tooled removable skull tweeter cover
• Skull eyes light up to the beat of the music
• Frequency response: 45Hz - 20,000Hz
• Sensitivity: 92dB
• Mounting Depth: 3-5/8"
• Cutout Dimensions: 5-1/8" x 8-3/8"
• 1-year Manufacturer's Warranty

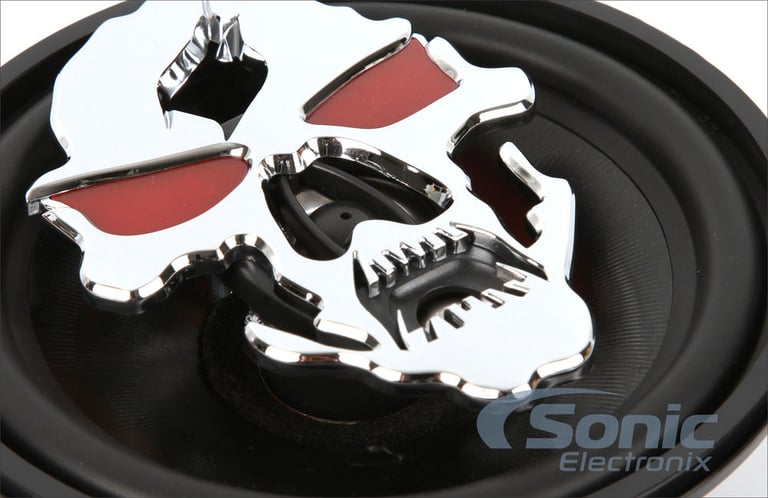

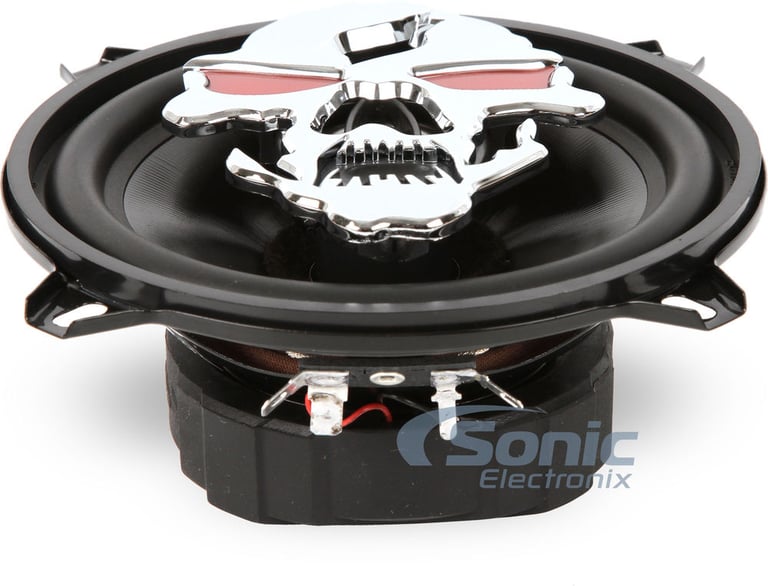

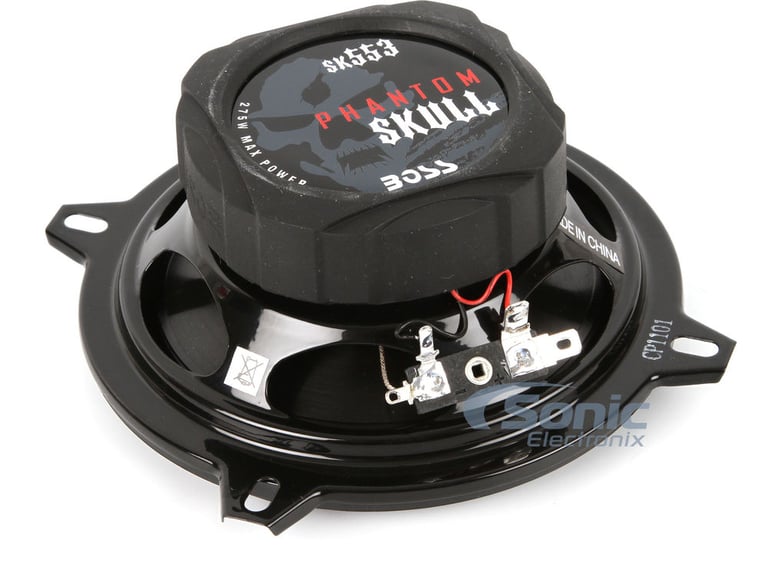

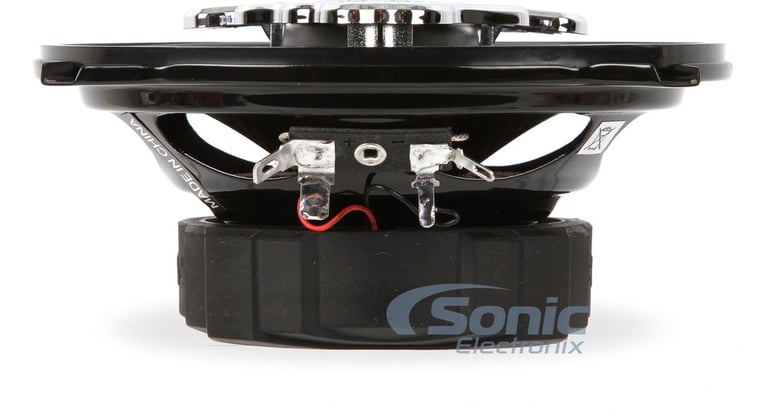

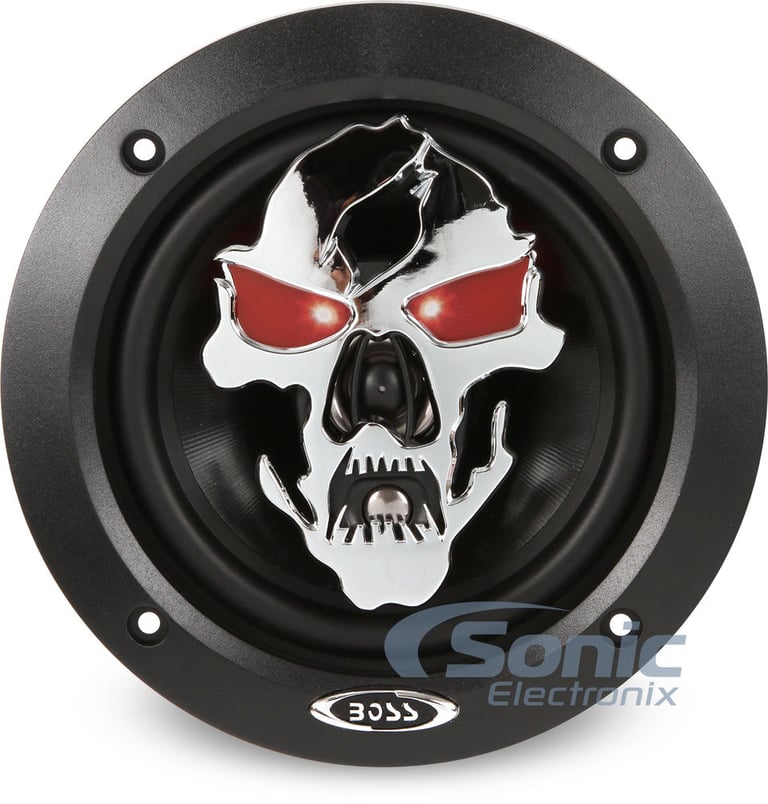

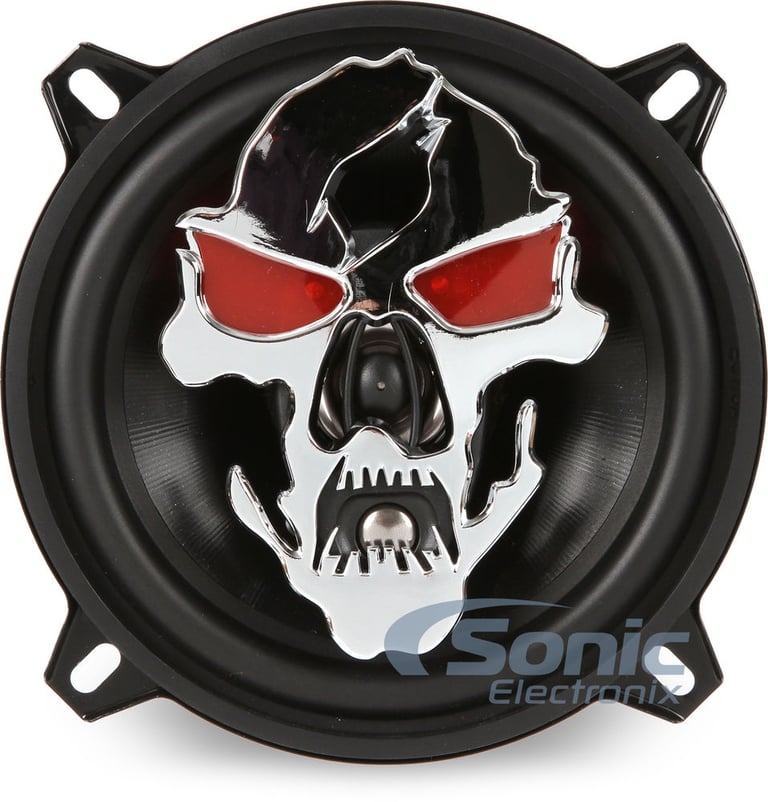

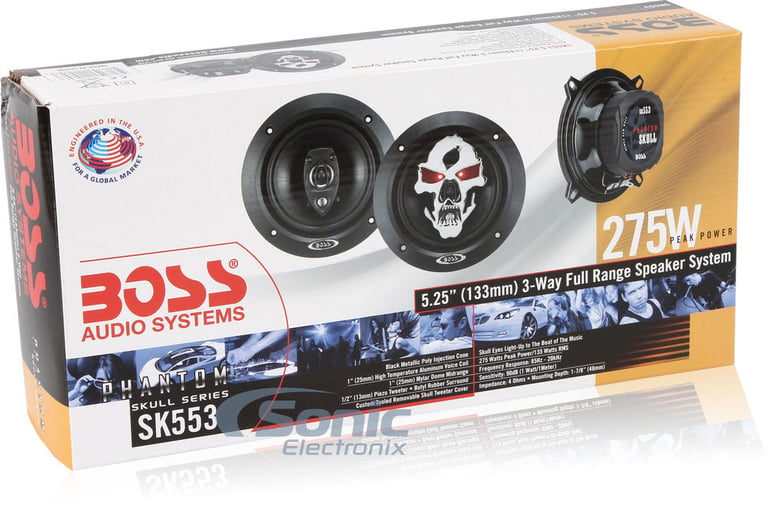

• Phantom Skull Series 5-1/4" 3-Way Full Range Speaker System
• Power Handling:
  • Peak: 275 watts per pair / 137.5 watts each
  • RMS: 135 watts per pair / 67.5 watts each
• Black metallic poly injection cone
• 1" Mylar dome midrange
• 1" Piezo dome tweeter
• Butyl rubber surround
• Custom tooled removable skull design tweeter cover
• Skull eyes light up to the beat of the music
• 4 ohm impedance
• 1" High temperature aluminum voice coil
• Top-mount depth: 1-7/8"
• Sensitivity: 90 dB
• Frequency Response: 85-20,000 Hz
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

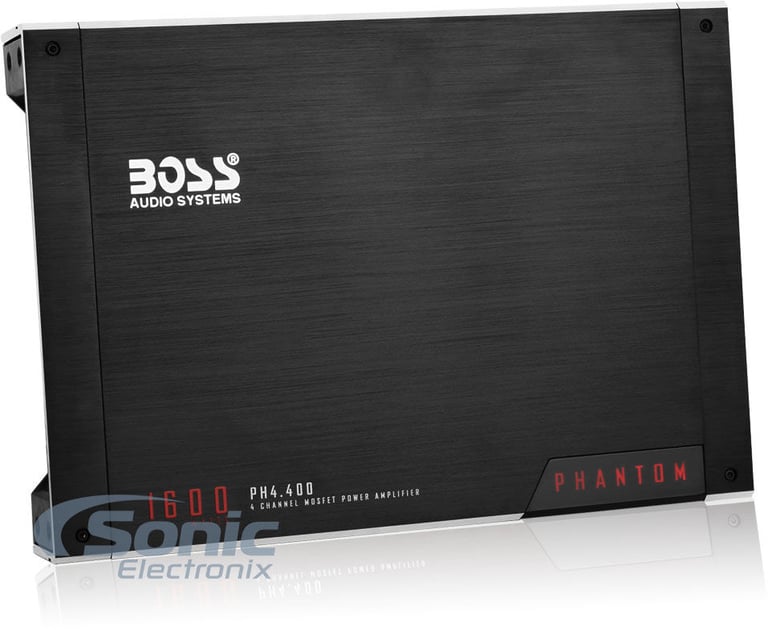

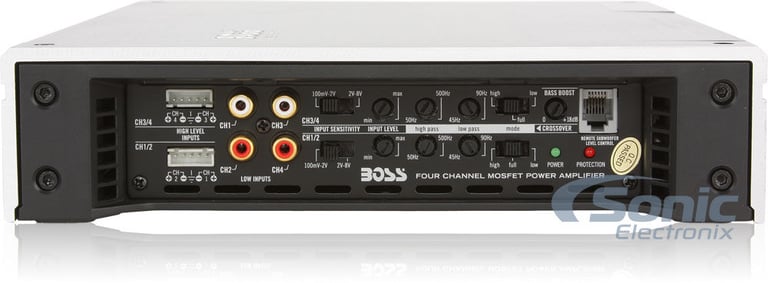

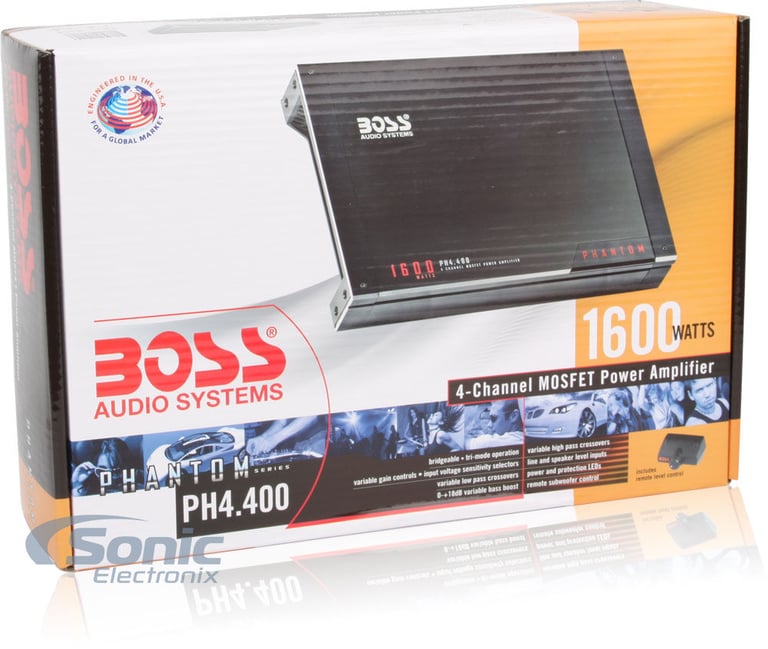

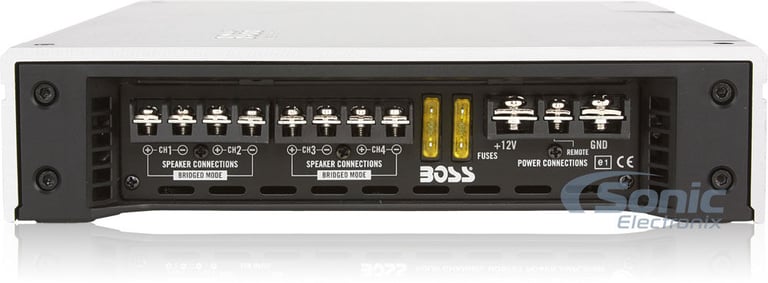

• Phantom Series 4-Channel Class A/B Car Amplifier
• RMS Power Rating:
  • 4 ohm: 160 watts x 4 chan.
• Max Power Rating:
  • 2 ohm: 400 watts x 4 chan.
  • Bridged, 4 ohm: 800 watts x 2 chan.
• Max power output: 1600 watts
• Bridgeable outputs
• MOSFET PWM Power supply
• Wired remote bass level control included
• LED power and protection indicators
• Variable 0 +/- 18 dB Bass boost
• Trimode operation to connect a pair of speakers plus a subwoofer on one pair of output channels
• Thermal and speaker short protection
• Heavy duty black anodized heatsink
• Soft turn-on circuit
• Remote turn-on/turn-off circuit
• Gold-plated RCA High and low level inputs
• Gold-plated screw terminals
• Fixed high-pass crossover (50-150 Hz)
• Variable low-pass crossover (45-90 Hz)
• Frequency response: 9-50,000 Hz
• Dimensions: 9-1/2" D x 13-7/16"W x 2-1/4"H

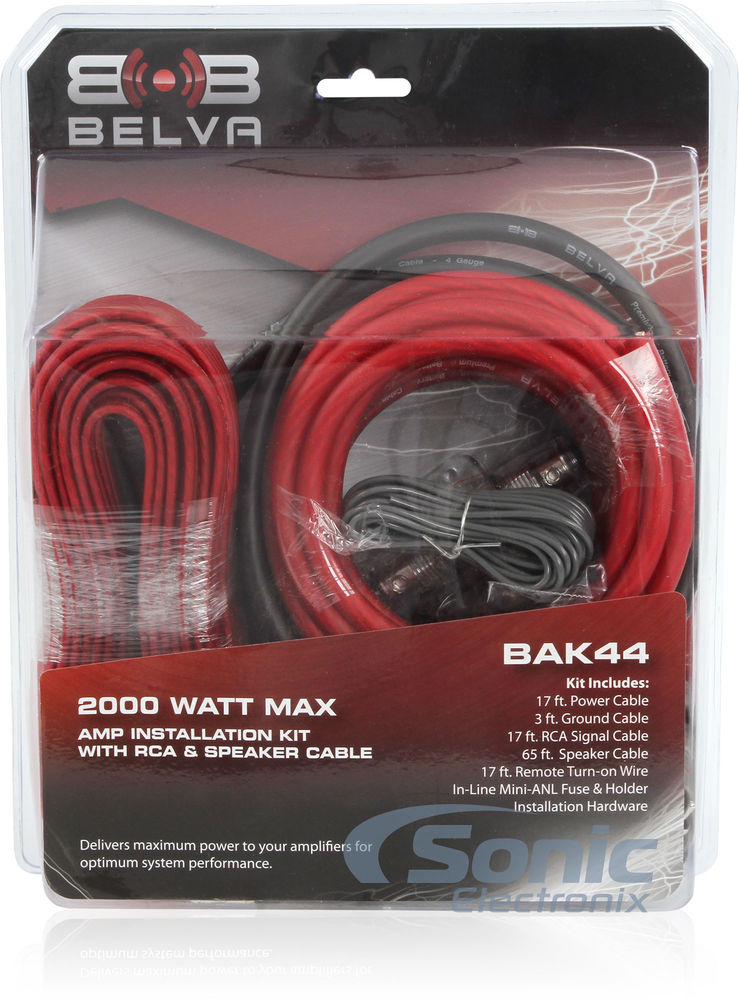

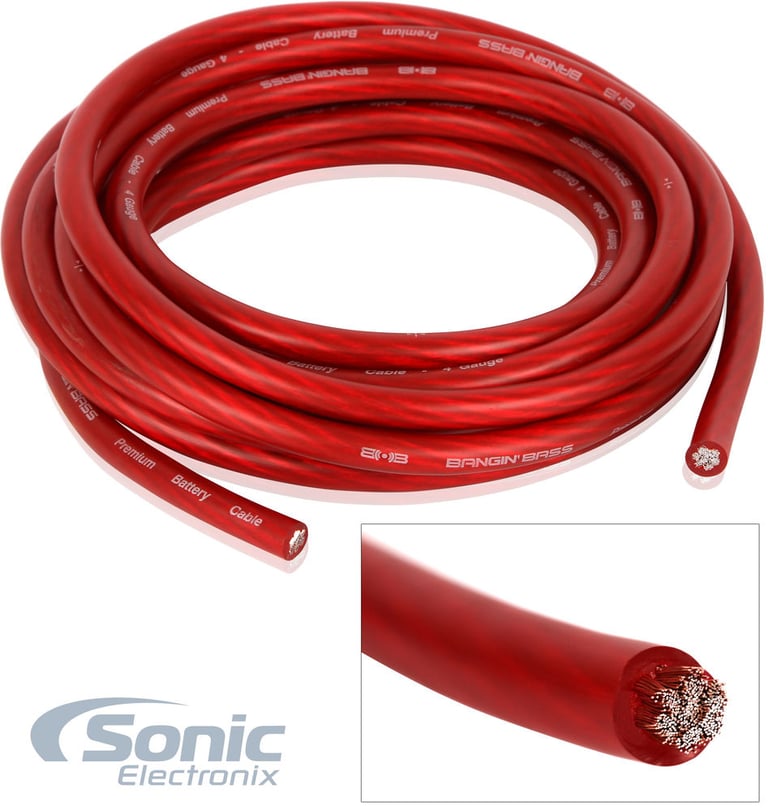

• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• 1-year Manufacturer's warranty

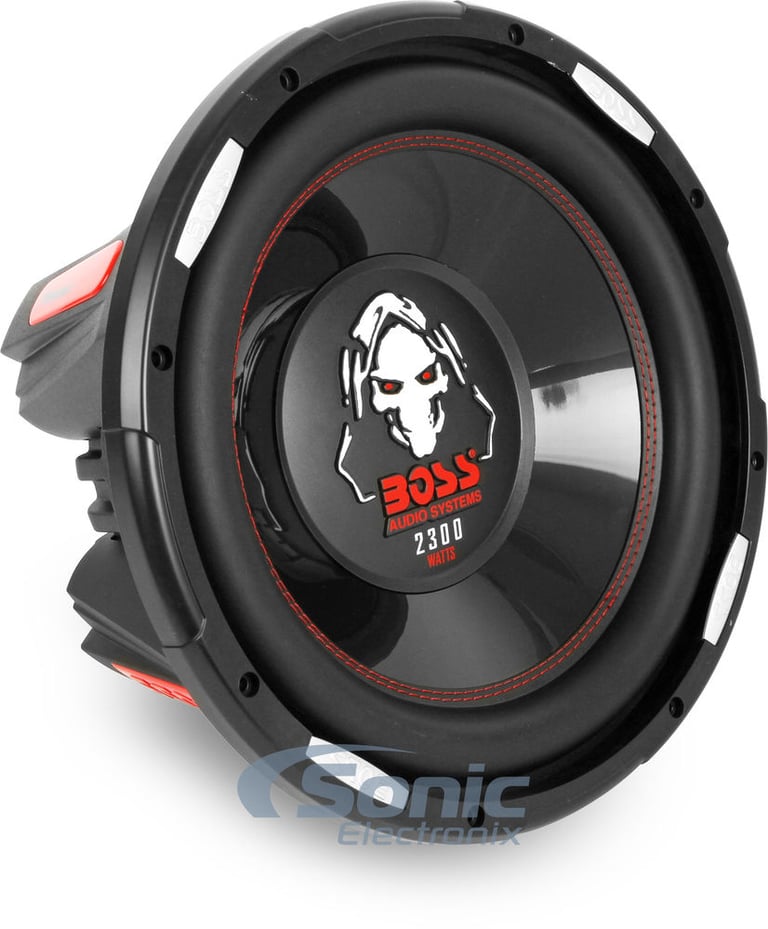

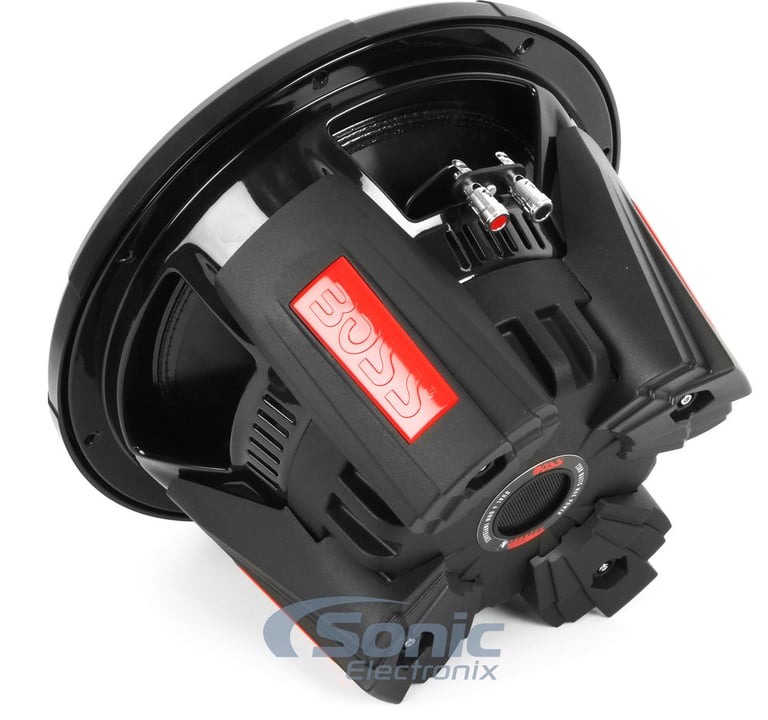

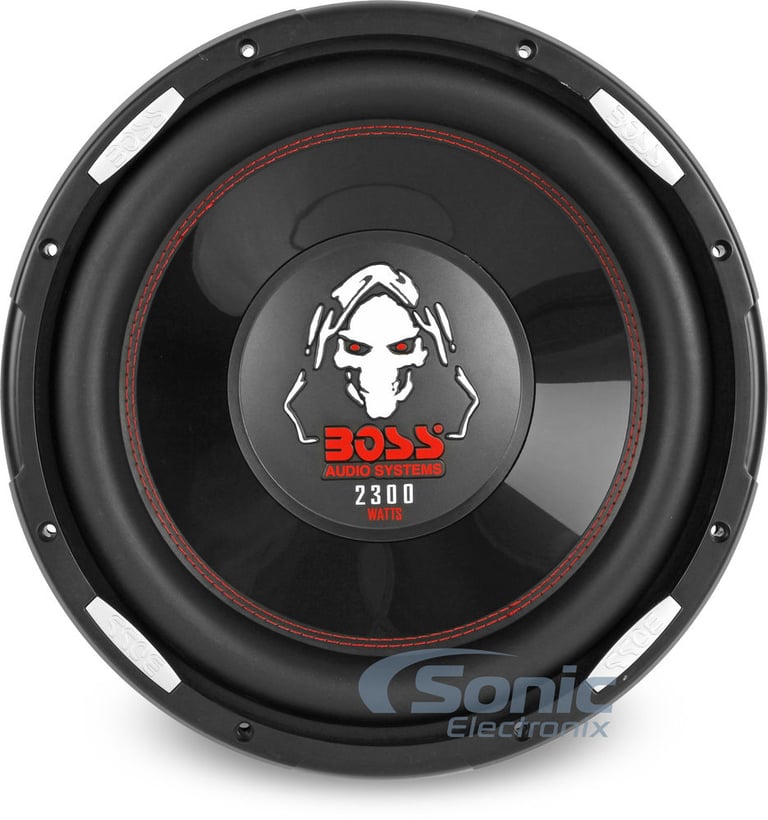

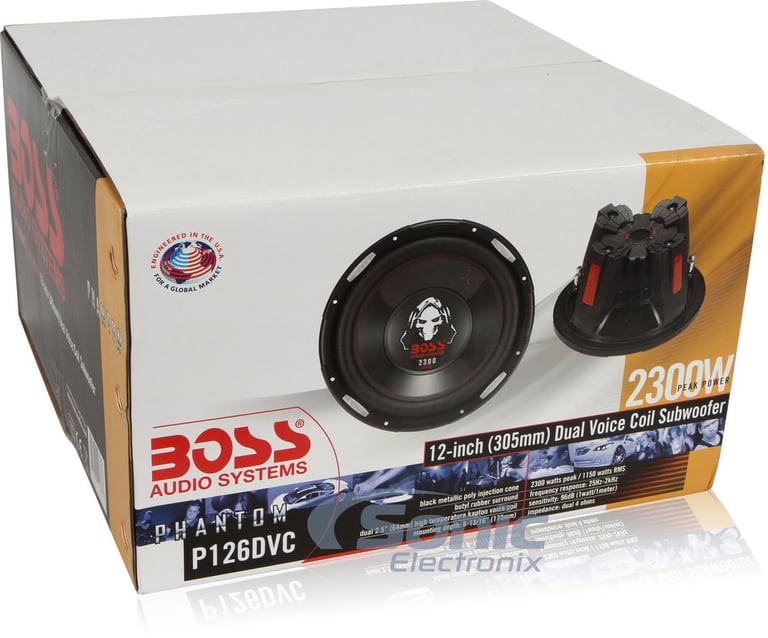

• 12" Dual 4 ohm Phantom Series Subwoofer
• Power Handling:
  • Peak: 2300 watts
  • RMS: 1150 watts
• Impedance: Dual 4 ohm
• Black metallic injection molded polypropylene cone
• Butyl rubber surround
• Designed for use in sealed and ported enclosures
• 2-1/2" High temperature Kapton voice coil
• Large magnet with protective cover
• Mounting Depth: 6-13/16"
• Frequency response: 25-2,000 Hz
• Sensitivity: 96 dB
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

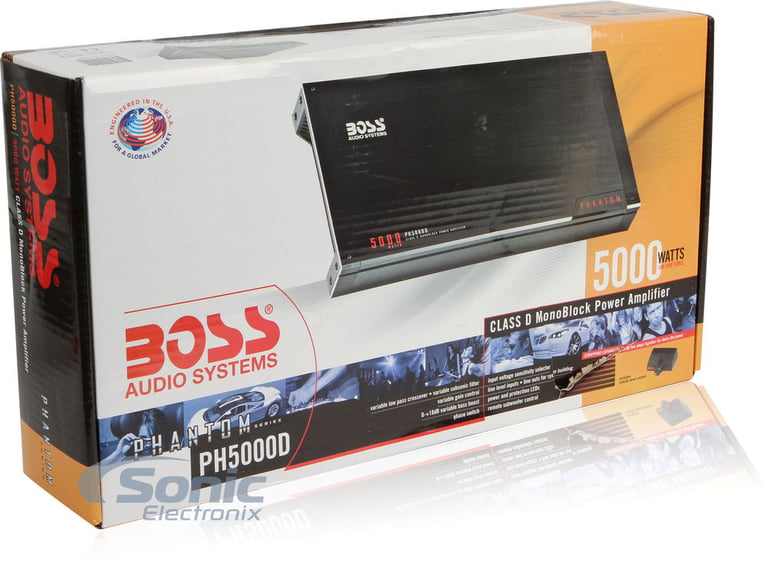

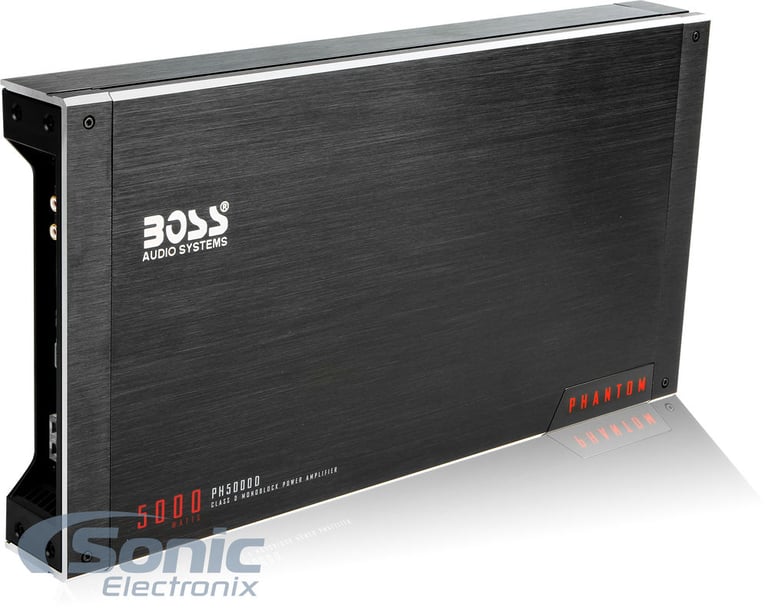

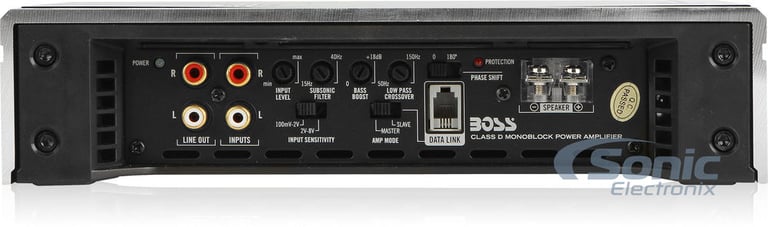

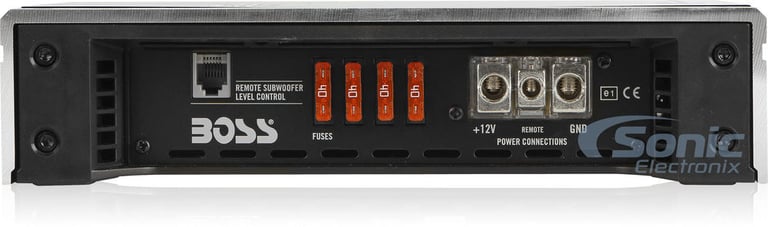

• Phantom Series Class D Monoblock Car Amplifier
• Max Power Rating:
  • 2 ohm: 3500 watts x 1 chan.
  • 1 ohm: 5000 watts x 1 chan.
• RMS power output: 1800 watts x 1 chan.
• Mosfet PWM (Pulse Width Modulated) power supply

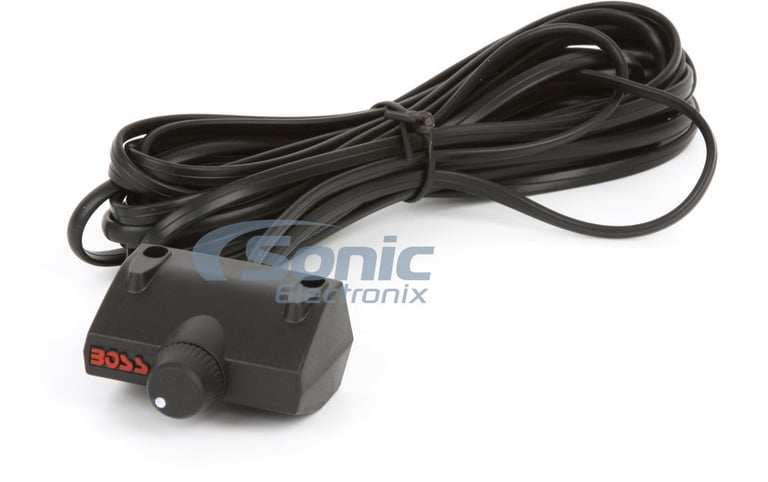

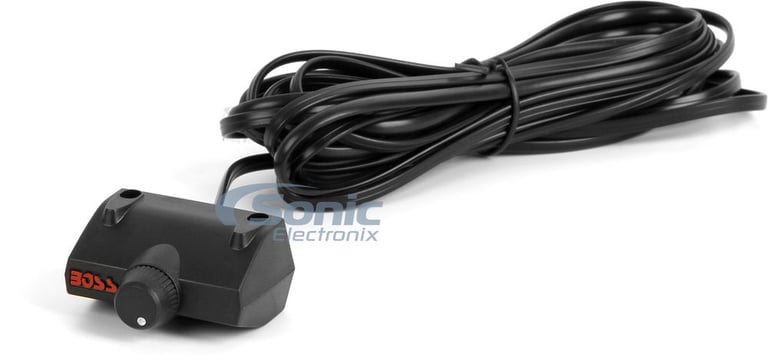

• Wired remote subwoofer level control included
• LED Power and protection indicators
• Bass Boost allows further flexibility of the subwoofer with a variable of 0-18 dB
• Variable input gain control for more precise adjustments
• Remote turn-on/turn-off circuit
• Soft turn on circuit
• Input voltage sensitivity selector
• Thermal, overload and speaker short protection
• DataLink allows two identical Phantom Class D amps to be strapped togeather
• Phase Shift selector
• Black anodized heatsink

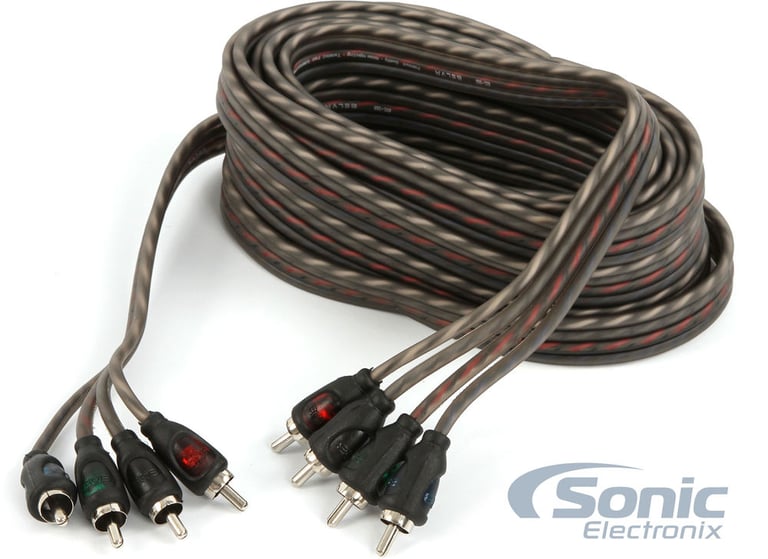

• Gold-plated RCA low level inputs
• Nickel-plated speaker and power terminals
• Variable low-pass filter (50-150 Hz, 12 dB/octave)
• Subsonic Filter (15-40 Hz, 12 dB/octave)
• Frequency response: 40-150 Hz
• Dimensions: 9-1/2"L x 18"W x 2-1/4H

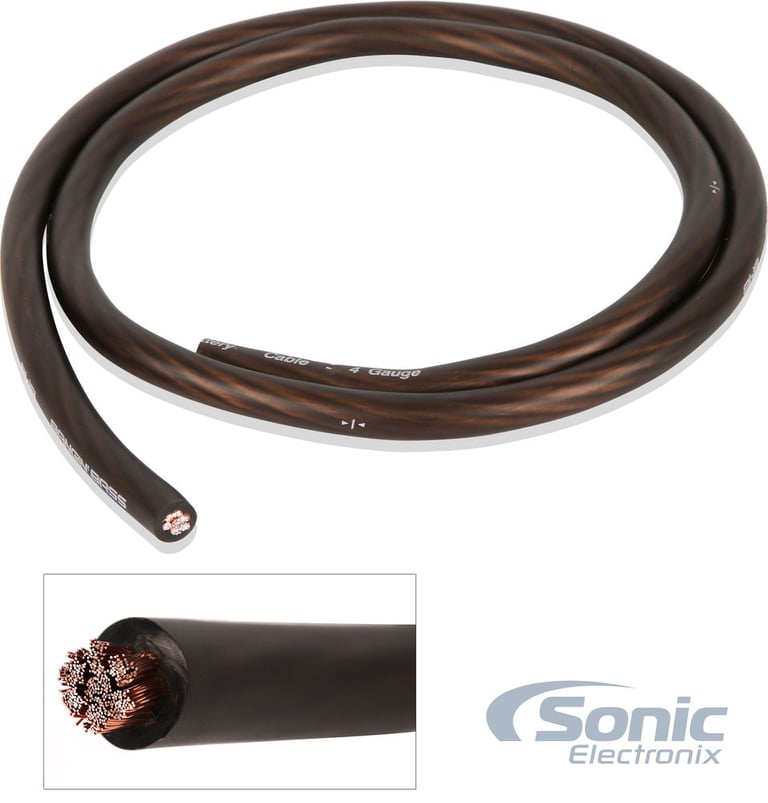

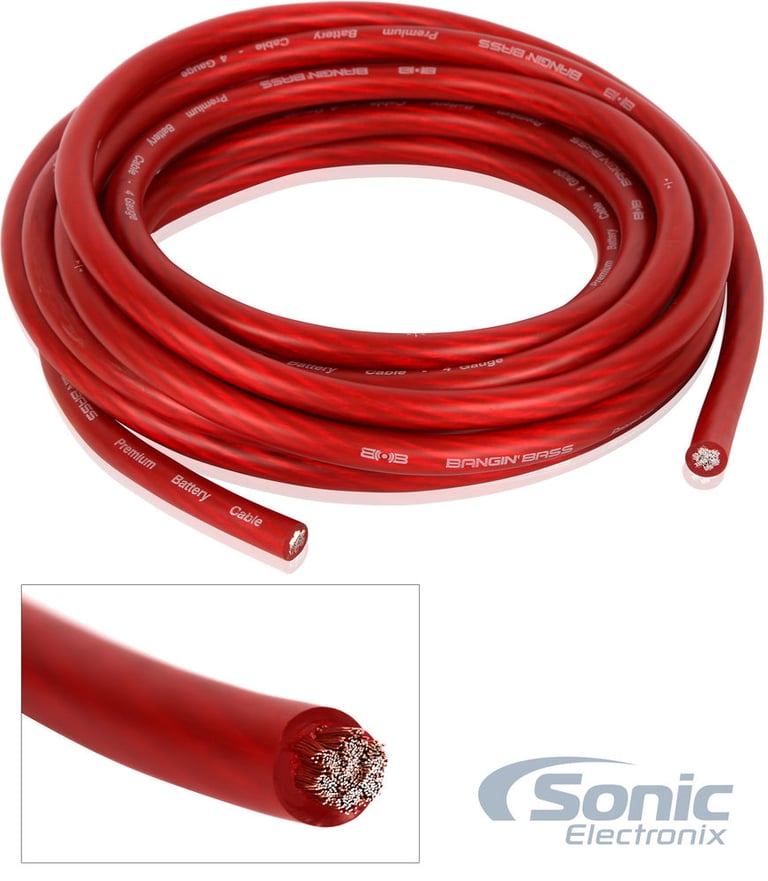

• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount
• 1-year Manufacturer's warranty
