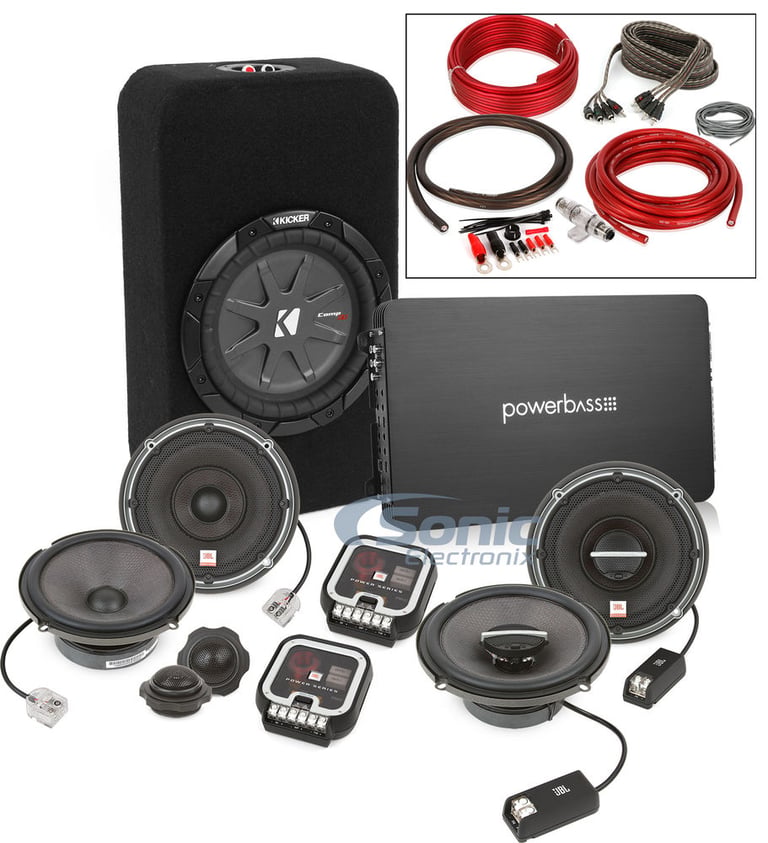

PowerBass + JBL + Kicker Car Audio Upgrade Package

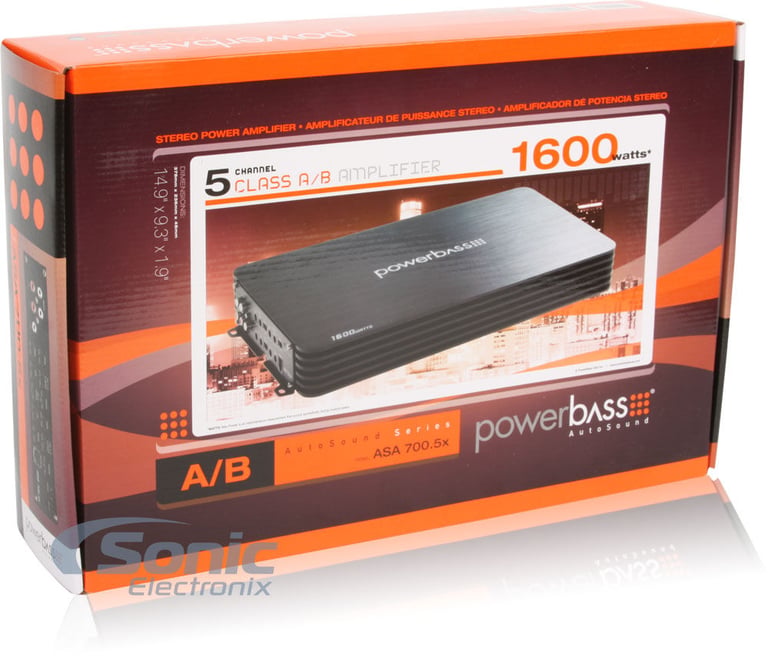

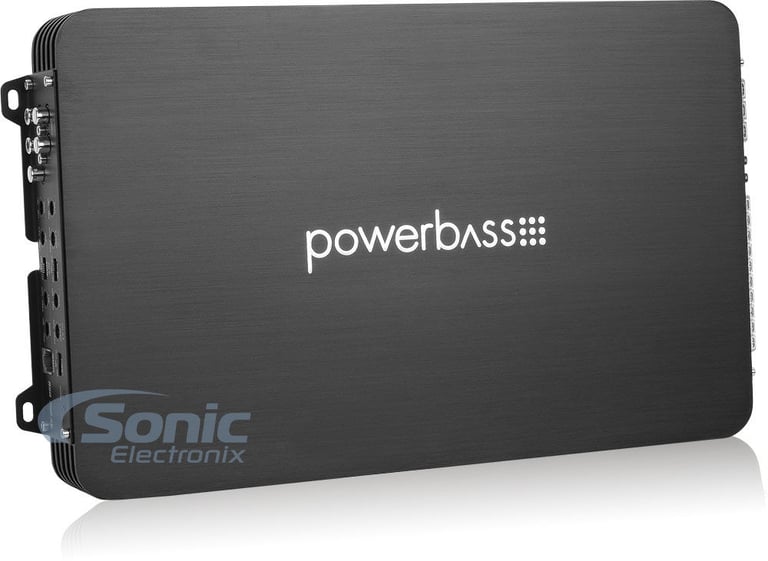

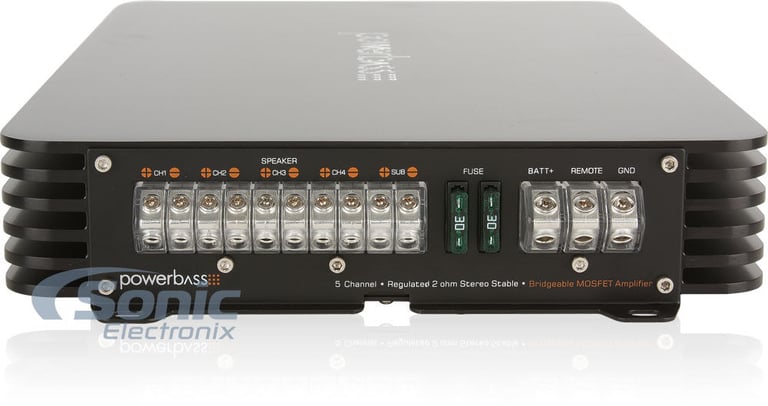

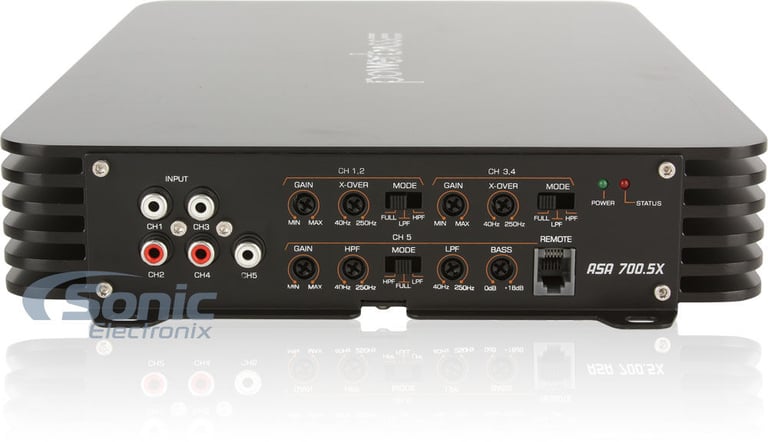

• Auto Sound Series 5-Channel Class A/B Car Amplifier
• RMS Power Rating:
  • 4 ohm: 50 watts x 4 chan. + 200 watts x 1 chan.
  • 2 ohm: 100 watts x 4 chan. + 400 watts x 1 chan.
  • 4 ohm Mono: 200 watts x 2 chan. + 400 watts x 1 chan.
• Max power output: 1600 watts
• MOSFET Power supply
• Power and status LED Indicators
• Remote bass level input (remote level control sold separately)
• Total harmonic distortion: <0.05%
• High-pass crossover (40-250 Hz, 12dB)
• Low-pass crossover (40-250 Hz, 12dB)
• Variable subwoofer EQ (0 + 18dB)
• Subwoofer EQ Frequency: 40 Hz
• Frequency response: 20-22,000 Hz
• Dimensions: 9.3"D x 14.9"W x 1.9"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• 1-year Manufacturer's warranty

General Features

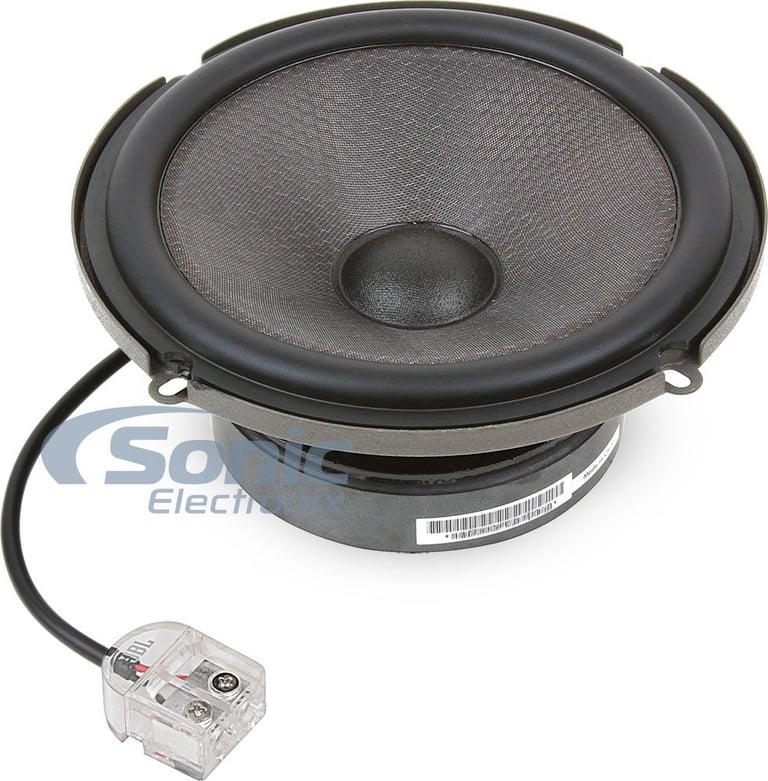

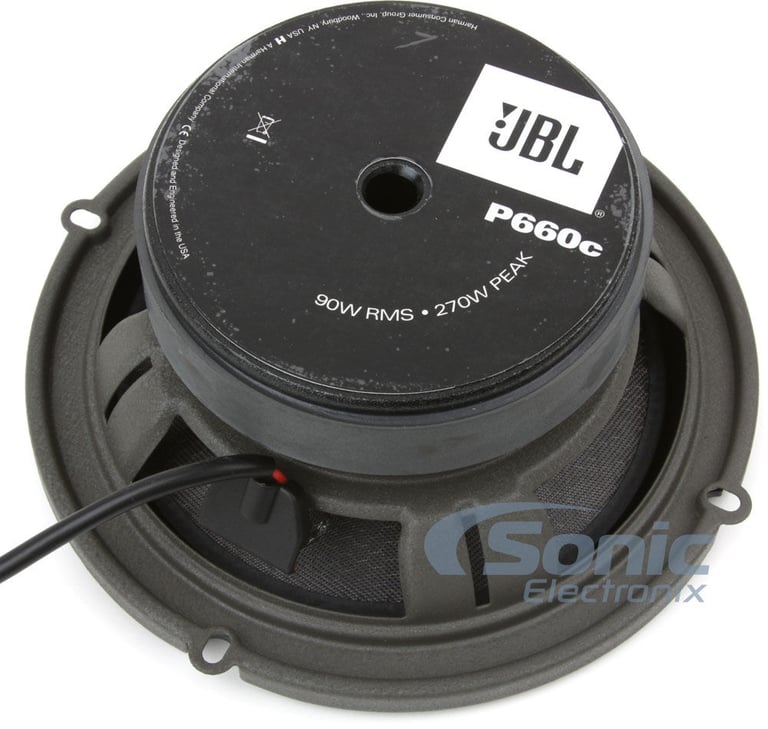

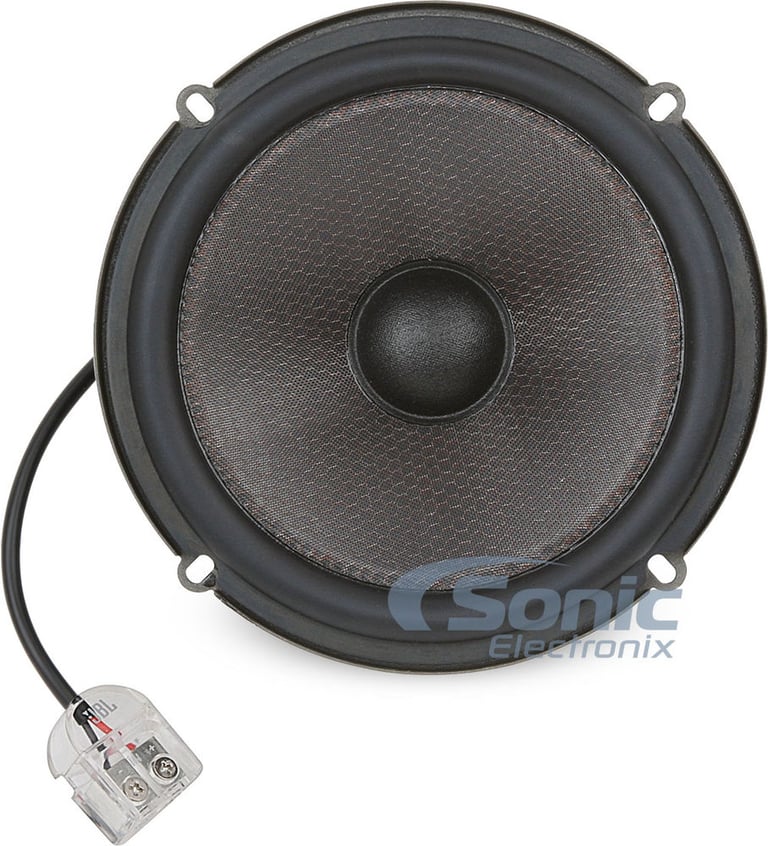

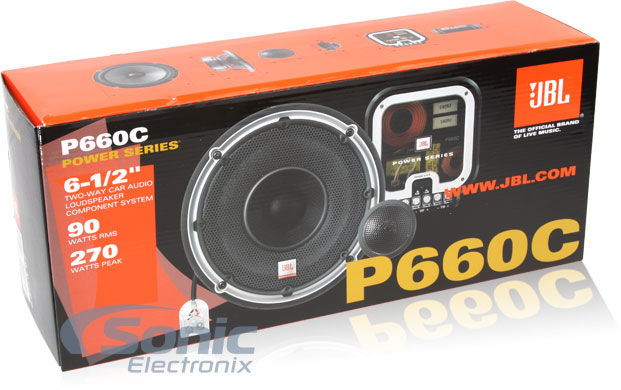

• 6-1/2" Power Series Component System
• Power Handling:
• Peak: 540 watts per system / 270 watts each side
• RMS: 180 watts per system / 90 watts each side
• Plus One Honeycomb Laminate(HCL)Woofer cone consists of two woven glass fiber layers with Nomex core

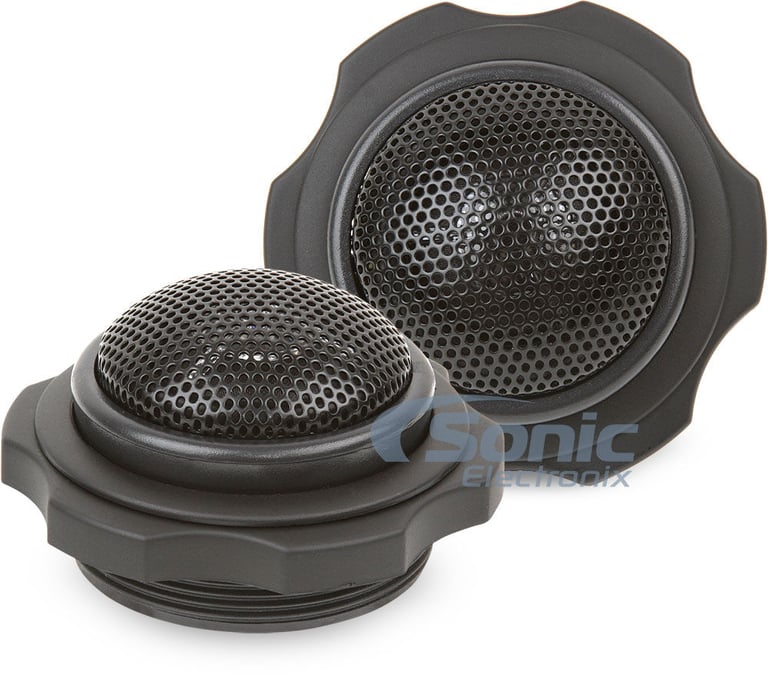

• Textile dome tweeters reduce distortion at high output levels
• Tweeter-level control features a switch to reduce the tweeter output level to match personal listening preferences

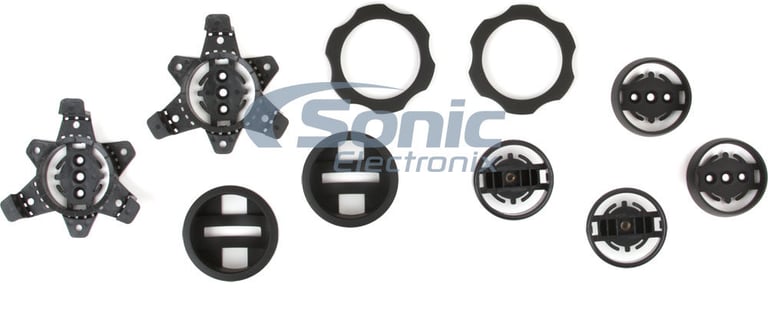

• I-mount tweeter mounting system for precise imaging and easy installation

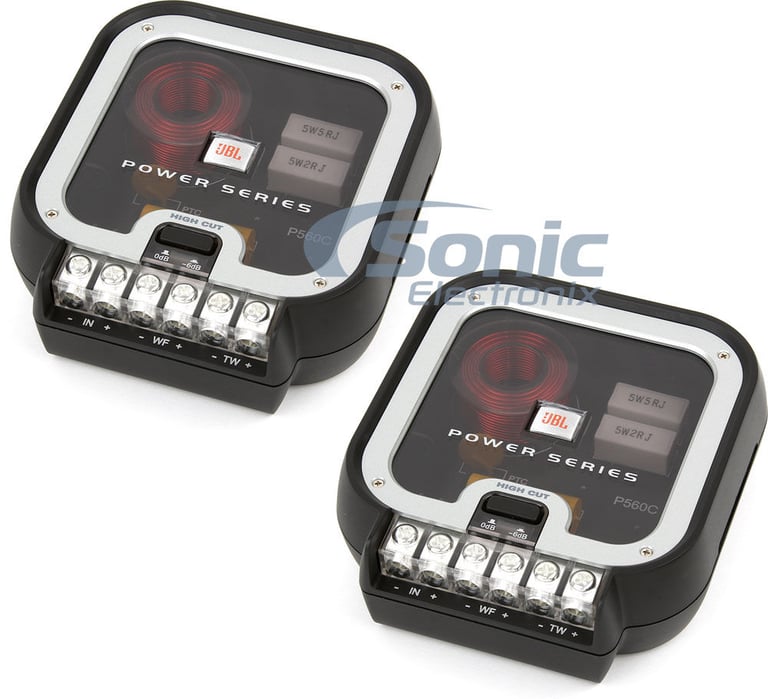

• Computer-optimized voice-matched passive crossover to ensure clarity and detail
• 2 ohm impedance
• Oversized voice coils and integrated tinsel leads
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

General Features

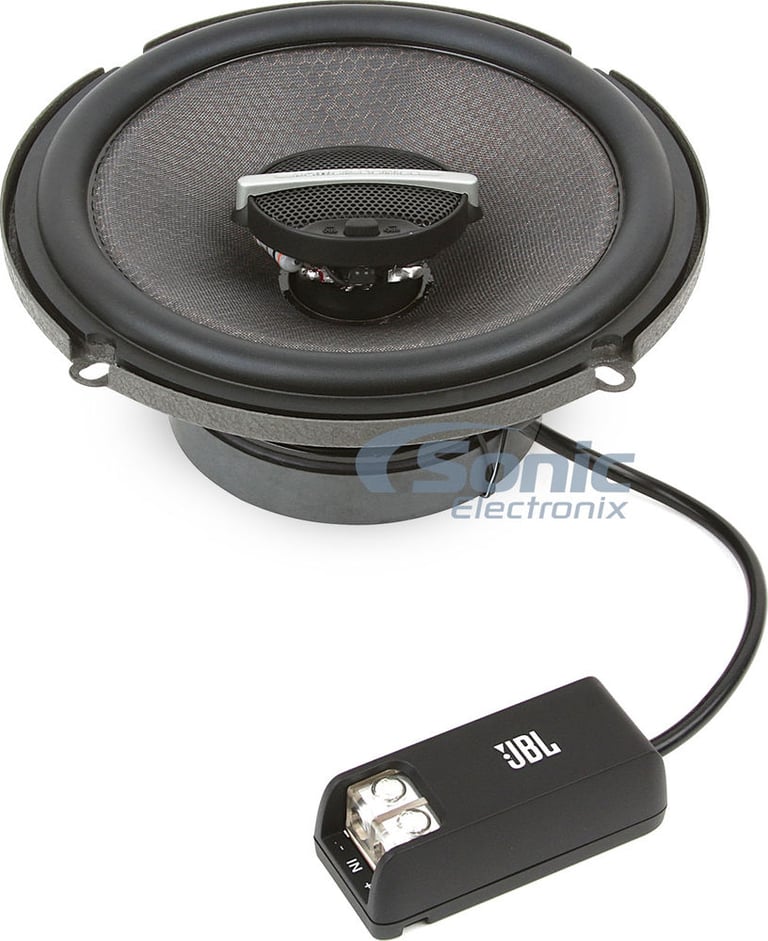

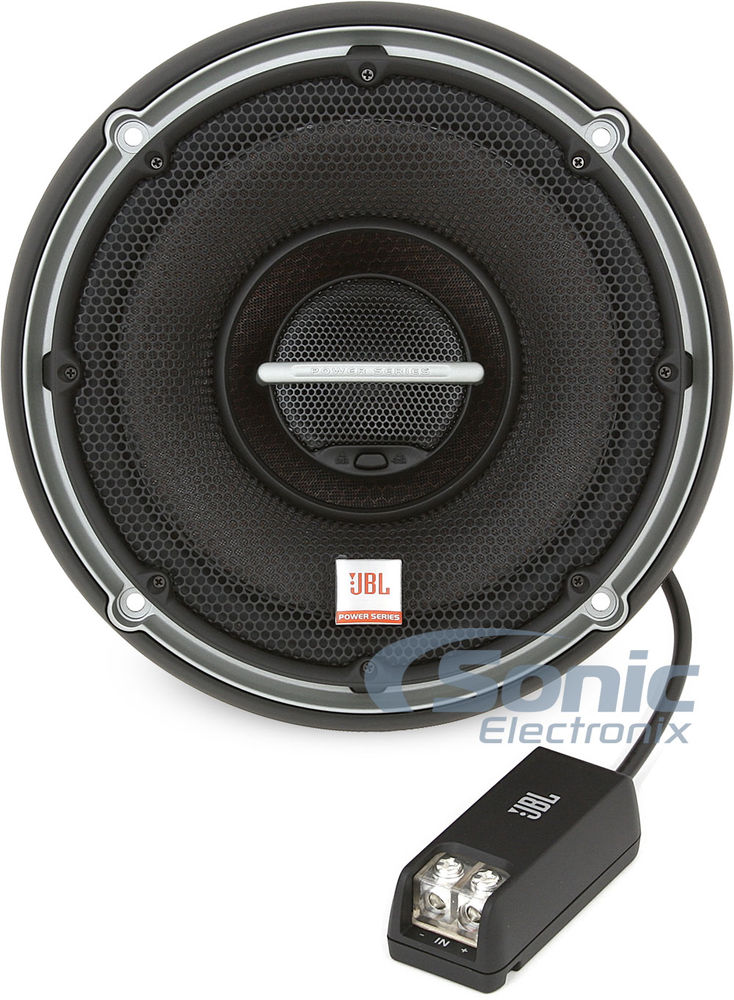

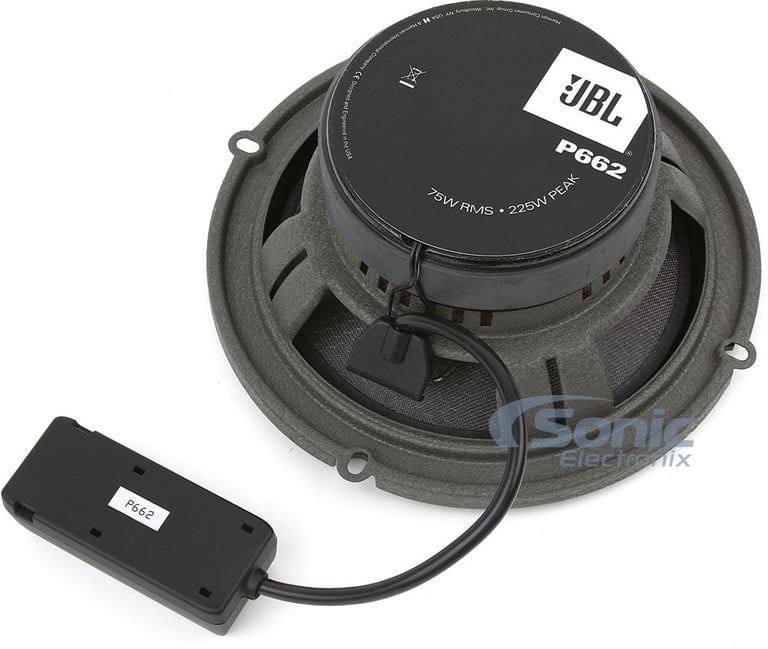

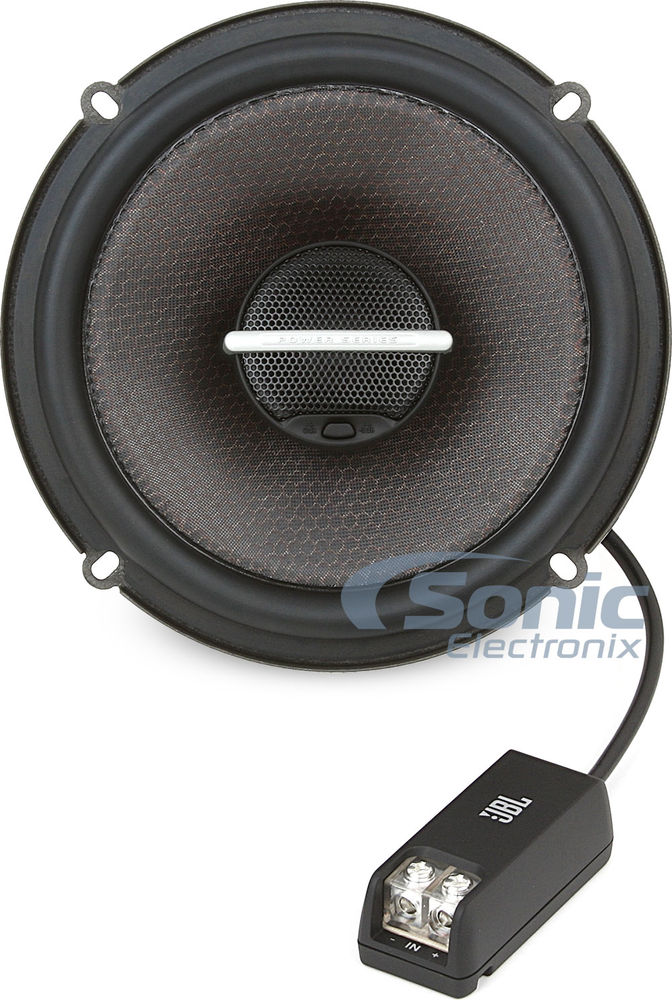

• 6-1/2" Power Series Car Speakers
• Power Handling:
• Peak: 450 watts per pair / 225 watts each
• RMS: 150 watts per pair / 75 watts each
• Plus One Honeycomb Laminate(HCL)Woofer cone consists of two woven glass fiber layers with Nomex core
• Textile dome tweeters reduce distortion at high output levels
• Tweeter-level control features a switch to reduce the tweeter output level to match personal listening preferences
• I-mount tweeter mounting system for precise imaging and easy installation
• Computer-optimized voice-matched passive crossover to ensure clarity and detail
• 2 ohm impedance
• Oversized voice coils and integrated tinsel leads
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Subwoofer Features:

• 8" Dual 2 Ohm CompRT Series Subwoofer
• Power Handling:
• Peak: 800 watts
• RMS: 400 watts
• Enclosure impedance: 4 ohm (Wired internally in series to final 4 ohm impedance)
• Injection-molded polypropylene cone
• Tough Santoprene surround with interlocking front gasket
• Dual pair of spring-loaded wire terminals custom designed for shallow mount installations
• Weather-proof for outdoor powersports applications
• Double venting for max cooling
• Inverted-bumped back plate and bumped top plate for full voice-coil clearance and excursion while maintaining a shallow profile
• High-temp voice coil for increased power handling
• Resonance Frequency (Fs): 49.2 Hz
• Top-mount depth: 2-11/16"
• Sensitivity: 84.8dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

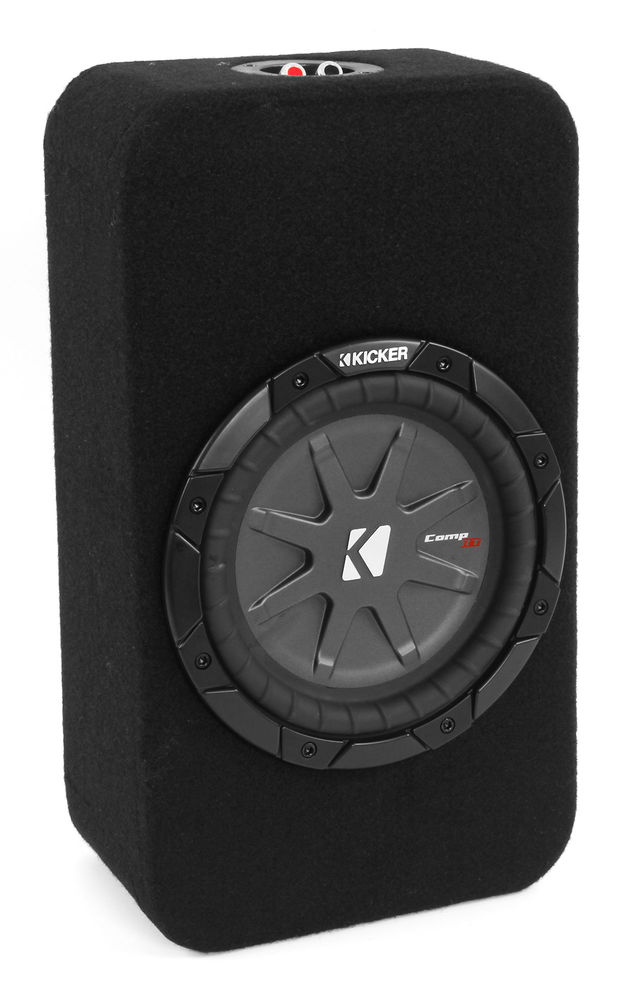

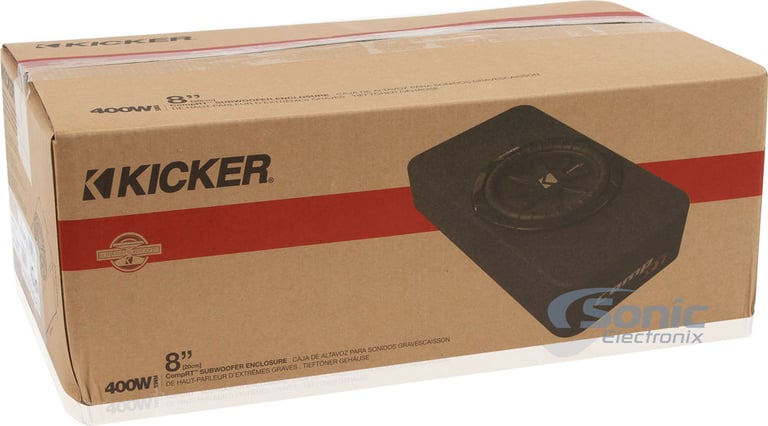

Enclosure Specifications:

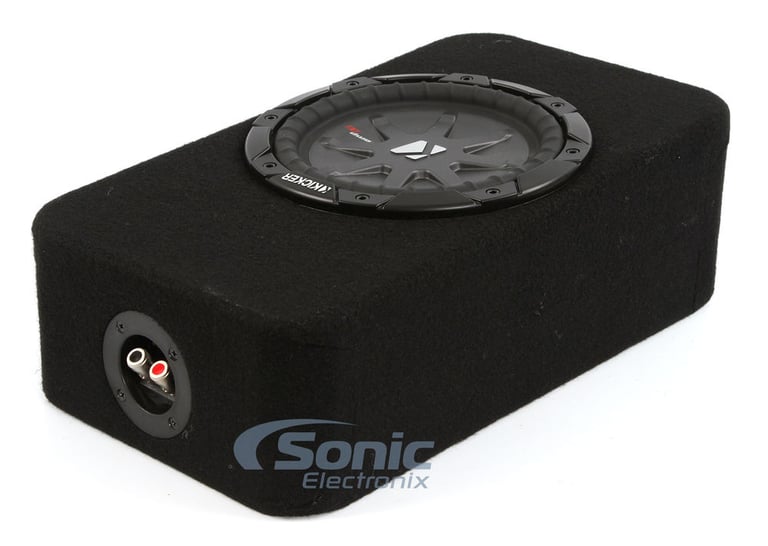

• Single 8" Sealed Truck Enclosure
• Smallest sub-loaded enclosures from KICKER
• Easy-to-use impedance designated at the terminal cup assembly
• Tough KICKER wood enclosure
• Dense gray carpeting
• Monogrammed, carbon-fiber front baffle
• Dimensions: 4-3/8"TD x 5-3/8"BD x 16-1/8"H x 9"W

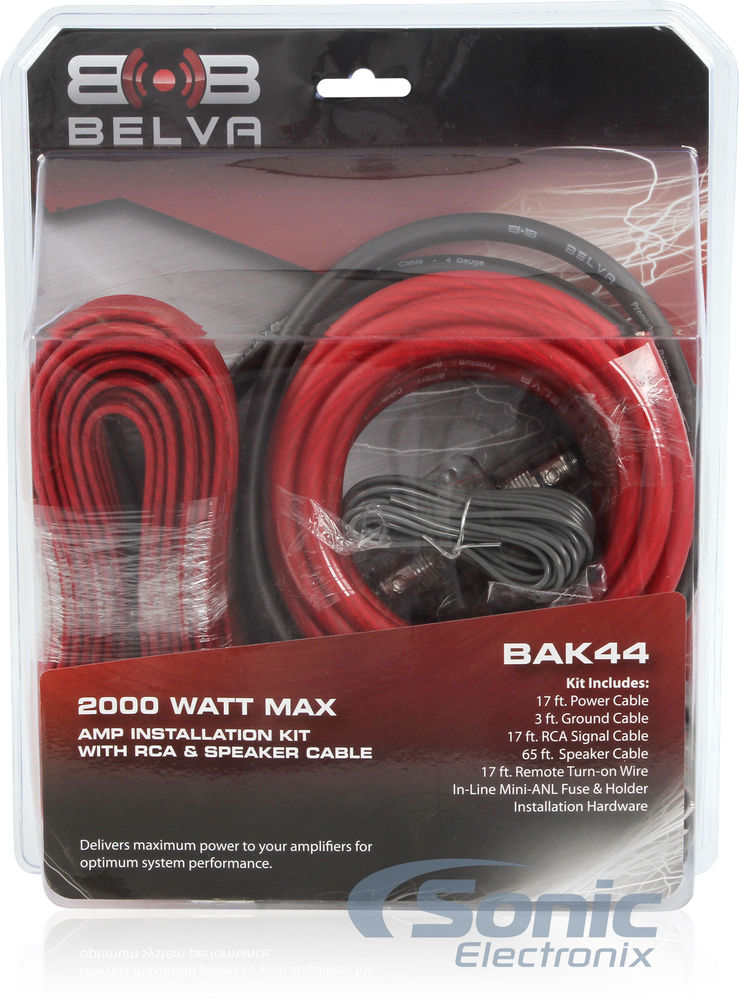

General Features:

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal

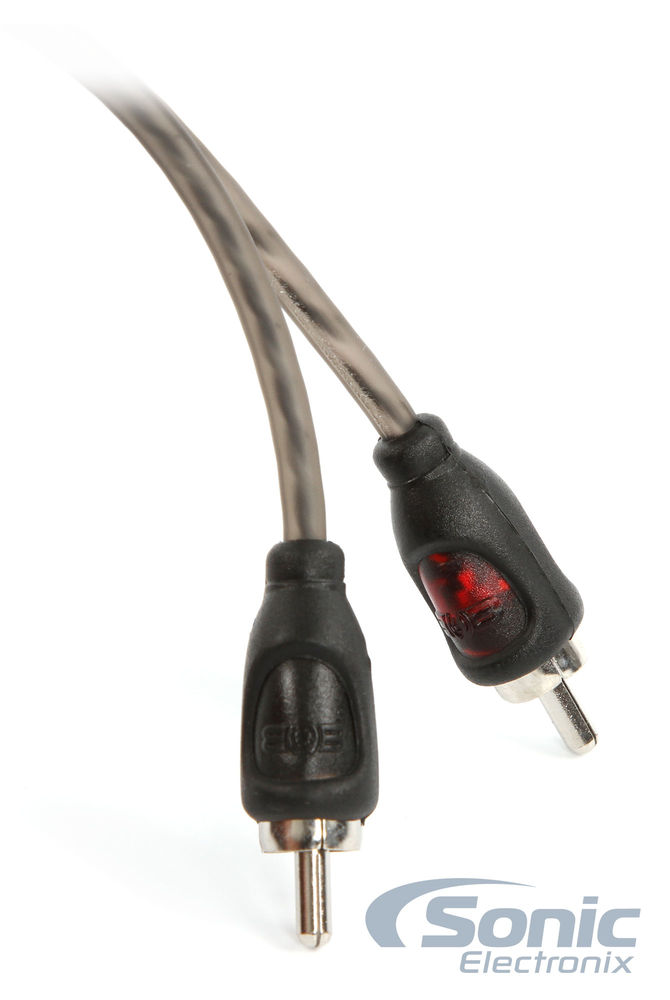

• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available as 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

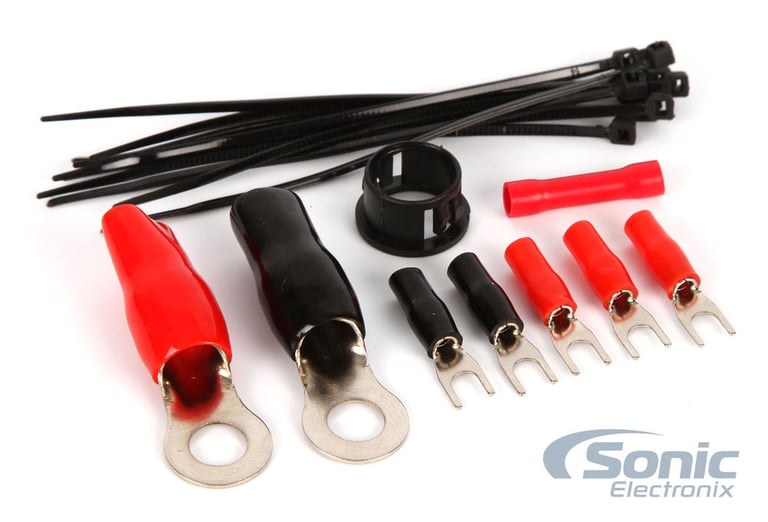

Kit includes:

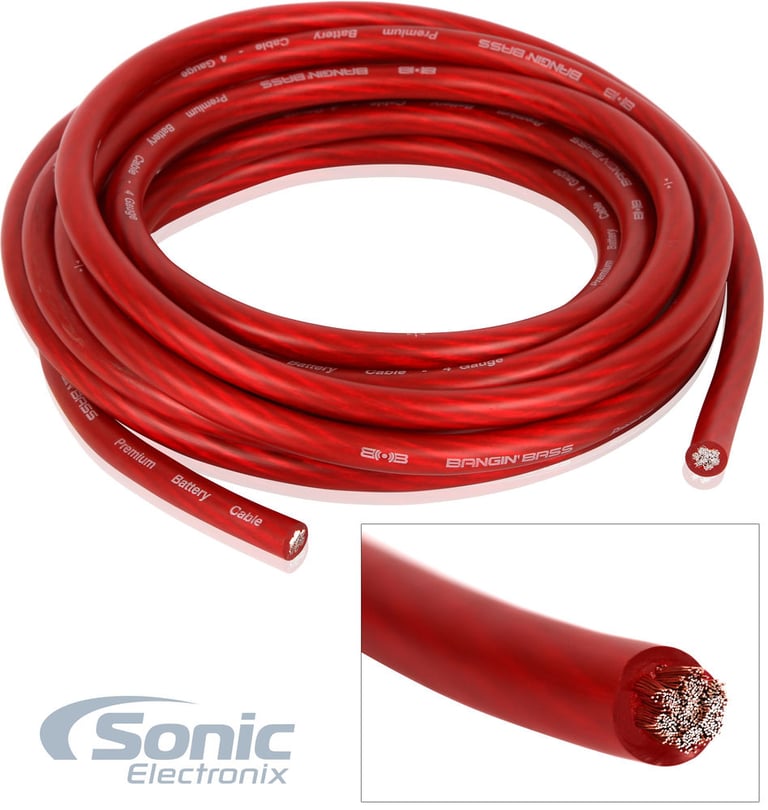

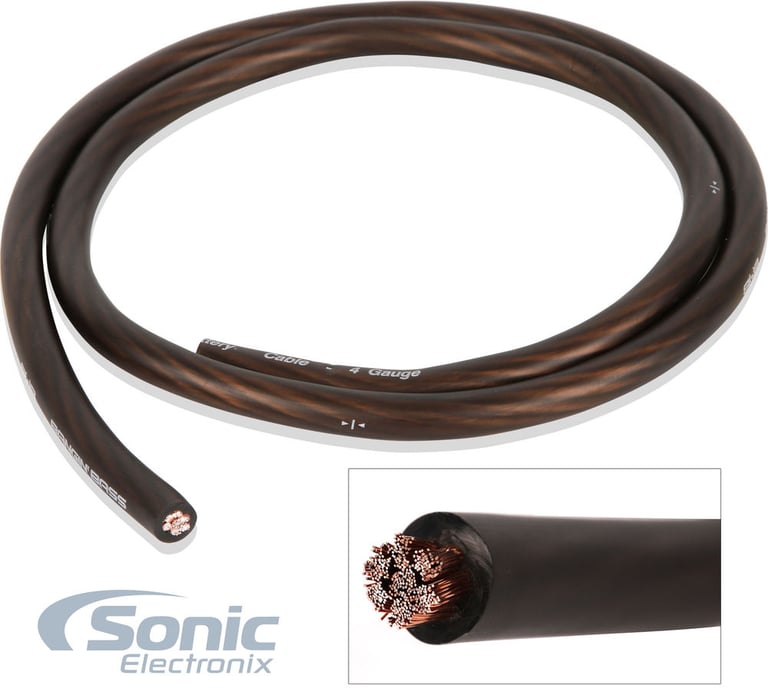

1. 17 ft. (5.2 meters) Black 4 gauge power wire
2. 3 ft. (.91 meters) Silver 4 gauge ground wire

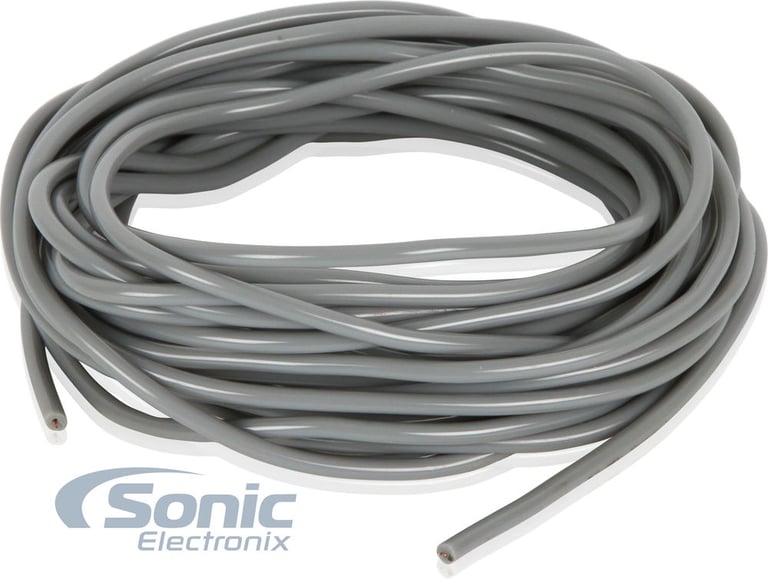

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

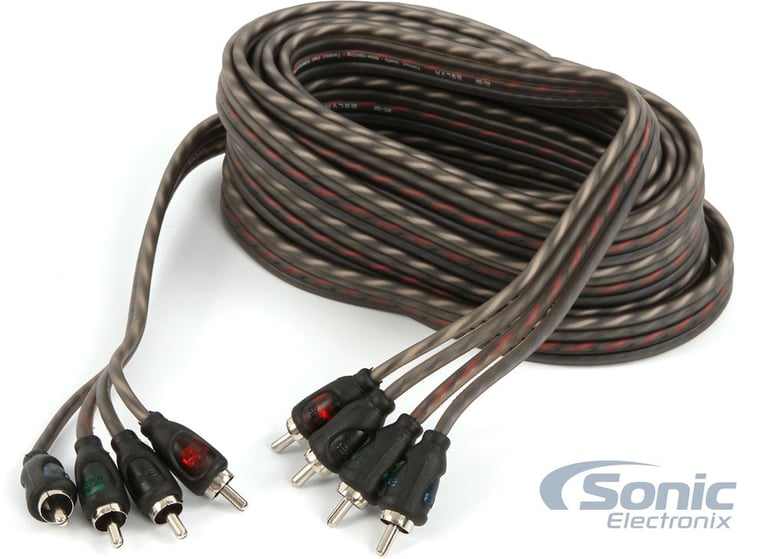

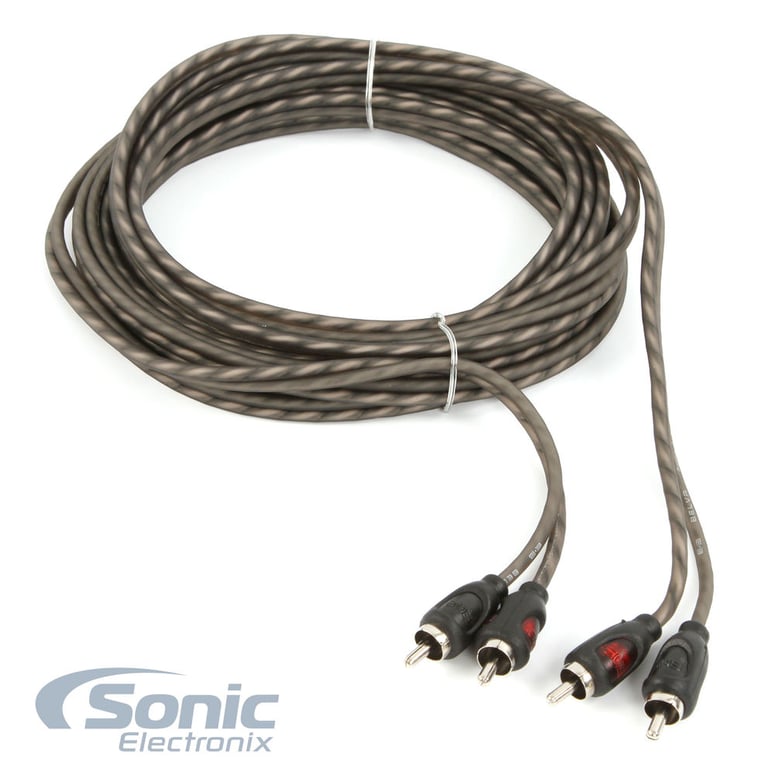

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

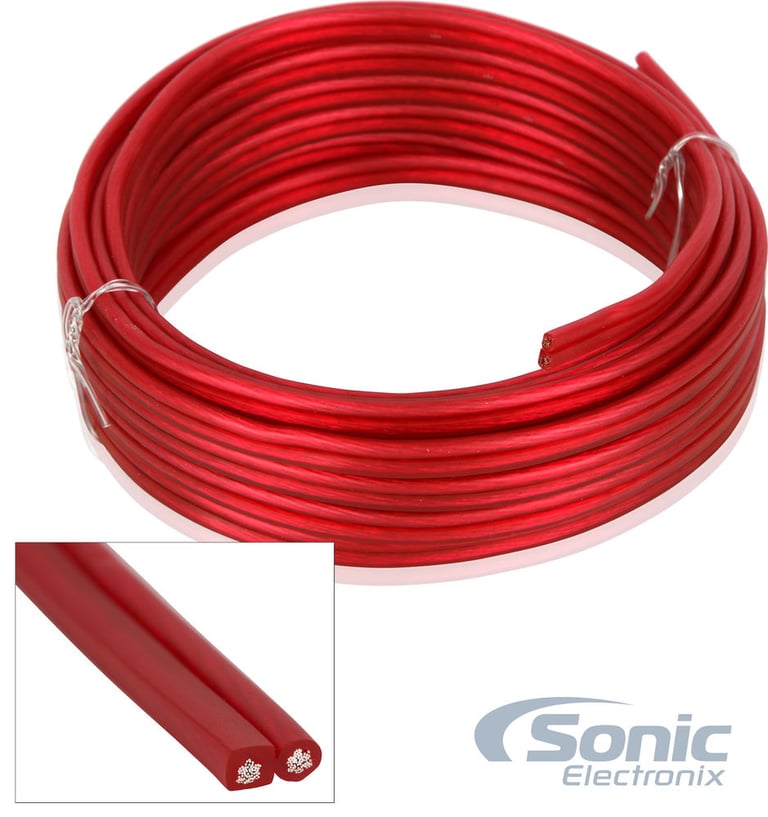

5. 20 ft. (6.1 meters) Speaker cable

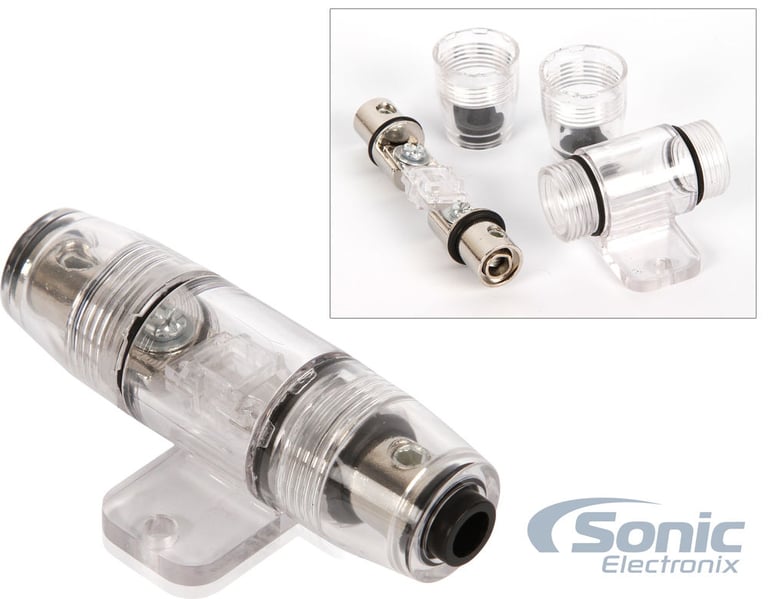

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
